Высококачественная китайская травяная медицина резак машина для нарезки трав

Chop knife slicer

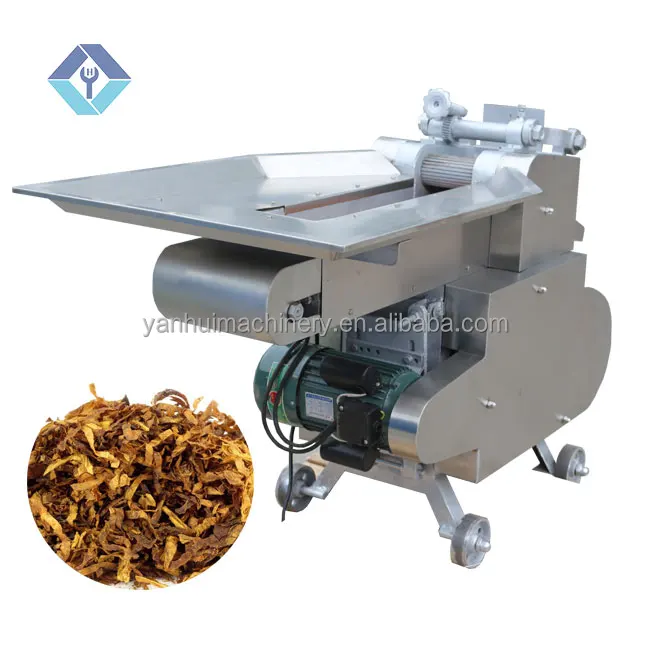

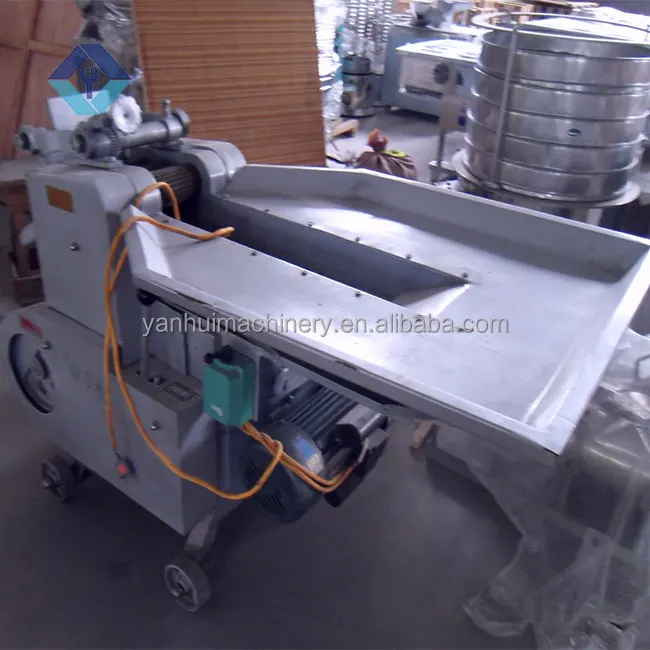

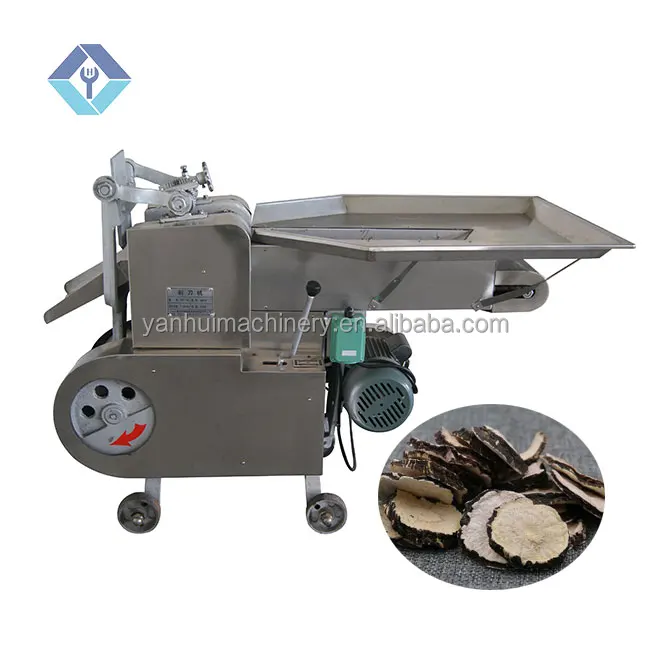

This machine is suitable for cutting Chinese herbal medicine pieces. It can be used for batch production and small batch production of rhizomes, rattans, leaf grasses and other Chinese medicine materials. It can also be used for slicing and shredding materials in food, aquatic, tobacco and other industries. The slices of the medicine cut by this machine are uniform, neat, low consumption and low noise.

Structural features:

This machine is composed of a motor, a variable speed mechanism, a tool post, stepping and unloading, and an adjustable tool post mechanism. Due to the advanced stepping feeding, the cut slices are uniform, and the feeding distance can be controlled freely. Cause the undesirable situation of the material squeezing knife. Due to the reasonable layout, the machine is easy to operate, light in appearance and light in weight. The work of this machine is mainly composed of two parts: conveying and medicine cutting, machinery and so on.

Reciprocating slicer:

Since the power source comes from the same motor, the movement of the transmission part and the cutting part is not only a set of independent systems, but also a closely coordinated and interrelated whole movement. When the eccentric wheel-grooved friction wheel-gear-chain When the movement of the wheel shaft is stepping (feeding medicine), the knife holder is in the movement of the upper edge of the knife door to the upper position and then back down to the upper edge, so the entire knife door is opened, so that the medicine delivery movement can be completed and the eccentric wheel——groove When the type friction wheel-gear-sprocket shaft stops feeding medicine and is in a movement gap (the pendulum rod moves in the opposite direction, the friction block is disengaged), the crankshaft moves from position to the lower position, that is, the tool post moves from the upper knife edge to the lower crossing So as to complete the cutting, and then the eccentric wheel continues to keep the grooved friction wheel in the movement gap, and the crankshaft starts to reverse upward, so that the knife door rises to the upper knife edge. At this time, the knife is fully opened from the knife door, and the eccentric wheel makes the grooved friction disc ——Gear——The sprocket shaft starts to work, and the medicine delivery process is repeated. The two institutions repeatedly cut the pieces into pieces continuously.

 Service before sale

24 hours online to answer questions that you want to know(Whatsapp, wechat, QQ, Skype, Trade Manager, etc), or  you can send email to my email, I will give you a satisfying answer.

Service on sale

1.To provide customers with the new and high quality animal feed pellet machine.

2.Provide pictures that the customer desired about the animal feed pellet machine during production, in the warehouse and before transport.

3.Payment is determined by both parties.

4.Customers to choose the mode of transport.

After-sales services

We offer one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
