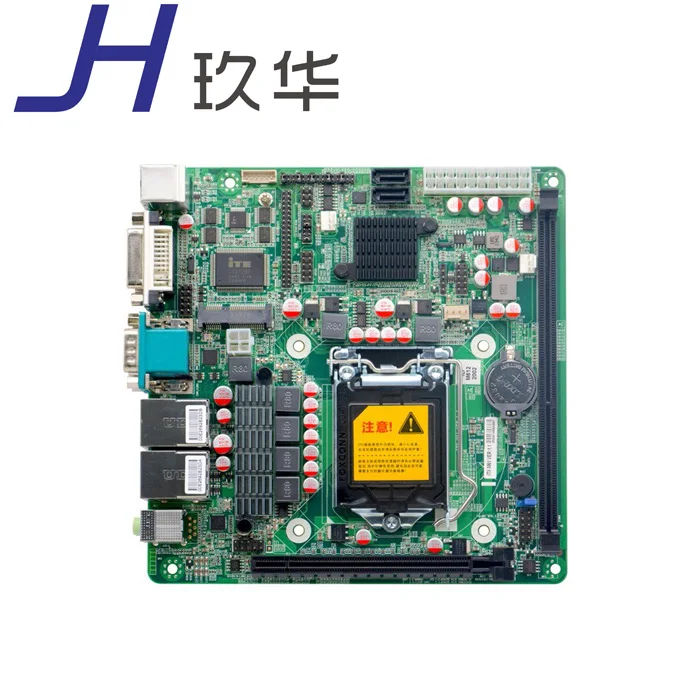

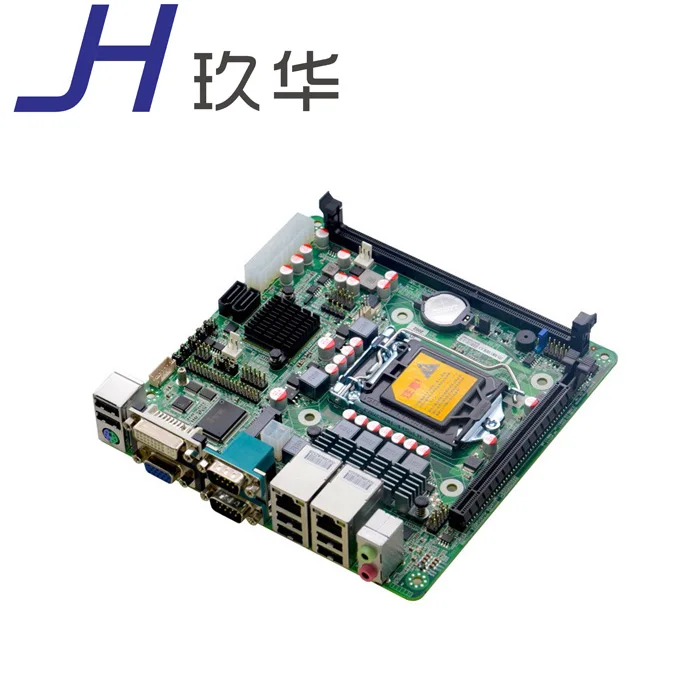

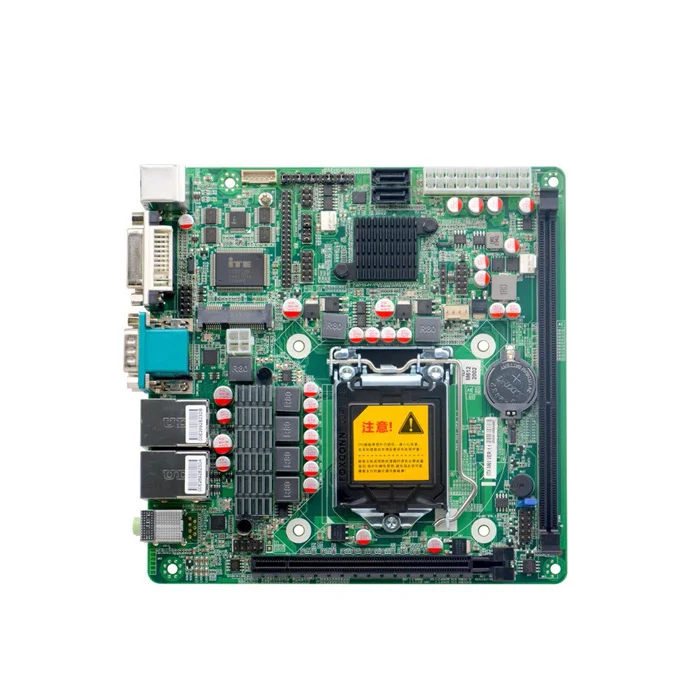

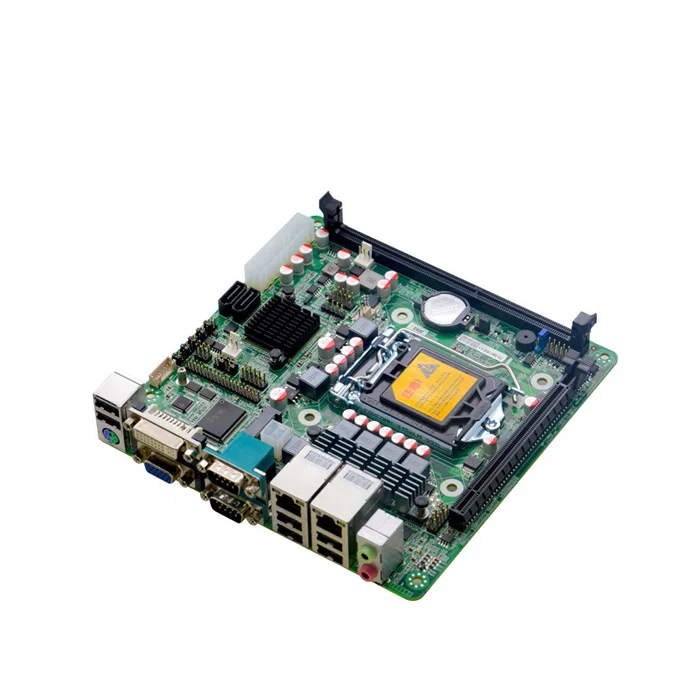

Распродажа Skylake-S i3/i5 core материнская плата 2 DDR4 DIMM h61 1 * VGA

General

CPU

Support LGA1155 Intel® Core™ i3/i5/i7 Pentium 22nm/32nm CPU

Chipset

Intel® H61

Memory

1* DDRIII DIMM slot, support 1600/1333MHz memory , max. up to 8GB

Storage

2* SATAII port, transfer rate up to 6Gbps

Expansion Interface

1* PCI-Express 2.0 16x slot

1* MINIPCIE slot, support SSD /WIFI /USB WIFI , (default is SSD)

BIOS

AMI UEFI BIOS

System

Windows 7/8/10, Linux

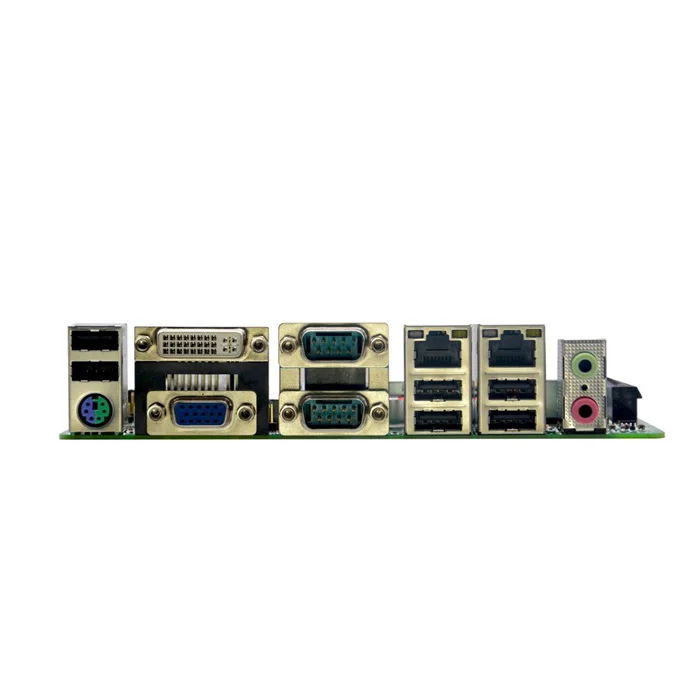

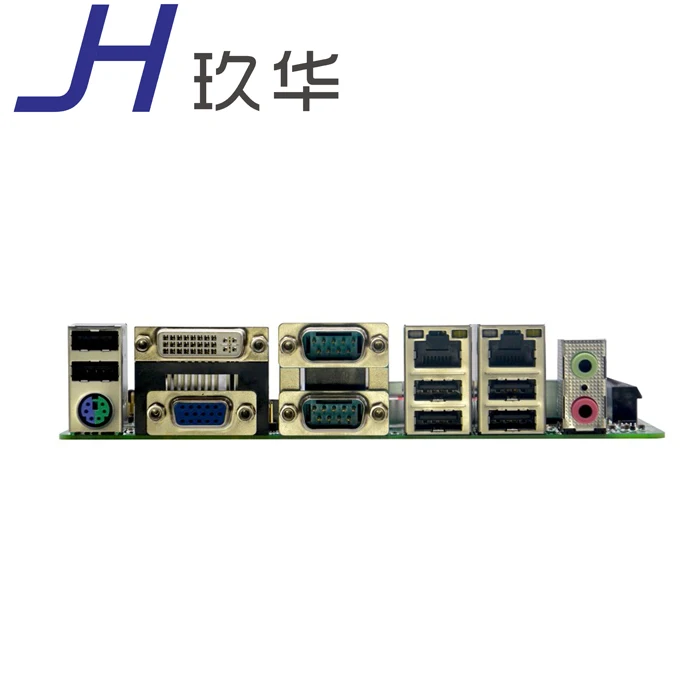

I/O Interface

Ethernet

2* RTL8111E Gigabit LAN controller, support Wake-on-LAN/PXE

Serial

2* DB9 COM port, the 9th pin of COM1 with charged function

4* RS232 COM port  (the 9th pin with charged function)

1* TX-RXCOM RS422/485 interface

USB

6* USB2.0

3* USB2.0

PS/2

1* PS/2( KB&MS)

1* PS/2, KB/MS connector (1*6Pin)

Audio

Integrated ALC662 6-Channel audio controller ,support MIC/Line-out

1* Audio interface (Line out and MIC )

1* AUDIO front panel audio connector (2*5pin)

FAN Interface

1* CPU FAN 4pin; 2* SYSFAN 3pin

GPIO

1* GPIO (Support 4-way GPIO function)

Display

Display Interface

1*VGA,1*DVI

Support VGA;DVI synchronous/asynchronous display

Multiple Display

Dual

Mechanical & Environment

Function

Power on operation,Network wake up,PXE,Watchdog

Dimension

170mm x 170mm

Power Input

1* ATX_20P ATX power socket

ATX power supply

Temperature

Operation: -10℃~60℃, Storage: -20℃~70℃

Relative Humidity

Operation: 10%~90%, Storage: 5%~95%, non-condensing
