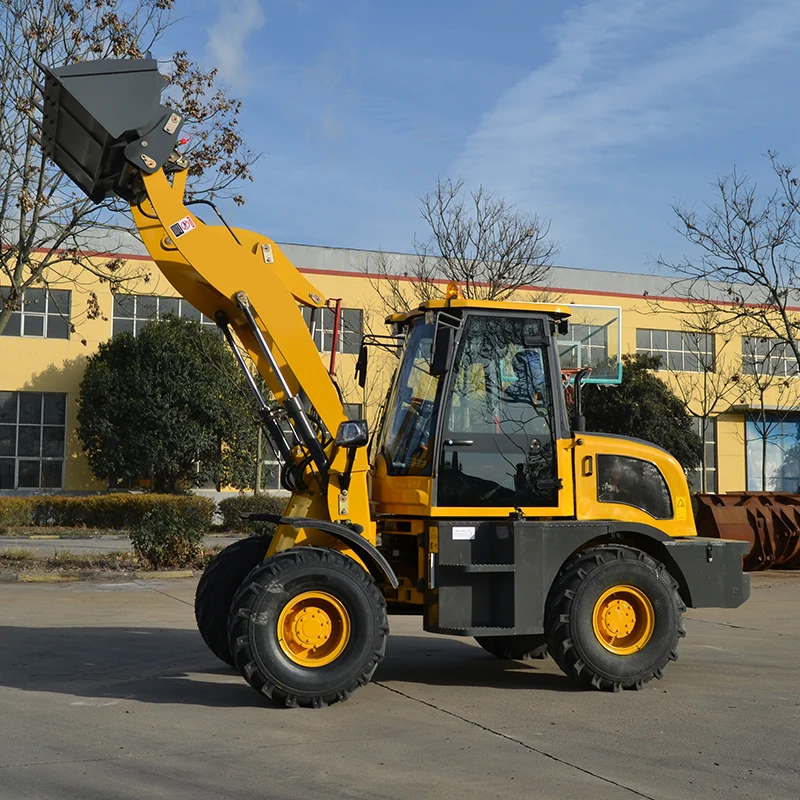

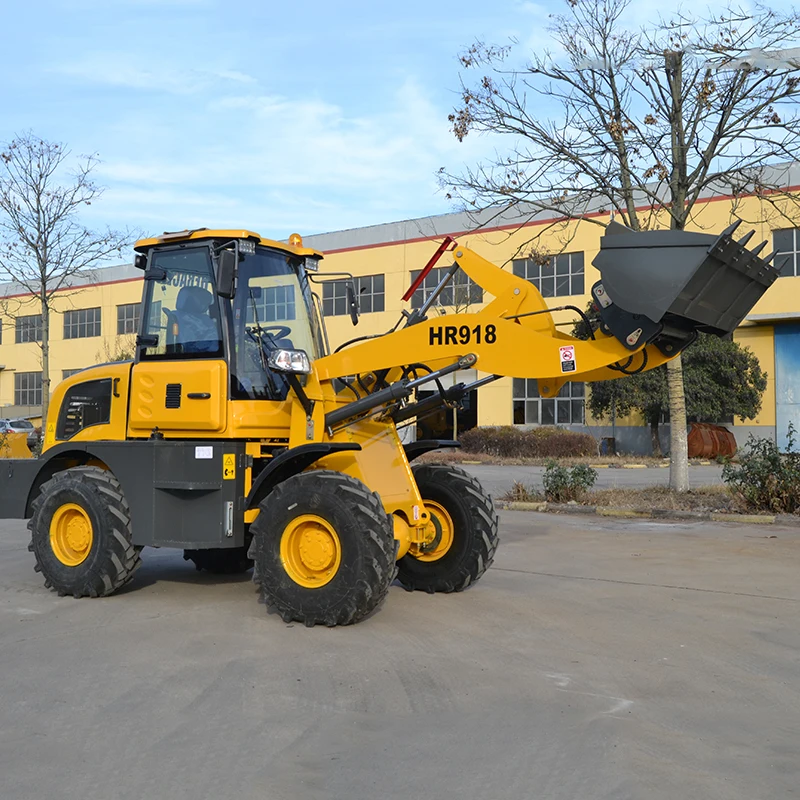

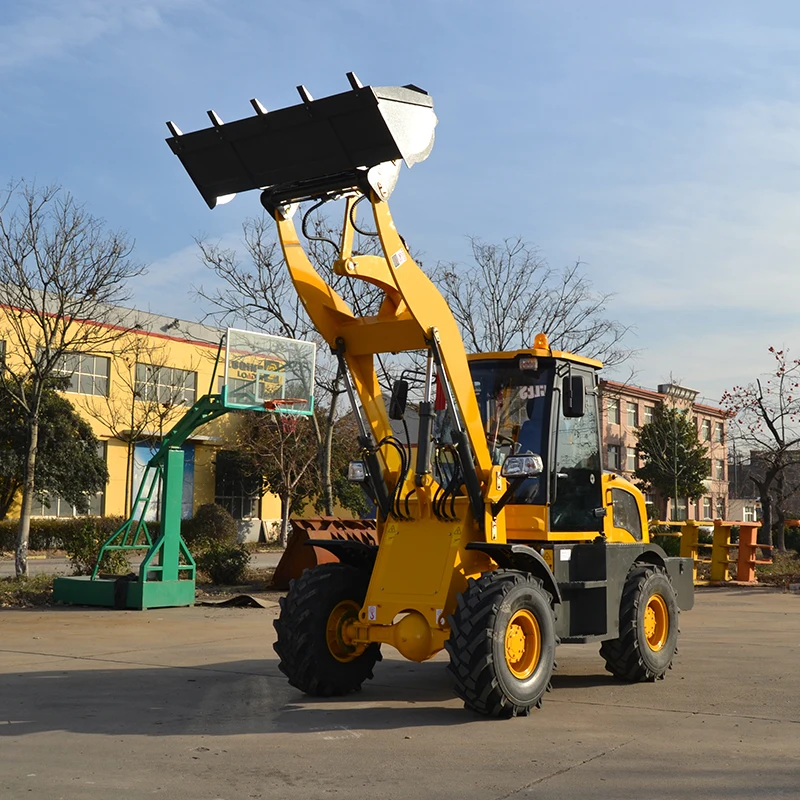

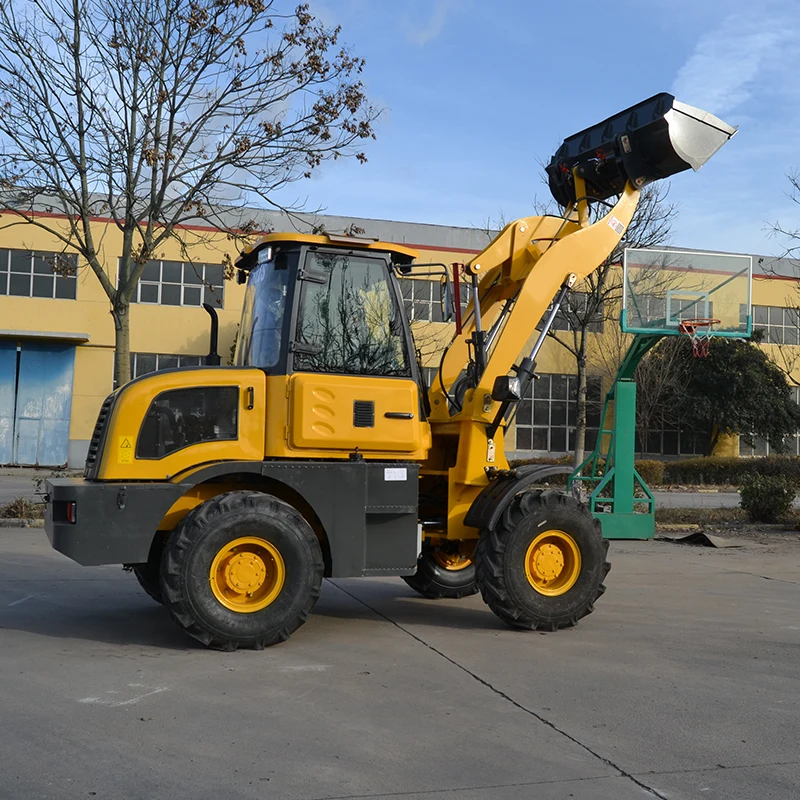

Цены на мини-колесные погрузчики для очень маленьких погрузчиков продажи
- Категория: >>>
- Поставщик: Shandong,Panda,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 9758.96 $* | 10246.51 $* |
| Aug-16-2025 | 9676.14 $* | 10160.24 $* |
| Jul-16-2025 | 8118.4 $* | 8524.6 $* |
| Jun-16-2025 | 9512.21 $* | 9988.24 $* |
| May-16-2025 | 8282.67 $* | 8696.12 $* |
| Apr-16-2025 | 9348.70 $* | 9815.80 $* |
| Mar-16-2025 | 9266.95 $* | 9729.86 $* |
| Feb-16-2025 | 9184.82 $* | 9643.6 $* |
| Jan-16-2025 | 9102.3 $* | 9557.82 $* |
Характеристики
Product Description
Specification
1.0 Engine Details | |
(1) Engine Type: | In-line arrangement,water-cooled,four-cycle diesel engine |
(2) Rated Power: | 58KW |
(3) Rated Speed: | 2400 r/min(rpm) |
(4) Optional Model: | (36.8KW,Euro 3 and EPA Certificate,with air pump) |
2.0 Transmission System | |
(1) Type: | Fixed-spindle power shift |
(2) Shift gear control oil pressure | 1.2-1.5 MPa |
(3) Rated input speed: | 2500(rpm) |
3.0 Bucket | |
(1) Bucket capacity: | 0.63m3 |
(2) Bucket Width: | 2000mm |
(3) Bucket type: | Heavy-duty bolt on teeth |
(4) Max.Breakout Force: | 36.8KN |
(5) Rated load: | 1800kg |
(6)Operating Weight | 4500kg |
4.0 Overall Dimensions | |
(1) Overall length(bucket on ground) | 5300mm |
(2) Overall Height(Ground to cab top): | 2550mm |
(4) Dumping height: | 2700mm |
(5) Min.base to the ground | 275mm |
(6) Overall width | 1800mm |
5.0 Operating Specifications | |
(1) Steering system: | Articulated frame with hydraulic power steering |
(2) Min.turning radius: | 5200mm |
(3) Driving system: | Hydraulic converter |
6.0 Brake System | |
(1) Service Brake | Four wheel hydraulic spread-shoe brake |
(2) Parking Brake | Hand operated |
7.0 Tyre | |
(1) Standard Tyre | 23.5/70-16 Agricultural Tyre |
(2) Optional Tyre | 14-17.5 Tyre |
8.0 Wheelbase | 1520mm |
9.0 Track: | 1500mm |
Packing & Shipping
Packaging:
1,Standard seaworthy packing suitable for long-distance transportation.
2,Inner packing of stretch film and the transportation packing of wooden case
3,All of the productions are inspected carefully one by one by QC before delivery.
Delivery Time:
1,Conventional products:5-7 working days after prepaid payment received.
2,Customized products: 10-30 days according to detail request.
Min.Order:
1,We can provide customized service for a min. order quantity of 1 unit.
2,Large quantity order price will be more favorable.
Payment:
A various of payment terms are optional, guarantee 100% payment security.
1,Standard seaworthy packing suitable for long-distance transportation.
2,Inner packing of stretch film and the transportation packing of wooden case
3,All of the productions are inspected carefully one by one by QC before delivery.
Delivery Time:
1,Conventional products:5-7 working days after prepaid payment received.
2,Customized products: 10-30 days according to detail request.
Min.Order:
1,We can provide customized service for a min. order quantity of 1 unit.
2,Large quantity order price will be more favorable.
Payment:
A various of payment terms are optional, guarantee 100% payment security.
About us
Jining panda construction machinery co.,Ltd.founded in 1989,. We are mainly produce and sell Large and medium-sized Excavators,Wheel Loaders, Road Rollers, Bulldozers, Heavy Trucks, Special Equipment Vehicles, Mini excavators,Wheel Loaders,Road Rollers, Telescopic Boom Loader, Backhoe Loader and Etc .
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.
Product application widely use in the area below: railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
Since establishment, the company has been worked for import and export, based in China with agents in Russia, South Africa, UAE, Brazil and other countries. Our products are sold to more than 90 countries and regions such as Asia, Europe, Africa, Oceania, and South America, and establish long-term good partnerships with customers in many countries in the world.
Product application widely use in the area below: railway, highway, airport, port, bulk cargo flow, mine, gravel field, municipal, industrial application, agriculture and animal husbandry, farmland transformation, water conservancy and hydropower, sanitation and garbage disposal, coal yard, energy power plant, Environmental protection and desert management, forest, logging, and other application conditions, such as road construction, site preparation, material handling, etc.
FAQ
1. What’s your MOQ?
Minimum order is 1 pcs only, dealership is warmest welcome.
2.What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3.Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
Minimum order is 1 pcs only, dealership is warmest welcome.
2.What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3.Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
