Манометр для воздушного компрессора Yong heng
US $8.00-$16.00
Масляный воздушный водяной сепаратор фильтр сжатого воздуха для воздушного компрессора поршневой
- Категория: Industrial Compressor Parts >>>
- Поставщик: Shanghai,Sunwin,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 38.3 $* | 40.43 $* |
| Aug-17-2025 | 38.85 $* | 40.33 $* |
| Jul-17-2025 | 32.24 $* | 34.12 $* |
| Jun-17-2025 | 37.67 $* | 39.68 $* |
| May-17-2025 | 32.62 $* | 34.64 $* |
| Apr-17-2025 | 36.70 $* | 38.33 $* |
| Mar-17-2025 | 36.81 $* | 38.23 $* |
| Feb-17-2025 | 36.13 $* | 38.24 $* |
| Jan-17-2025 | 36.92 $* | 38.18 $* |
Характеристики
Product Description
Oil Air Water Separator Compressed Air filter for Air Compressor Piston Screw Compressor
Why Install Compressed Air Filters?
1.Reduce production cost
2.Reduce production reject rate
3.Reduce breakdown of pneumatic system
4.Reduce production down time
5.Improve production quality
6.Improve productivity
7.Improve efficiency of compressed air system
2.Reduce production reject rate
3.Reduce breakdown of pneumatic system
4.Reduce production down time
5.Improve production quality
6.Improve productivity
7.Improve efficiency of compressed air system
Compressed air quality is essential to all modern production facilities.
Compressed air filters, often referred to as line filters, are used to remove these contaminates from compressed air.
Clean and dry air protects the compressed air system, reduces maintenance costs and increases finished product quality.
• Capacity : 6.5 m³/min (228 Scfm)
• Max. pressure : 16 bar
• Max.working temperature:80℃
• Differential pressure: 0.07 bar
•Filter element service: 6000 hours
•Air filter with differential pressure indicator and sight glass
• Filter housing internal with anti-corrosion treatment.
• Max. pressure : 16 bar
• Max.working temperature:80℃
• Differential pressure: 0.07 bar
•Filter element service: 6000 hours
•Air filter with differential pressure indicator and sight glass
• Filter housing internal with anti-corrosion treatment.
Filter housing internal with anti-corrosion treatment.
Robust aluminium housing withstand 16 bar pressure.
1.Provide 5 grades support to different applications.
2.Optional accessories:
*Differential pressure indicator
*External auto drainer
Applications :
•general industrial applications
•automotive
• electronics
• food and beverage
• chemical
• petrochemical
• plastics
•automotive
• electronics
• food and beverage
• chemical
• petrochemical
• plastics
Separator Filter
(Grade C)
Air Line Filter
(Grade T)
High Efficiency Oil Removal Filter
(Grade A)
Ultra high efficiency oil removal filter
(Grade AA)
Oilvapor removal filter
(Grade H)

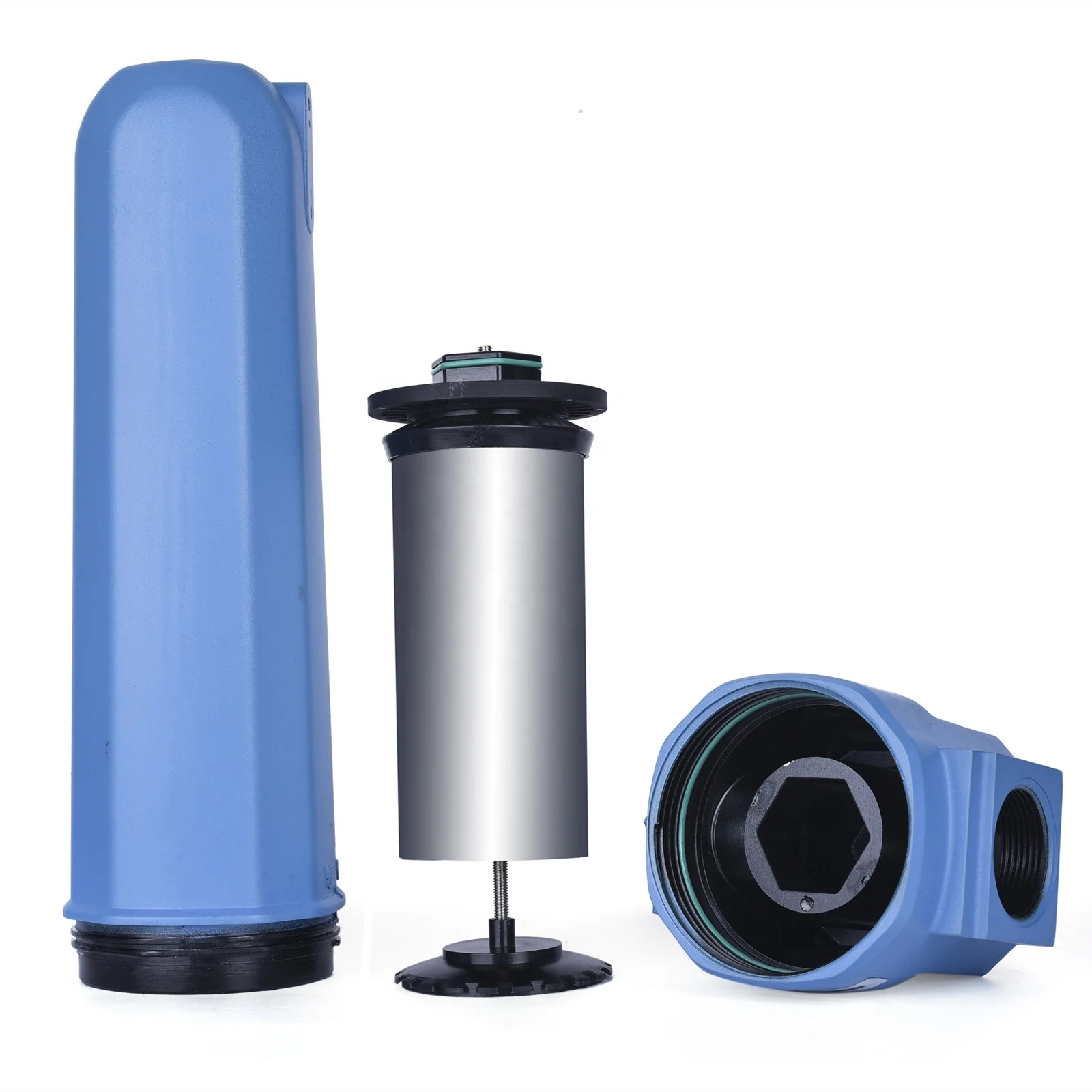

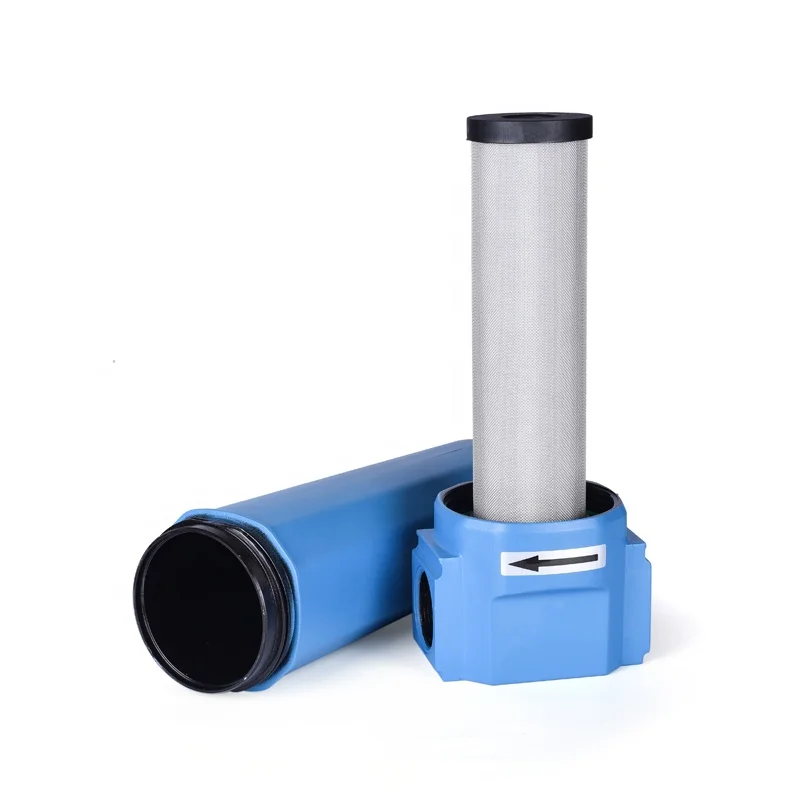

The elements of compressed air filter structure:
A: Special plastic material resistant to high temperatures and guaranteed the elements installation is stable and durable.
B: Stainless steel mesh: High filtration surface area with low differential pressure loss.
C: Strong Filter Media: Small pressure drop plus able to trapped large amount of particles.
D: Stainless steel mesh.
E: High temperature resistance and strong corrosion resistance of condensed layers.
Product Paramenters
Model | Capacity | Air Connections | Dimensions(mm) | Weight | ||||||
Nm3/min | Inch | A | B | C | D | KG | ||||
AWC/T/A/AA/H- 001 | 1.4 | Rc1" | 100 | 270 | 220 | 180 | 1.4 | |||
AWC/T/A/AA/H- 002 | 2.4 | Rc1" | 117 | 293 | 270 | 230 | 1.9 | |||
AWC/T/A/AA/H- 003 | 3.8 | Rc1.5" | 133 | 330 | 307 | 260 | 3 | |||
AWC/T/A/AA/H- 006 | 6.5 | Rc1.5" | 133 | 428 | 405 | 365 | 3.4 | |||
AWC/T/A/AA/H- 008 | 8.5 | Rc1.5" | 133 | 428 | 405 | 365 | 4 | |||
AWC/T/A/AA/H- 010 | 10.7 | Rc2" | 195 | 555 | 532 | 490 | 5.7 | |||
AWC/T/A/AA/H- 013 | 13.5 | Rc2" | 195 | 555 | 532 | 490 | 6 | |||
AWC/T/A/AA/H- 015 | 18 | Rc2" | 205 | 810 | 780 | 740 | 12 | |||
AWC/T/A/AA/H- 020 | 22 | Rc2.5" | 205 | 810 | 780 | 740 | 13 | |||
AWC/T/A/AA/H- 030 | 35 | Rc3" | 450 | 1164 | 1130 | 933 | 18 | |||
Our Company
We are a manufacturing and trading combo specialize in compressed air drying and purification equipment for more than 15 years at this field. We have a professional technical team, which can provide professional and reasonable suggestions and technical support according to various customer needs, production needs and site conditions.
Our products are sold to more than 40 countries, including the United States, Germany, Australia, Japan and South Korea.We have full experience in exporting our machines to Southeast Asian market.Our products have passed the latest CE and ISO certificates.
