220 В Вибрационный двигатель для машины
US $22.00-$45.00
SCB1234L-16F супер мини-Электрический Вибрационный двигатель постоянного тока используемый в умных
- Категория: >>>
- Поставщик: Guangdong,Saibow,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.29 $* | 1.22 $* |
| Jul-18-2025 | 1.6 $* | 1.18 $* |
| Jun-18-2025 | 1.24 $* | 1.89 $* |
| May-18-2025 | 1.13 $* | 1.56 $* |
| Apr-18-2025 | 1.11 $* | 1.48 $* |
| Mar-18-2025 | 1.45 $* | 1.12 $* |
| Feb-18-2025 | 1.8 $* | 1.52 $* |
| Jan-18-2025 | 1.48 $* | 1.24 $* |
Характеристики
SCB1234L-16F Super Mini Size Electric dc Vibrating motor Used in Smart Watch
Product Description

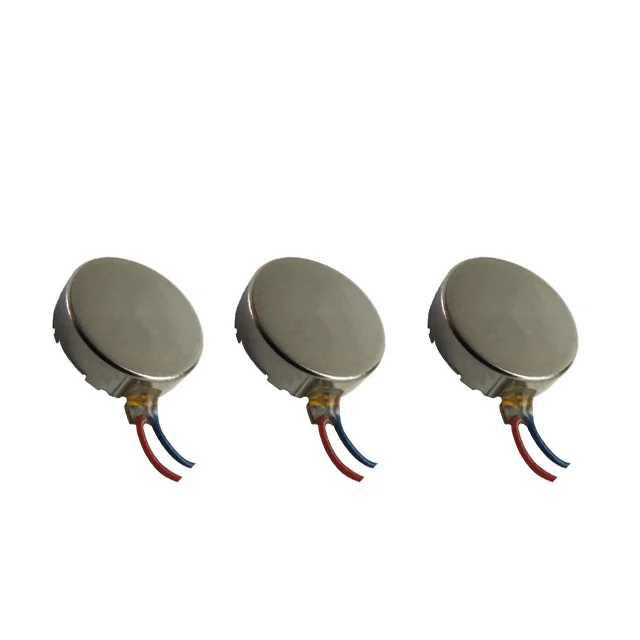

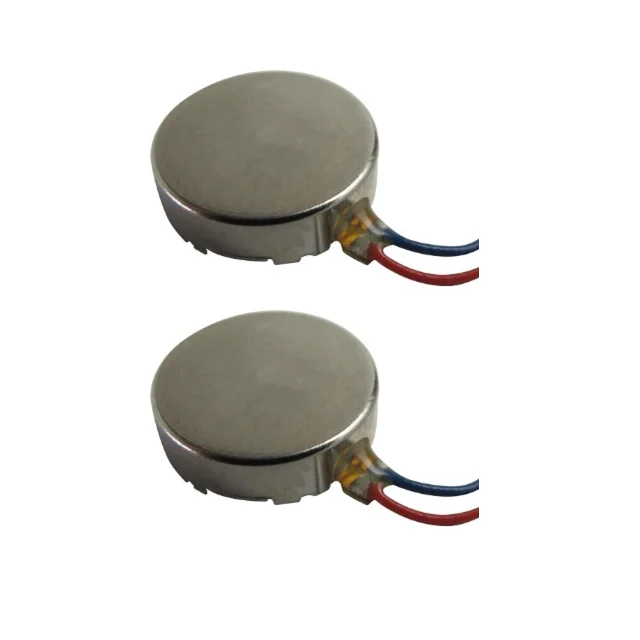

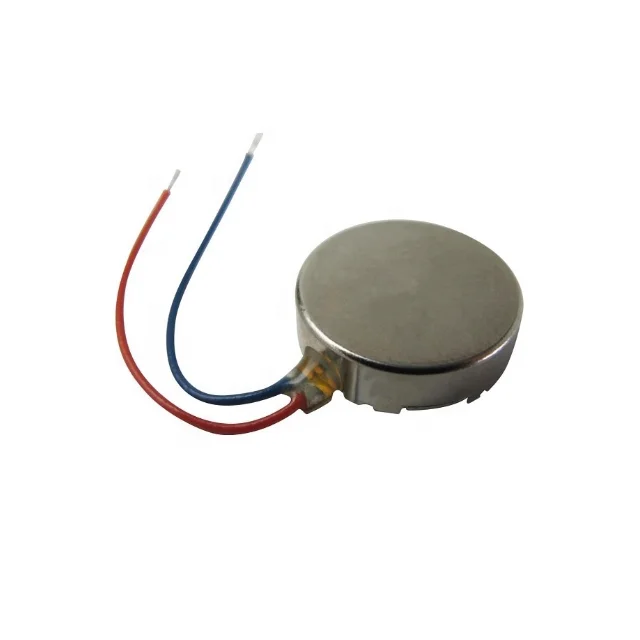

The 12mm coin motor has the largest diameter and thickness of any coin motor in production. The SCB1234L-16F generates the highest G force of any coin vibration motor we manufacture. We can add a wide range of connectors to its wire leads. This 12mm coin motor is supplied with a self adhesive double stick tape which can be used to permanently secure the coin motor to the PCB or wall of your devices housing.
Electrical Date
Show Me All Products (Shown below are only six models of them：SCB0625L-01L; SCB0825L-02F; SCB1020F-01F; SCB1026L-02F; SCB1034F-40D; SCB1234L-16F. If you want to know about other models, please email us.)
SAIBOW P/N | Tech. Type | Motor Size | Voltage | Current | Response Time | Rated speed (rpm) | Vibe Force (G) | ||||
Dia (mm) | Thickness (mm) | Operating | Rated (ma) MAX | Rise Time (ms) | Fall Time (ms) | ||||||
SCB0625L-01L | BRUSH | 6 | 2.5 | 2.5~3.5 Vdc | 100 | 90 | 50 | 10,000 | 0.4 | ||
SCB0825L-02F | BRUSH | 8 | 2.5 | 2.7~3.3 Vdc | 85 | 90 | 50 | 13,500 | 0.7 | ||
SCB1020F-01F | BRUSH | 10 | 2 | 2.7~3.3 Vdc | 90 | 90 | 50 | 9,000 | 1.1 | ||
SCB1026L-02F | BRUSH | 10 | 2.7 | 2.7~3.3 Vdc | 85 | 90 | 50 | 9,000 | 0.8 | ||
SCB1034F-40D | BRUSH | 10 | 3.4 | 2.7~3.3 Vdc | 80 | 90 | 50 | 12,000 | 1.6 | ||
SCB1234L-16F | BRUSH | 12 | 3.4 | 2.7~3.3 Vdc | 80 | 90 | 50 | 9,000 | 2 | ||
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.
Mechanical Tear Down Of Coin Vibration Motor

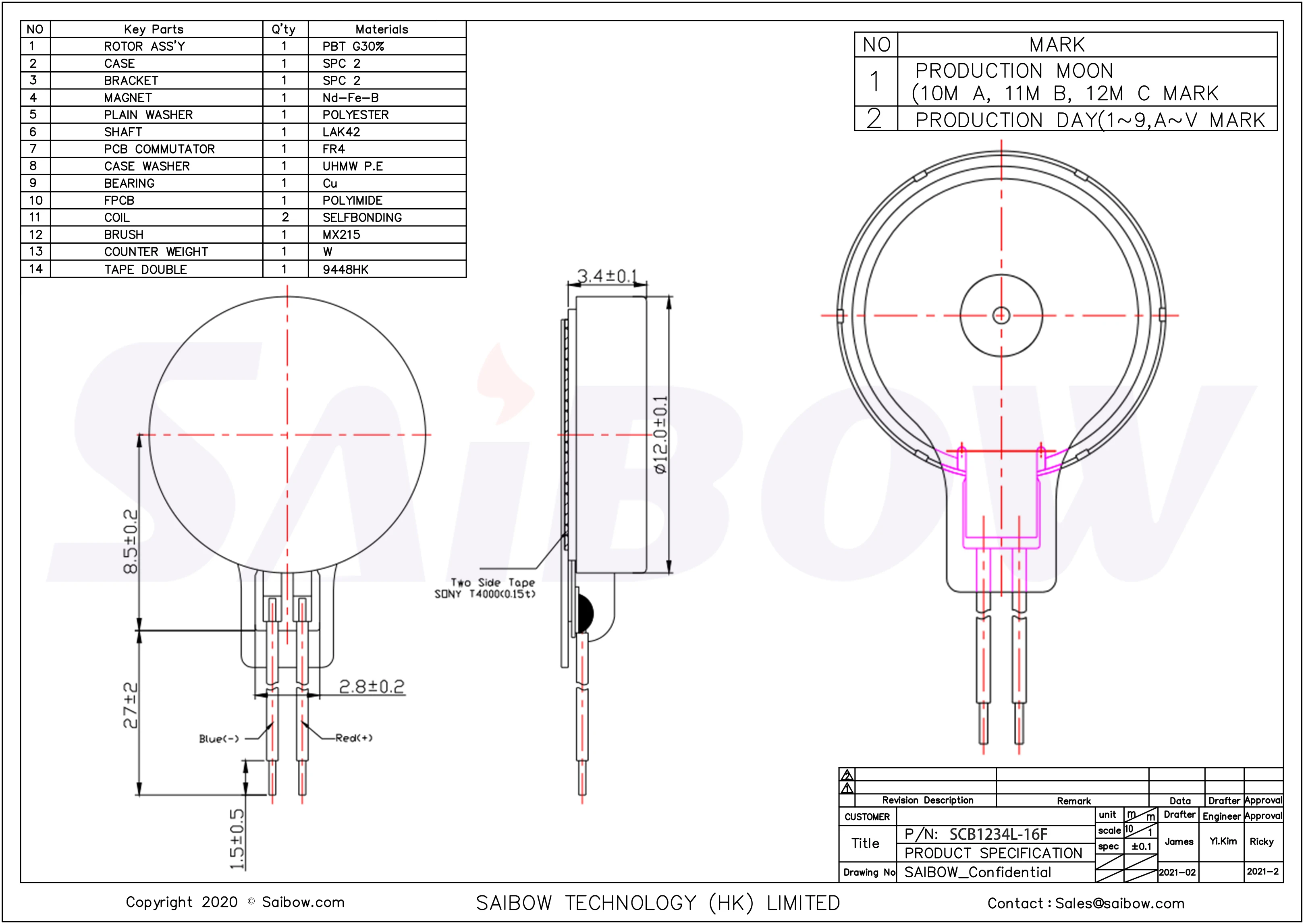

Product Drawing:
The adhesive sponge or adhesive tape could be removed. Connectors could be added to the lead wires. Please negotiate before making samples for any specific requirements.
APPLICATIONS:
You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.
Company Profile
SAIBOW is based on Hong Kong and other emerging industrial markets in the Pearl River Delta, specializing in high-end automotive electronic products, communications mech-
anical and electrical parts of technical research and development, production and sales, international trade as one of the multinational enterprises, consumer comm-unications smart wearable electronic products, to provide domestic and foreign customers with high quality and cheap micro motors, Micro Camera modules, car speakers and smart audio, smart wearable watch (Smart Watches).
"pioneering and innovative, positive and enterprising, teamwork, professional and pragmatic", SAIBOW is willing to establish a friendly and honest partnership with all customers, and sincerely welcome new and old customers to work hand in hand to strive for win-win, and seek sustainable development of the cause.
Production Workshop
Certificate
Payment & Shipping
● Trade Assurance: The first order, we suggest you to use Trade Assurance.
● T/T: If stocks, 100% payment before shipping; if customized order, 30% deposit deposit before production and balance 70% should be paid before delivery.
● Western Union, Money Gram, Paypal, all available.
● L/C: for large order.
● In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
● Large order: by air or sea, you could choose it.
● If you have your own forwarder, please tell us the detailed information.
MOTOR TRANSPORT
OCEAN SHIPPING
AIR TRANSPORT
