Product Description

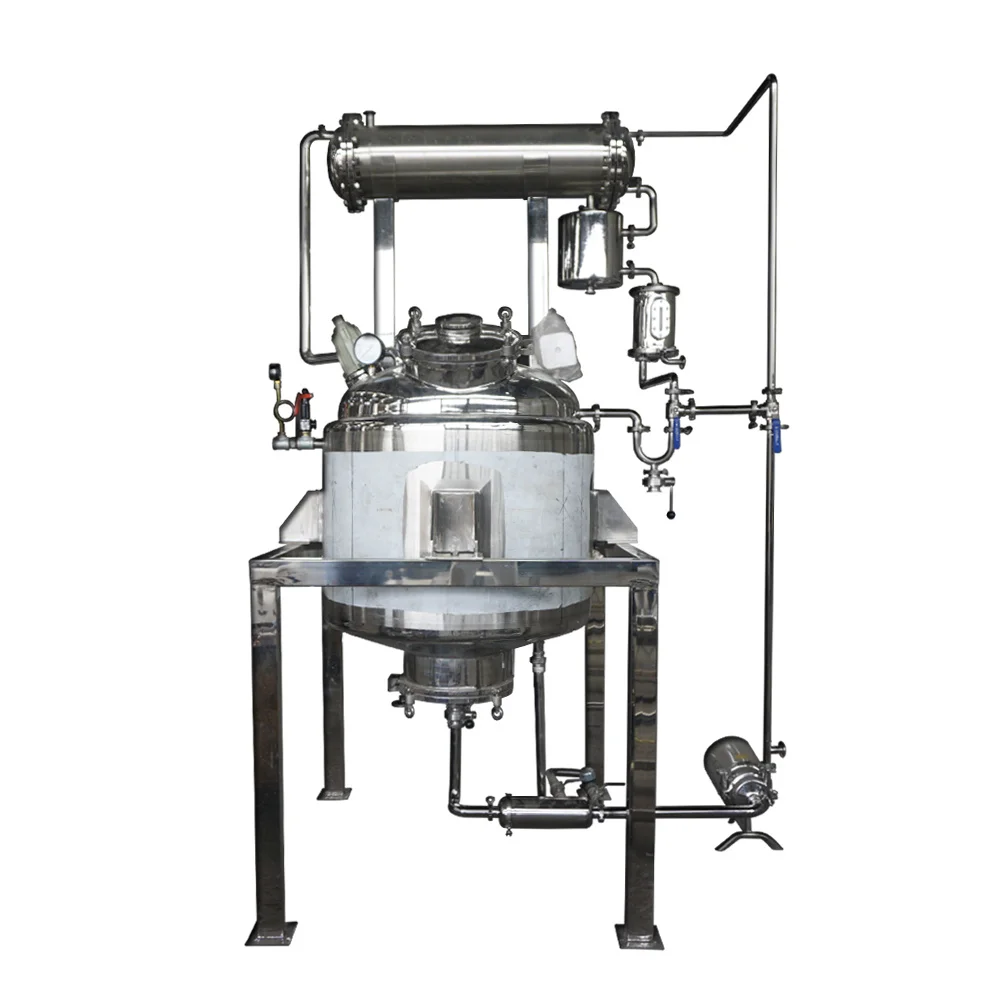

Extraction tank introduction
Extraction tank can also be called heat reflux extraction tank, which is a multi-purpose equipment for cooking and lifting process design through heat exchange. Liquid separation, alcohol recovery and volatile oil separation can be realized in the extraction tank. In addition to the main equipment of the extraction tank, the equipment also has foam trap, cooler, oil-water separator and so on.
Common application:pharmaceutical, biological, food, chemical and other industries, often used in the extraction of effective ingredients of Chinese herbal medicine and aromatic oil, is a common equipment in the production of traditional Chinese medicine, but also used in the extraction of active ingredients of animals and plants and essential oils of plants.
Specification/Model | TQ-500 | TQ-1000 | TQ-2000 | TQ-3000 | TQ-5000 | TQ-6000 |
Volume（L） | 500 | 1000 | 2000 | 3000 | 5000 | 6000 |
Jacket working pressure（MPa） | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 | 0.25 |
Inner cylinder working pressure(MPa） | ordinary pressure | ordinary pressure | ordinary pressure | ordinary pressure | ordinary pressure | ordinary pressure |
Heating area（m2） | 2.7 | 3.6 | 5.0 | 6.5 | 8.5 | 10 |
Condensation area（m2） | 3 | 4 | 5 | 8 | 8 | 8 |
Cooling area（m2） | 0.5 | 0.5 | 1 | 1 | 1 | 1.5 |
Steam consumption（kg/h) | 65 | 115 | 230 | 345 | 570 | 680 |
Cooling water consumption（t/h） | 3 | 4 | 5 | 8 | 8 | 8 |
Diameter of slag discharge door（mm） | 600 | 800 | 800 | 800 | 1000 | 1000 |
Size（m） | 1.5x1.5x4 | 3x3x5 | 3x3x6.2 | 3x3x6.5 | 3.5x3.5x7 | 4x4x7 |
How to customized your product? Pls inform us the specification as below: | |||
Capacity | such as 600L,800L etc.. | ||
Placement structure | Vertical, tilting,etc.. | ||
Material | SS304,SS316L,etc.. | ||
Mixing device | YES or NOT? | ||
Heating mode | steam heating ,electric heating (extraction tanks greater than 1000 L can not be electrically heated) | ||
Parameter of electric machine | If there is a mixing device. Need to confirm including voltage frequency phase number (e.g. AC380V/50HZ/3PH), power (e.g .0.55W), rotational speed (e.g .36 RPM), explosion-proof (depending on whether the material has explosive component) | ||
Size | For example, specify not more than height, or specify not more than diameter, or specify length and width, etc.. | ||
Jacketed pressure | If steam is heated, confirm steam pressure, such as 3 bar | ||
Accessories | Safety valves, pressure gauges, discharge valves, etc | ||
If you don't know the requirements, you can provide your material name and characteristics, we calculate and design according to the experience of previous customers. | |||
CONTACT US
Whatsapp/Mob: +86 18936889762; Email: gaoyuu@njbangwin.com
Production Equipment
Project Cases

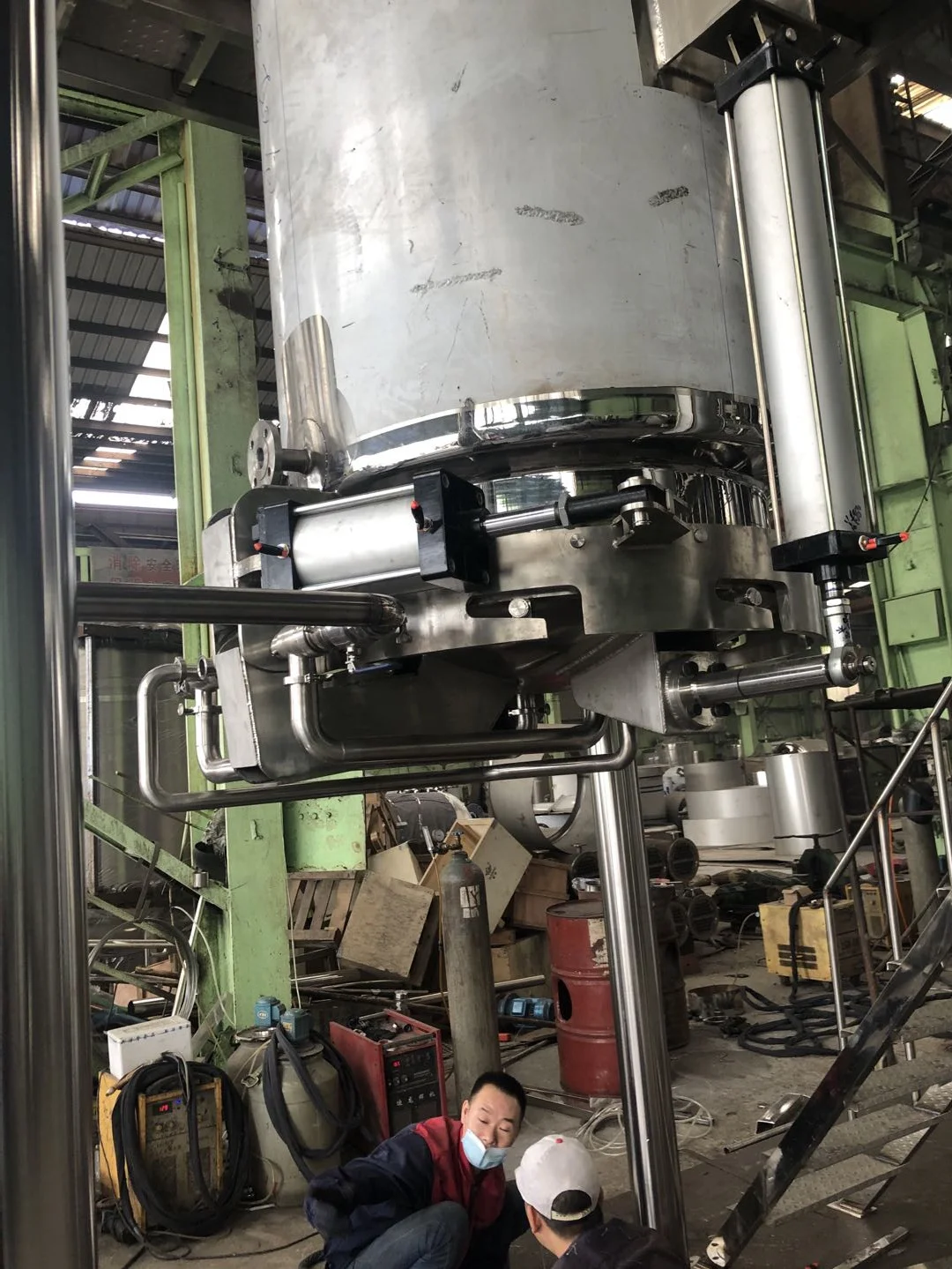

Our Factory
Production Process
FAQ
1.Q:Are you trade or manufacturer ?
A : We are a factory with an international sales company specialized in support for global distributors.
2.Q:How long is the service time?
A:It could use several year without external force factors.We have 1 year warranty.
3.Q:What is the payment terms?
A:We accept T/T and L/C,also can use alibaba trade assurance.
4.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customers).
5.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
A : We are a factory with an international sales company specialized in support for global distributors.
2.Q:How long is the service time?
A:It could use several year without external force factors.We have 1 year warranty.
3.Q:What is the payment terms?
A:We accept T/T and L/C,also can use alibaba trade assurance.
4.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customers).
5.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
