3 оси контрольная карта system axis CNC usb-пду 0501 DSP контроллер для ЧПУ Ручка дистанционного английская
- Категория: CNC Controller >>>
- Поставщик: Shenzhen,Liyang,Engraving,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.8 $* | 0.85 $* |
| Aug-18-2025 | 0.37 $* | 0.1 $* |
| Jul-18-2025 | 0.69 $* | 0.19 $* |
| Jun-18-2025 | 0.86 $* | 0.75 $* |
| May-18-2025 | 0.18 $* | 0.54 $* |
| Apr-18-2025 | 0.2 $* | 0.50 $* |
| Mar-18-2025 | 0.93 $* | 0.71 $* |
| Feb-18-2025 | 0.26 $* | 0.56 $* |
| Jan-18-2025 | 0.92 $* | 0.29 $* |
Характеристики

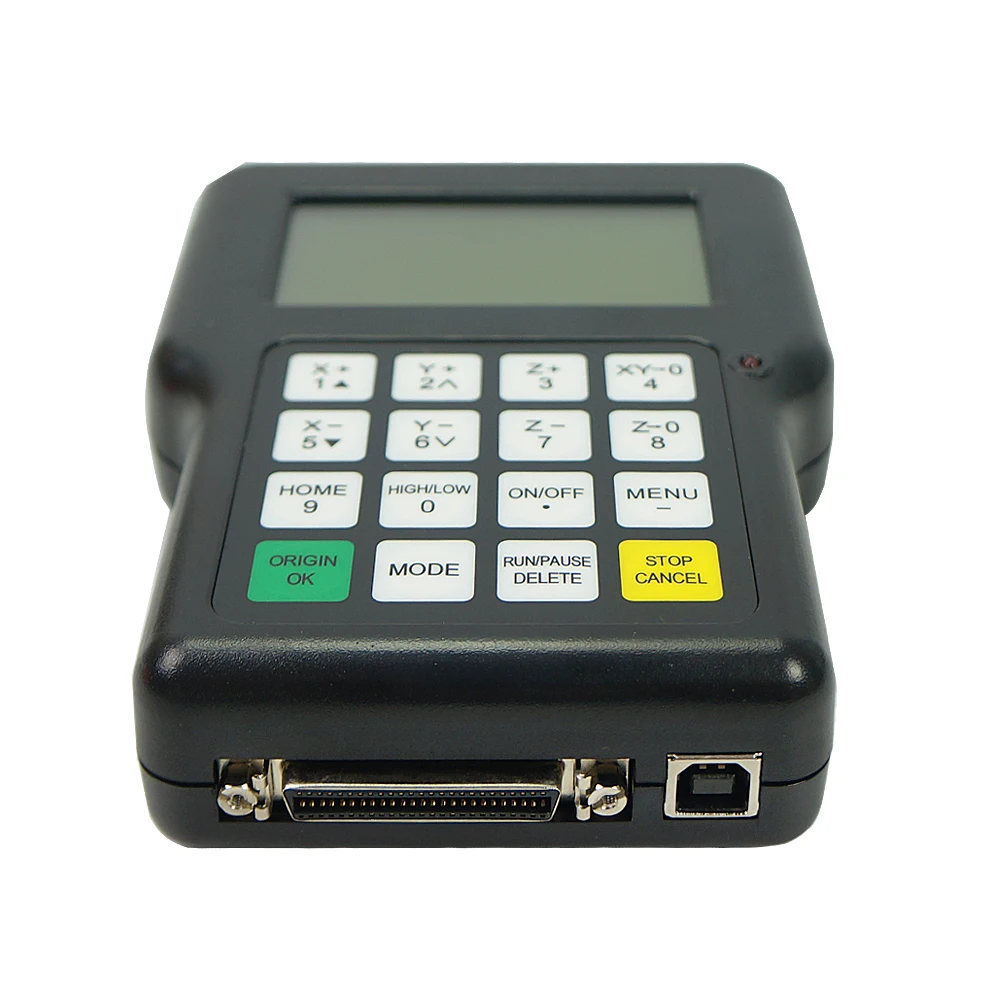

0501 DSP Controller 3axis control card system 3 Axis USB Controller Remote for CNC router handle remote English version
Хорошие новости для российских клиентов:
Нет необходимости платить налог
package including these files, easy for use

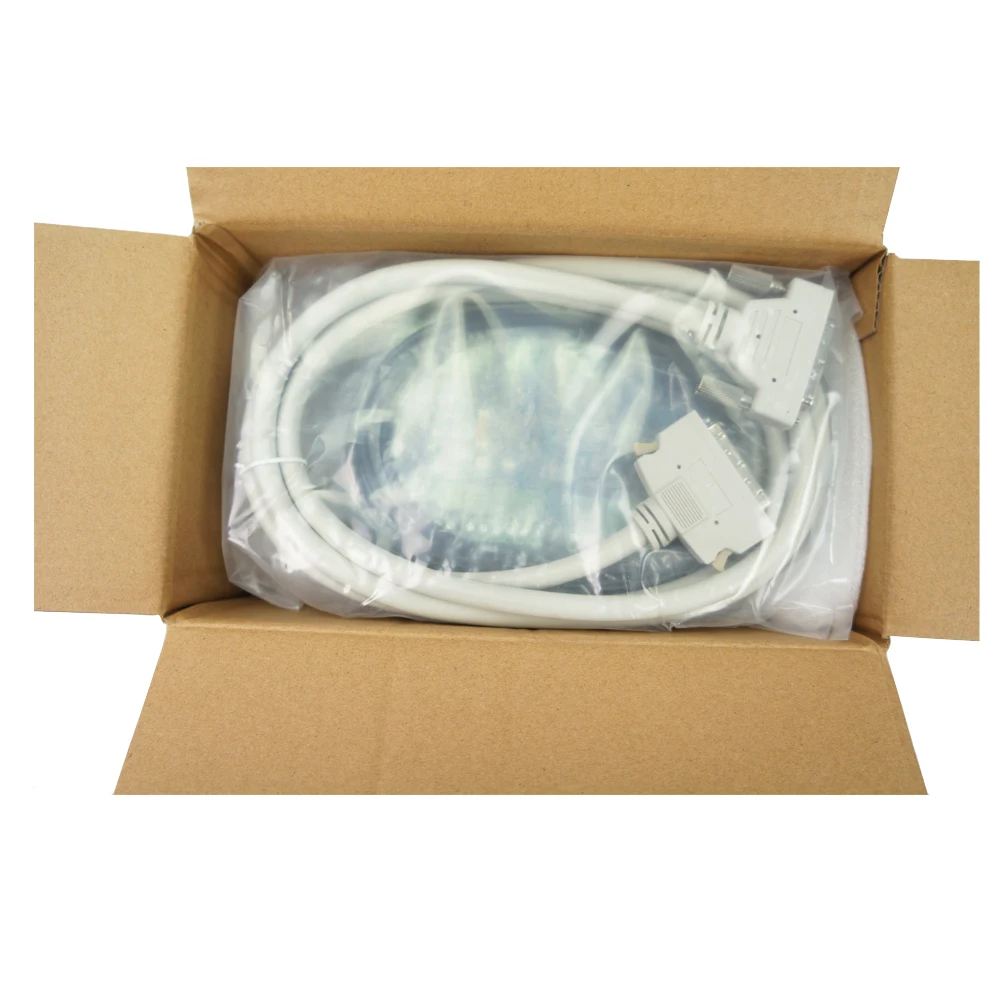

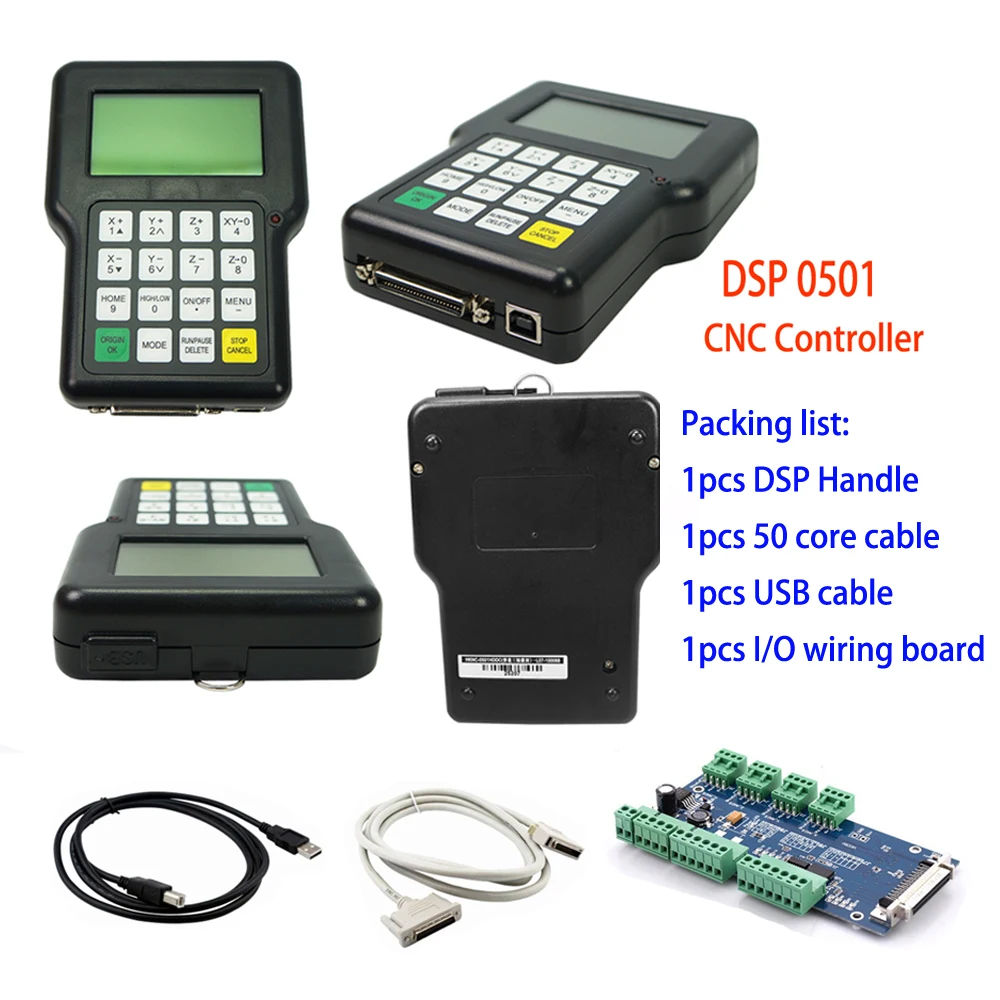

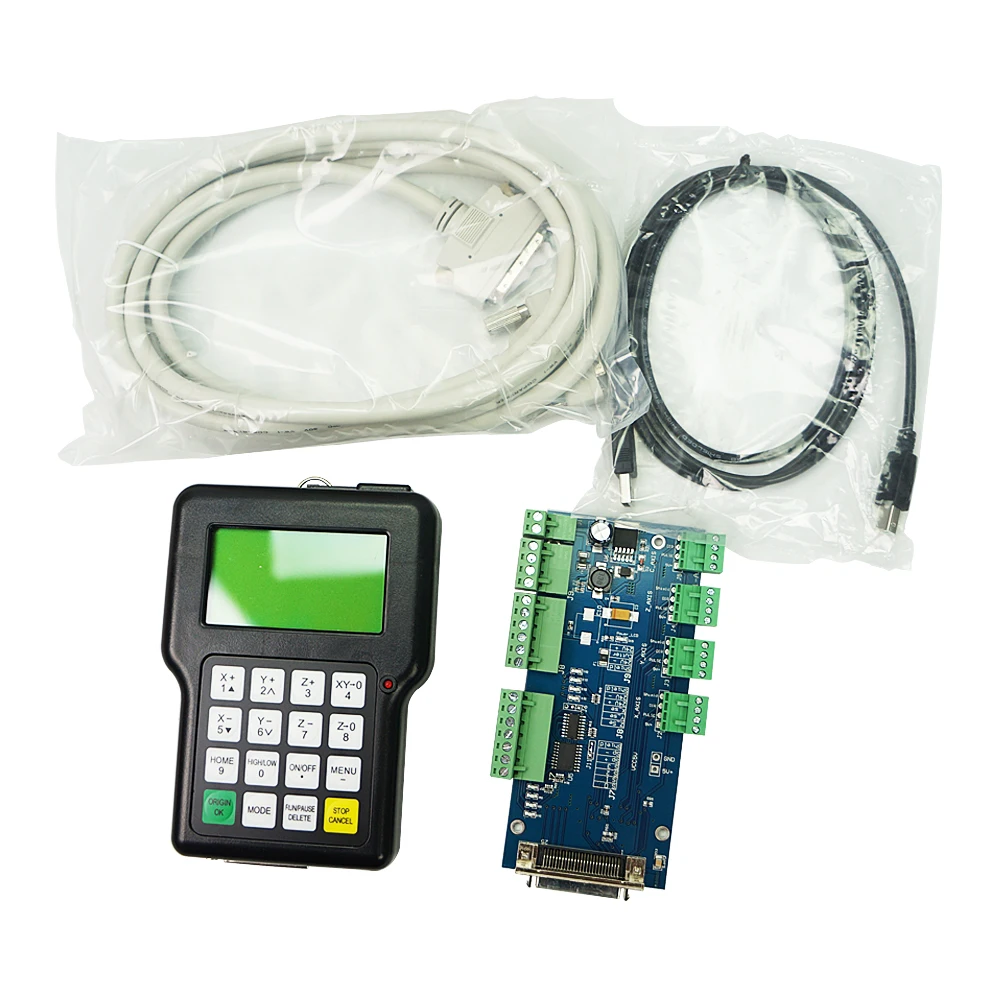

Packing list:
1pcs DSP Handle
1pcs 50 core cable
1pcs USB cable
1pcs I/O wiring board
Characteristic:
1.Totally independent from PC platform;
2.Directly read files from U Disk;
3.Easily process G code or PLT file with super size;
4.Strong system and process file examining function;
5.Easy to update system program;
6.It supports high micro step which makes precise and fast process possible;
7.Support to process part of the file;
8.Reliable data protection and recover function;
9.Friendly operating interface
Description:
\t\t\t Contents \t\t\t | \t\t\t Specification \t\t\t |
\t\t\t Processor \t\t\t | \t\t\t 160M DSP \t\t\t |
\t\t\t File Memorizer \t\t\t | \t\t\t 128M memorizer inside, it supports file with any size because of adopting mobile memorize technology \t\t\t |
\t\t\t Display \t\t\t | \t\t\t LCD with 128 dot*64 dot \t\t\t |
\t\t\t Communication Terminals \t\t\t | \t\t\t USB terminal and U Disk \t\t\t |
\t\t\t File Format \t\t\t | \t\t\t G code , PLT files (optional) \t\t\t |
\t\t\t Axis \t\t\t | \t\t\t 3 \t\t\t |
\t\t\t Help Function \t\t\t | \t\t\t Useful help information and guide \t\t\t |
\t\t\t Languages \t\t\t | \t\t\t Chinese, English, Russia, France, Japanese(optional or customize) \t\t\t |
\t\t\t Operating Interface \t\t\t | \t\t\t Friendly Buttons and Menu Drive \t\t\t |
\t\t\t Drive System \t\t\t | \t\t\t Step Motors \t\t\t |
\t\t\t Interpolation function \t\t\t | \t\t\t linear, curve \t\t\t |
\t\t\t Cutter Adjusting function \t\t\t | \t\t\t Yes \t\t\t |
\t\t\t Spindle Control Function \t\t\t | \t\t\t Yes \t\t\t |
\t\t\t System Data Inspect Function \t\t\t | \t\t\t Yes \t\t\t |
\t\t\t Processing Data Inspect Function \t\t\t | \t\t\t Yes \t\t\t |
\t\t\t Processing Position Adjusting Function \t\t\t | \t\t\t Yes \t\t\t |
\t\t\t Multi Working Coordinates \t\t\t | \t\t\t It has 9 working coordinates \t\t\t |
\t\t\t Stop Point Reprocessing Function \t\t\t | \t\t\t Yes \t\t\t |
\t\t\t Copy Processing Function \t\t\t | \t\t\t Yes \t\t\t |
\t\t\t Data protection when power off \t\t\t | \t\t\t Yes \t\t\t |
\t\t\t Working Temperature \t\t\t | \t\t\t 0C to +70C \t\t\t |
\t\t\t Humidity \t\t\t | \t\t\t <90% no dew no frost \t\t\t |
\t\t\t Outer Voltage \t\t\t | \t\t\t 5 V \t\t\t |
\t\t\t Consumptions \t\t\t | \t\t\t 2 W \t\t\t |

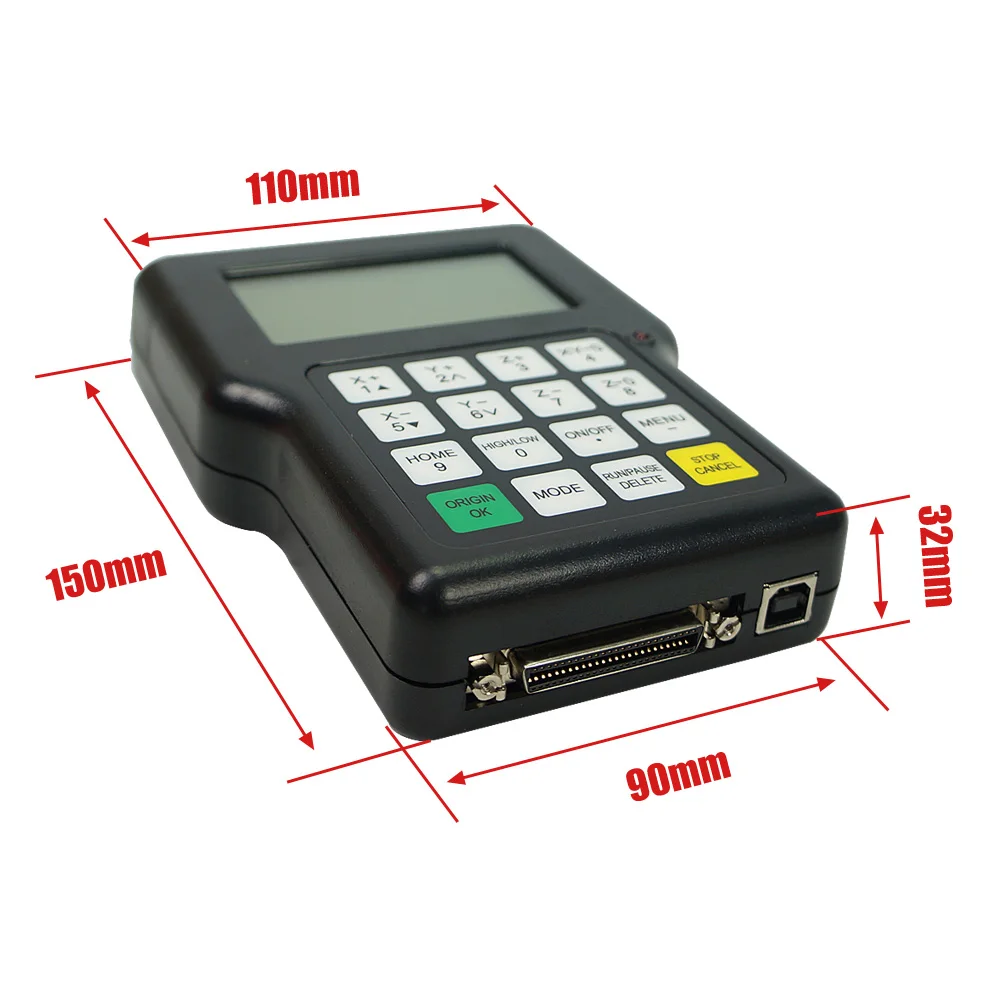

\t\t\t Dimensions(mm) \t\t\t | \t\t\t 156*110*38 \t\t\t |
