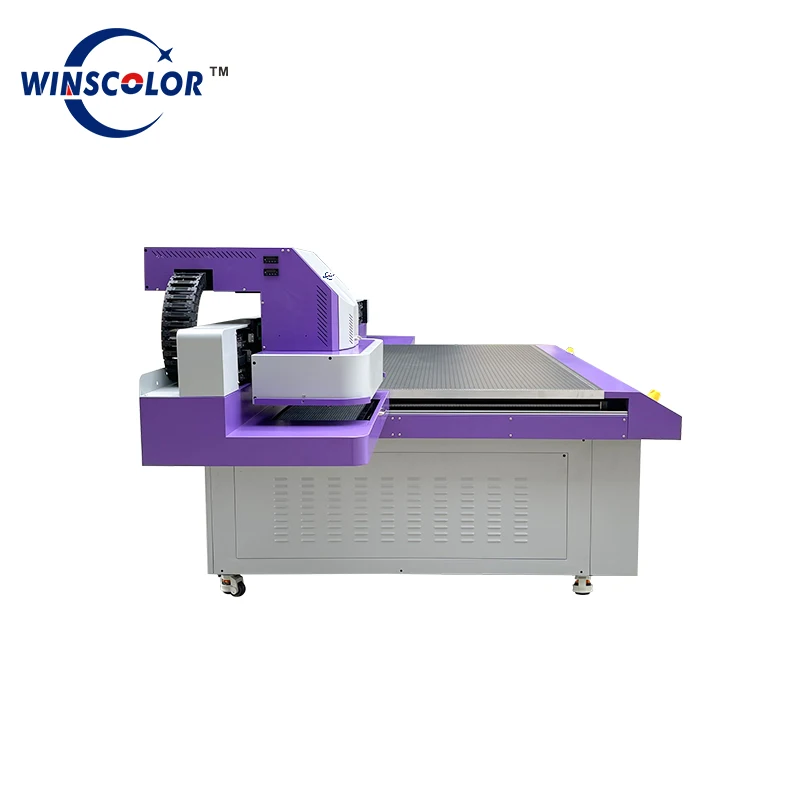

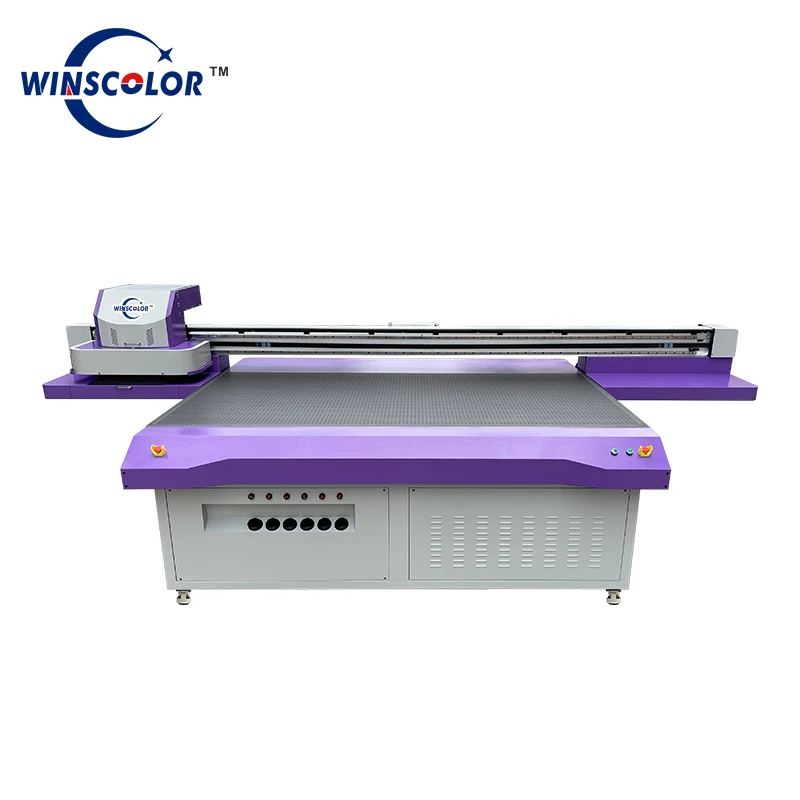

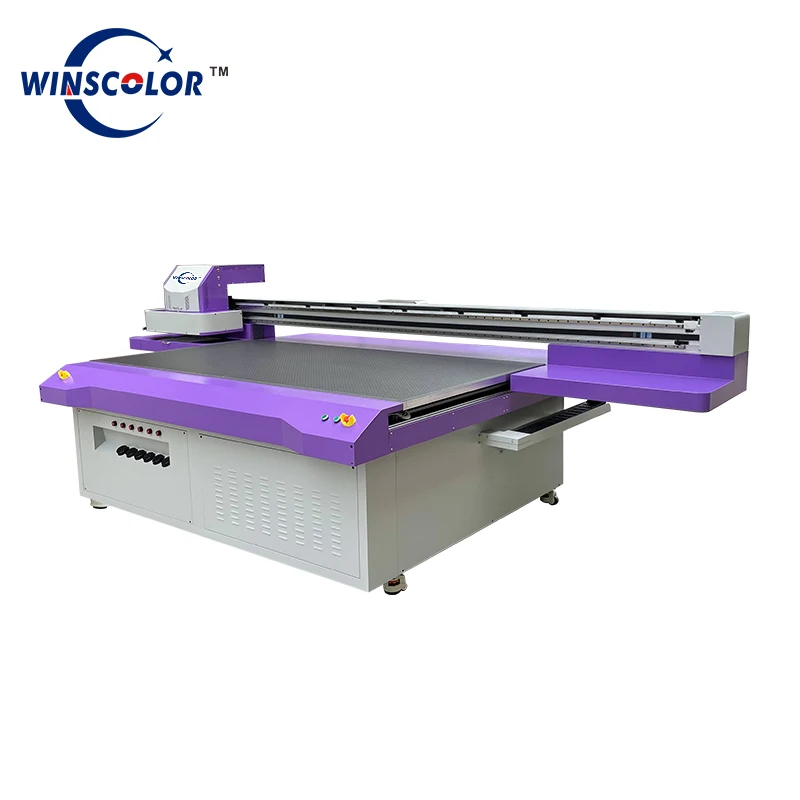

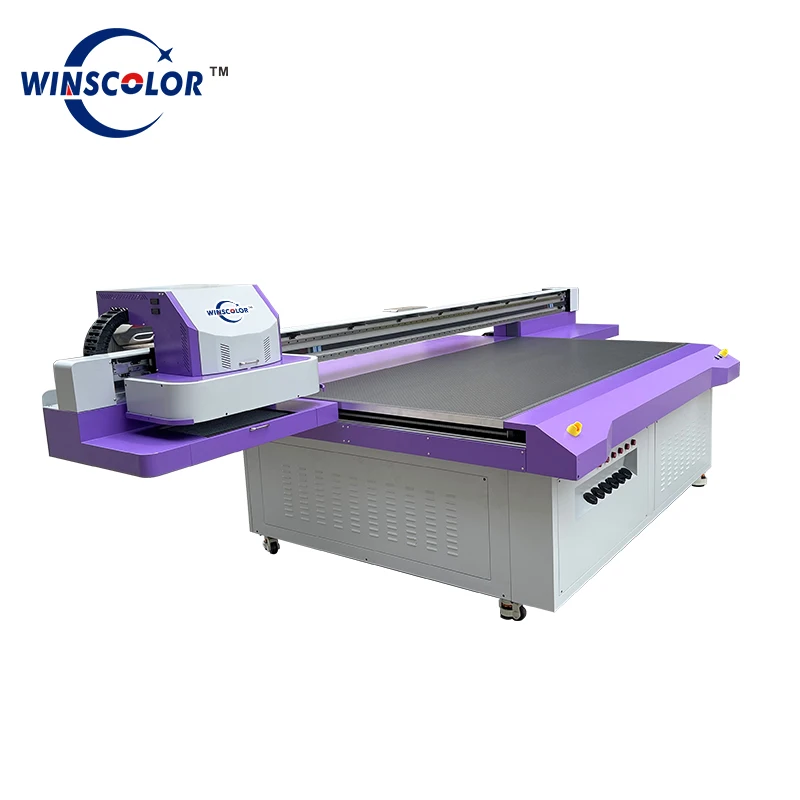

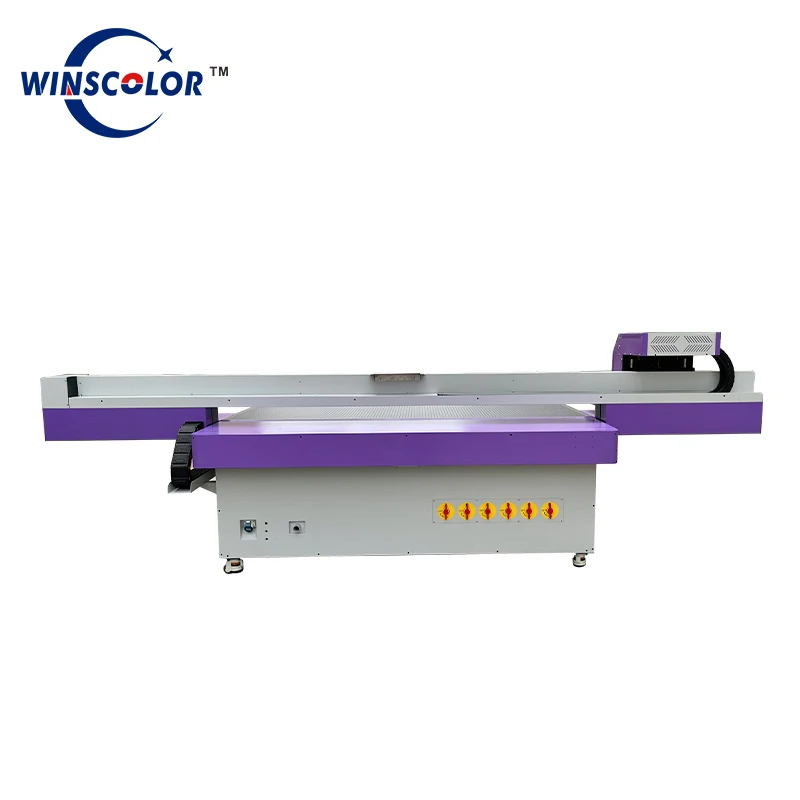

Цифровая машина для печати керамической плитки УФ планшетный принтер
- Категория: Digital Printers >>>
- Поставщик: Jinan,Yingcai,Digital,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 20230.19 $* | 21242.42 $* |
| Aug-15-2025 | 20060.9 $* | 21063.40 $* |
| Jul-15-2025 | 16830.41 $* | 17672.40 $* |
| Jun-15-2025 | 19720.75 $* | 20706.30 $* |
| May-15-2025 | 17170.98 $* | 18029.96 $* |
| Apr-15-2025 | 19380.63 $* | 20349.58 $* |
| Mar-15-2025 | 19210.92 $* | 20171.51 $* |
| Feb-15-2025 | 19040.16 $* | 19992.88 $* |
| Jan-15-2025 | 18870.9 $* | 19814.93 $* |
Характеристики
Product Description
Specification
Product Model | YC2513L |
Printhead Technology | Drop-on demand piezo electric |
Printhead Control | Printhead voltage is software adjustable |
Printhead Type | RICOH GEN5 |
Printhead Number | 2-4 Units |
Ink Characteristics | UV Curing Ink (VOC free) |
Ink reservoirs | Refillable on the fly while printing/1000ml per color |
Lamp | UV LED lamp |
Color Control | ICC based color, curves and density adjustment |
Printhead Arrangement | C M Y K W W |
Cleaning System | Positive Pressure Cleaning |
Guide Rail | Taiwan HIWIN |
Working Table | Vacuum Sucking |
Printing Size | 2500*1300mm |
Print Interface | USB2.0 |
Media Thickness | 0-100mm, higher can be customized |
Print Resolution | 300*900dpi,600*600dpi,600*900dpi,600*1200dpi |
Printing Speed | 15sqm/h-20sqm/h |
Life of Printed Image | 3 years(outdoor),10years(indoor) |
File Format | TIFF,JPEG,Postscript3,EPS,PDF etc. |
RIP Software | RIP PRINT/Photoprint optional |
Power Supply | 220V 50/60Hz(10%) >15A |
Operation Environment | Temperature 20 to 28℃, Humidity 40% to 60% |
Machine Dimension | 4000*2100*1400mm |
Packing Dimension | 4550*2250*1650mm |
Weight | 1000kg |
Warranty | 12 months exclude the consumables |
Machine Details
Printing Samples
Company Profile
Packing & Delivery
Customer Photos
FAQ
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability,best result.
3. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers.But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
4.Are you a manufacturer or trade agent?
We are the manufacturer of Uv flatbed printers.
5. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump, printhead, ink filter, and slide block since they are consumables.
6. How can I install and start to use the printer?
At first, you should read the users' manual to understand the machine and watch the video. After you get the machine, our technician will teach you how to install and use machine by remote control via Teamviewer or Skype. Whenever you have questions to the machine, you can contact our technician or me.
7.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
8. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Winscolor should send new part within 48 hours by express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be born by the buyer.
9. What kinds of materials need premier before printing？
Glass, ceramic, metel, acrylic, marble etc.
The printing images can last at least 3 years outdoors, and more than 10 years indoor.
2. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability,best result.
3. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers.But costomer has to be responsible for the accommodation and transportation costs of the technical staff.
4.Are you a manufacturer or trade agent?
We are the manufacturer of Uv flatbed printers.
5. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump, printhead, ink filter, and slide block since they are consumables.
6. How can I install and start to use the printer?
At first, you should read the users' manual to understand the machine and watch the video. After you get the machine, our technician will teach you how to install and use machine by remote control via Teamviewer or Skype. Whenever you have questions to the machine, you can contact our technician or me.
7.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.
8. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Winscolor should send new part within 48 hours by express like TNT, DHL, FEDEX etc to the buyer. An shipping cost should be born by the buyer.
9. What kinds of materials need premier before printing？
Glass, ceramic, metel, acrylic, marble etc.
