MSKC-1200M автоматическая машина для обработки желобков с V
- Категория: Other Packaging Machines >>>
- Поставщик: Ruian,Mosun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 7021.96 $* | 7372.32 $* |
| Aug-16-2025 | 6962.76 $* | 7310.39 $* |
| Jul-16-2025 | 5841.15 $* | 6133.87 $* |
| Jun-16-2025 | 6844.59 $* | 7186.94 $* |
| May-16-2025 | 5959.37 $* | 6257.74 $* |
| Apr-16-2025 | 6726.16 $* | 7062.2 $* |
| Mar-16-2025 | 6667.63 $* | 7000.51 $* |
| Feb-16-2025 | 6608.11 $* | 6938.74 $* |
| Jan-16-2025 | 6549.75 $* | 6876.64 $* |
Характеристики

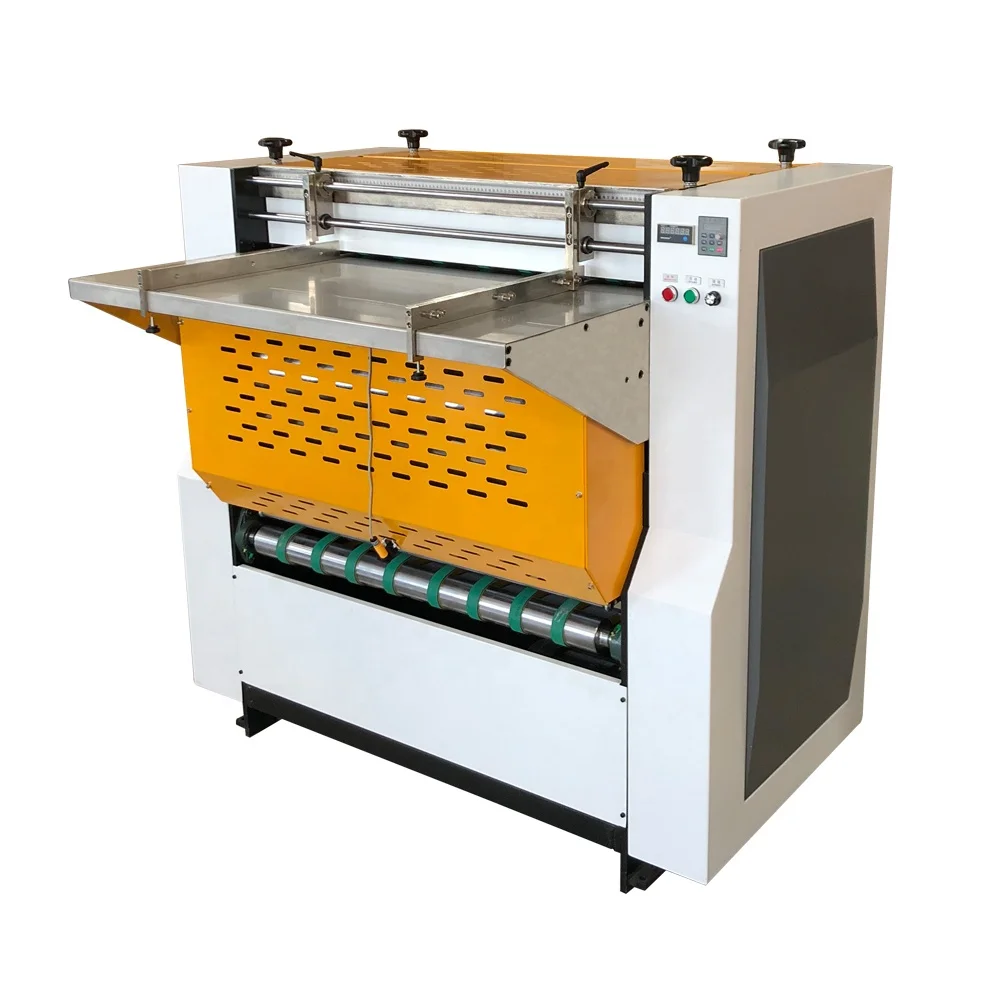

Product Appearance
Products Description
Grooving machine special designed for notching V type groove, use for industry-cardboard, Ash-cardboard, MDF board and other several of cardboard, to make it suitable for box or other packaging making.
Suitable for High quality package, various rigid box,hardcover, file folders, posters and calendars, etc.
Suitable for High quality package, various rigid box,hardcover, file folders, posters and calendars, etc.
Model | MSKC-1000M | MSKC-1200M | MSKC-1300M | |||
Width of Paper Board | 300-930mm | 300-1130mm | 300-1230mm | |||
Length of Paper Board | 300-600mm | |||||
Min sheet Size | 150*150mm Smaller size can combine 2/4 pieces on one sheet | |||||
Grooving Speed | 10-35/min (About 8000-12000unit/8h) | |||||
Groove Gap (distance between two grooves) | 2-900mm | 2-1100mm | 2-1200mm | |||
Thickness of Paper Board | 300gsm-3.6mm | |||||
High Accuracy | 0.1mm | |||||
Knife Angle | 80-140 degree grooving | |||||
Knife Shape | V grooving | |||||
Number of Grooves at one time | 9 pieces | 12 pieces | ||||
Motor power | 2.2kw | |||||
Voltage | 220V/380V/440V 3phase | |||||
Machine weight | 1200kg | 1300kg | 1500kg | |||
Machine Dimension | 1300*1500*1400mm | 1700*1400*1600mm | 1900*1400*1600mm | |||
Package Dimension | 1400*1600*1650mm | 1860*1330*1700mm | 2060*1330*1700mm | |||
Contact Information | Mob/Whatsapp/Skype/Wechat:+8613958859742 Email: mosuns008(at)aliyun.com | |||||
Remark: accept customization of equipment in various specifications | ||||||
Details Images
MANUAL FEEDING & OUTPUT PART
Manual feeding, double sides position plate are adjustable. The can ensure the precision.
The counter is used for record the number of production.
The counter is used for record the number of production.
GROOVING PART
Nine Knife and each degrees and distance could be adjustable.
The belt press wheel could adjust the pressure of belt.
The belt press wheel could adjust the pressure of belt.
Big diameter drum roller

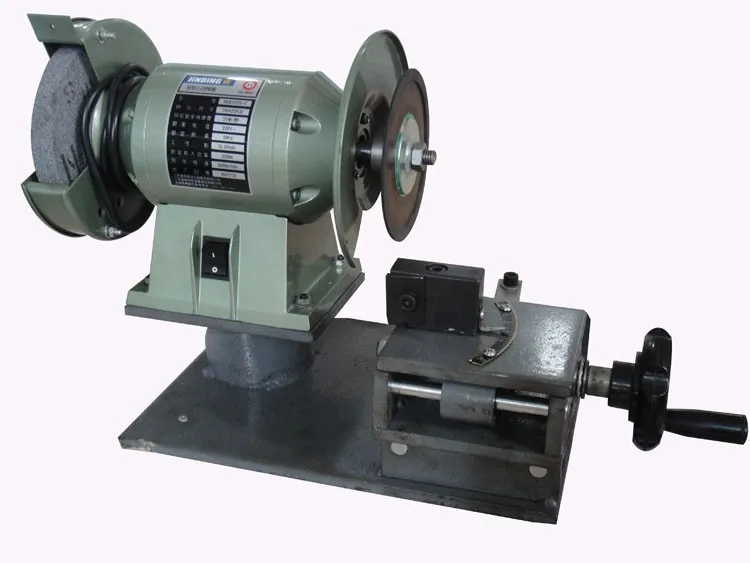

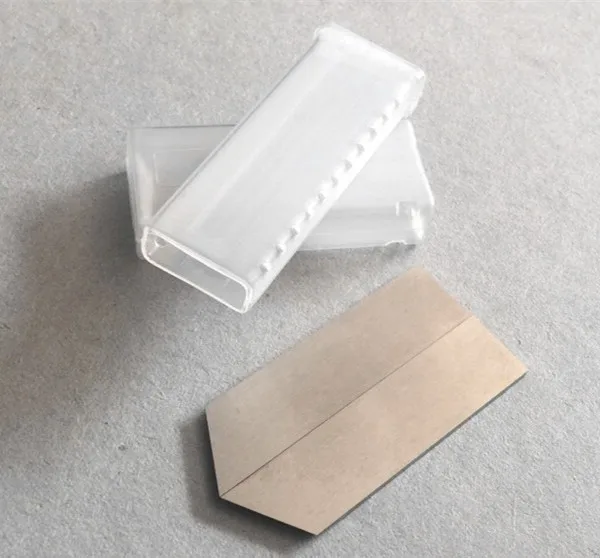

KNIFE & SHARPENER
Each machine equipped with a knife sharpener, knife can be repeated used
Sample

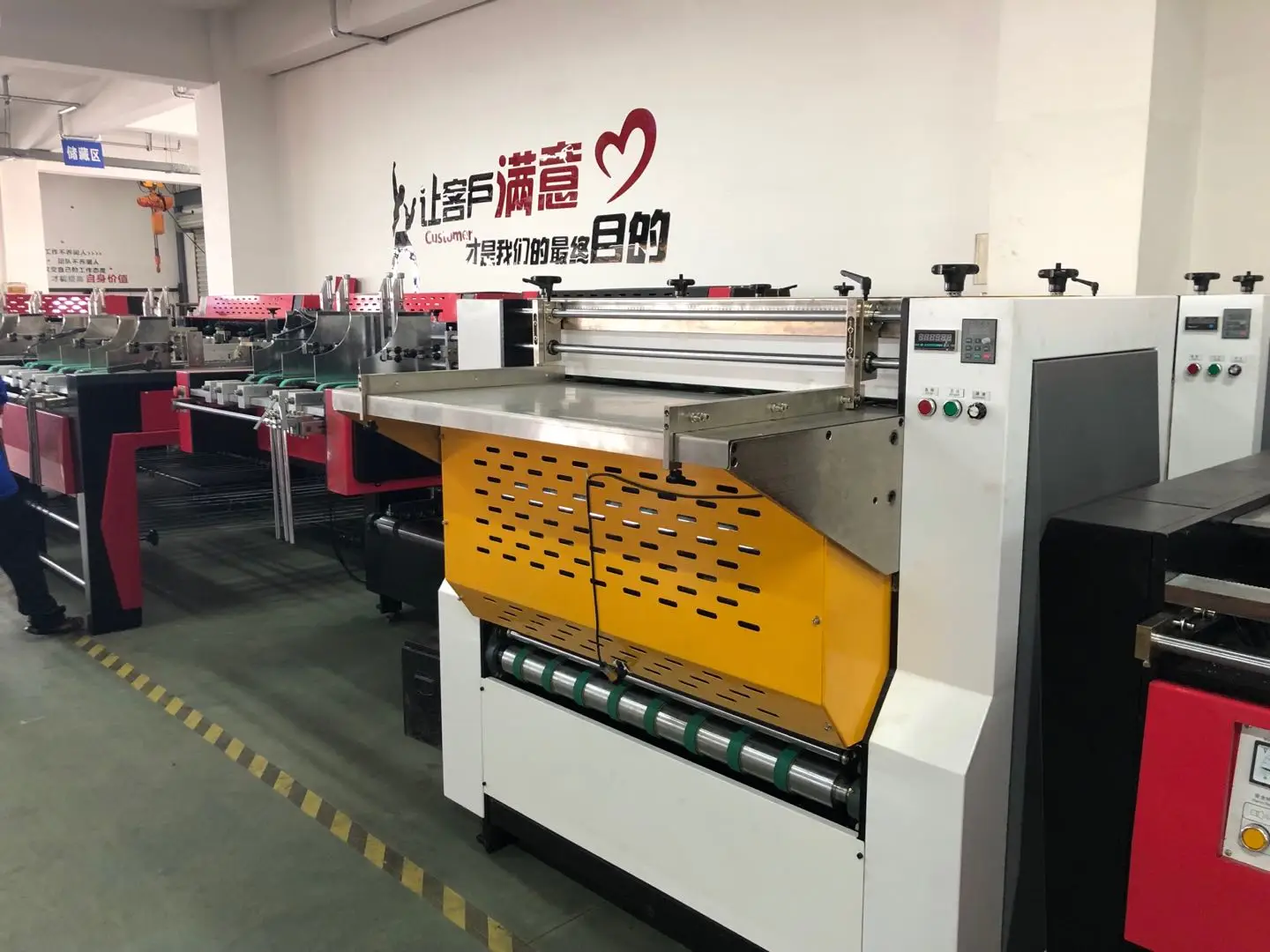

Enterprise Display
