Захват видео HDMI с выходом аудио 4K захват игр USB 2 0 устройство
- Категория: Vedio Capture >>>
- Поставщик: Finder,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.88 $* | 0.70 $* |
| Aug-15-2025 | 0.77 $* | 0.75 $* |
| Jul-15-2025 | 0.27 $* | 0.31 $* |
| Jun-15-2025 | 0.2 $* | 0.63 $* |
| May-15-2025 | 0.97 $* | 0.43 $* |
| Apr-15-2025 | 0.91 $* | 0.42 $* |
| Mar-15-2025 | 0.80 $* | 0.71 $* |
| Feb-15-2025 | 0.17 $* | 0.53 $* |
| Jan-15-2025 | 0.44 $* | 0.80 $* |
Характеристики

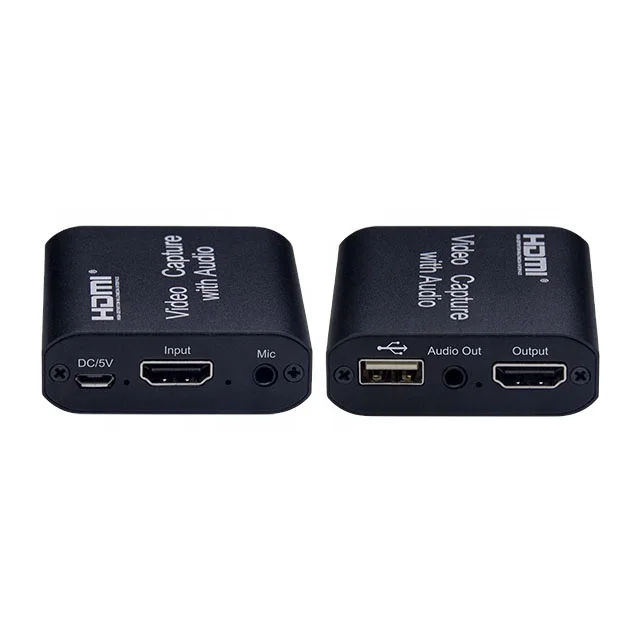

HDMI video Capture With Loop out audio 4K HDMI Game Capture USB 2.0 Record Capture Card Device
The video capture can capture both HDMI video and audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
* Support HDMI loop out;
* Support microphone audio input ,3.5 stereo output;
* Support microphone audio and hdmi audio superimpose capture;
* Support input max resolution 4K;
* Support output max resolution 1080P;
* Support AWG26 HDMI standard cable: input up to 15 meters, (1080P and below resolution);
* Support most acquisition software, such as VLC,OBS ,Amcap, etc;
* Support Windows,Android and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Compact and portable.
| HDMI resolution | Max input can be 3840×2160@30Hz |
| Support video format | 8/10/12bit Deep color |
| Video output format | YUV,JPEG |
| Video output resolution | Max output can be 1920×1080@30Hz |
| Support audio format | L-PCM |
| Input cable distance | ≤15m,AWG26 HDMI standard cable |
| Max working current | 0.7A/5VDC |
| Operating Temperature range | -10 to +55℃ |
| Dimension (L x W x H) | 59x56x19 (mm) |
| Weight | 56g |
1: Connect the HD signal source to the HDMI input of the video capture with one HDMI cable.
2: Connect microphone with the ‘mic’ port of the video capture.
3: Connect the display device to the HDMI output of the video capture with one HDMI cable.
4: Connect PC USB port to the USB output of video capture with one USB cable.
3: Operation steps for USB video capture(OBS): Open the software→Choose sources of
“Video capture Device”→Set the size of image→Choose “Studio Mode”(double window)
→Choose “Start Recording”.
Note:
Computer hardware configuration requirements:
CPU: PC i5-3400 or above; Notebook i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; Notebook NVIDIA GT735M or above
Run memory: 4G RAM
