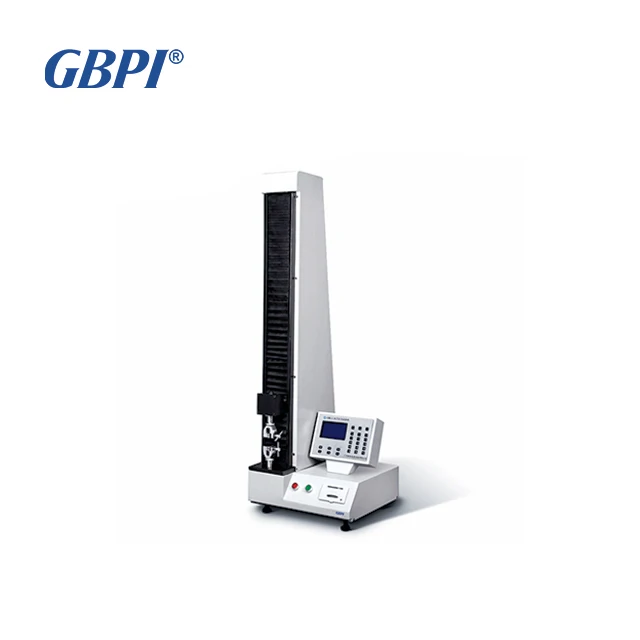

ISO1409 ISO6295 ISO14090 ASTMD1417 EN14370flexible material peeling force testing machine Plastic Film Tensile Strength Tester



Application

To test the tensile strength, peeling strength, heat sealing strength,tearing strength, piercing strength of plastic film, composite film, tape, soft packaging material, rubber sheets, paper, non-woven fabrics and other packaging materials, widely used in industries of plastic films, food, pharmaceuticals, inspection agency, research institute, college and so on.



Standard

GB 19083-2010,YY0469-2011,GB 2626-2006,YY/T0969-2013,YY/T0681.13-2014,GB/T32610-2016

Specifications

Item	Technical parameters
Test force range	0~500N (0~1500N optional ), 1400% elongation
Test accuracy	Within ±0.5% of the displayed value (grade 0.5)
Test speed	1-500mm/min (infinitely variable speeds)
Displacement	Within ±0.5% of the displayed value
Test width range	30mm (50mm can be customized)
Travel distance range	750mm
Instrument size	460mm×525mm×1430mm
Power	1000W
Power supply	AC 220V 50Hz
Weight	86kg





Configuration

A,Spare parts
NO.	Name		Remark	Quantity
1	Power cable		3*0.75 10A 1.8M	1 PC
2	Communication cable		RS232 nine-pin data cable	1 PC
3	Tensile clip		30mm	1 PC
4	Piercing clip			1 PC
5	Software flash disk		4G	1 PC
6	Buckboard			1 Set
7	Allen wrench			1 Set
8	Right-angle tear blade			1 Set
9	Wooden box			1 PC
10	Cross screwdriver		6-10mm	1 PC
B,Optional parts
NO.	Name	Unit	Quantity	Remark
1	Computer (win7 32bit)	set	1	Optional
2	Pneumatic clip	set	1	Optional
3	Metrology Certificates			Optional
C,User provide
1	Power supply  500w   220V   10A  three holes socket  ground wire
2	1 set of computer(with nine-pin COM port),Windows7



Features

• Flexible and various interfaces and control methods, which can be used for multiple tests such as stretching, peeling, heat sealing, tearing, puncture, compression, bending, shearing, etc., setting of multiple parameters such as speed, thickness, and pinch.



• High measurement accuracy, the test measurement accuracy can reach 0.5 grade.



• The whole process is controlled by a computer, and the test is displayed online after the test. It can automatically perform data storage, data analysis and comparison functions, curve overlay recording function, on-line printing function, arbitrary zoom function.



• The full digital control system cooperates with imported AC servo system and motor to control the zero displacement.



• High-precision ball screw loading, stable loading, long testing machine life, long-term stability and energy saving.



• Load / deformation measurement: With multiple sub-channels, it supports extended measurement of multiple sensors.



• Wide speed range, suitable for high and low speed tests.


• Open data structure, whether it is result parameters or process data, allows users to call randomly, users are very convenient. Self-editing report function, the data can be easily imported into an Excel table for easy post-processing.



• Control and measurement unit can choose built-in type (simple appearance, save space) and external type (easy to upgrade, maintain and operate separately from the computer).



• Have perfect limit protection, overload protection, emergency stop and other safety protection functions. Make the test run safe and reliable.



• High sampling rate (100 times / second), make the test data more accurate.



• The core uses imported parts, which is more accurate and more durable



• Double-column table structure, beautiful and elegant, good rigidity.



• Optional pneumatic fixture, suitable for a variety of fixtures.
