Характеристики
Products Description

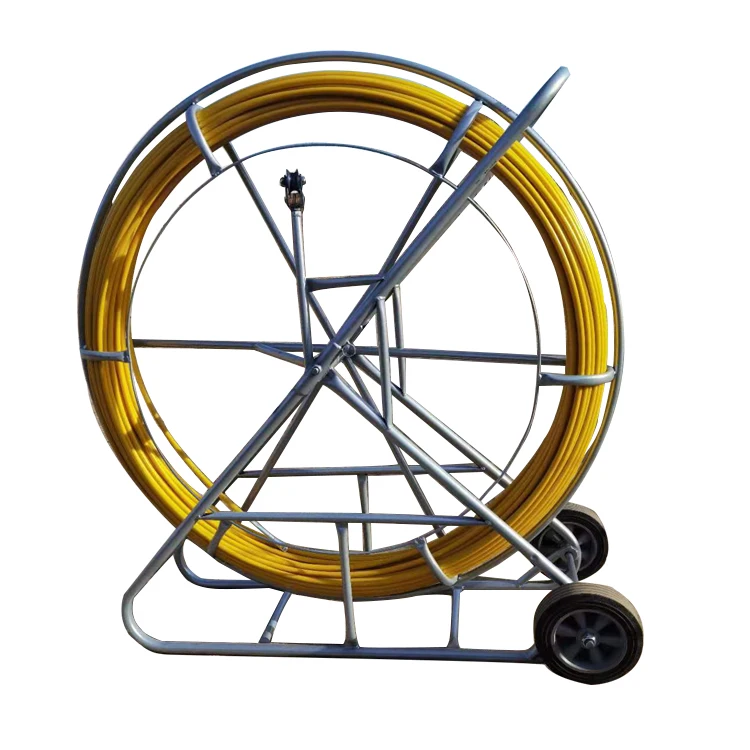

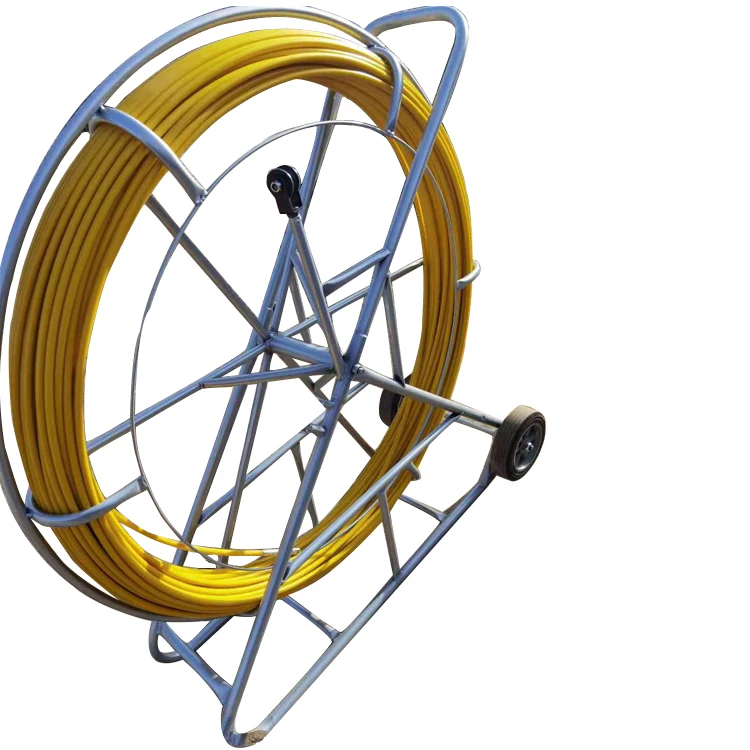

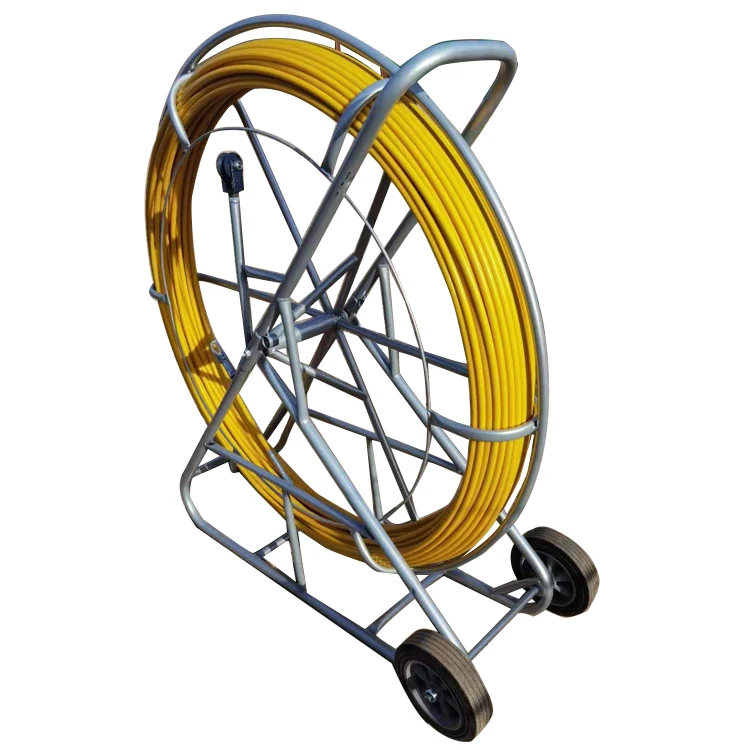

Fiberglass snake rod description
Fiberglass snake rod sometimes called python rod by its nature passing through under ground ducts by up and down negotiating the duct curvature, thus very convenient to pull the cables, wires inside the duct. What's more, it can be used to located the duct block or damage positions. It has high safety aspects to be applied to underground applications because of its non conductivity of electricity, thus sets a
major safety to site workers.
It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
major safety to site workers.
It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
We sell the technology and equipment for the production of cable rod.
Each country has only two quota.
Details Images
cifications | Rod diameter (mm) | Φ4*50 Φ5*50 Φ5*100 Φ6*50 Φ6*100 Φ8*50 Φ8*100 Φ8*150 Φ9*100 Φ10*100 Φ11*100 Φ12*100 |
Rod length (m) | 30m~500m | |
Frame Spec.(mm) | 1300mm x 450mm x 1330mm 1200mm x 420mm x 1220mm 980mm x 350mm x 1000mm 680mm x 240mm x 700mm 4200mm x 1800mm x 400mm | |
Materials | Fiber glass rod inner, | Extruded by fiber glass and high strength resin at high temperature |
Fiber glass rod outer | High density polyethylene coating | |
Metal frame | Steel with high-temperature sprayed plastic or hot dip galvanized | |
Physical properties | Fiber glass content | 75-80% |
Density | >1.9gr/cm3 | |
Working environment | -40°C to +80°C | |
Minimum pulling strength | 4000N +/-5% | |
Consistency of rod | 137gr/m | |
Flexural modulus | >46.500Mpa | |
Elongation at break | 2.5-3% | |
Min bending radius | 388mm |
Fiberglass snake rod features:
1.Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.
2.High tensile strength and bending properties, which make it to go through narrow pipes easily.
3.Good temperature adaptability, the product will not soften in hot weather / nor become brittle in cold weather. Its usability will not be affected by temperature.
4.Outer protect layer are made of high density polyethylene engineering plastic, which has good anti-UV capability.
5.Cover was coated with long-term UV-resistant polyethylene.
6.Its surface has the advantage of smooth, wear-resistant and long service life.
7.Meter marks on the protect layer of duct rod can be used for measuring distance. Marks are printed by professional printing machine, which has the advantage of strong adhesion, clear writing, waterproof, anti-ultraviolet, it can be still clear even after using many times.
1.Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.
2.High tensile strength and bending properties, which make it to go through narrow pipes easily.
3.Good temperature adaptability, the product will not soften in hot weather / nor become brittle in cold weather. Its usability will not be affected by temperature.
4.Outer protect layer are made of high density polyethylene engineering plastic, which has good anti-UV capability.
5.Cover was coated with long-term UV-resistant polyethylene.
6.Its surface has the advantage of smooth, wear-resistant and long service life.
7.Meter marks on the protect layer of duct rod can be used for measuring distance. Marks are printed by professional printing machine, which has the advantage of strong adhesion, clear writing, waterproof, anti-ultraviolet, it can be still clear even after using many times.
Company Profile
Cangzhou nine nine communication equipment co., LTD is a specialized in the production line equipment and line tools sales enterprises, the main products of cable motorized, cable steel tube, warning, mark pile and rod, cable car transport cart electric power communication equipment, etc.
My company's products are widely used in telecommunications, mobile, unicom, netcom, railcom and other operators and the dealer network, insist on brand route, product sales in
successive years of double at the same time, relying on powerful technical strength with China telecom, China mobile, China unicom, electricity, radio and television and so on has established good strategic partnership, and win-win, create a business philosophy, with new management mode and considerate service, service to customers.
