Трубчатый теплообменник с титановой резьбой и

Трубчатый теплообменник с титановой резьбой и

Категория: >>>
Поставщик: Foshan,City,Nan,Tai,Metal,Co.,Ltd.

Цена:55,00 $ - 69,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	70.25 $*	71.91 $*
Jul-16-2025	57.16 $*	58.13 $*
Jun-16-2025	69.51 $*	70.17 $*
May-16-2025	68.70 $*	69.8 $*
Apr-16-2025	54.68 $*	55.38 $*
Mar-16-2025	67.16 $*	68.80 $*
Feb-16-2025	67.10 $*	68.85 $*
Jan-16-2025	66.29 $*	67.19 $*

Характеристики

Product Description

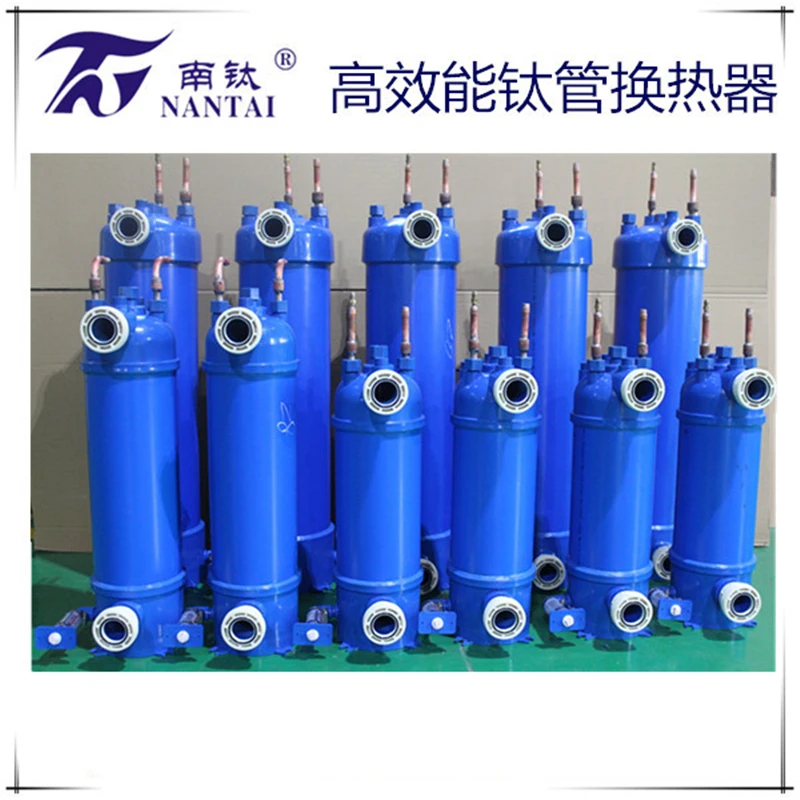

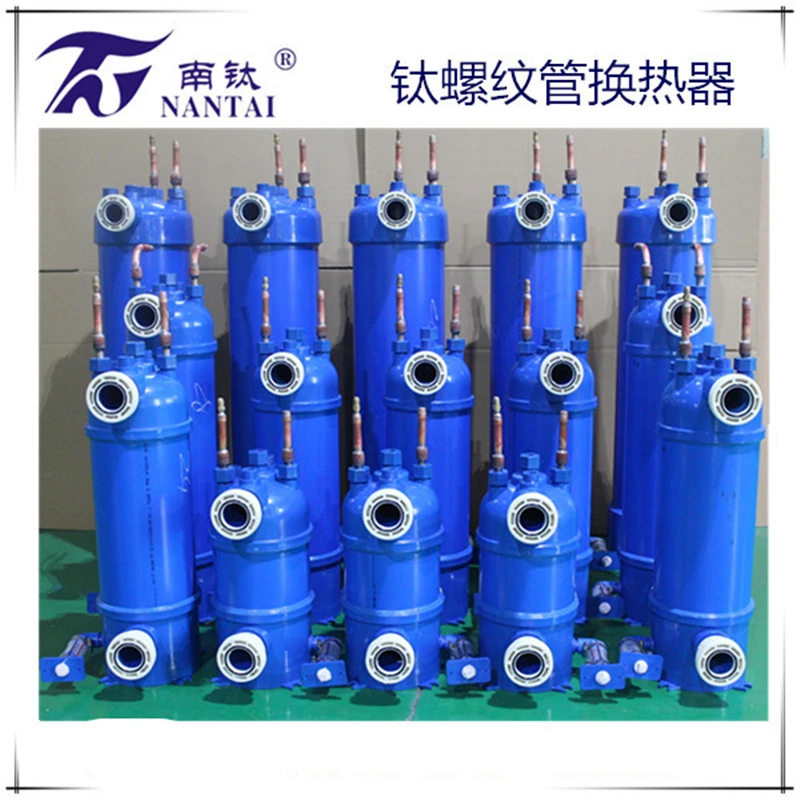

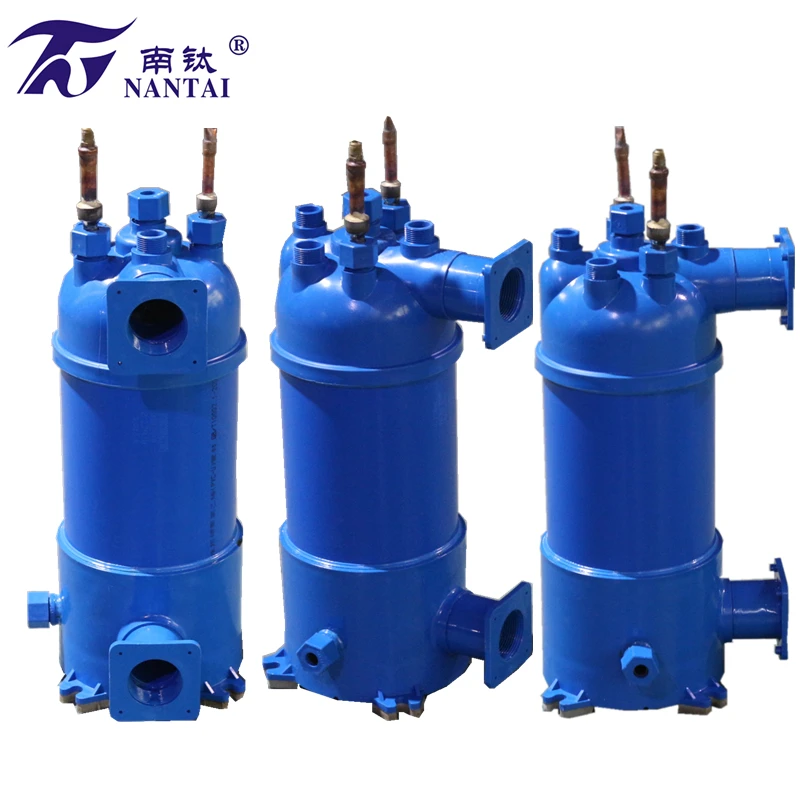

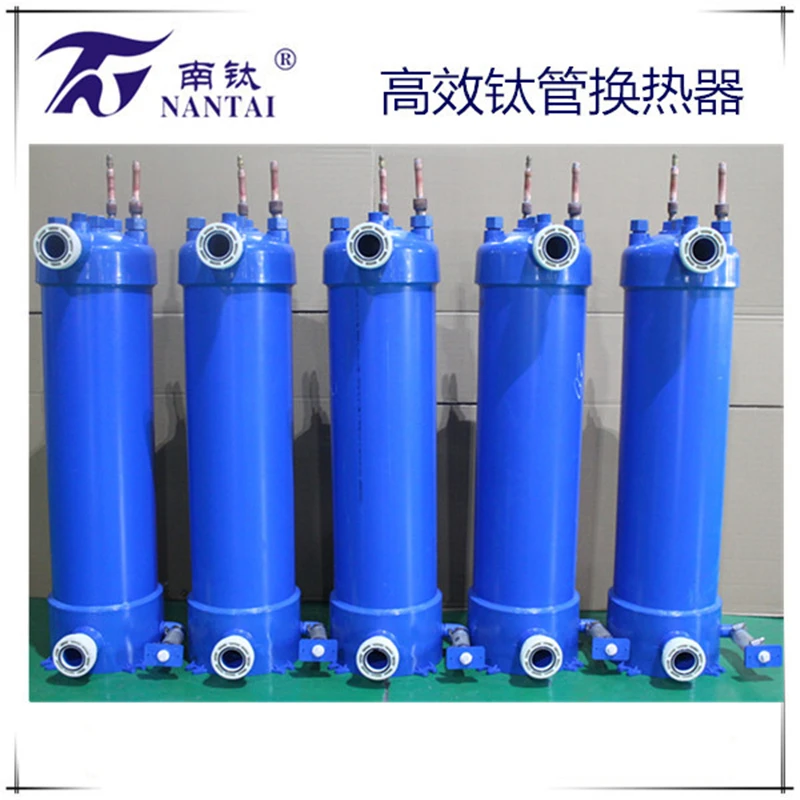

Titainum Thread Tube Heat Exchanger with PVC shell

How does our titanium shell and tube heat exchanger work?

Refrigerant vapor flows through the titanium tube inside in a counterflow direction to the liquid refrigerant flowing in the plastic cabinet between the inner tube and outer shell. This counterflow path provides the greatest temperature difference between the two refrigerant streams to yield optimum heat transfer. To further maximize heat exchanger performance with minimum size, the inner tube is convoluted to impart turbulence to both refrigerant flows while the straight-through design helps maintain low refrigerant pressure drops.

Specification

Model	Horse power (kw)	Tubing length (m)	PVC shell size (mm)	Refrigerant in & outlet (mm)	Water in & outlet (mm)	Hp
NTTP038-B1	3.8	1.8	Φ140*340	Φ12.7/Φ12.7	Φ50 mm PVC Piston	1
NTTP045-B1	5	2	Φ140*420	Φ12.7/Φ12.7			1.5
NTTP095-B1	9.5	4.2	Φ140*470	Φ12.7/Φ12.7			2
NTTP120-B1	12	5.5	Φ140*470	Φ12.7/Φ12.7			3
NTTP140-B1	14	6.2	Φ140*520	Φ12.7/Φ12.7			3.5
NTTP170-C1	17	7.5	Φ200*585	Φ12.7/Φ12.7			4
NTTP210-D1	21	9.2	Φ200*595	Φ12.7/Φ19			5
NTTP250-D1	25	12	Φ200*625	Φ12.7/Φ19			6
NTTP300-D1	30	14	Φ200*655	Φ12.7/Φ19			7
NTTP360-D1	36	15	Φ200*675	Φ12.7/Φ19			8
NTTP420-D1	42	18	Φ250*590	Φ19/Φ19			10
NTTP520-F1	52	22	Φ250*665	Φ25/Φ19			12
NTTP600-F1	60	25.8	Φ250*705	Φ25/Φ19			15

Remark:1hp=1Ton=3.5 kilowatt=12,000 btu
1inch=25.4mm,1000mm=1m

Please note:

1. The data in the list is our suggestion, and we can produce the heat exchanger according to customers’ requirement.
2. Heating capacity is measured under DB/WB at 20°C/ 15°C, and inlet water temp. is 26°C, outlet water temp. is 28°C. And the highest outlet water temp. is 45°C.

	Refrigerant side(Inside titanium)	Water side(Inside PVC shell)
Max working pressure	4.5 Mpa	0.6-1.2 Mpa
Working temperature	-50-150 degree C	0-45 degree C
Suitable media	R22,R407c,R134a,R404a,R410a,R610a,etc	Fresh water,sea water,antifreeze and so on
Attention	1. Please discharge water to avoid breaking PVC shell when temperature below zone. 2. For the first time using,please make sure water were discharge and water pressure will not over the max working pressure. 3. Please keep water clean,install a filter and clean regularly.

Remark:1 Mpa=145 psi=10 kilogram

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Founded in July 2008, Foshan Nan Tai Metal Co., Ltd., a high-tech enterprise, specializes in the research, development, production, sale and service of titanium heat exchangers. Our company is located in Foshan City, a national grade key scenic spot. We have a floor area of 12,000 square meters, with more than 30 staff members. The products are well sold not only in China but also in more than 20 countries and areas.

NanTai Titanium heat exchanger tubing has an advanced multi-spiral twisted configuration. NanTai coaxial heat exchangers have been widely applied in water chiller, air/water/ground source heat pump, ice maker and thermal equipment in the domain of air-conditioner and refrigerant. Also, coaxial heat exchangers can be used in medical processing equipment, food processing equipment and chemical processing equipment.

Our products mainly include titanium coaxial heat exchangers, and titanium threaded pipe and tubular heat exchangers, which are applied to the fields of water resource heat pumps, ground source heat pumps, air source heat pumps, heat pump heaters, air-cooled modular units, swimming-pool units, marine air conditions, economizers, ice machines and laser cooling devices and so on.
