Trolink 2021 Single-band (2.4GHz) 1T1R System-on-Chip (SoC) MTK7601UN WiFi
- Категория: IoT Solutions & Products >>>
- Поставщик: Shenzhen,Trolink,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1.45 $* | 1.28 $* |
| Jul-17-2025 | 1.30 $* | 1.93 $* |
| Jun-17-2025 | 1.68 $* | 1.74 $* |
| May-17-2025 | 1.17 $* | 1.20 $* |
| Apr-17-2025 | 1.15 $* | 1.64 $* |
| Mar-17-2025 | 1.13 $* | 1.48 $* |
| Feb-17-2025 | 1.67 $* | 1.80 $* |
| Jan-17-2025 | 1.78 $* | 1.61 $* |
Характеристики

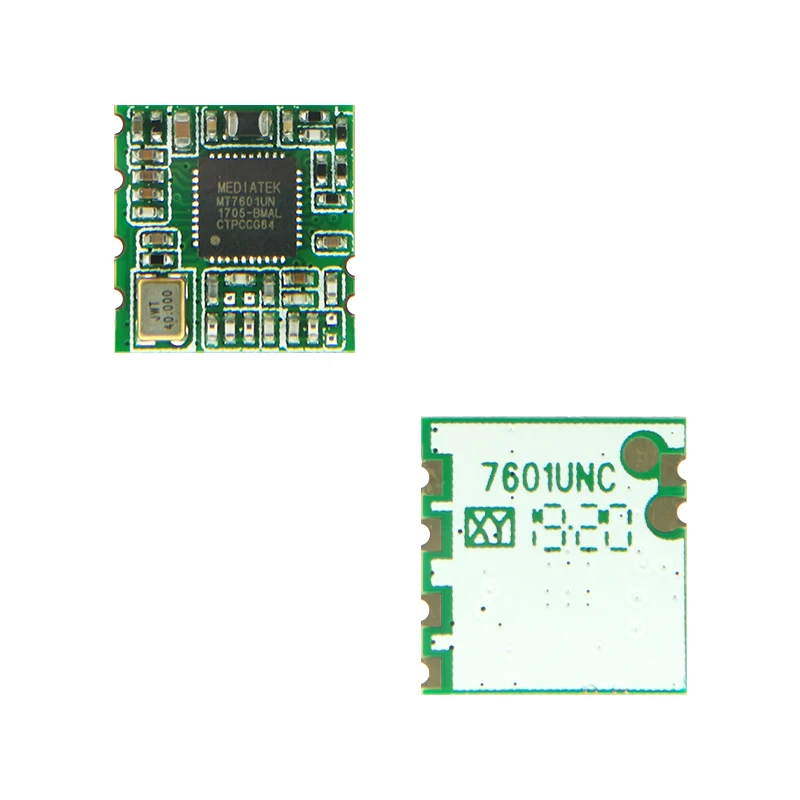

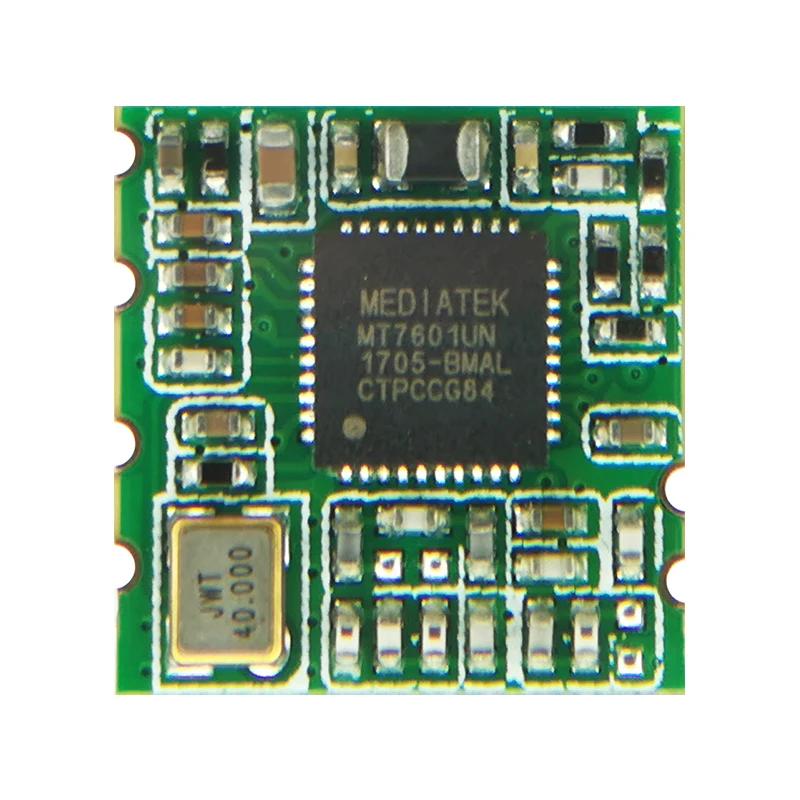

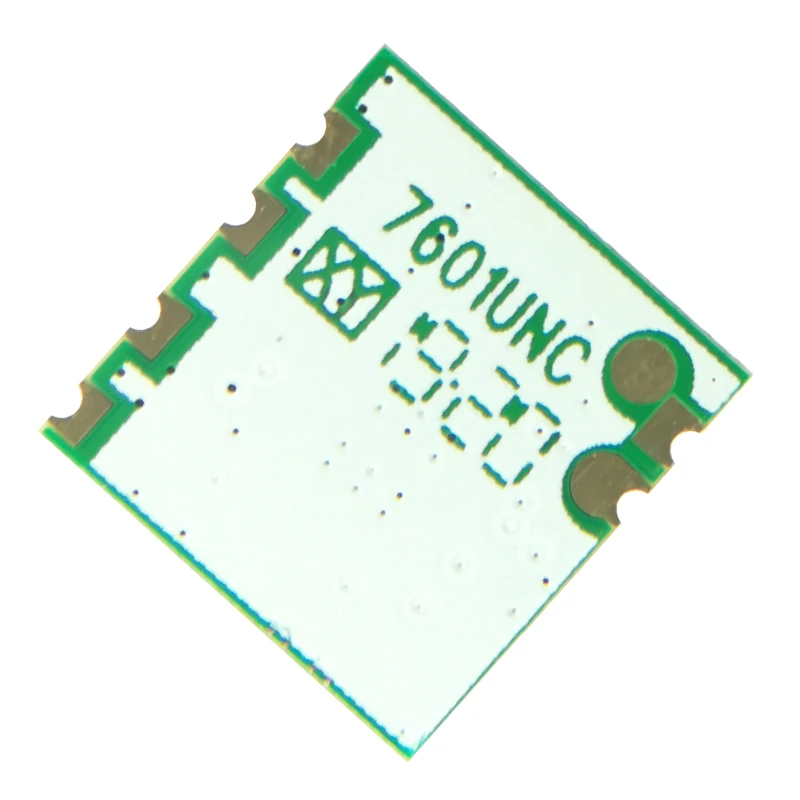

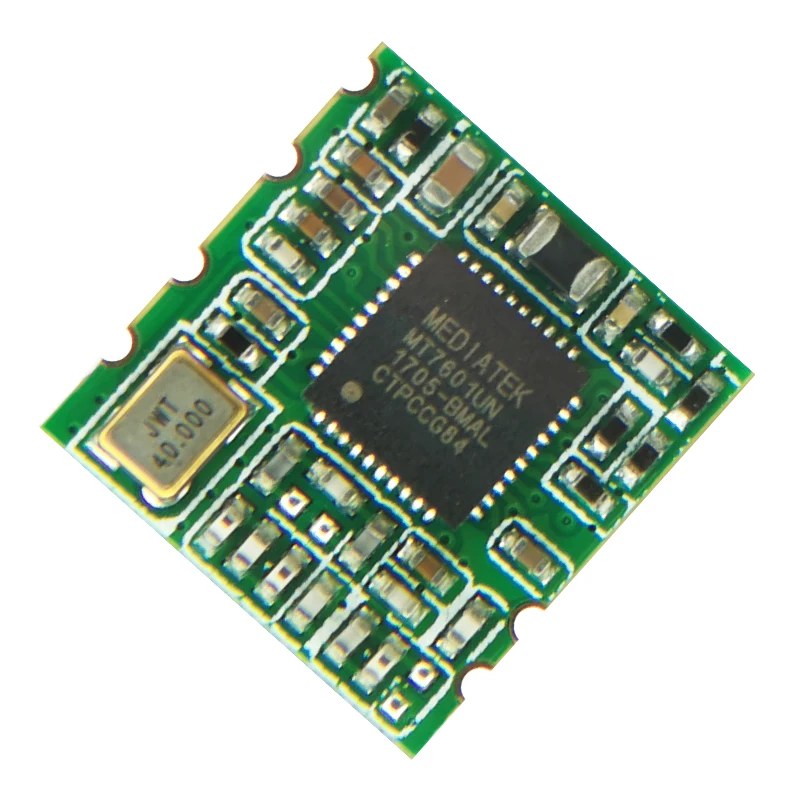

TL7601UNC is a highly integrated and excellent performance Wireless LAN (WLAN) USB2.0 network interface device. High-speed wireless connection up to 150 Mbps.This WLAN Module design is based on MT7601UN. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) , Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1Rcapable baseband, and RF in a single chip.
Chipset: | MT7601UN | Model Number: | TL7601UNC |
Application: | OTT/IPTV/STB/IPC/NVR/DVR/POS/Printer | Data Rate: | 150Mbps |
WIFI Standard: | IEEE802.11b/g/n | Host Interface: | USB |

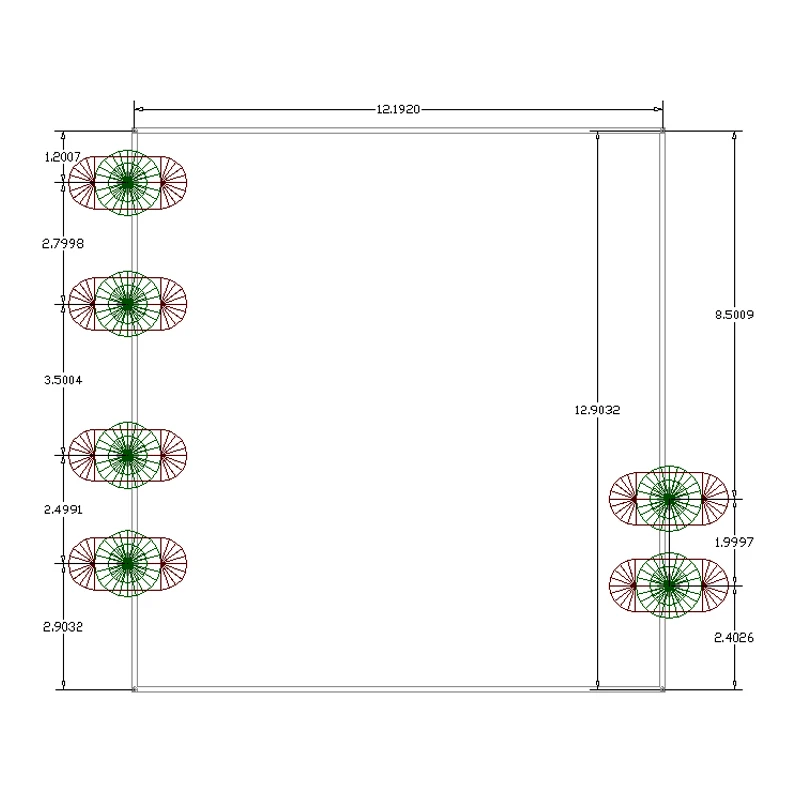

Size: | 12.7x12.3mm | Operating Frequency: | 2.4GHz |
GW: | 0.200KG | Size of Package: | 19X19X3 cm |
Package Type: | Blister / Take-up / Vacuum | Place of Origin: | Guangdong, China |
Q:What is the MOQ?
A: 1piece, larger qty,lower price.
Q:What about the delivery time?
A:Sample in stock,5-6 weeks for mass production.
Q:Does your product have any warranty?
A:Yes,we offer 1 year warranty for our products.
Q:What's your payment method?
A: Alipay,T/T or western union.
Q:What's your shipping method?
A:By express,by air or by sea depends on your select based on the product qty.
Q:Do you offer custom solution?
A:Yes,we can design&develop custom solution for you if specific requirement needed.
