Ortur DIY диод дерево Настольный CNC 3D принтер гравировка собака маркировочный пистолет лазерный
- Категория: Laser Engraving Machines >>>
- Поставщик: Shenzhen,Salon,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.39 $* | 0.4 $* |
| Aug-16-2025 | 0.51 $* | 0.81 $* |
| Jul-16-2025 | 0.21 $* | 0.6 $* |
| Jun-16-2025 | 0.17 $* | 0.80 $* |
| May-16-2025 | 0.8 $* | 0.95 $* |
| Apr-16-2025 | 0.70 $* | 0.78 $* |
| Mar-16-2025 | 0.3 $* | 0.72 $* |
| Feb-16-2025 | 0.49 $* | 0.18 $* |
| Jan-16-2025 | 0.12 $* | 0.40 $* |
Характеристики
New ORTUR MASTER 2 PRO Upgraded Laser Engraver DIY Laser Engraving Machine Blue Laser Deep Carving Desktop Logo Picture CNC Router
Recommend Products
Welcome to order from us!
All stocks are available in Europe and USA now, free duty to EU members countries and USA mainland!

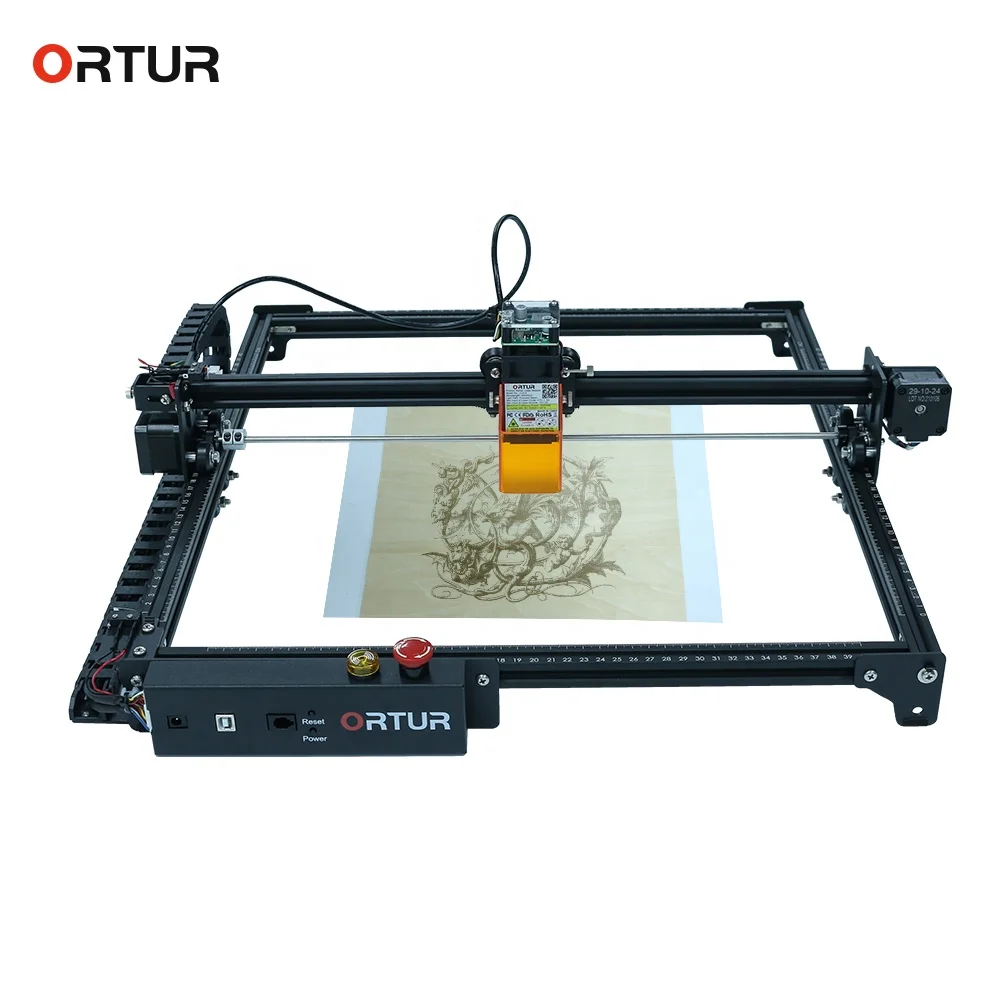

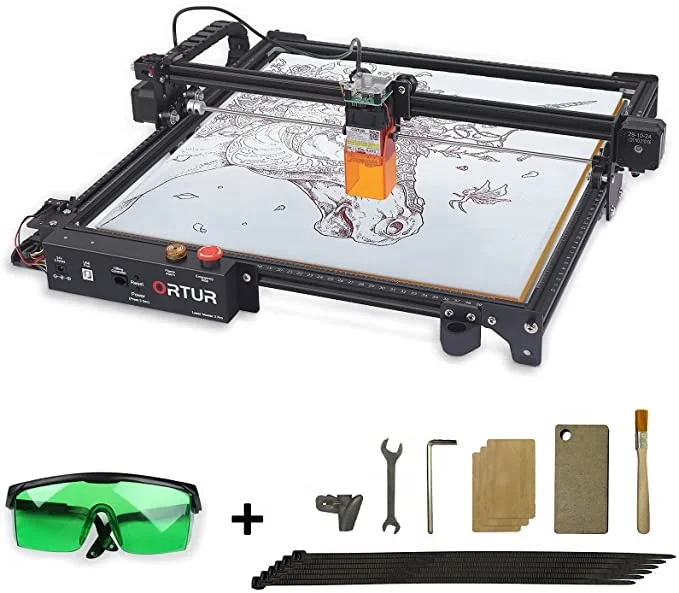

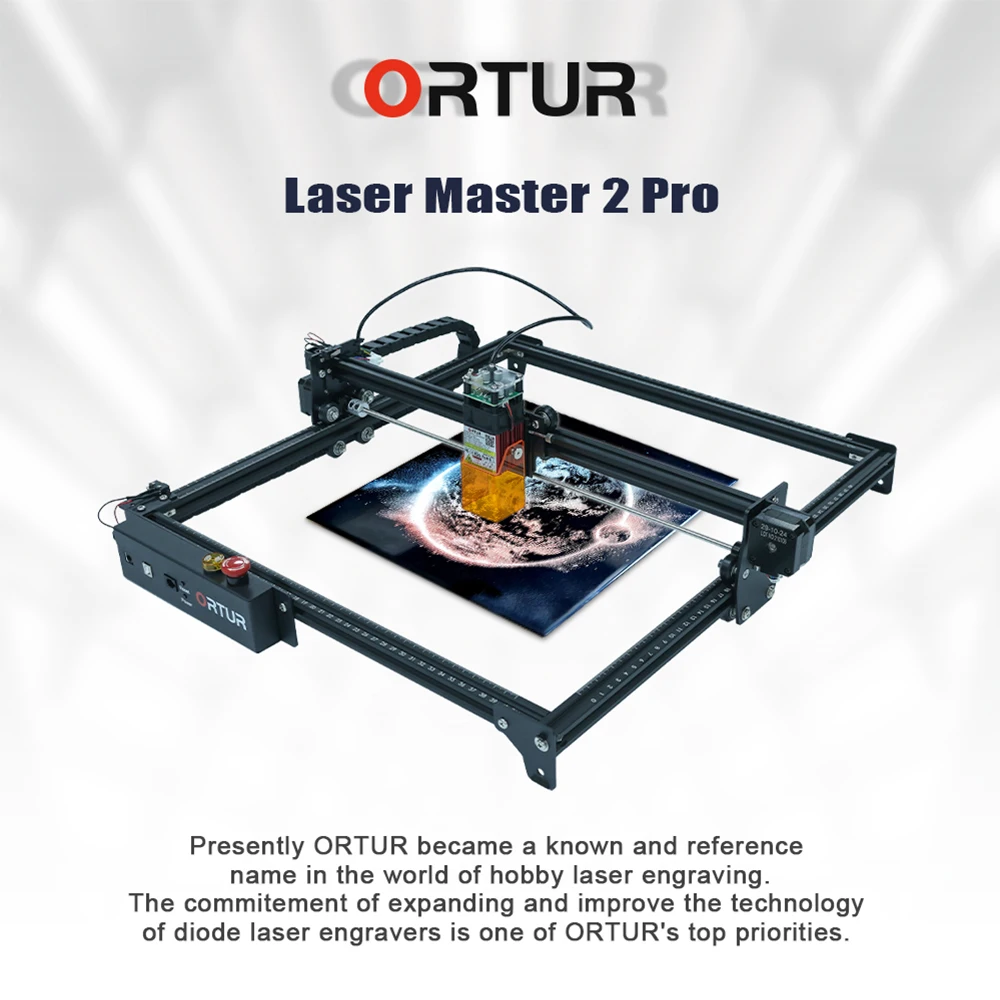

ORTUR LASER MASTER 2 PRO
The Advanced Motherboard
1, Laser Master 2 Pro is armed with the OLM-PRO-V10 Motherboard, the 3rd generation laser motherboard,has more features, it
supports flame detector, emergency stop button,and Ortur Offline Control Box.
2,The OLM-PRO-V10 Motherboard has a safer 24V electric system,could support the powerful laser module, also more add-ons.
The Updated Firmware
1,Ortur Laser 1.5 Firmware has optimized the motion algorithm to support the faster speed engraving from 4000mm/min to
10000mm/min.
2,Ortur Laser 1.5 Firmware could support more features, such as flame detector, emergency stop button, Ortur Offline Control Box,
etc.
LU2-4 Compressed Focal Spot Laser Module
1,LU2-4 Compressed Focal Spot Laser Module, its focus spot has been compressed from 0.23*0.23mm (1st Generation laser module) to
be 0.08*0.15mm.
2,LU2-4 is armed with a customized Lens System, has optimized the design of the beam waist of incident beams, object distance and
lens parameters, it could cut 4mm plywood one pass and 6mm pine board one pass.
Optimized Structure Design
1,Mechanical Structure (Motion Structure) had been improved based on laser master 2, so as to support the faster speed carving /
long-time working, it's strong and durable.
2,Specific industrial cable and Drag Chain for good arrangement of wires.
3,More add-ons are available, such as Z-axis Lifting Device, Ortur Offline Control Box, etc.(Optional parts are coming )
Safety Precautions
1.Active Position Protection,
1, Laser Master 2 Pro is armed with the OLM-PRO-V10 Motherboard, the 3rd generation laser motherboard,has more features, it
supports flame detector, emergency stop button,and Ortur Offline Control Box.
2,The OLM-PRO-V10 Motherboard has a safer 24V electric system,could support the powerful laser module, also more add-ons.
The Updated Firmware
1,Ortur Laser 1.5 Firmware has optimized the motion algorithm to support the faster speed engraving from 4000mm/min to
10000mm/min.
2,Ortur Laser 1.5 Firmware could support more features, such as flame detector, emergency stop button, Ortur Offline Control Box,
etc.
LU2-4 Compressed Focal Spot Laser Module
1,LU2-4 Compressed Focal Spot Laser Module, its focus spot has been compressed from 0.23*0.23mm (1st Generation laser module) to
be 0.08*0.15mm.
2,LU2-4 is armed with a customized Lens System, has optimized the design of the beam waist of incident beams, object distance and
lens parameters, it could cut 4mm plywood one pass and 6mm pine board one pass.
Optimized Structure Design
1,Mechanical Structure (Motion Structure) had been improved based on laser master 2, so as to support the faster speed carving /
long-time working, it's strong and durable.
2,Specific industrial cable and Drag Chain for good arrangement of wires.
3,More add-ons are available, such as Z-axis Lifting Device, Ortur Offline Control Box, etc.(Optional parts are coming )
Safety Precautions
1.Active Position Protection,
2.Exposure Duration Detection and Limitation,
3.Laser Beam Safety Guard.
4.Flame Detector
5.Emergency Stop Button
5.Emergency Stop Button
OLM2 VS OLM2-PRO
Specifications | ||||
ORTUR LASER MASTER 2 | ORTUR LASER MASTER 2 PRO | |||
Motherboard | OLM-MAX-V10 Motherboard,with 32Bits MCU | OLM-MAXUP-V10 Motherboard, with 32Bits MCU | ||
Firmware | Ortur Laser Master V1.40 Series Firmware | OLF-V152 Firmware | ||
Safety Precautions | 1.Active Position Protection, 2.Exposure Duration Detection and Limitation, 3.Laser Beam Safety Guard. | 1.Active Position Protection, 2.Exposure Duration Detection and Limitation, 3.Laser Beam Safety Guard. 4.Flame Detector 5.Emergency Stop Button | ||
ADD ONS | N/A | 1.Ortur Control Box (Offline Controller) 2.Adjustable Z-axis Lifting Device | ||
Frame Materials | Aluminum + Arylic | Aluminum Profile + Powder Coated Steel | ||
Motors | NEMA 17 Stepper Motors | NEMA 17 Stepper Motors | ||
Mechanical Precision | Y:12.5um，X:12.5um | Y:12.5um，X:12.5um | ||
Pixel Accuracy | Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy) | Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy) | ||
Engraving Area | 400MM×430MM | 400MM×400MM | ||
Available Laser Modules | LU1-3 (Electric Power: 15W, Luminous Power: 4,000-4,500mw) LU1-4 (Electric Power: 20W, Luminous Power: 4,500-5,500mw) LU2-4 (Electric Power: 20W, Luminous Power: 4,500-5,500mw) | LU2-4 Compressed Focal Spot Laser Module (Electric Power: 20W, Luminous Power: 4,500-5,000mw) | ||
Wave Length | 445±5nm | 445±5nm | ||
Control Mode | PWM | PWM | ||
Power Rate | S0-S1,000 | S0-S1,000 | ||
Engraving Speed | 0-3,000MM/Min | 0-1,0000MM/Min | ||
Baud Rate | 115200 - 921600 (Default: 115200) | 115200 - 921600 (Default: 115200) | ||
Computer OS | Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn) | Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn) | ||
Control Softwares | LaserGRBL (free), LightBurn (Paid Software) | LaserGRBL (free), LightBurn (Paid Software) | ||
Input Format | BMP, JPG, PNG, NC, DXF, SVG, etc. | JPG, JPEG, PNG, BMP, SVG, etc. | ||
Available Materials of Engraving | Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc. | Wood Board, Paperboard, Black Acrylic, Leather, Food, Stainless Steel, Power Coated Metal, etc. | ||
Available Materials of Cutting | Paper Board, KT Board, Felt Cloth, Leather, Thin Plywood, Thin Black Acrylic, etc. | Wood Board, Paperboard, Black Acrylic, Leather, Felt Cloth, Dark Color Plastic Sheet (Melt), etc. | ||
Input Voltage | 110V-220V (Compatible) | 110V-220V (Compatible) | ||
Power Adapter Output | 12V / 3A | 24V / 2A | ||
Operating Temp. | -20℃-50℃ | -20℃-50℃ | ||
Packaging Information | ||||
Product Size | 570*550*175.2MM | 600 x 570 x 189MM / 23.62" x 22.44" x 7.44" | ||
Net Weight | 2.22KGS(7W)/2.38KGS(15W/20W) | 3.5KGS / 7.72LBS | ||
Packing Way： | X-axis Aseembly+Y-axis Aseembly+Laser Module+Accessories, inserted in PE Foam, packed in a cardboard box. | X-axis Aseembly+Y-axis Aseembly+Laser Module+Accessories, inserted in PE Foam, packed in a Cardboard Box. | ||
Box Size： | 590*210*120MM | 660*250*110MM / 26" x 10" x 4.33" | ||
Gross Weight： | 3.40KGS(7W)/3.50KGS(15W/20W) | 4.60KGS / 10.14LBS | ||

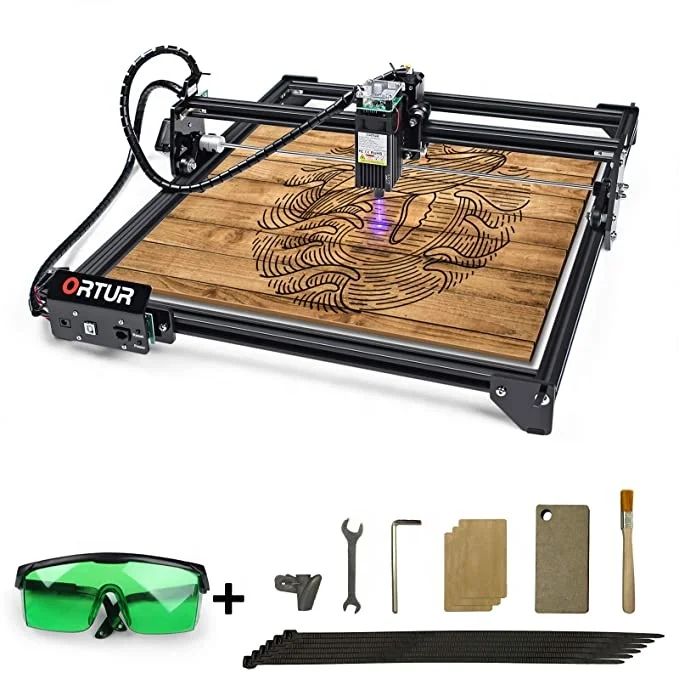

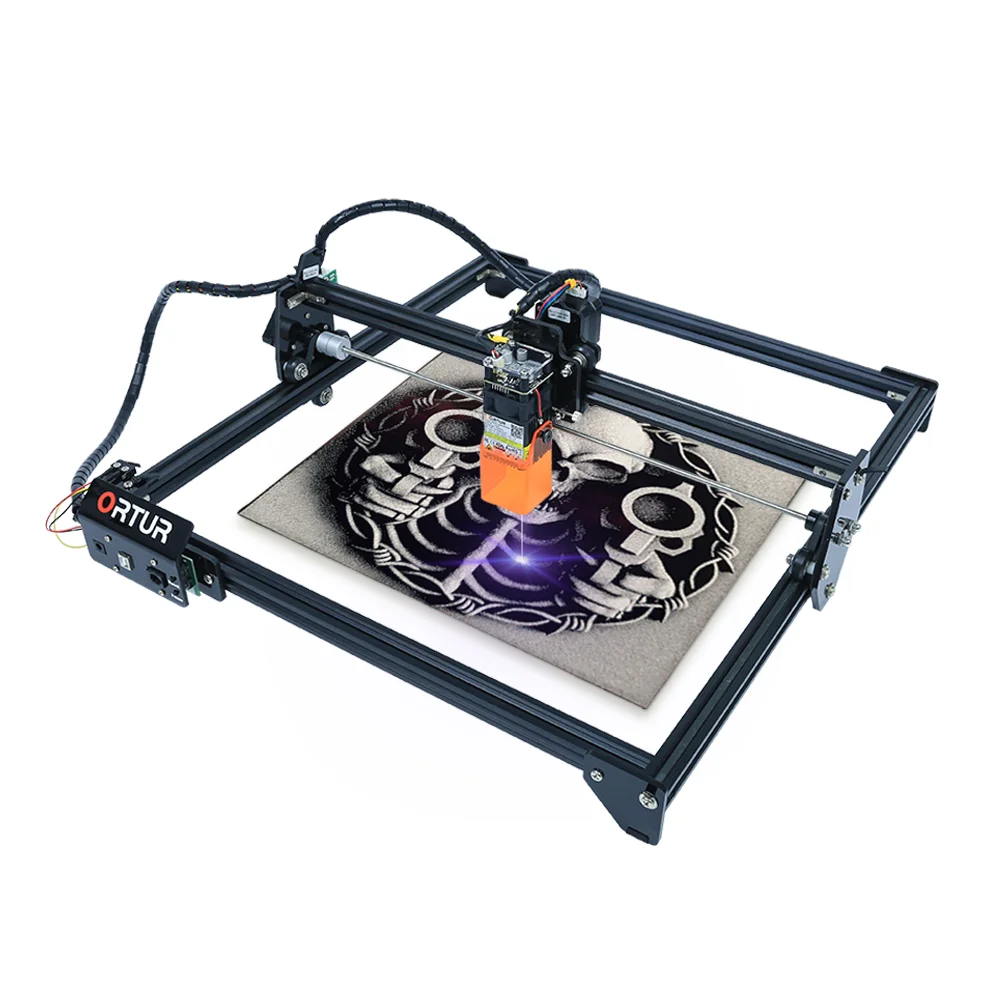

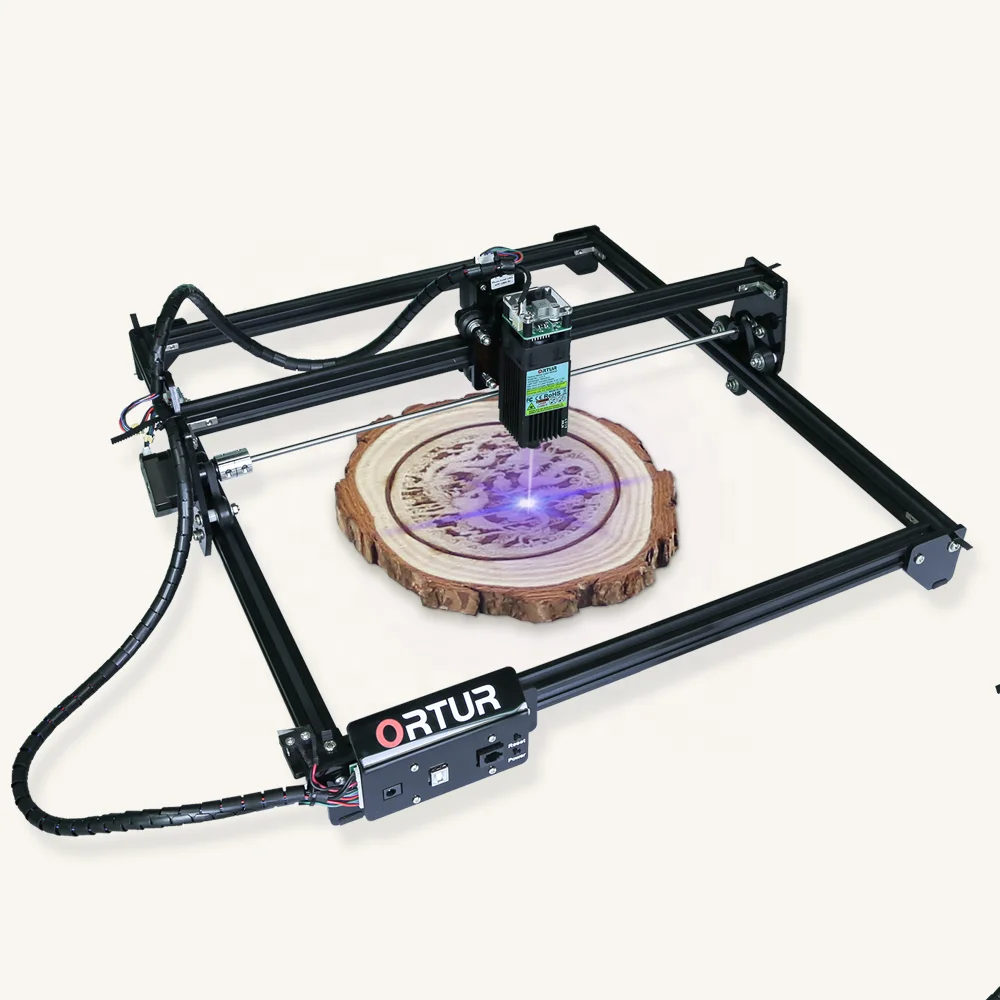

ORTUR LASER MASTER 2
Brief Introduction:
The Laser Master 2 - LU1-2-7W is good at picture engraving.
The Laser Master 2 - LU1-3-15W is the most cost-effective,available for both engraving and cutting.
The Laser Master 2 - LU1-4-20W is higher power and supports a faster engraving and cutting.
The Laser Master 2 - LU2-4-20W is Support for cutting thicker materials , better engraving and cutting result.
ORTUR LASER MASTER 2 -LU2-4-20W
ORTUR LASER MASTER 2-LU1-4-20W
ORTUR LASER MASTER 2 -LU1-3-15W
ORTUR LASER MASTER 2 -LU1-2-7W
Successful Project
plywood
paperboard
stone
glass
ceramic
acrylic
Product packaging
ORTUR LASER MASTER 2 PRO
ORTUR LASER MASTER 2
FAQ
About Ortur brand:
2, 100% factory manufacturer located in China, welcome to visit our factory whenever you like!
3, We offer you a wide range of 3D printers and Ortur Laser Master series with performance levels adequate to the various uses which you could envision for your 3D printer.
4, It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with he printer you choose.
5, We are always available to provide the spare parts and filaments you need with your 3D printers/Ortur Laser Masters.
You could rely on us for the consistent quality and service!
2,Overseas warehouse and service center in USA and Europe,which can speed up the service all over.
3,Professional technical team and quality after-sales service.
4,Competitive pricing and fast delivery.
7,Accepted Payment Type: T/T,PayPal,Western Union,Escrow;
8,Language Spoken:English,Chinese
About Tax:
1, Most countries we ship the parcel for free shipping , but we do not cover any tax and duty!
2, About customs charging fee . no body can control , every country customs has different Import and export tariff system
1: We are based in Guangdong,China,start from 2013,sell to Domestic Market(46.00%),North America(18.00%),
Western Europe(11.00%),Southeast Asia(6.00%),Northern Europe(4.00%),Oceania(3.00%),South Asia(1.00%),
Eastern Europe (1.00%),Africa(1.00%).There are total about 101-200 people in our office
2, 100% factory manufacturer located in China, welcome to visit our factory whenever you like!
3, We offer you a wide range of 3D printers and Ortur Laser Master series with performance levels adequate to the various uses which you could envision for your 3D printer.
4, It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with he printer you choose.
5, We are always available to provide the spare parts and filaments you need with your 3D printers/Ortur Laser Masters.
You could rely on us for the consistent quality and service!
Our Advantages:
1,100% factory manufacture located in China of 3D Printers, Laser Engraver,CNC machine.
1,100% factory manufacture located in China of 3D Printers, Laser Engraver,CNC machine.
2,Overseas warehouse and service center in USA and Europe,which can speed up the service all over.
3,Professional technical team and quality after-sales service.
4,Competitive pricing and fast delivery.
5,Accepted Delivery Terms: FOB,CFR,CIF,EXW；
6,Accepted Payment Currency:USD,CNY;
6,Accepted Payment Currency:USD,CNY;
7,Accepted Payment Type: T/T,PayPal,Western Union,Escrow;
8,Language Spoken:English,Chinese
About Tax:
1, Most countries we ship the parcel for free shipping , but we do not cover any tax and duty!
2, About customs charging fee . no body can control , every country customs has different Import and export tariff system
3, Tax free for US and EU countries,as we have warehouse in US and CZ.
About Maintenance:
About Maintenance:
1, All products have 12 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you within 72 hours,also provide the free parts to you at our costs.
2,Usually we do not accept return. if the item was damaged during transportation or cannot be used normally, please do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
3, We have a professional technical support team and after-sales service team, we will provide the best solution within 72 hours,if you have any concerns with products,please feel free to contact with us.
4,Any question of technical support ,welcome visit Ortur official support website:https://ortur.tech/support
About delivery:
1, we need 1-3 days handle order in factory when payment received. As normal, it needs 2-3 days update first tracking and 7-15 days for delivery.
2,We ship with DHL, FEDEX,UPS etc,normally the parcel will arrive to you in 7-12 days.
2, If you do not receive the goods as promised,please feel free to contact us before opening a dispute or leaving us a
negative feedback.We would reply you within 24 hours and provide the best solution.
negative feedback.We would reply you within 24 hours and provide the best solution.
3,If the parcel confirmed lost during transportation, we will give you a full refund or resend the item without any extra
