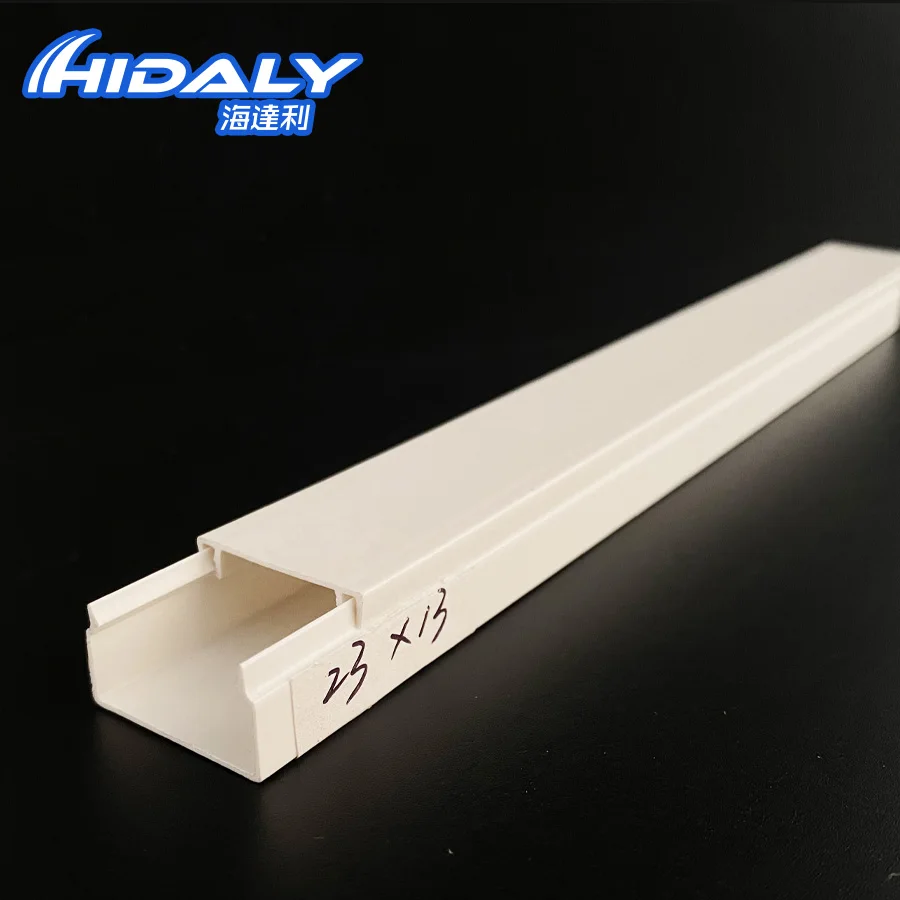

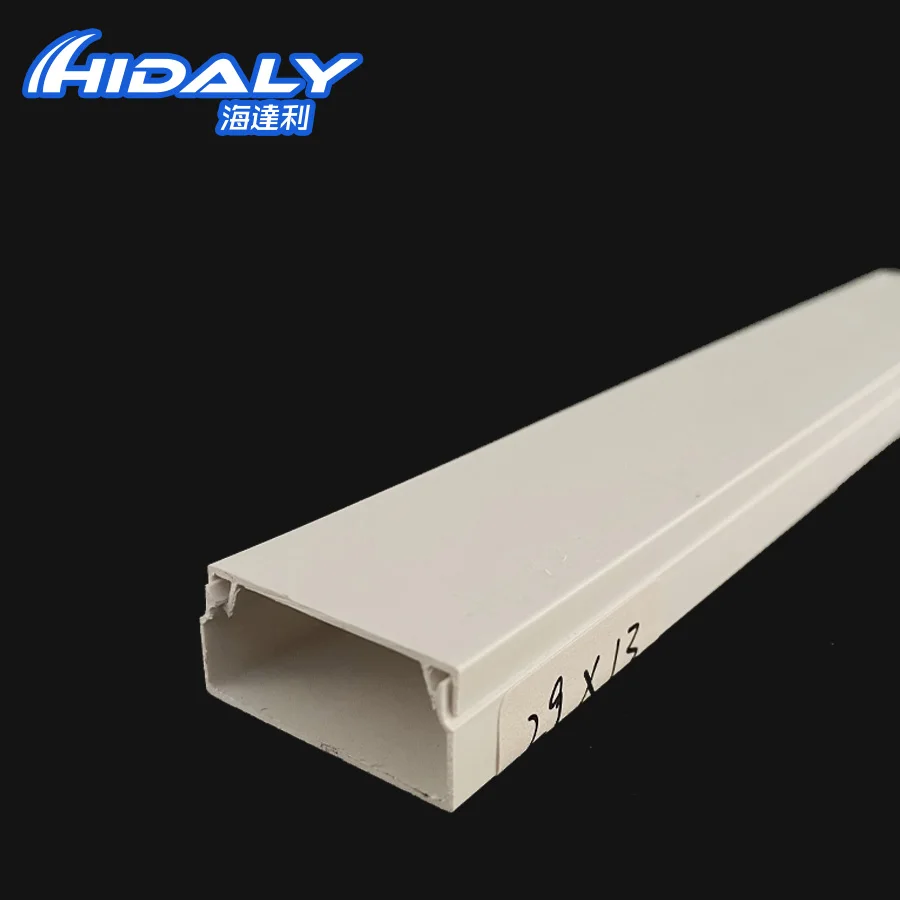

CE огнестойкая электрическая ПВХ кабельная труба
- Категория: Wiring Accessories >>>
- Поставщик: Foshan,City,Shunde,Area,Lvzhike,Plastic,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.71 $* | 0.81 $* |
| Aug-16-2025 | 0.26 $* | 0.84 $* |
| Jul-16-2025 | 0.72 $* | 0.25 $* |
| Jun-16-2025 | 0.12 $* | 0.52 $* |
| May-16-2025 | 0.84 $* | 0.85 $* |
| Apr-16-2025 | 0.37 $* | 0.94 $* |
| Mar-16-2025 | 0.84 $* | 0.2 $* |
| Feb-16-2025 | 0.41 $* | 0.79 $* |
| Jan-16-2025 | 0.10 $* | 0.17 $* |
Характеристики
Specification
Item.NO. | W×H | Thickness | Item.NO. | W×H | Thickness |
PZC-1010 | 10×10 | 0.6 | PZC-4025 | 40×25 | 0.68/0.74/0.8/1.0/1.4 |
PZC-1208 | 12×8 | 0.7 | PZC-4040 | 40×40 | 1.1/1.3 |
PZC-1212 | 12×12 | 0.59 | PZC-5025 | 50×25 | 0.8/0.97/1.4 |
PZC-1407 | 14×7 | 0.55 | PZC-5050 | 50×50 | 1.1/1.2/1.45 |
PZC-1510 | 15×10 | 0.5/0.55/0.75 | PZC-5922 | 59×22 | 0.78/1.08 |
PZC-1515 | 15×15 | 0.58 | PZC-6040 | 60×40 | 1.08/1.2/1.33/1.45 |
PZC-1616 | 16×16 | 0.58/0.63/0.7/0.85/0.95 | PZC-6060 | 60×60 | 1.3/1.63 |
PZC-2010 | 20×10 | 0.5/0.6/0.64/0.7/0.75 | PZC-7550 | 75×50 | 1.2/1.45/1.75 |
PZC-2212 | 22×12 | 0.45/0.55 | PZC-7575 | 75×75 | 1.35/1.5/1.75 |
PZC-2313 | 23×13 | 0.55/0.61 | PZC-8040 | 80×40 | 1.2/1.55 |
PZC-2414 | 24×14 | 0.7/0.83 | PZC-8050 | 80×50 | 1.26/1.6/1.8 |
PZC-2415 | 24×15 | 0.6/0.63/0.75 | PZC-8080 | 80×80 | 1.6 |
PZC-2512 | 25×12 | 0.6 | PZC-10027 | 100×27 | 0.9/1.1 |
PZC-2516 | 25×16 | 0.58/0.63/0.7/0.75/0.87 | PZC-10040 | 100×40 | 1.35/1.55 |
PZC-2525 | 25×25 | 0.8/0.95 | PZC-10050 | 100×50 | 1.35/1.68/2.2 |
PZC-2913 | 29×13 | 0.9 | PZC-10060 | 100×60 | 1.65 |
PZC-3015 | 30×15 | 0.68/0.76/0.9 | PZC-10075 | 100×75 | 1.65 |
PZC-3030 | 30×30 | 1.1 | PZC-100100 | 100×100 | 1.6/2.0 |
PZC-3817 | 38×17 | 0.66 | PZC-12080 | 120×80 | 2.0 |
PZC-3919 | 39×19 | 0.8/0.9/1.0 | PZC-150100 | 150×100 | 2.0 |
PZC-4016 | 40×16 | 0.62/0.7/0.97 | PZC-200100 | 200×100 | 2.4 |
Remake: We can adjust the thickness according to client's request.
Certifications
Overview
Place of origin: | Guangdong, China(Mainland) | Name: | Lvzhike | Model number: | PVC trunking |
Material: | PVC | Specification: | up to your request | Length: | 2.9m or at your request |
Thickness: | 0.60 | Standard: | ISO | Appearence | Recatangle |
Application: | wire protecting | Technic: | Extruded | Life Time: | More than 50 years |
Main Export Countries | Africa,South America,Middle East | Color: | Mainly White,White Blue and others which need more MOQ | Package: | Plastic bag or carton |
Product Introduction
Material: | Made of rigid PVC | ||||
Certificates: | CE(Test Standard: EN50085) : RoHS | ||||
Flammability Rating: | FV-0 : FH-1 | ||||
Struction: | Made up of Duct bottom and cover | ||||
Application: | Used in stage, electric apparatus, air conditioning or indoors | ||||
Work Temperature: | -40℃ to 65℃ | ||||
Avalible Color: | Ivory, snow white, bluish white, other color need more MOQ | ||||
Feature: | 1.Non-conductive: good insulation, able to resist 25KV voltage, assuring a safe system. 2.Solid design, especially for anti-dust and anti-mouse. 3.Trunkings have strength tenacity, and are combustion-proof, fireproofing, dampproof, alkalescency-resistant, aging-resistant. 4.Easy Installation: light weight easy to cut, transport, bent and handle; easy connecting by solvent cement and threading joining without leakage. 5.Mini-trunking has been designed to match in with both the square and radius cornered surface mounted switch and socket boxes. | ||||

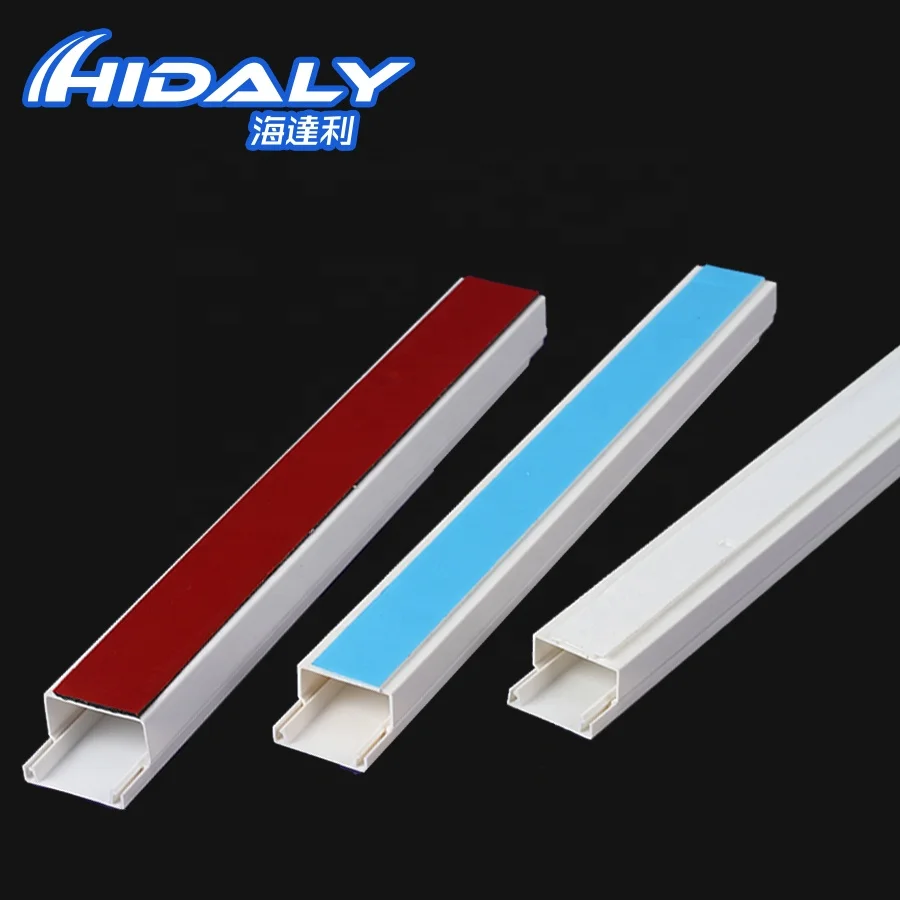

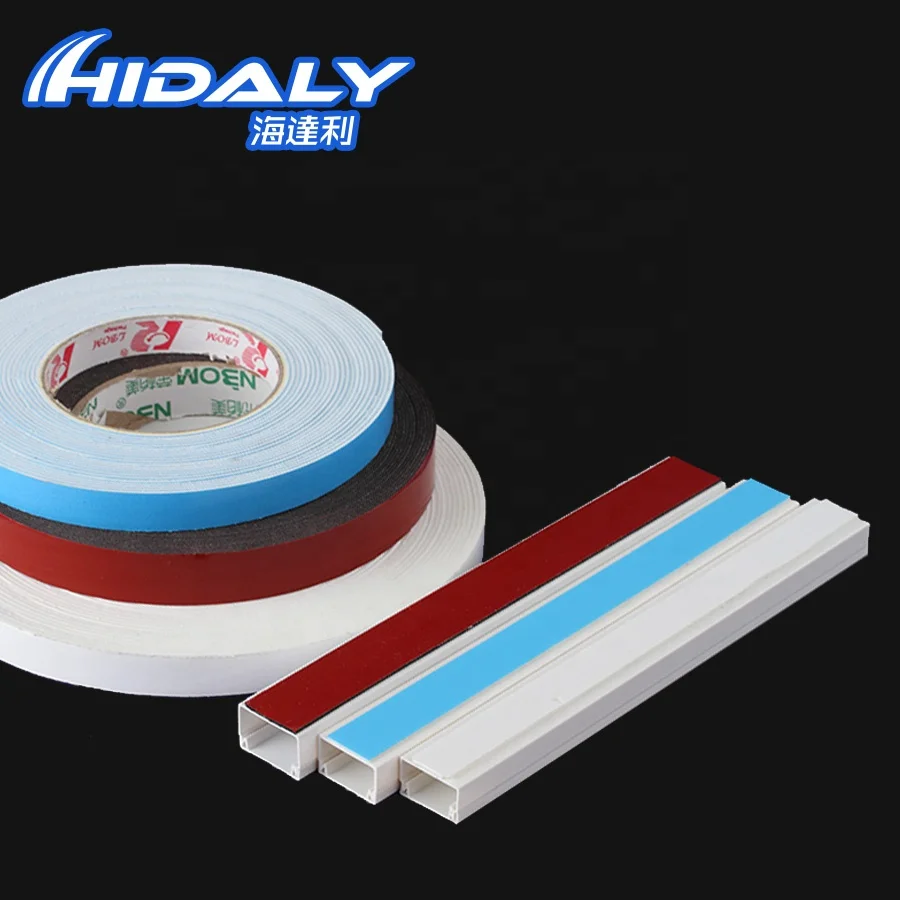

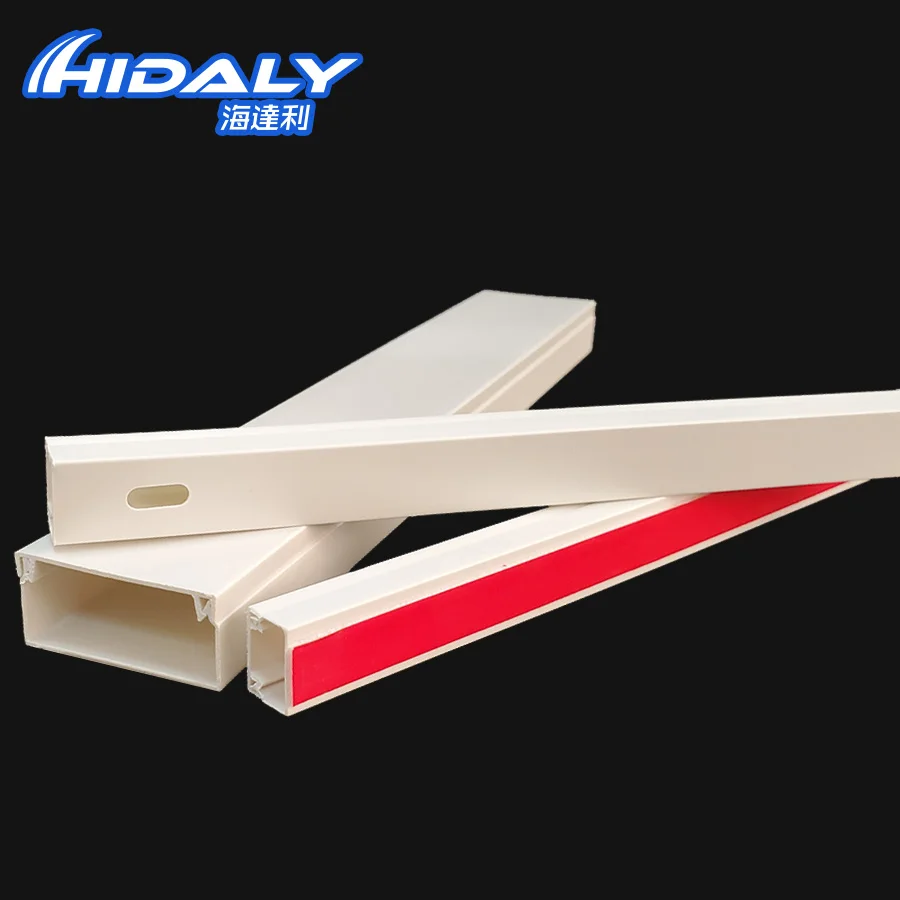

COMMENT: We can make mounting holes on the bottom of duct or make it to be adhesive trunking.
Company Profile
Product packaging
Poly bag
Carton
Plastic rope
PP packing belt
Nest Package
Individual package
Q & A
1. Are you a manufacturer?
Yes, our company was founded in 2008, covers an area of more than 8,000 n, and has 100 employees.
2. What are the company’s main products?

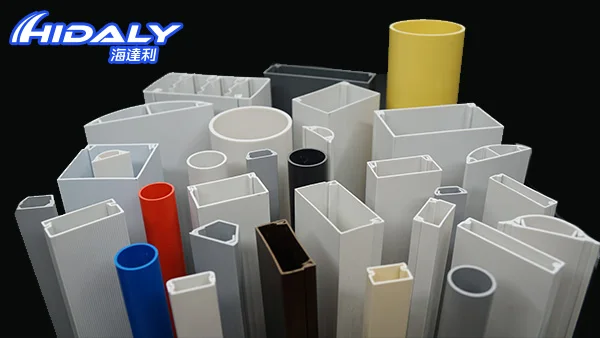

We produce PVC trunking, PVC pipe, PVC arc trunking, PVC telephone trunking, PVC compartment trunking, PVC accessories.
3. We want to get a quotation, what should we do?
Send me the size( Width x Height x Length , Thickness)
Yes, our company was founded in 2008, covers an area of more than 8,000 n, and has 100 employees.
2. What are the company’s main products?
We produce PVC trunking, PVC pipe, PVC arc trunking, PVC telephone trunking, PVC compartment trunking, PVC accessories.
3. We want to get a quotation, what should we do?
Send me the size( Width x Height x Length , Thickness)
Packaging requirements.(Poly Bag or Carton)
Color requirements.
We can reply you price list in hours.
4. Waht is the payment term?
T/T 30°/b deposit, Balance payment against the copy of B/L Or L/C at sight.
5.Can we get the sample?
Once confirm the production price, we can send you the samples to you for free, in 3 days.
6. What is your product quality standard and how to control it?
Based on our export data, we recommend the quality of customers purchases. After confirming the model, the model quality is used as the benchmark for production.
7. Can the order deliver quickly?
The first order to confirm the product quality and packaging information will be delivered within 30 days after receiving the
deposit, and the second order will be shortened to 20-25 days.
8. If you don’ t have the product l need,can you produce it’ ?
We accept any customer to invest in new products, and if the cumulative amount of the order meets the contract requirements, we return the investment cost.
9. We want to visit the factory, where are you? Can you come to the airport to pick you up?
Our factory is located in Foshan City, near Guangzhou Baiyun Airport, you can contact our salesman, we will arrange you a transfer to our company to visit.
Color requirements.
We can reply you price list in hours.
4. Waht is the payment term?
T/T 30°/b deposit, Balance payment against the copy of B/L Or L/C at sight.
5.Can we get the sample?
Once confirm the production price, we can send you the samples to you for free, in 3 days.
6. What is your product quality standard and how to control it?
Based on our export data, we recommend the quality of customers purchases. After confirming the model, the model quality is used as the benchmark for production.
7. Can the order deliver quickly?
The first order to confirm the product quality and packaging information will be delivered within 30 days after receiving the
deposit, and the second order will be shortened to 20-25 days.
8. If you don’ t have the product l need,can you produce it’ ?
We accept any customer to invest in new products, and if the cumulative amount of the order meets the contract requirements, we return the investment cost.
9. We want to visit the factory, where are you? Can you come to the airport to pick you up?
Our factory is located in Foshan City, near Guangzhou Baiyun Airport, you can contact our salesman, we will arrange you a transfer to our company to visit.
