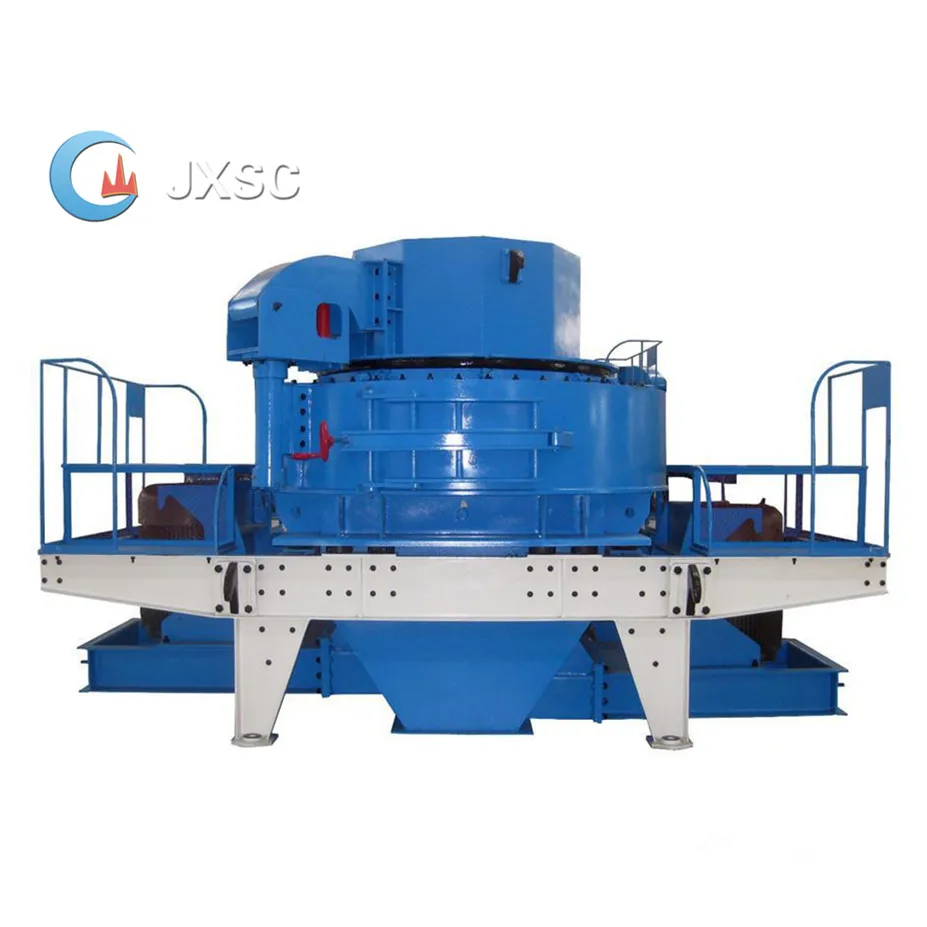

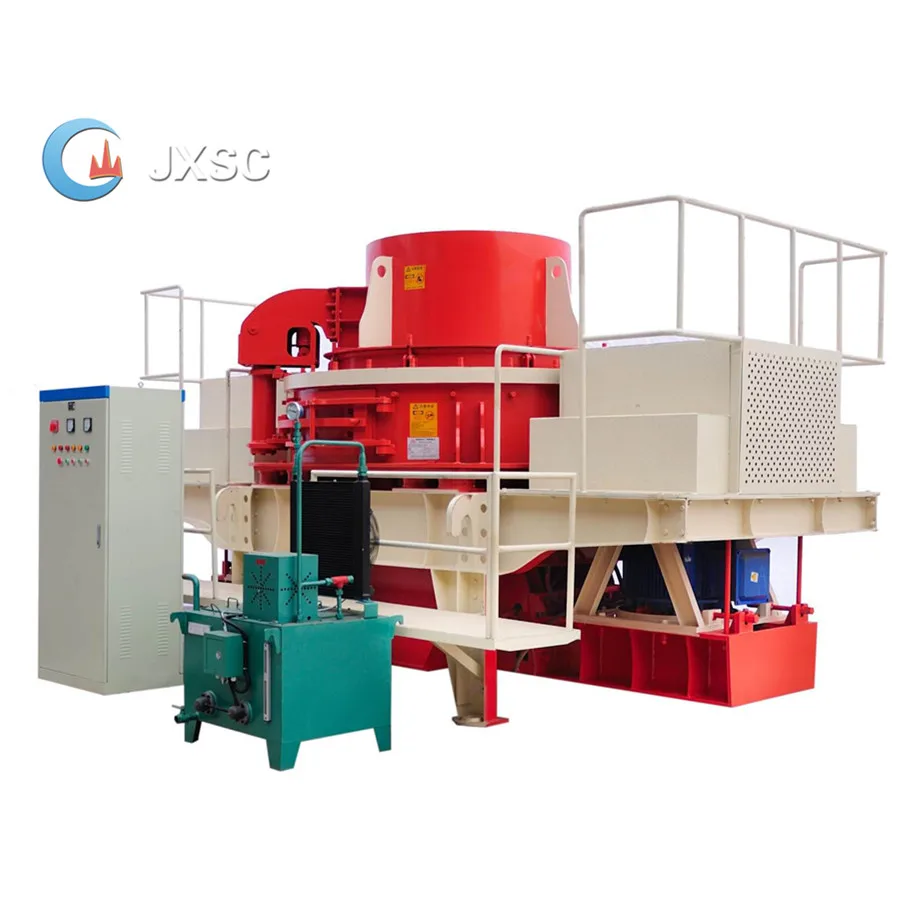

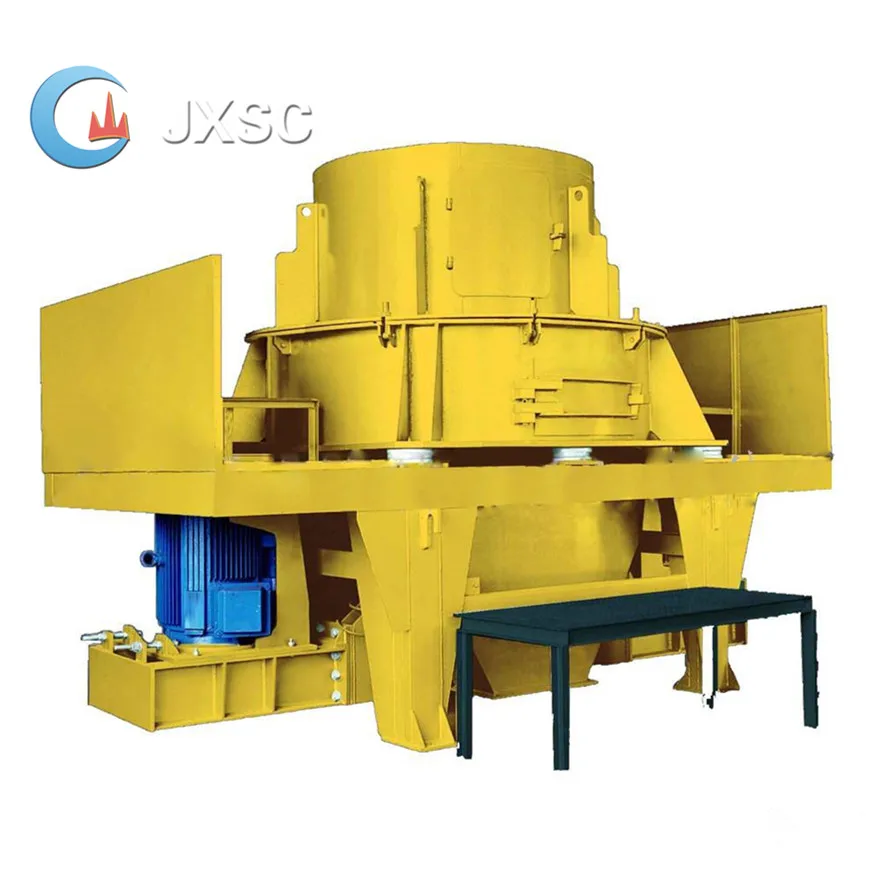

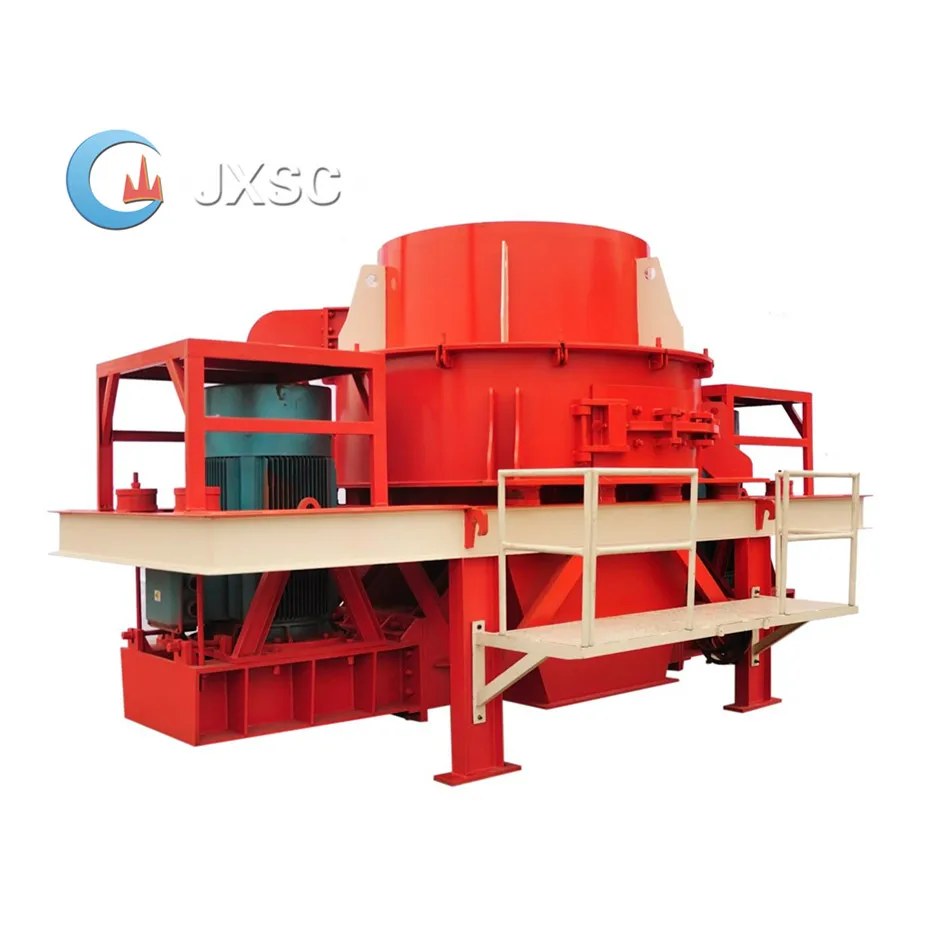

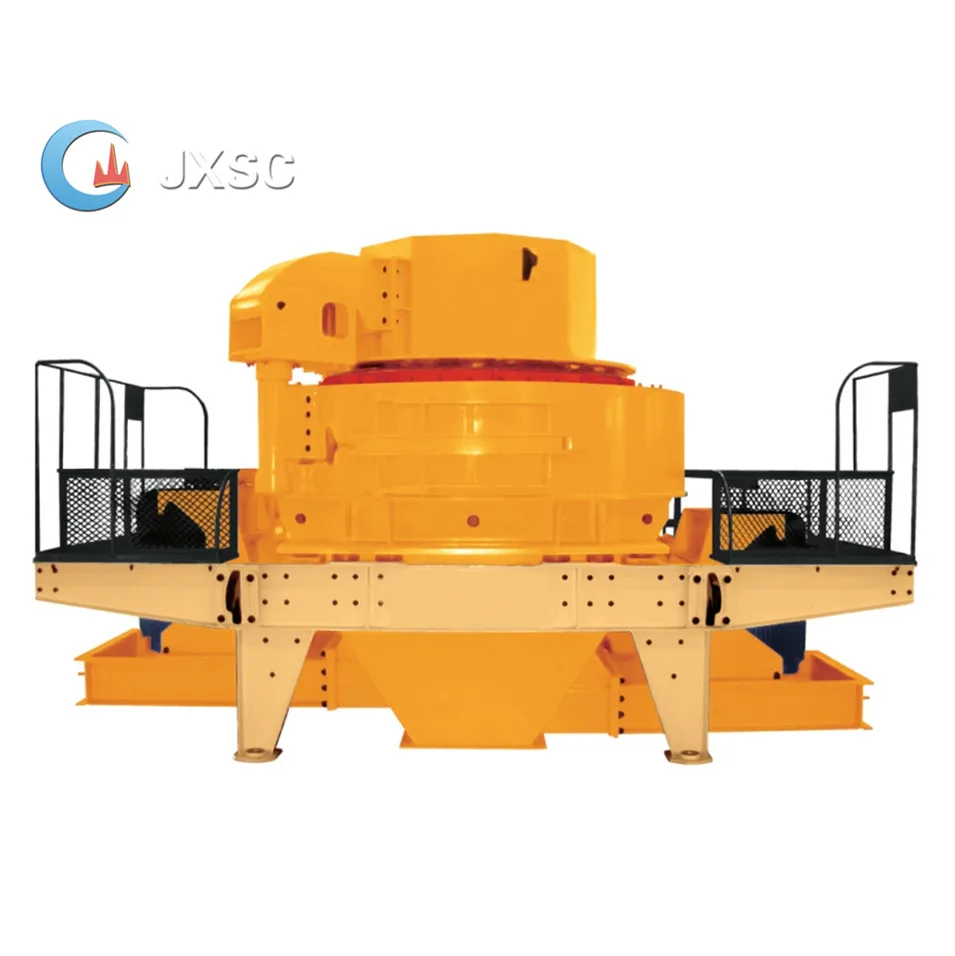

VSI Silica Sand Stone Production Plant Vertical Shaft Gravel Granite Impact Crusher Price Artificial Sand Making Machine
Product introduction: VSI sand maker is high performance sand making equipment with foreign technology. It is the perfect combination of unique design of rotor structure, wear-resisting material process, crushing speed optimization and hydraulic design. It Is a model of professional fine grinding technology and machinery manufacturing, and also is a fully reflection of the new technology and new process.
Application Field: Quarry, sand concrete, dry mortar, manufactured sand, power plant desulfurization, quartz sand, etc. Suitable Material: Cobble, granite, basalt,iron ore, limestone, calcite, quartzite, diabase, etc.
Principle of Operation:
1) Center Feeding: Raw material falls down into feed hopper, and then the material enters impeller through central entrance hole. It is accelerated in high-speed impeller, and then it is thrown out at the speed of 60-75m/s. When hitting impact plate, it is crushed. Final products come downwards though outlet. 2) Ring Feeding: Raw material falls down into feed hopper, and then through ring, it is divided into two parts by material-dividing plate. One enters into impeller through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by impeller at the speed of 60-75m/s, is hit coming down from outside of material-dividing plate. In this way, material is crushed.
Performance characteristics: 1) The crushing cavity internal items can be changed or repaired easily and fast,because of adopting hydraulic drive cover device. 2) With the unique feeding crusher structure, it is convenient to realize the"stone crushing stone" and "stone crushing metal", can crush and shaping stones. 3) With the unique dustproof sealing system, completely avoid the external dust into the lubricating parts. 4) High quality materials and advanced technology, improve the equipment quality and appearance, low failure rate to ensure. 5) The best design of crushing cavity, prolong the service time of wearing parts and reduce the cost.
Product Paramenters
Model
Max feeding size(mm)
Throughput(m3)
Capacity
(m3)
Speed of main shaft(r/min)
Power
(kw)
Overall dimension
(LxWxH)(mm)
DN-5000
35
40-60
20-35
1700-1890
90
3800x2180x2425
DN-6000
35
60-80
30-40
1560-1720
160
4240x2200x2778
DN-7000
40
100-120
40-50
1550-1650
132*2
4700x2200x2850
DN-8000
40
160-200
64-80
1400-1720
160*2
5200x2250x3250
DN-8500
45
180-200
72-80
1400-1720
200*2
5200x2350x3250
DN-9000
45
220-250
80-95
1510-1650
250*2
5200x2450x3250
DN-9500
45
250-270
95-108
1510-1650
280*2
5200x2250x3450
DN-10000
50
270-350
120-180
1480-1600
315*2
5200x2250x3450
Packing&Shipping
Small crusher packing by steel frame or plywood box and deliver by bulk cargo,Big crusher packing with plastic film and load by containers
Container: 40HQ/40GP/20GP/40FR/20FR Loading Port: Xiamen, Shenzhen, Guangzhou port etc Trade term:FOB, CIF, CFR, EXW, DDU, DDP Delivery time:7-30 days, after receiving 30% deposit, balance should be paid before loading
Company Introduction
Jiangxi Walker Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Southeast Asia, South& North America, Africa, Mid-East, Europe and many other countries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.
Our Workshop:
Our customers:
Our successful cases:
Certifications:
FAQ
●How long is the guarantee? All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund. ●What is the delivery time? Usually 7 days, if need motor, about 15 days. ●What is the nearest port? Xiamen, Guangzhou, Shenzhen ●What is the trade terms? Ex-work factory, FOB, CNF, CIF,DDU ect is acceptable. ●Service and Payment Terms? We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
