X6325 маленький Универсальный ручной фрезерный станок
- Категория: Manual Mills >>>
- Поставщик: Bo,Rui,Tianchen,(Shandong),Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3332.25 $* | 3499.10 $* |
| Aug-15-2025 | 3304.51 $* | 3469.51 $* |
| Jul-15-2025 | 2772.4 $* | 2911.49 $* |
| Jun-15-2025 | 3248.17 $* | 3410.53 $* |
| May-15-2025 | 2828.81 $* | 2969.70 $* |
| Apr-15-2025 | 3192.78 $* | 3352.71 $* |
| Mar-15-2025 | 3164.62 $* | 3322.95 $* |
| Feb-15-2025 | 3136.44 $* | 3293.54 $* |
| Jan-15-2025 | 3108.41 $* | 3263.60 $* |
Характеристики

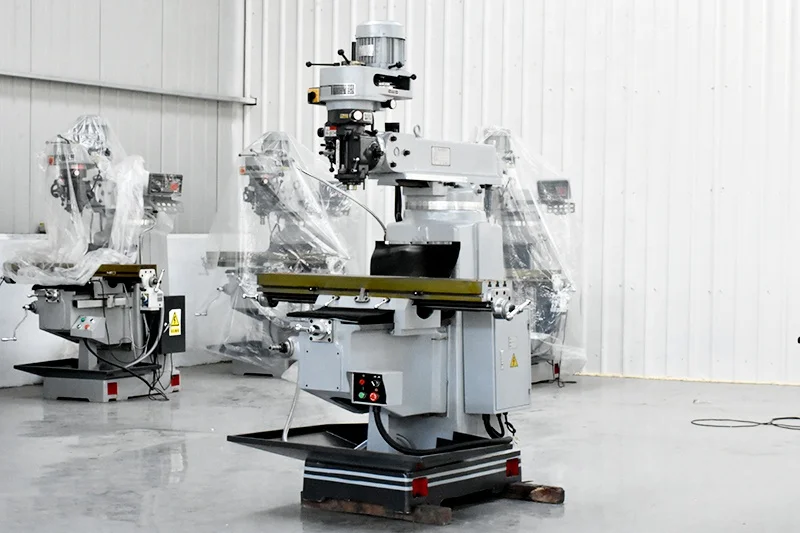

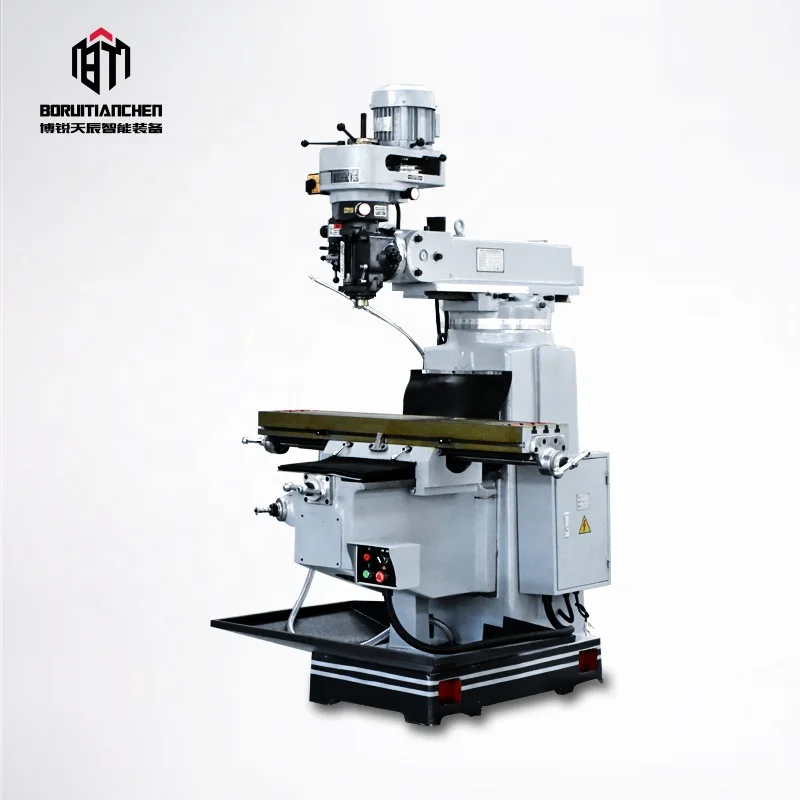

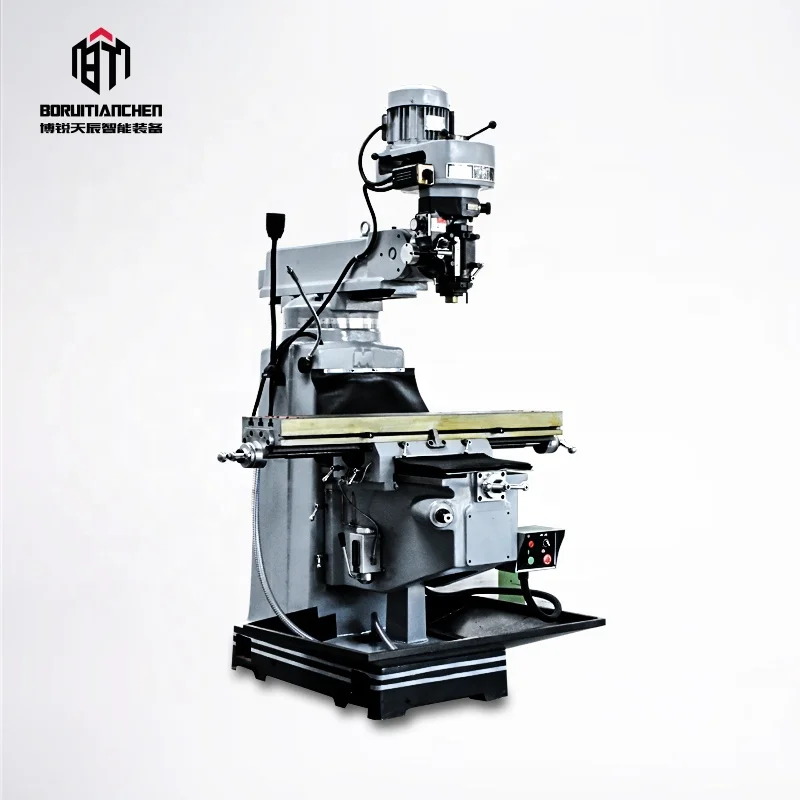

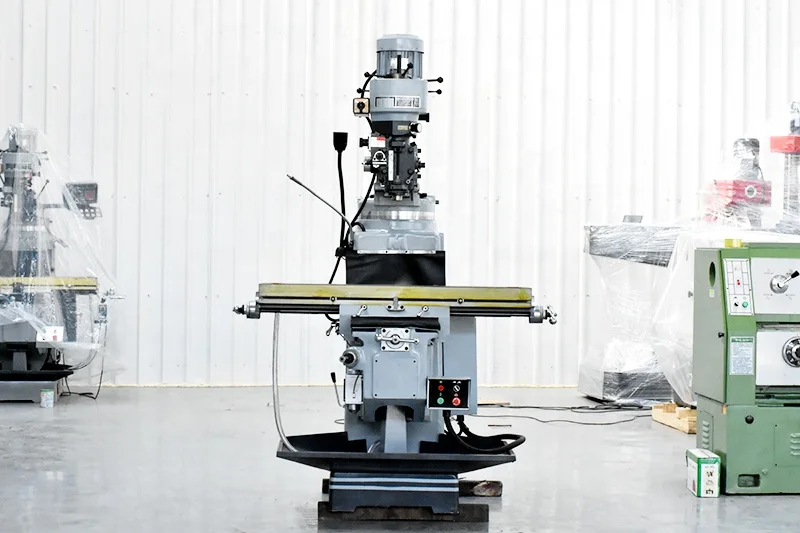

X6325 Vertical Turret Milling Machine
Products Description
The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Product main technical parameters:
Model | X6325 | ||
Table size(mm) | 1270X254 | ||
Long travel(mm) | 780 | ||
Cross travel(mm) | 400 | ||
Vertical travel(mm) | 500 | ||
T-slot No. and size | 3x16 | ||
Ram travel(mm) | 470 | ||
Distance from spindle nose to table surface(mm) | 0-405 | ||
Spindle hole taper | R8 | ||
Spindle travel(mm) | 127 | ||
Spindle speed | Standard: 16steps Shiftgrade:50HZ:65-4500 60HZ:80-5440 | ||
Auto quill feed | Three steps: 0.04/0.08/0.15 mm/revolution | ||
Telescopic stroke | 470 | ||
Spindle Motor | 2.2KW /3hp | ||
Head swivel | 90° | ||
Head tilting | 45° | ||
Dimension of package | One miller per case | 1516x1550x2080 | |
Two miller per case | 1680x1790x2170 | ||
Three miller per case | 1650x2285x2235 | ||
G.W./N.W. (kg) | 1200/1100 | ||
Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
