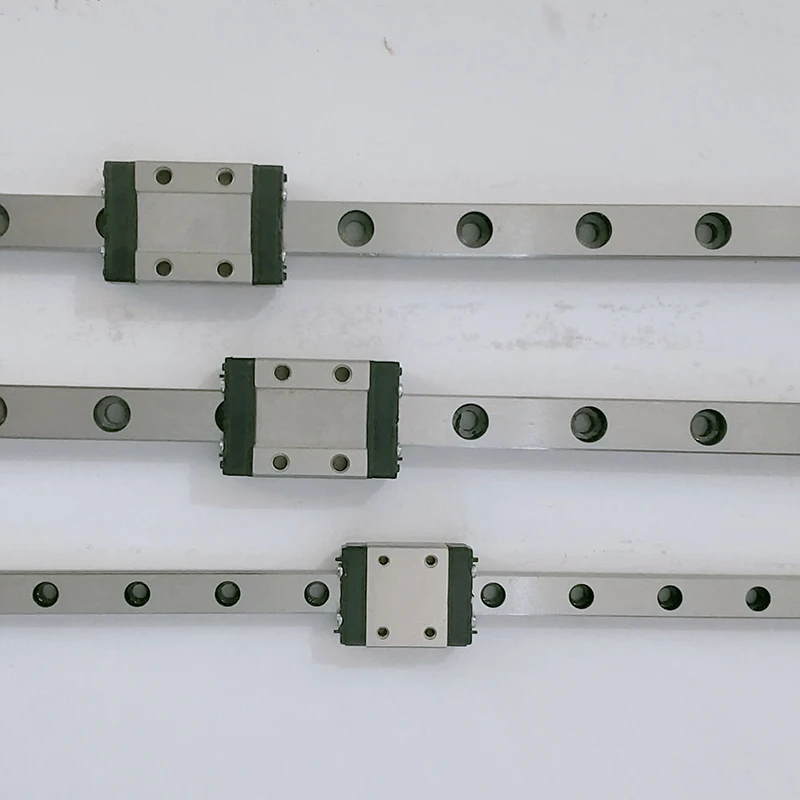

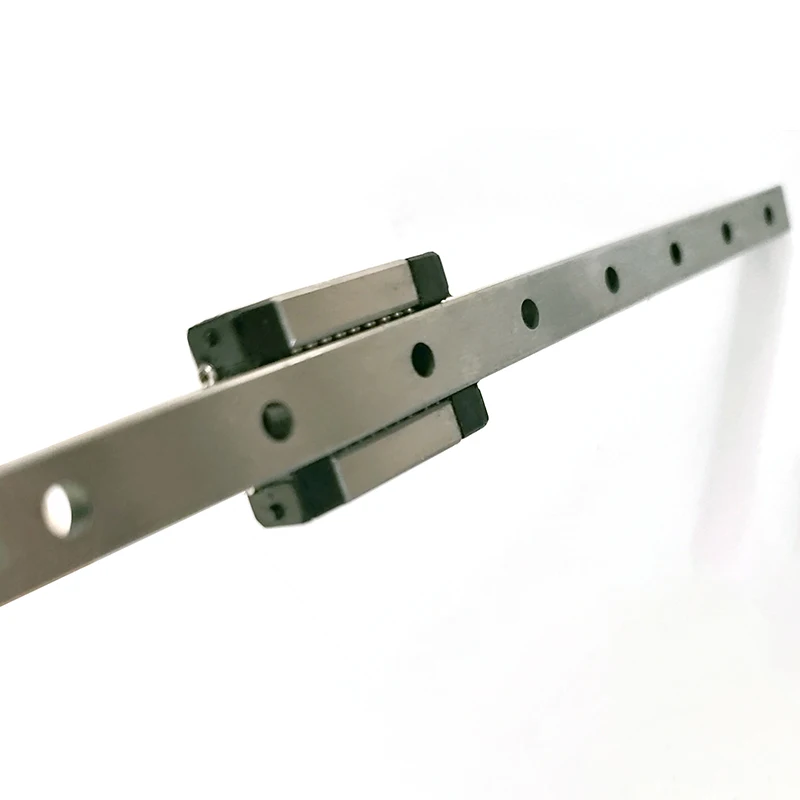

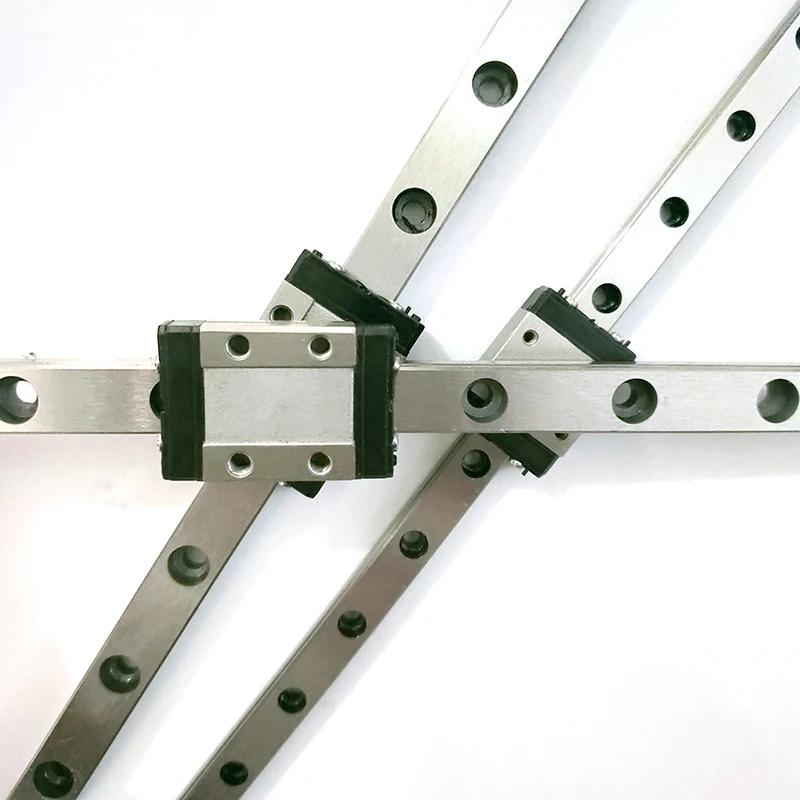

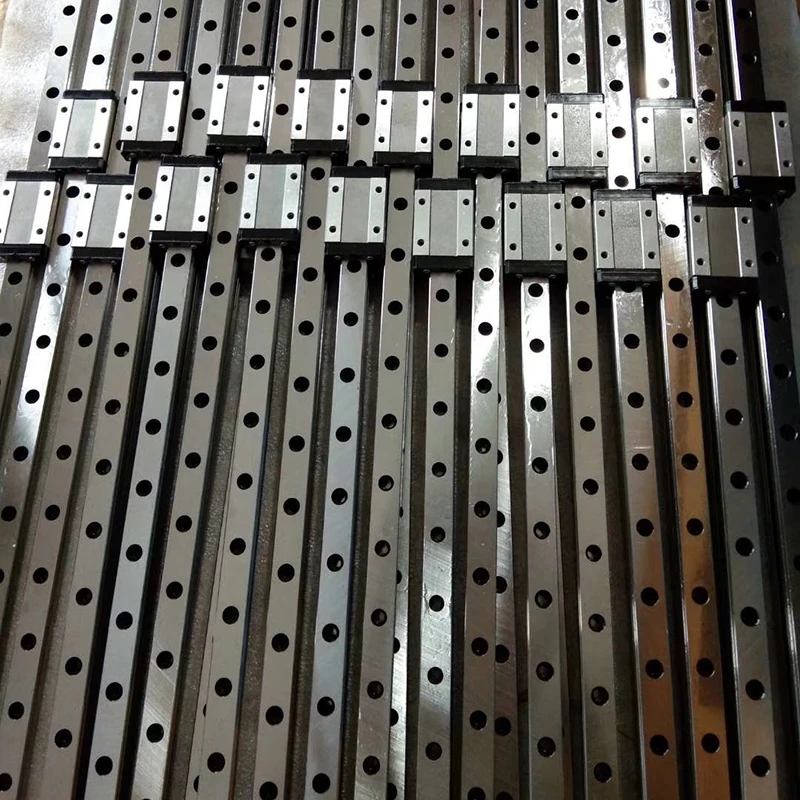

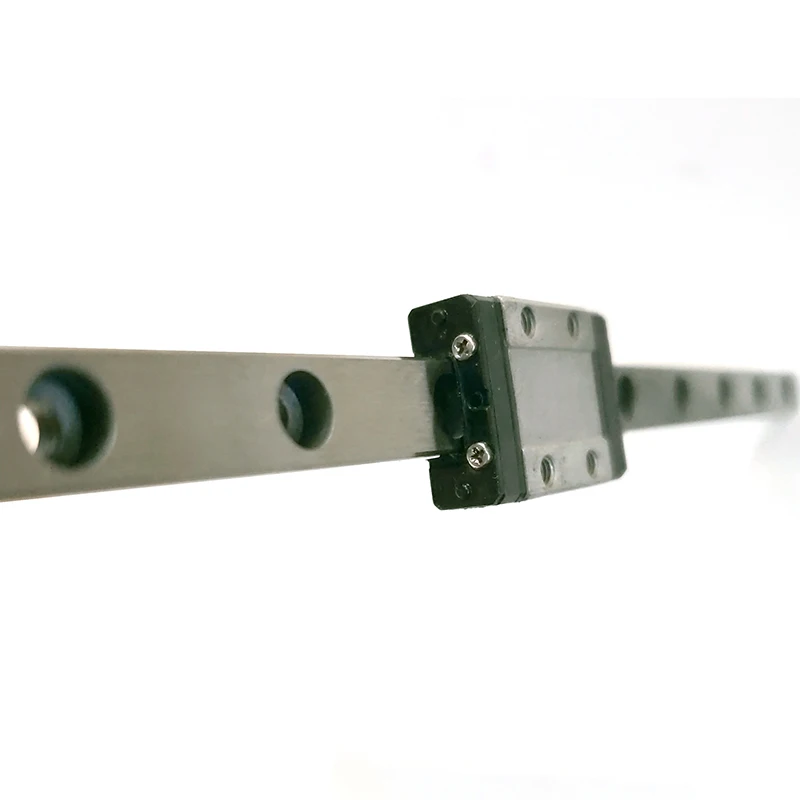

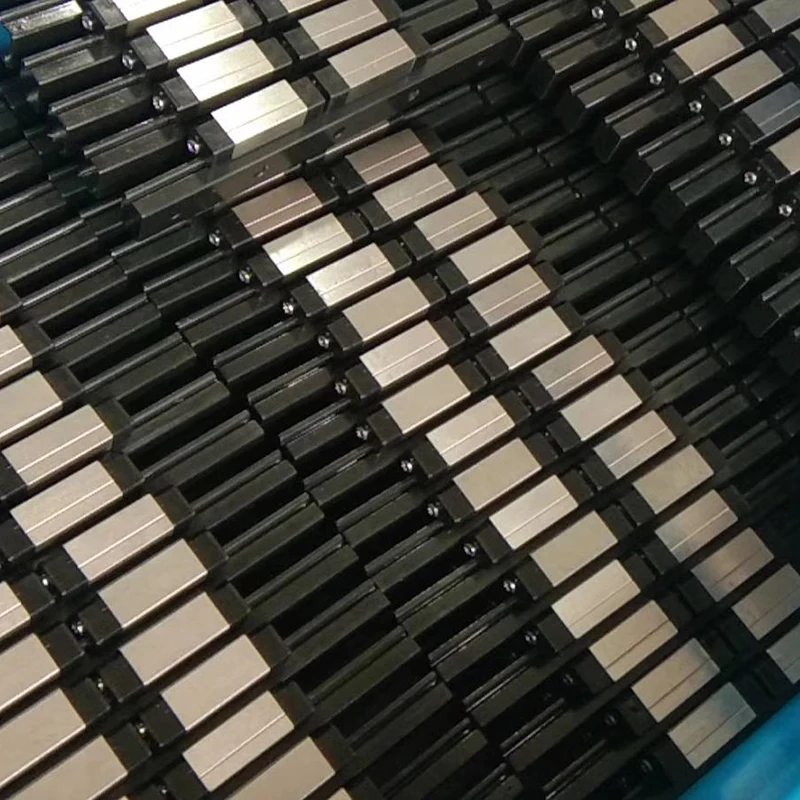

Миниатюрная линейная направляющая mgn7 mgn9 mgn12 mgn15 и подходящие слайдеры mgn mgw
- Категория: Linear Motion >>>
- Поставщик: Liaocheng,Mohit,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10.75 $* | 11.62 $* |
| Aug-17-2025 | 9.80 $* | 9.32 $* |
| Jul-17-2025 | 8.73 $* | 8.33 $* |
| Jun-17-2025 | 9.56 $* | 9.91 $* |
| May-17-2025 | 8.50 $* | 8.4 $* |
| Apr-17-2025 | 9.58 $* | 9.57 $* |
| Mar-17-2025 | 9.6 $* | 9.32 $* |
| Feb-17-2025 | 9.83 $* | 9.90 $* |
| Jan-17-2025 | 9.82 $* | 9.58 $* |
Характеристики
Product Name | Mini Linear Guide Rail |
Material | SUJ2/Gcr15/SUS |
Type | Square Type (C H) |
Warranty | 6 months |
Guide width / diameter | 7mm |
Length | 40mm~1600mm |
Feature | 100% Interchangeable |
Performance | Long Working Life |
Service | OEM Service |
Application | CNC Printer Cutter |
FAQ
Q: What should I do if the track of the guide rail has indentations and the steel ball of the slider is broken?
A: You can try to use another lubricating oil to increase the amount of lubricating oil and reduce the lubrication interval. It is necessary to check whether there is foreign body intrusion from time to time. If there is foreign body intrusion, it is necessary to improve the sealing parts.
Q: Why does the steel ball fall and peel off after the slider is used for a period of time?
A: The iron filings peeled off the bead groove and the life of the steel ball is damaged, which makes the iron surface fatigue and overload. The possible causes are excessive loading, incorrect installation or unilateral force.
Q: What is the longest length of Mini linear guide?
A: The entire length of the miniature linear guide is between 40mm and 1600mm; the linear guide generally can be up to 4 meters in length, and some models can reach 6 meters.
Q: Will there be any problems when the slider is detached from the track?
A: If it is a ball retainer type product, even if the slider is moved out, the steel ball will not fall off. For other models, there are two situations: with the ball holding and fixing function and without the ball holding the function. For products with no ball holding function, the steel ball will fall off when the slider is removed, which can be solved by using fake rails and plugs.
Q: Do I need to remove the gasket if I use the guide rail in a clean room?
A: If it is not in a highly clean environment (there is a settling airflow). The sealing gasket can prevent the spill of grease well. If it is of high cleanliness, we recommend removing the gasket, because the gasket itself will rub against and generate dust.
