13 3 дюймовый 4K моно большой 3D принтер UV Light Cure лазерная машина Смола
- Категория: Цифровые принтеры >>>
- Поставщик: Shenzhen,Yidimu,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3094.50 $* | 3249.75 $* |
| Aug-16-2025 | 3068.59 $* | 3221.13 $* |
| Jul-16-2025 | 2574.95 $* | 2703.6 $* |
| Jun-16-2025 | 3016.1 $* | 3167.60 $* |
| May-16-2025 | 2626.97 $* | 2757.16 $* |
| Apr-16-2025 | 2964.0 $* | 3112.36 $* |
| Mar-16-2025 | 2938.36 $* | 3085.18 $* |
| Feb-16-2025 | 2912.72 $* | 3058.94 $* |
| Jan-16-2025 | 2886.88 $* | 3030.23 $* |
Характеристики
High Accuracy Liquid 3D Resin Printer 4K LCD Impresora 3D Laser Printer UV Light Curing 3D Printer With Build Size 13.3 Inch
Yidimu Falcon Plus 4K highlights:
Professional large buidsize - Build Volume: 11.57" x 6.50" x 15.55" (294mm x 165mm x 395mm), Falcon Plus 3D printer use a 13.3" 4K monochrome LCD to provide more details and accurate printing with XY pixels 3840 x 2160 and XY resolution of 76um which meet the industrial printing standard.
1.Fast to Build - allowing for very fast layer times up to 1 sec cure time per layer for 50 micron. Equipped with 3.5" touch screen and CHITUBOX 5.0 system makes it easy to conduct offline printing using the USB drives. 100% Aluminum CNC Structure with Dual Linear Rail and Ball Screw to deliver more stable performance.
2.High Precision Build - Equiped with 250W & a new paraLED array specifically designed for mono- LCD. Featuring higher efficiency and better thermal dissipation, you can build a great model nearly to industrial grade.
3.Reliable and versatile - This new type of mono LCD has a long life time over 2000 hours and is much stronger and more pressure resistant than regular color LCD's. 35cm height superb Z-axis design for extra stability and reliability.Falcon Plus is the versatile printer for models, toys, dentistry, jewelry and prototyping. All in one versatile machine capable of printing massive objects out of 405nm UV resins optimized for mono 4K LCD 3D Printers.
Product Description

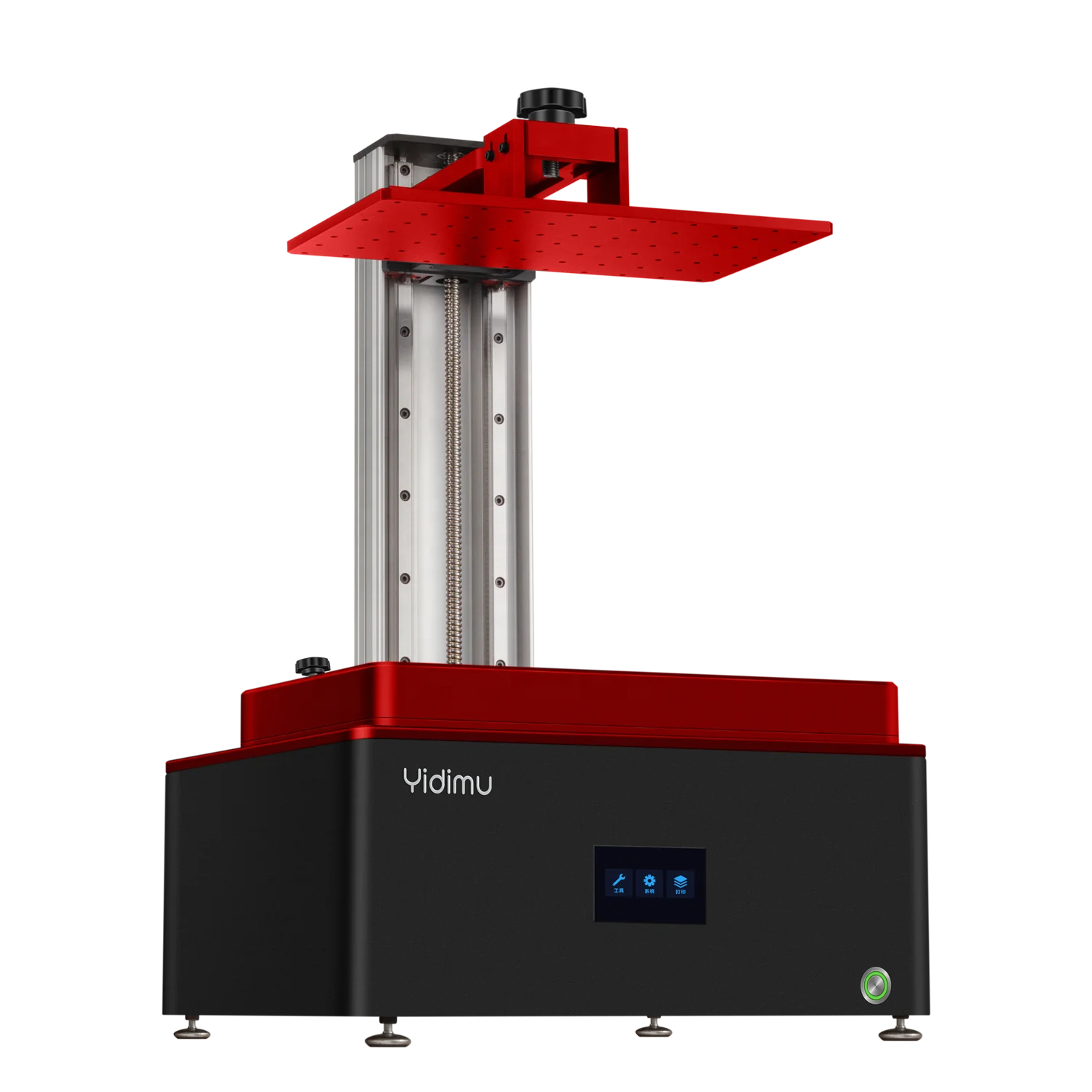

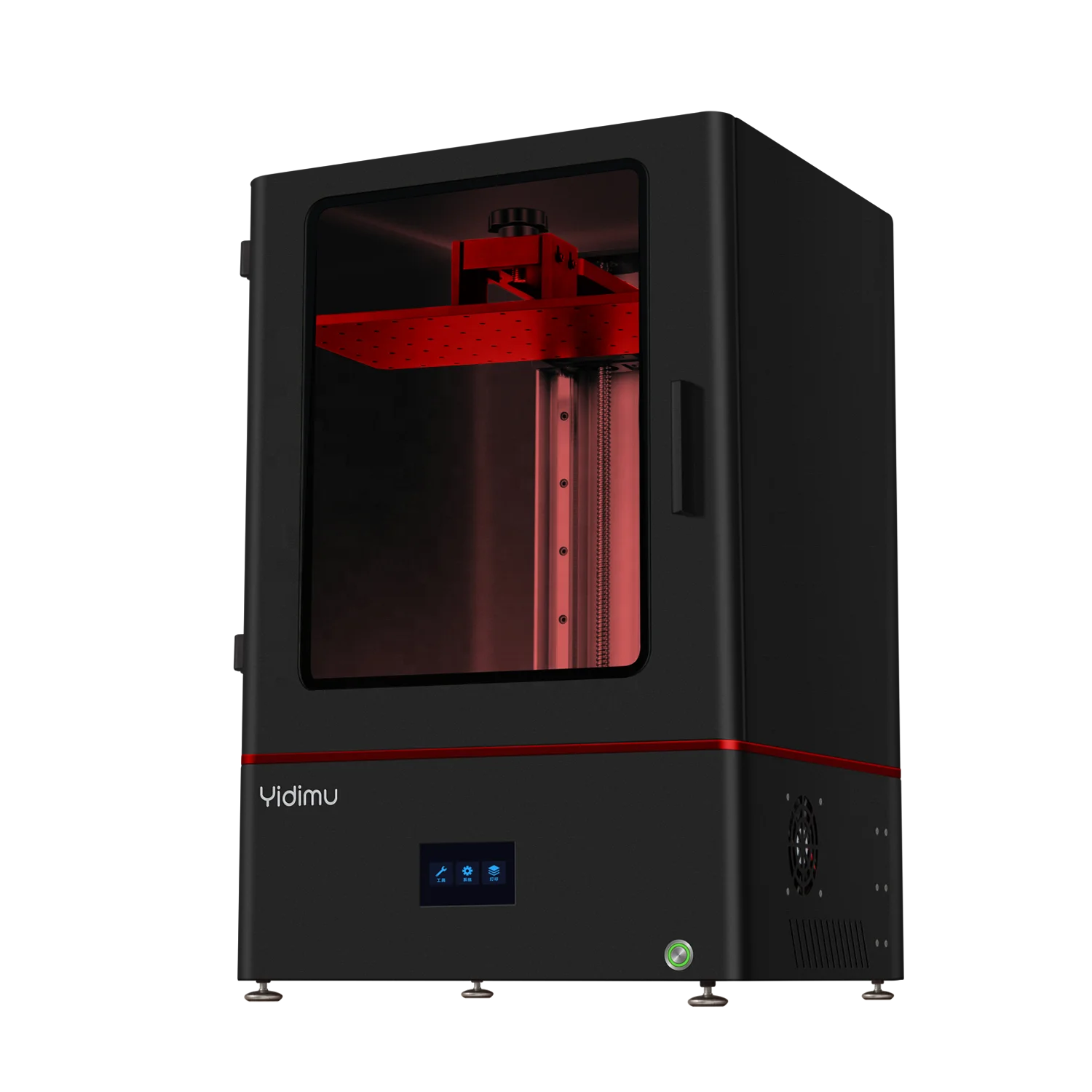

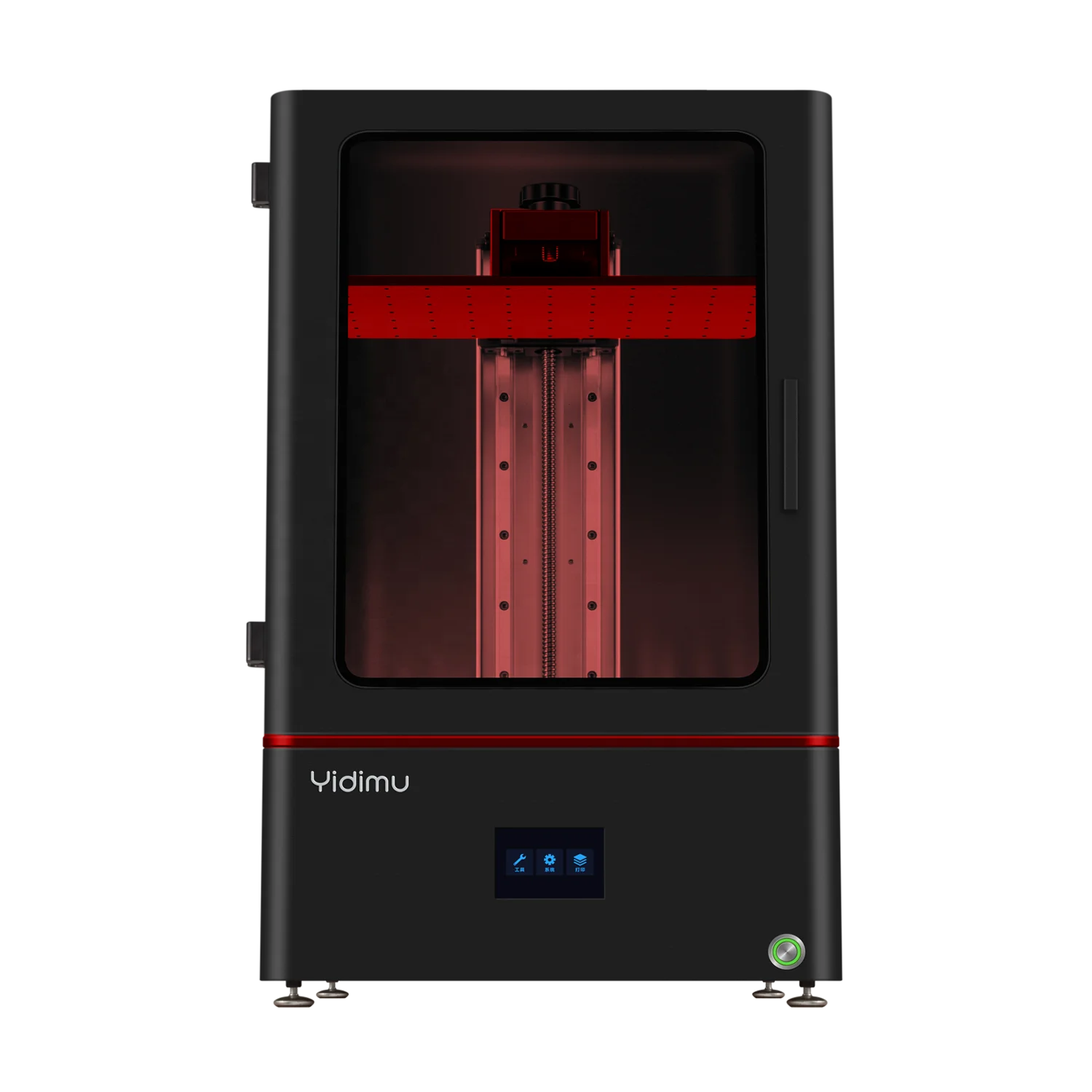

Product Name | YIDIMU Falcon Plus LCD 3D Printer |
Model NO. | YDM-1DP-294165 |
Build Size | 294mm ( L ) x 165mm ( W ) x 345mm ( H ) |
LCD Panel | 4K LCD panel |
Print speed | 4.5-7.5 s/layer |
XY Precision | 76μm |
Light source | UV integrated light(wavelength 405nm) |
LED Array | Parallel UV LED light source |
Cooling | Multi fan cooling |
Printing material | 405nm photosensitive resin |
Z Axis | Dual Linear Rail, Ball Screw, 100% Aluminum CNC Structure |
Z axis resolution | 10um |
File format | STL |
Connection mode | U disk (USB connect) |
Touch screen | 3.5″ High Resolution Touch Panel |
Voltage and Power | 110-240V,300W |
Slicer | Supported by ChituBox Slicer |
Technique | LCD Shadow Masking |
Supported OS | Windows,Mac,Linux |
Windows,Mac,Linux | 13.3 inch 2560*1600 |
Printing volume | 294mm ( L ) x 165mm ( W ) x 345mm ( H ) |
Packing Details:
Product weight:40kg
Product size:405 x 385 x670 mm
Packing Contents:LCD 3D Printer*1 , Power supply*1, print platform *1, Storage box*1, Dust-free towel*1,Finger sleeve*10,Gloves*2, Tweezers*1,USB*1, Tool*1
Detailed Images
Company Information
Yidimu
Our Advatages
Factory & Exhibition
Certificate
FAQ
1:Castable resin ok?
Q: Yes, there are castable resins that will work with it.
2:Do you need to have a UV Lamp to cure the finished product after printing?
Q:I just leave it outside for a few hours in the sun. If you don't have good direct sunlight, then yes.
3:This machine works with these software input formats: .stl, .obj, .amf ?
Q: Works with .stl but I have never used .amf and I usually convert to .stl when I check the mesh when using .obj.
4:Is this printer dlp or lcd?
Q: Its a LCD printer.
5:Does this come with a sample bottle of resin?
Q:Yes. Mine came with transparent resin.
6:What is the melting temperature of a printed piece?
Q: It is unable to melt. At 100 degrees, the print cracked. Carbonization at 300 degrees.
7:Is it possible to print directly on the build platform and use supports?
Q: Yes, you can do that.
8:What is the maximum dinensions of an object that can be printed? Circumfrence and height.
Q: it's roughly a 120*65*165(mm) build volume.
9:Would this unit work well for making minatures for rpgs like dungeon and dragons?
Q:Yes, it will. I primarily bought mine for making monsters for roleplaying games (such as d&d),
but it can make humanoids, animals, inanimate objects, basically whatever you can find a design for within the size parameters [you will just need to find or create the files for the figures themselves, but the detail is great].
