1) Operating Speed: 0.02mm`0.5m/sec 2) Operating Frequency:120ops/min 3) Insulation REsistance :<25MΩ（initial value) 4) Electrical Rating :Standard Load Type (Silver contact 5A/250VAC or 5A/30VDC Low Current Type (Gold Plated Contacts)0.1A/250VAC or 0.1A/30VDC 5) Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts 6)Service Life: Mechanical 2x10000000(operations ) Electrically 5x100000(operations) 7）Operating Temperature: -30~+80℃ （-22~176°F） 8) Humidity: <90%RH 9) Degree of Protection: IP67

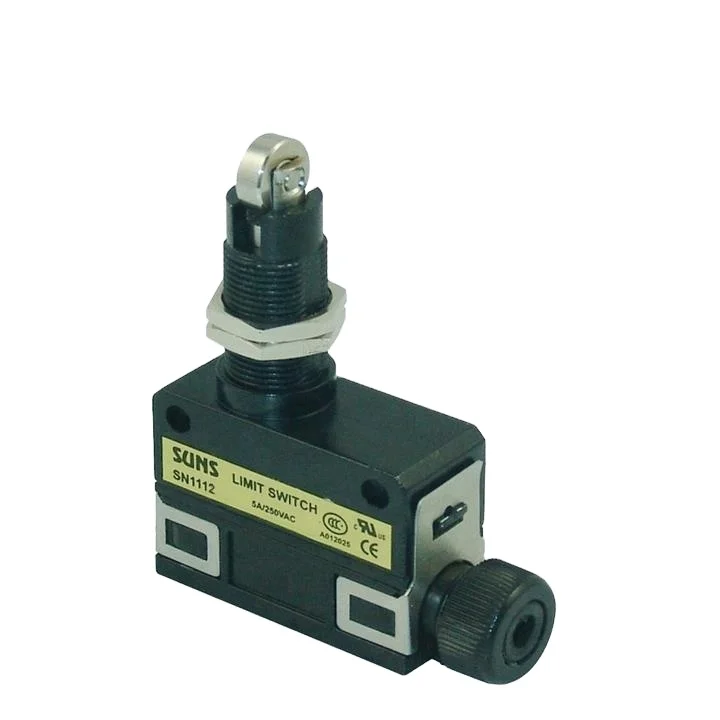

| 1) Robust metal enclosure design 2) Compact, space- saving and tightly gang mounting possible 3) High Sealability, oil-resistant/lmmersion-proof type 4) Long mechanical life of 20million operations 5) High sensitivity.(MD.=0.1MM) 6) Gold plated contact available for low current applications 7) M12 connector type available Definitions of Operating characteristics OF=Operating Force RF= Releasing Force OT=Overtravel TT=Total Travel PT=Pretravel PT=Pretravel MD=Movement Differential
OP=Operating Position |
