Инфракрасная лампа нагревания автомобиля распылением Profesional стандартная комната для покраски
- Категория: Body Repair Equipment >>>
- Поставщик: Guangzhou,Shinely,Import,And,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 7914.31 $* | 8310.49 $* |
| Aug-15-2025 | 7847.74 $* | 8239.3 $* |
| Jul-15-2025 | 6584.93 $* | 6913.63 $* |
| Jun-15-2025 | 7714.21 $* | 8100.90 $* |
| May-15-2025 | 6717.90 $* | 7053.95 $* |
| Apr-15-2025 | 7581.27 $* | 7960.85 $* |
| Mar-15-2025 | 7515.38 $* | 7891.49 $* |
| Feb-15-2025 | 7448.27 $* | 7820.95 $* |
| Jan-15-2025 | 7382.19 $* | 7751.38 $* |
Характеристики
Product Description
Outside Dimension (mm) | 7006*5356*3400(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) |
Front Door(mm) | 3000*2600(W*H) | Service door (mm) | 800*2000(W*H) |
Total Power | 47KW | ||
Cabin system | Wall panel | 50mm EPS with colorful steel skin board, tongue & groove style compound construction, anti-flame and heat-insulation, steel sheet thickness: 0. 426mm | |
Ceiling panel | 0.8mm Galvanized steel sheet. | ||
Basement | Galvanized steel sheet and square steel pipe assembling, 2 rows of grids, 3 rows of embossed plate, two 2000*900mm embossed steel ramps | ||
Glass | 5mm safety tempered glass | ||
Windows | Square glass windows | ||
Air Make-up System | Air Inlet fan system | 2*4kw centrifugal fan, total 24000m³/h | |
Exhausted fan system | Exhaust fan 1*7.5kw, 25000m³/h | ||
Air Flowing speed | 0.25m/s in empty booth | ||
Purification System | Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter can capture granules bigger than 4μm. The whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.4mg/m3 | ||
Heating System | 1. It consists of infrared lamps and control systems. 3pcs per set. Total 10 sets. Two side walls with 8sets*3pcs=24pcs*1kw infrared lamps. Backside wall with 2sets*3pcs=6pcs*1kw infrared lamps. 2. Total power: 30kw. | ||
Lighting System | Ceiling lights | 8 Units, each 4 x 18W LED LAMP | |
Side lights | 8 Units, each2 x 18W LED LAMP | ||
Illumination | 800LUX | ||
Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm | |

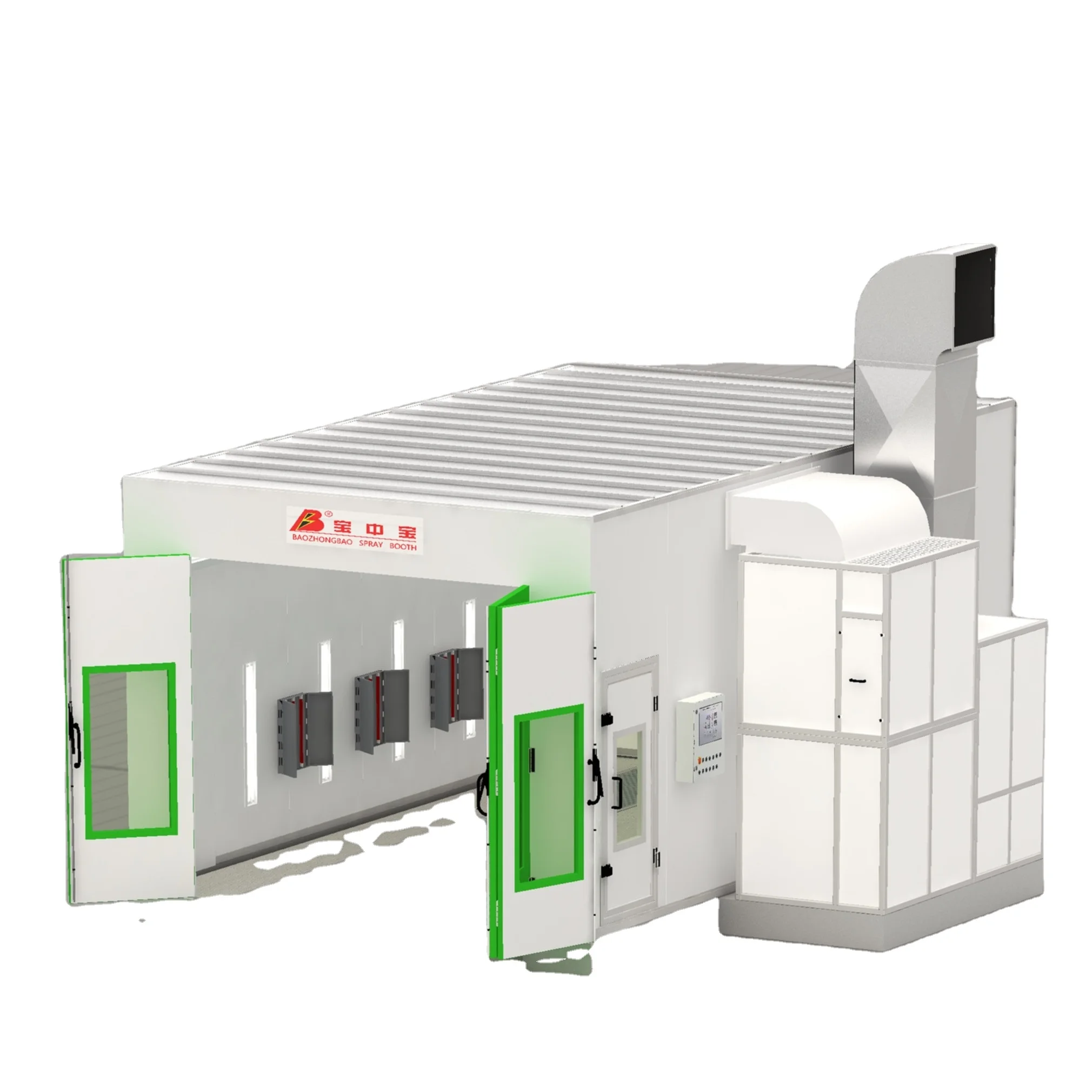

8400IR Spray booth
Outside dimension:7000*5560*3400mm(L*W*H);
Inside dimension: 6900*4000*2650mm(L*W*H);
Front door dimension: 3000*2600mm(W*H);
Working door dimension: 800*2000mm(W*H);
Total Power : 17.5KW
Cabin System:
1) Wall Board: EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style,Compound Construction, Anti-flame and Heat-Insulation Galvanized Roof Panel
2) Basenebt: Galvanized Steel Sheet and Square Steel Pipe assembling, Two Rows Grid & Three Embossed Plate
3) Ramp: Two Ramps, Embossed Steel Plates.
Air Purification System
Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%.

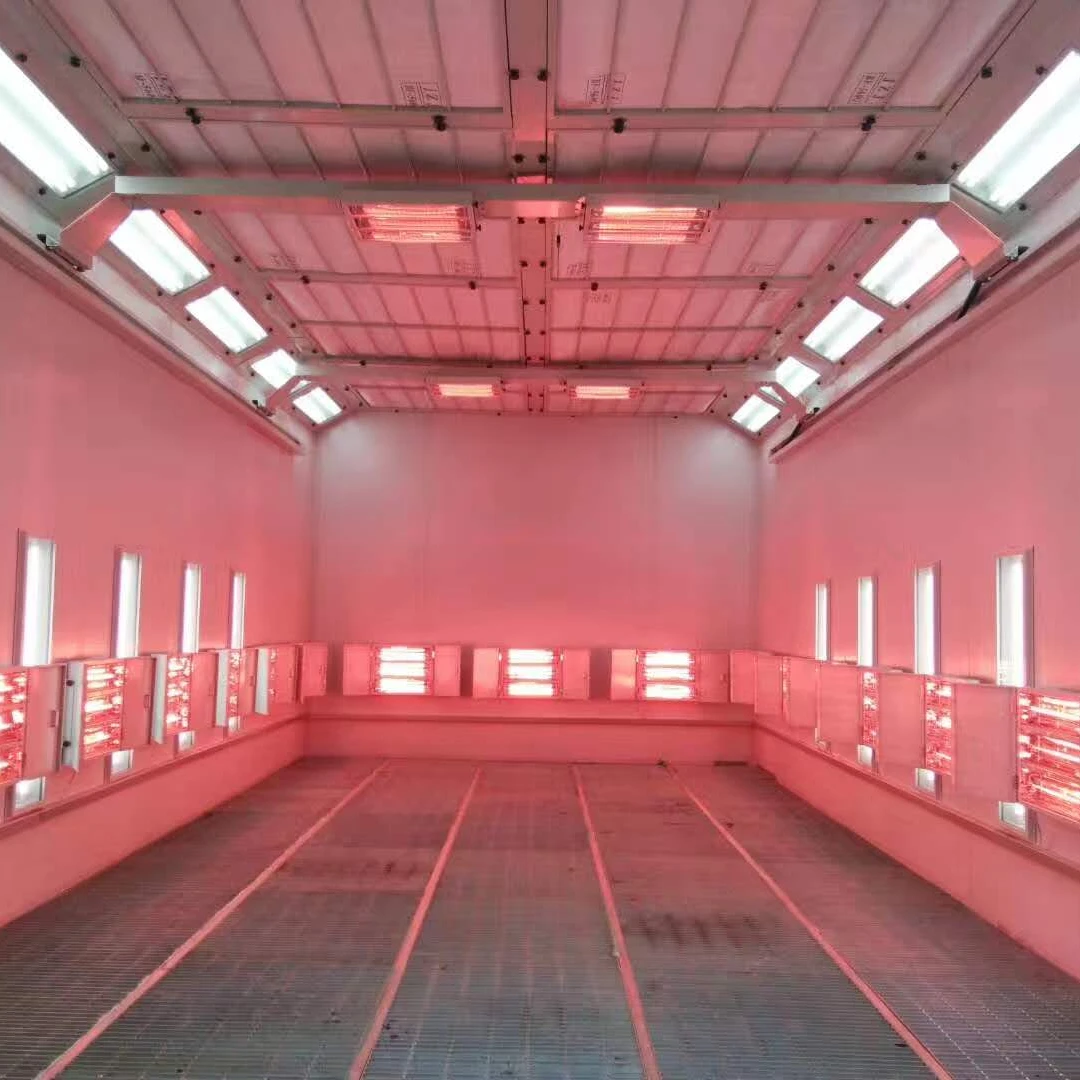

Heating System
1. It consists of infrared lamps and control systems. 3pcs per set. Total 10 sets. Two side walls with 8sets*3pcs=24pcs*1kw infrared lamps. Backside wall with 2sets*3pcs=6pcs*1kw infrared lamps.
2. Total power: 30kw
Light System
Ceiling Light: 24 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux
Packaging & Shipping
- Packaging Details
- polyform and cardboard or steel frame
- Port
- Shenzhen or Guangzhou
- Lead Time:
Quantity(Sets) 1 - 3 >3 Est. Time(days) 21 To be negotiated
