2021 Автомобильная распылительная камера с напряжением на
- Категория: Spray Booths >>>
- Поставщик: Yantai,Jintuo,Automobile,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.81 $* | 0.52 $* |
| Aug-16-2025 | 0.66 $* | 0.93 $* |
| Jul-16-2025 | 0.91 $* | 0.55 $* |
| Jun-16-2025 | 0.46 $* | 0.6 $* |
| May-16-2025 | 0.17 $* | 0.71 $* |
| Apr-16-2025 | 0.49 $* | 0.16 $* |
| Mar-16-2025 | 0.62 $* | 0.92 $* |
| Feb-16-2025 | 0.38 $* | 0.63 $* |
| Jan-16-2025 | 0.11 $* | 0.61 $* |
Характеристики
| Spray Booth | |||
| Outside Dimensions(mm) | 6950*5200*3200(L*W*H) | Inside Dimensions(mm) | 6850*3900*2550(L*W*H) |
| Front Door(mm) | 2800×2400mm(W×H) | Service Door(mm) | 650*1800(W×H) |
| Total Power | 33.5 kw | Voltage | 380V/50Hz/3Ph |
| Cabin System | Wall Panel | 50mm EPS colorful steel skin board, tongue& groove style compound construction, anti-flame and heat-insulation, steel sheet thinkness: 0.3mm | |
| Ceiling Panel | 0.3mm Galvanized Steel Sheet | ||
| Basement | 3X3,114X90,114X53 | ||
| Front Door | 3 folds,size is 2,800×2,600mm(W×H), equipped with Handle & Lock | ||
| Service Door | size is 650×1,800mm(W×H),equipped with Handle & Anti-Explosion Lock | ||
| Air Make-up System | Air-Intake Fan System | 2*4KW Centrifugal fan | |
| Air Capacity | 24000m³/h | ||
| Air Flowing Speed | 0.25m/s in empty booth | ||
| Heating System | 8 units infrared curing lamps for heating, 3 lamps/unit, 1kw/lamp, each unit have a cover, a stainless steel mirror refector and 3 tubes,total 24 tubes. Infrared heat radiation have a feature of high penetration, efficient, no noise, pollution free etc. | ||
| Max. Heating Temperature | 60℃ | ||
| Lighting System | Ceiling Light | 8 Units, total 24pcs, 36w LED lamp, with Light Fixtures, anti-explosion designed | |
| Illumination | ≥800LUX | ||
| Controlling System | Switched Control Panel | Button type control box, with main switch Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. | |
| Accessories | All Hardware, Fasteners, and Sealants | ||

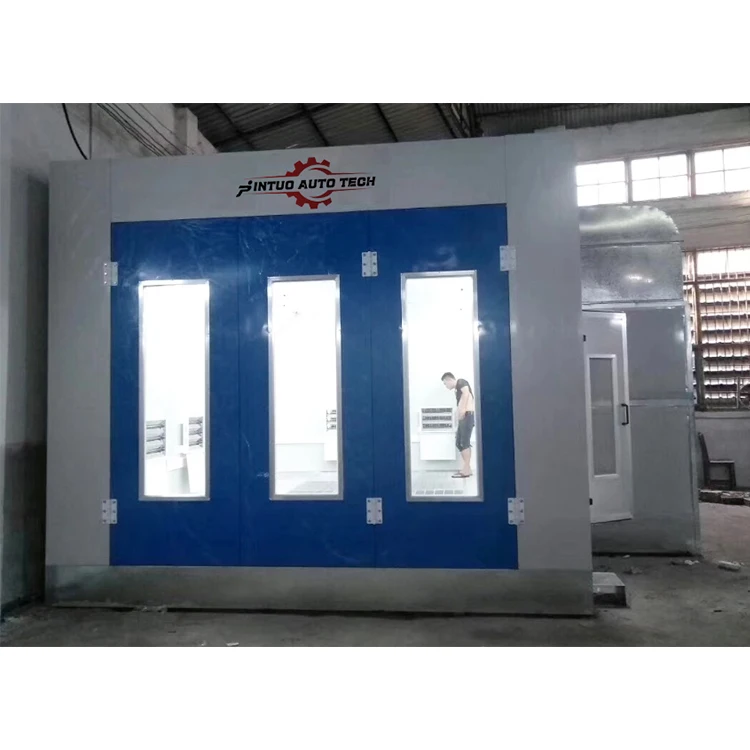

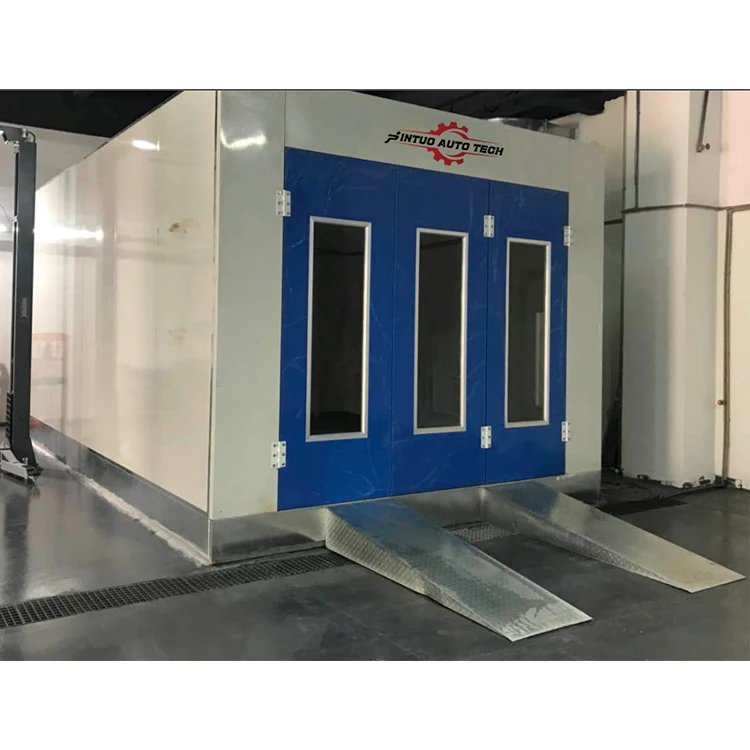

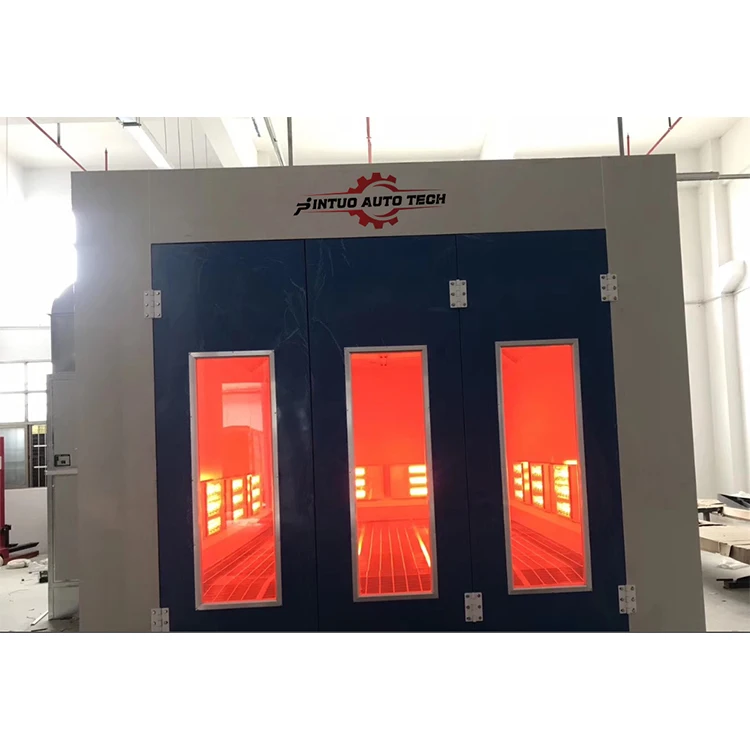

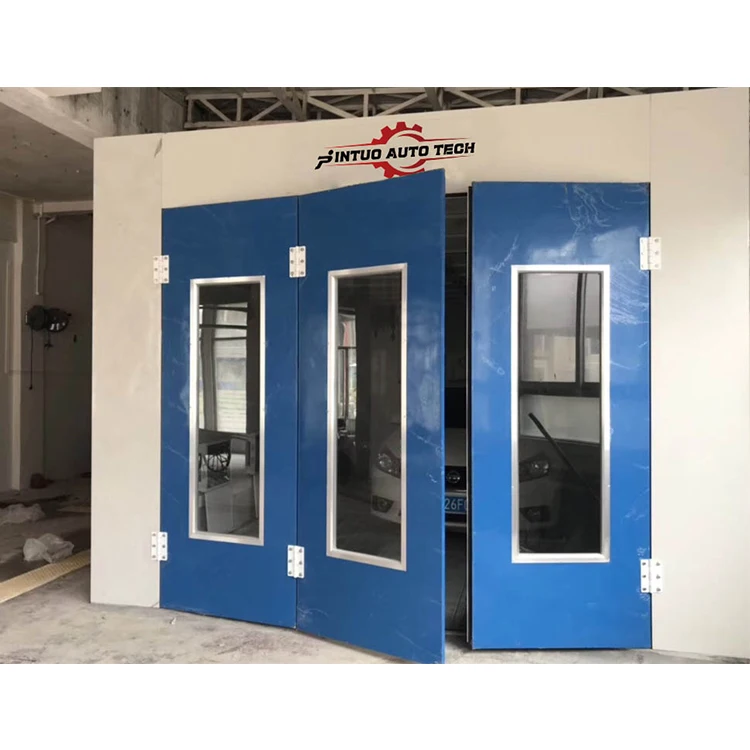

Details Images
Company Information
Yantai Jintuo Automative Technology Co.,ltd. is a company specializing in R&D,manufacturing and marketing auto body repair system, auto lift, tire changer and other auto inspection instruments. Now our factory has covered a ground area of 8000 square meters and owned about 100 employees.Since established in 1996, we have earned a good reputation for innovation and visionary leadership in the automotive service equipment industry.
Except the ISO9001, our products has also been approved with CE certificate.The auto body repair system made by Jintuo has been widely exported all over the world and are widely used in all kinds of repair shops and 4S vehicle maintenance stations. We has participated in domestic professional equipment exhibitions and global body repairs in Las Vegas for several years.
Welcome you choose "JINTUO" brand and also welcome choose us to customize what you need.
Let us work together to create a new era of development of the industry.
FAQ
1. who are we?
We are based in Shandong, China, start from 2007,sell to Domestic Market(20.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),North America(10.00%),South America(5.00%),Africa(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Auto Body Frame Machine,Wheel Alignment,Spray Booth
4. why should you buy from us not from other suppliers?
OEM and ODM Service with a professional R&D Team Strong Production Line, fast delivery Test Before Shipment Good Aftersale service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CPT,DDP;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
