(IPQ6250) IP до 16 лет большие размеры 32-48 QAM модулятор для DVB-C кабель телевизионного вещания Головная станция

IPQ6250 is a new generation of modular & high density Edge QAM modulator combining TS-over-UDP/RTP reception, transport stream re-multiplexing, scrambling, PSI/SI processing and 16/32/64/128/256QAM modulation in a 1U rackmount unit. It supports up to 48 QAM channels by using three external pluggable 16 QAM modules, each of QAM modules supporting up to two Gigabit copper interfaces. Moreover, the IPQ6250 supports 1+1 redundant & hot-swappable power supplies for high reliability and stability of system. Its pay-as-you-grow modular design, flexible configurations and licensing mechanism are making the IPQ6250 unparalleled scalability, reliability and system performance to cable operators. The adopts Web browser and SNMP management with remote monitoring and control that can greatly reduce management time and operating expenses (OPEX) of operators.

With the IPQ6250, cable operators can be ensured that they will have a scalable, reliable, high performance video stream services for years into the future. It can be applied to cable DTV head-ends, sub head-ends and VOD networks.

Features

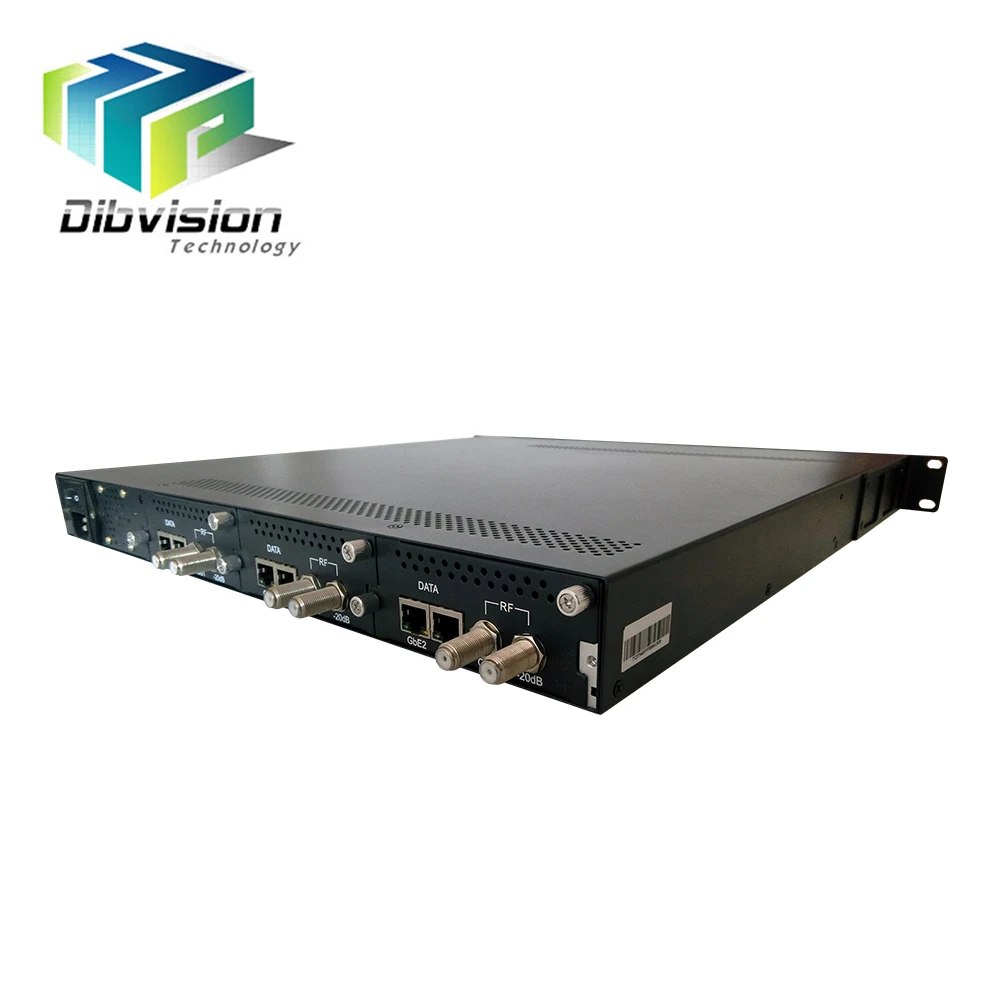

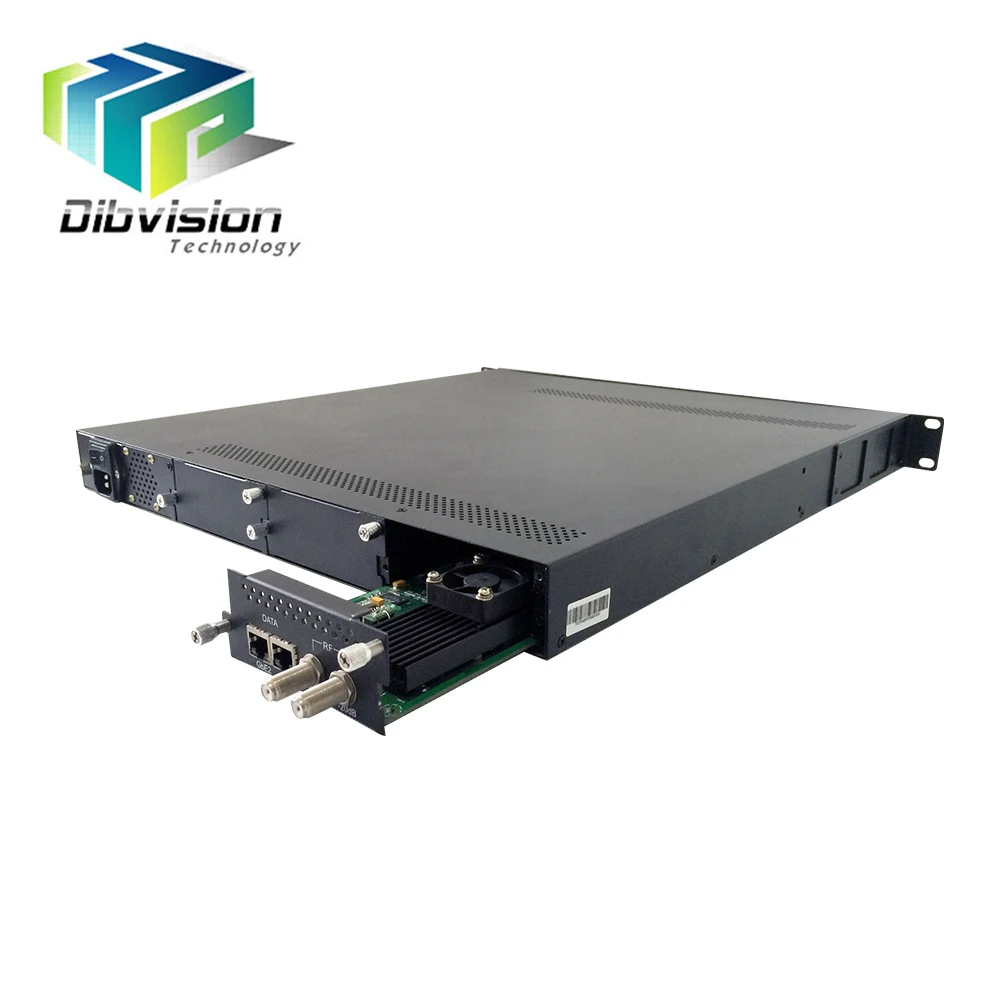

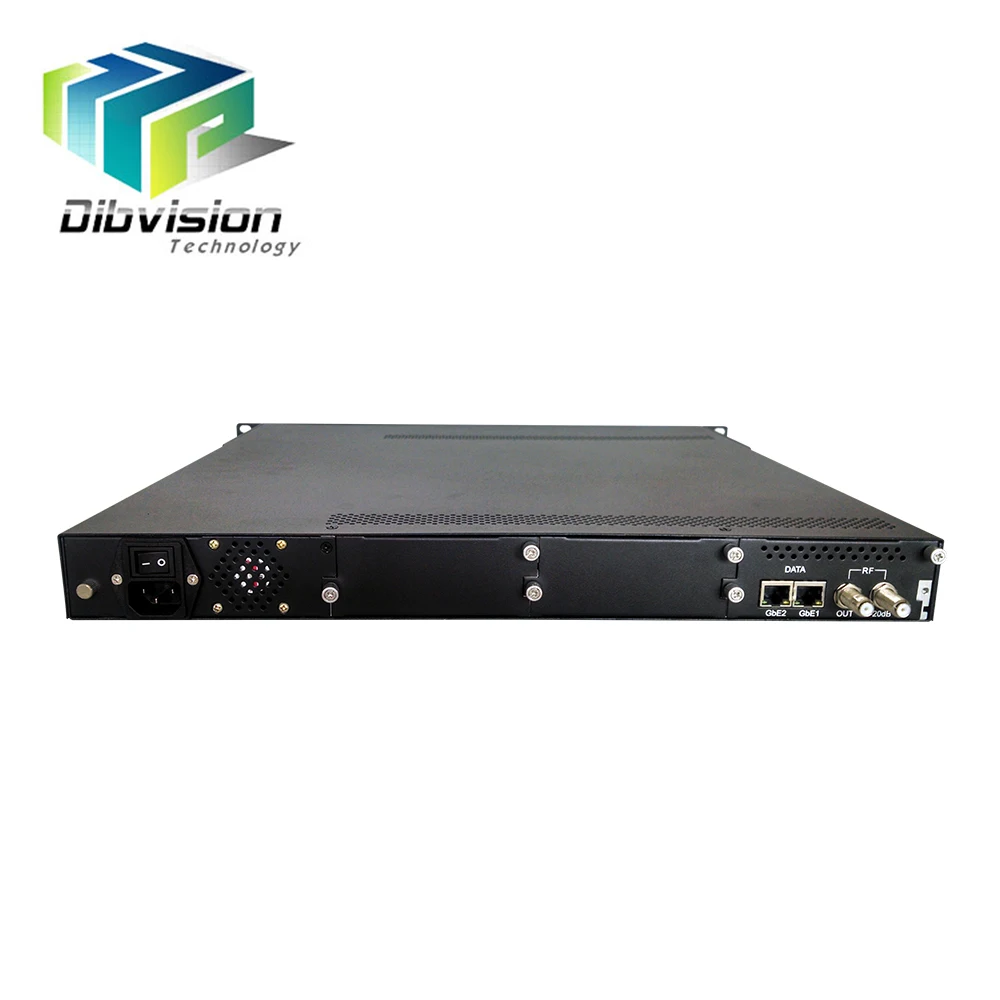

1. 1RU modular design, supporting up to three pluggable QAM modules

2. 16 QAM output channels per module, up to 48 QAM output channels

3. Processing module with Two 1000Base-T ports

4. Dual copper interface per QAM module

5. Supports multiplexing, pass-through, scrambling,PSI/SI insertion,and QAM modulation

6. Up to 64 programs per QAM channel and 16 PIDs processing capability per program

7. Supports SD and HD audiovisual streams simultaneously

8. ITU-T J.83 Annex A/B/C compliant, 6MHz or 8MHz bandwidth

9. Multiplexed or scrambled TS over UDP output

10. Non-adjacent Frequency out

11. Vod Service (option)

12. Up to four DVB SimulCrypt CAS(s) and complies with DVB-CSA

13. Multiple firmware options to enable up to four scrambling channels

14. Scrambling processing up to 1024 programs

15. Supports UDP/ARP/ICMP/IGMP protocols

16. PID filtering, pass-through, PCR auto-correction

17. Excellent RF performance, MER≥42db

18. Web browser management for local and remote management, monitoring and control

Main Applications

1.Digital headend system base on IP network

2.Broadcast Application built-in multiplexing and scrambling function

3.MPEG-TS transmission over local IP network

4.VOD Edge QAM modulator

Specification

IP Input (QAM Module)
Interface	2 x100/1000 Base-T Ethernet RJ-45 ports
Operation Mode	Independent or redundant
Data Format	MPEG TS-Over-IP/UDP/RTP
MAC Layer Access	IEEE 802.3
Addressing&Protocol	Multicast and Unicast

MPEGo IP output
	Select the streams out via Multiplexed or Scrambled
		UDP protocol,Unicast,Multicast, Through out via 1000M Ethernet Port1 or Port 2

Transport Stream Re-multiplexing
Capacity of Processing	Up to 1024 programs
PCR	Auto correction
PSI/SI	PSI/SI table auto-generation, manual insertion Comply with: ISO/IEC 13818-1 DVB SI(ESI EN300468)
PID	Remapping ,filtering and pass-through
Real-time Statistics	TS bitrate, program bitrate, PID bitrate

Transport Stream Scrambling (Software Options)
Scrambling Algorithm	Comply with DVB-CSA
Numbers of CAS	Optional up to four DVB SimulCrypt CAS(s)
CAS Interface Protocol	TCP/UDP (via Network Management Port)
EMM Bandwidth	Up to 3 Mbps per TS
Scrambling Rate	Up to 60 Mbps per QAM channel

Modulation Output (QAM Module)
Output Connector	1 x RF Output 1 x -20dB  RF Test Port
Connector Type	F-Type (Female, 75Ω)
RF Frequency Range	30 to 860 MHz
Bandwidth	6 or 8MHz
Qty of QAM channel	16 QAM channels(or carriers) each module, Up to 3 module
Modulation Standards	ITU-T J.83 Annex A, B and C
Constellations	Annex A: 16 /32 /64 /128 /256QAM Annex B: 64/256QAM Annex C: 32 /64 /128 /256QAM
Symbol Rate	Annex A: 4.2 to 7 M Baud Annex B: 5.057 M Baud Annex C: 4.2 to 5.3 M Baud
RF Output Power Level	98 to 119dBμV (RF output Port) 70 to 90dBμV (-20dB test port)
MER	≥42dB (64QAM, 6.875M Baud)
SNR(Out of band)	≥50dB
Return Loss	≥14dB
Gain Fine-tune	0 to 5.0dB, Step Size 0.25dB

Network Management
Interface	1 x 10/100 Base-T Ethernet
Connector	RJ-45(Front Panel Accessible)
Management	Web browser and SNMP management

Power Supply

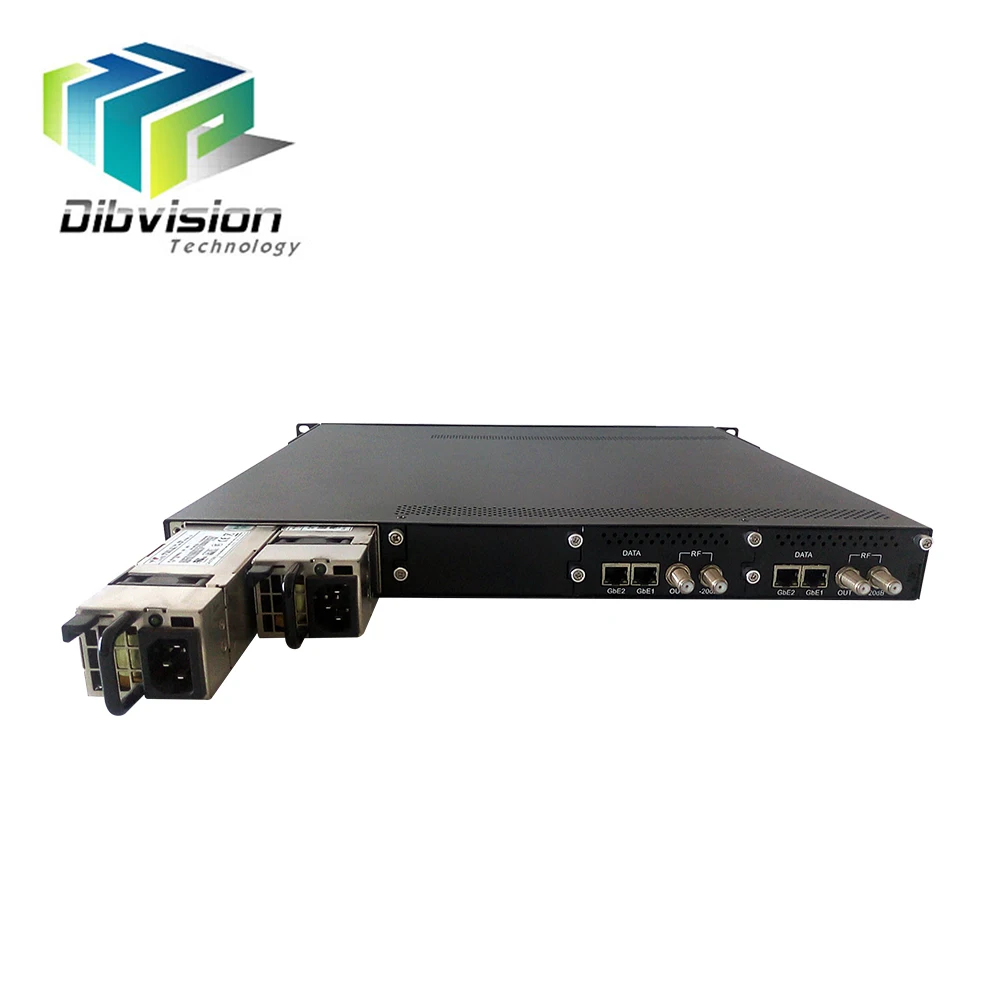

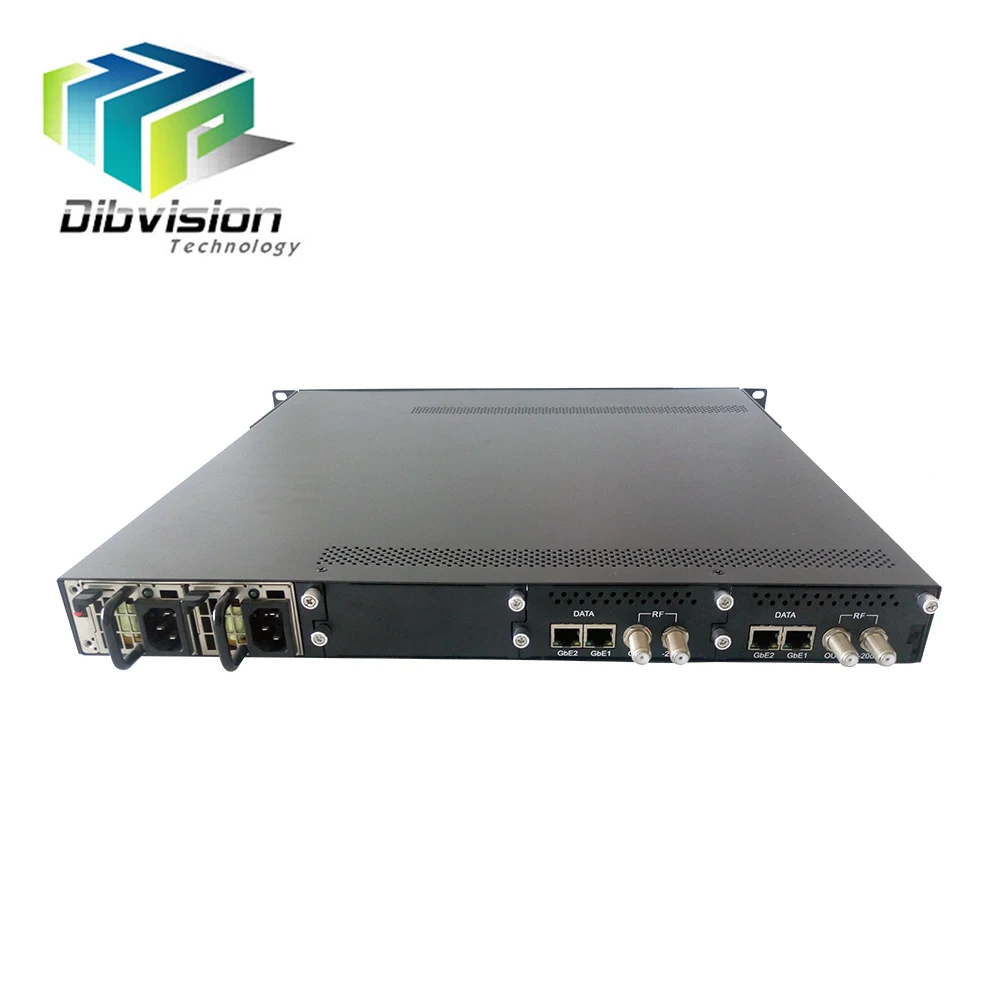

Power Supply	Built-in power supply module Optional 1+1 hot-swappable & redundant power supplies
Input Voltage	90-250 VAC, 50/60Hz
