3-фазовый инвертор Пакистан сварочный аппарат Цена Выпрямителя 3.2Kw Высокочастотная Сварка 30 Ампер Del Soldador 300 генератора Co2 палка
- Категория: Stick Welders >>>
- Поставщик: Chengdu,Xingweihan,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.3 $* | 0.66 $* |
| Aug-15-2025 | 0.37 $* | 0.80 $* |
| Jul-15-2025 | 0.97 $* | 0.93 $* |
| Jun-15-2025 | 0.96 $* | 0.87 $* |
| May-15-2025 | 0.69 $* | 0.38 $* |
| Apr-15-2025 | 0.67 $* | 0.19 $* |
| Mar-15-2025 | 0.63 $* | 0.39 $* |
| Feb-15-2025 | 0.57 $* | 0.39 $* |
| Jan-15-2025 | 0.9 $* | 0.17 $* |
Характеристики
Product Description
ChengDu Xinwei is one of the leading welding equipment manufacturer in china, Specialized in manufacturing and provide customers with a complete set of welding solutions.
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer customers the most professional welding advice and after-sales service.
And we have our own overseas technical service teams in many countries in Southeast Asia and South America to provide customers with on-site installation and maintenance services.（Please contact us to ask if there is a technical team in your country）
Product Welding Video | We provide technical guidance videos, product welding videos, and samples please contact us. | ||||||||||
Overseas on-site technical team | South America, Southeast Asia,etc | ||||||||||
One-stop service | MIG / TIG / Spot welding machine / Seam welding machine / Welding robot / Suspended Transmission System / Controller / Spring Balancer / Electrode | ||||||||||
Model Item | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C | |||||
Power at 50% KVA | 35 | 35 | 45 | 45 | 65 | 65 | |||||
Maximum short circuit current KA | 15 | 15 | 16 | 16 | 46 | 46 | |||||
Secondary unload voltage V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 | |||||
Voltage at 50Hz/60Hz V | 380 | 380 | 380 | 380 | 380 | 380 | |||||
Distance between the arms mm | 120-280 | 100 | 120-330 | 100 | 160-430 | 100 | |||||
Max. strength at electrodes | 3500 | 4 | 4 | 4 | |||||||
Working stroke mm | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 | |||||
Max. stroke mm | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 | |||||
Arm length mm | 240-600 | 200-500 | 300-8000 | 200-500 | 400-1100 | 200-500 | |||||
Max.thickness of mild steel sheet with min. length s arm mm | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 | |||||
Max Welding Thickness With 500mm arms mm | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 | |||||
With maximum length arms mm | 1.2+2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 | |||||
Cross wire maximum mm | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 | |||||
Features

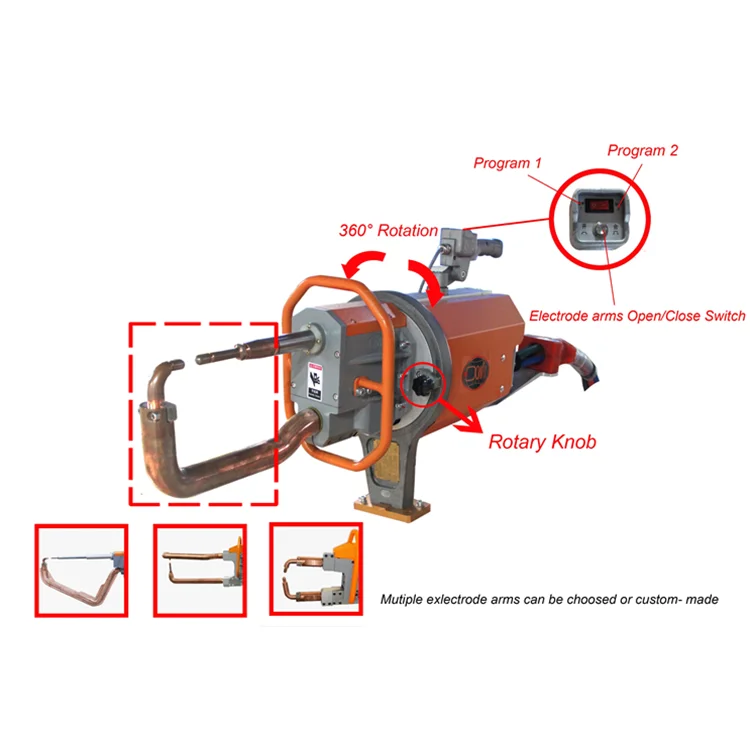

1. Light weight, easy to operate and save electricity 2. The turntable is equipped with bearings and rotates 360°
3. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm

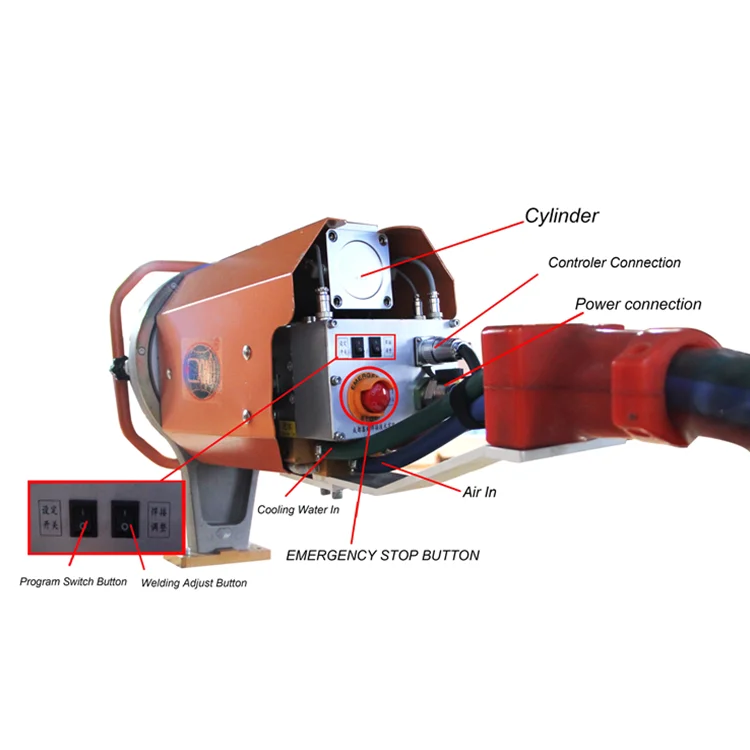

4. The structure of the transformer is the same as that of Bosch. The transformer is equipped with temperature control protection. Water cooling, fast heat dissipation. Long sustainable working time (24h work)
5. Different specifications can be set (workpieces with different thicknesses can be welded) welding thickness 0.3mm+0.3mm∽5+5mm
6. The cylinder is a customized pressurized cylinder, the brand is (SMC)

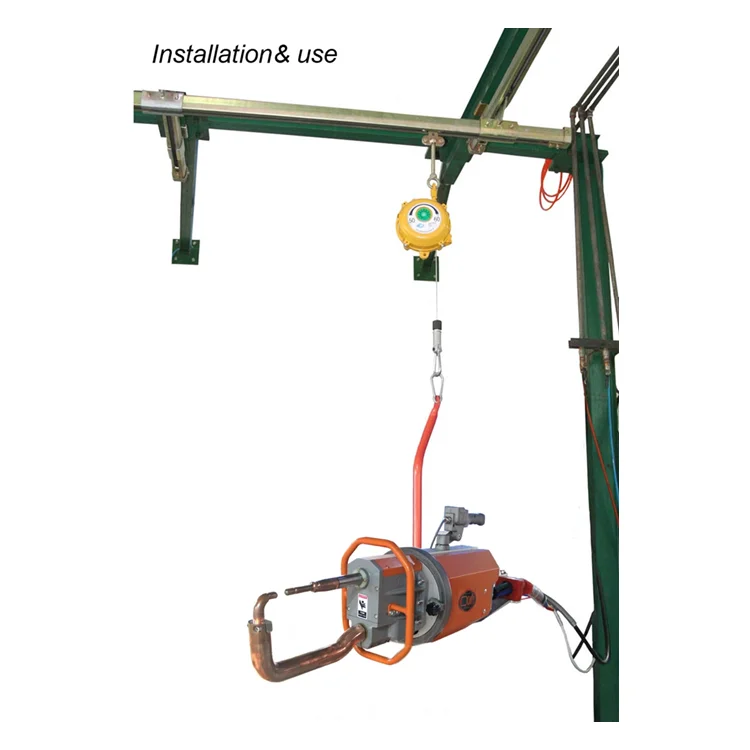

7. Balancer with self-locking function
3. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm
4. The structure of the transformer is the same as that of Bosch. The transformer is equipped with temperature control protection. Water cooling, fast heat dissipation. Long sustainable working time (24h work)
5. Different specifications can be set (workpieces with different thicknesses can be welded) welding thickness 0.3mm+0.3mm∽5+5mm
6. The cylinder is a customized pressurized cylinder, the brand is (SMC)
7. Balancer with self-locking function
For more welding videos, please CONTACT US!
Packing&Shipping
Service
1. Any inquiries will be answered within 12 hours, we have been tilling in the welding equipment business for more than 17 years.
2. Professional welding project solution.
3, Detailed product usage technical guidance video.
4. Professional overseas on-site technical team.
5. After-sale service:
2. Professional welding project solution.
3, Detailed product usage technical guidance video.
4. Professional overseas on-site technical team.
5. After-sale service:
1) All products will go through strict quality check in our factory before packing, we have experienced QCteam who is in charge of quality checking before shipping.
2) All products will be well packed before shipping.
3) Our products have a 1-3 year warranty, and we are sure our products will be free from maintenance within the warranty period in general, even core components have lifetime warranty.
2) All products will be well packed before shipping.
3) Our products have a 1-3 year warranty, and we are sure our products will be free from maintenance within the warranty period in general, even core components have lifetime warranty.
XinWei Project
Company Profile
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.
Now it is located in Eastern Industrial Zone, Xindu, Chengdu. Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

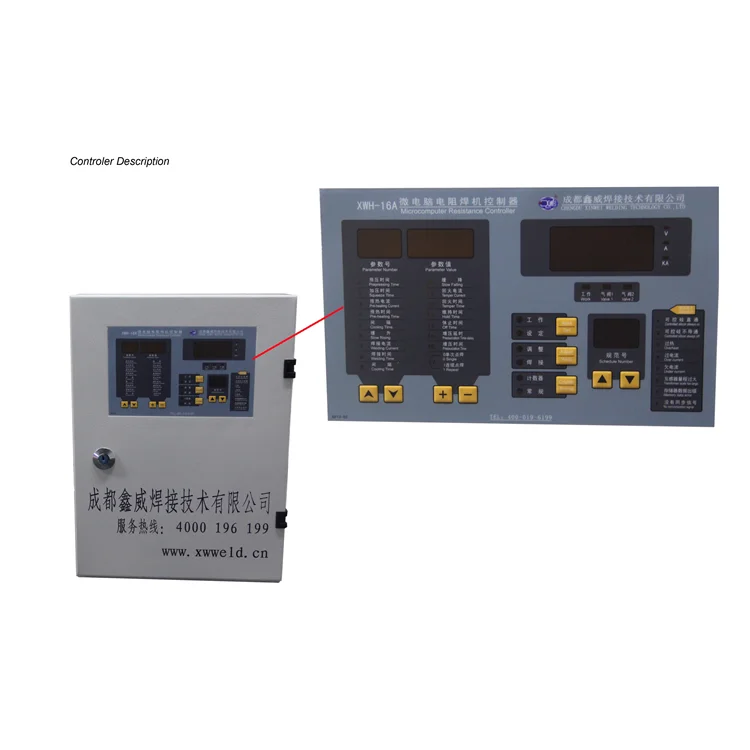

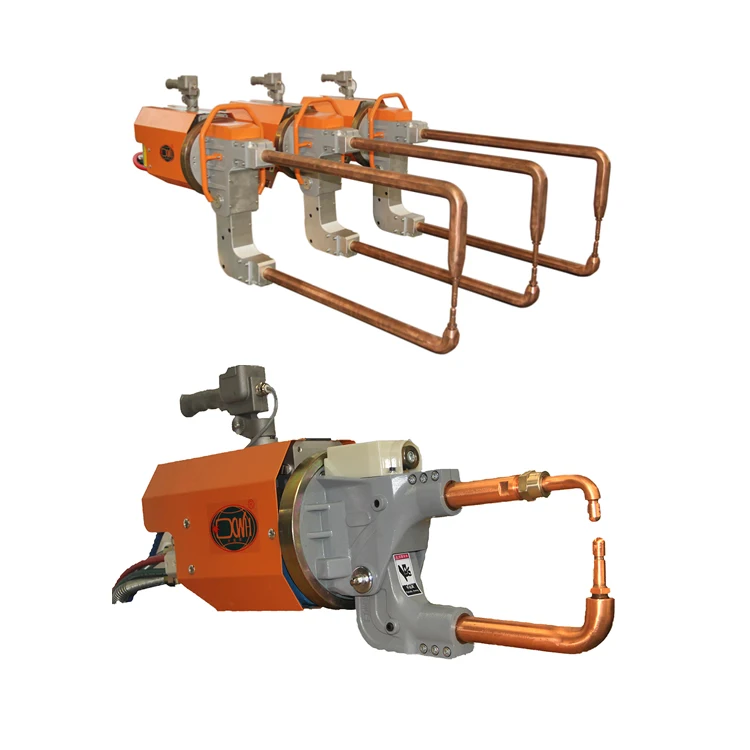

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Now it is located in Eastern Industrial Zone, Xindu, Chengdu. Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Customer Audit
Exhibitons
FAQ
1. When can you arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. Are you a factory?
Yes, We are a factory, all machine is made by ourselves and we can provide customize service according to your requirement.
4. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
5. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
6. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
We usually arrange shipment within 15 days after getting deposit, but customized machines should be more than 25 days. We always ship by air and sea in the mean time.
2. Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3. Are you a factory?
Yes, We are a factory, all machine is made by ourselves and we can provide customize service according to your requirement.
4. What does your factory produce?
We produce and export all kinds of automatic welding machine and robots and relative parts. We can design machines according to your requirements.
5. What’ your warranty and after-sales?
We offer 1 year warranty, various forms of online instruction and the spare parts. Professional engineers will solve problem, if necessary.
6. How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
