Характеристики

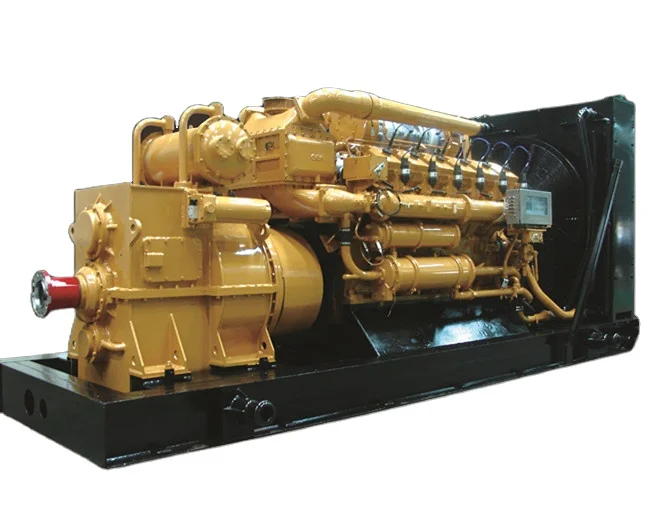

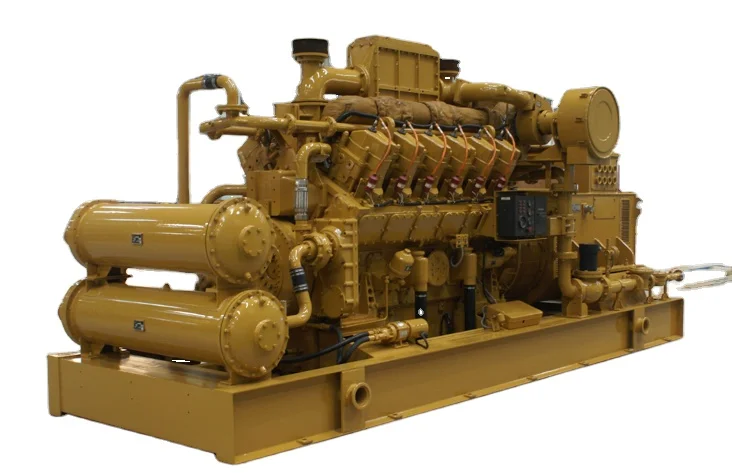

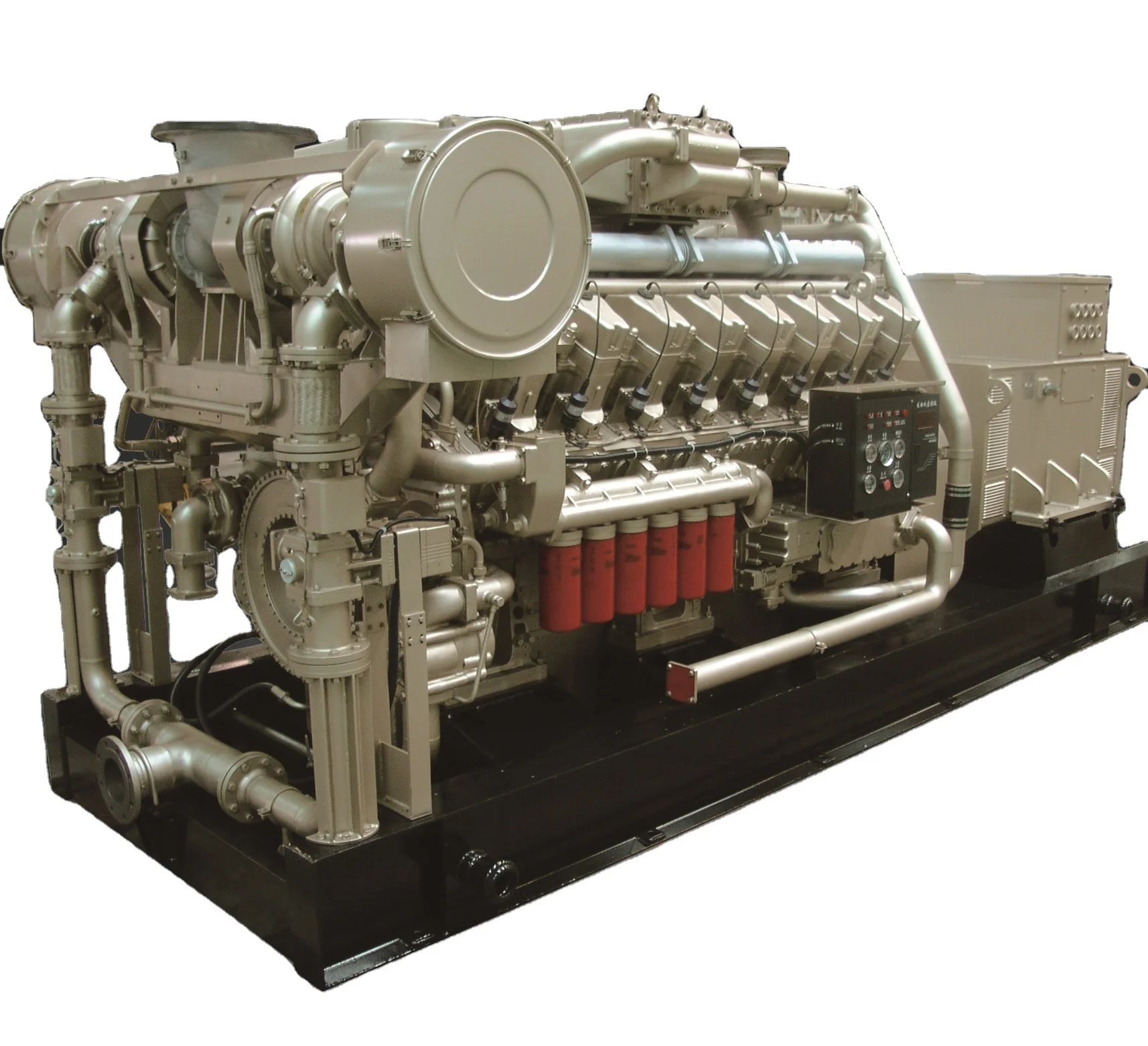

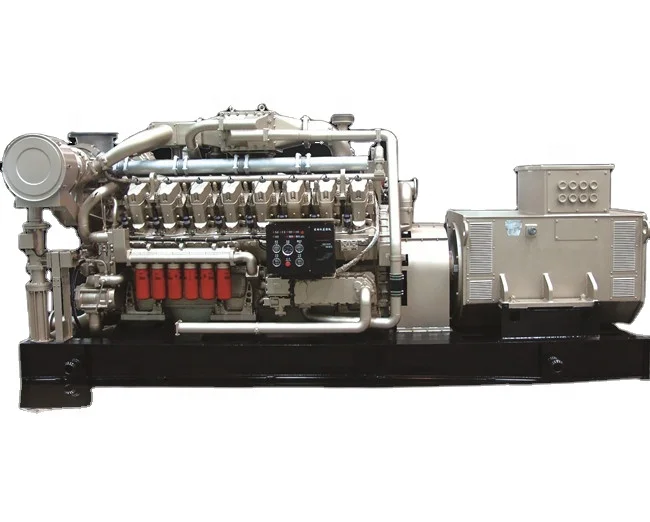

400KW Natural Gas Engine/Natural gas generator/Natural gas genset
Product Description
ENGINE SPECIFICATIONS
V-12, 4-Stroke-Cycle-GAS (190 series)
Bore---------------------------------------------------190mm
Stroke-------------------------------------------------210mm
Displacement--------------------------------------- 71.45L
Aspiration-------------------------------------------normally
Speed Control------------Electronic Speed governing
Rated Speed--------------------------------------1200rpm
Rated power----------------------------------------500kW
400GF-TK1 natural gas generating set are powered by model 12V190DT3-2 gas engine produced by our company. Complying with National Standard “GB2820 General Specification for Industrial Frequency Diesel Generating Sets(eqv ISO 8528)” and with reference to “IEC34-I” rotary generator standard, the gensets are equipped with high quality alternator of both domestic & abroad and self-made control panel according to customers requirement.
Featured in high voltage regulating accuracy, good dynamic performance and less voltage waveform distortion, combined with high efficiency and impact structure, the 400GF-TK1 natural gas generating sets can work reliably and operate with long life and with good economic performance.
The genset can either transfer electricity directly to load or be combined in a power station with two or more than two sets. They can be used as normal and stand-by power in oil field, factory, resource development base, etc.
MAIN FEATURES
Engine Design - Intellectual Property belong to Jichai - Triaxiality Finite Element Analysis - Longer Stroke, More displacement - Low Speed (1000RPM), More Reliable - Advanced World Standard Performance Generator - Brushless Excitation - AVR - Better Insulation and Protection Safety - Low Oil Pressure Auto Stop Protection - Over Speed Auto Stop Protection - Explosion Proof - High Coolant Temperature Alarm - High Oil Temperature Alarm - Complete Electrical Protection - Emergency Stop Device Testing - Strict Inspection and Factory Test for Each Engine and Gen-set. | - Start Performance Test - Load Test - Synchronization Test - Safety System Test The Whole Equipment Supply - Standard Scope of Supply - Optional Equipment List - Repairing Tools - Spare Parts - meet the requirement for all accessories of project Easy Installation and Remove - All Equipment on Common Skid - Simple Installation Work - High Strength Skid, for Hoisting and Removing. Technical Support & Services - Technical Support and Training Service - 24/7 Technical Service - Rapid Spare Parts Supply - After Sales Service for Generator Set Lifetime |
Property Parameter Table
Gas Genset
Model of genset | 400GF-TK1 |
Model of engine | 12V190DT3-2 |
Model of alternator | 1FC6 Series |
Connecting method | Flexible connecting |
Rated speed (r/min) | 1000 |
Rated power (kW/kVA) | 400/500 |
Rated voltage (V) | 400 |
Rated frequency (Hz) | 50 |
Rated power factor | 0.8(lagging) |
Voltage regulation | AVR |
Supply mode | 3 phase, 4 wire |
Governor | Electrical controller (WOODWARD) |
Control model | Remote electric control, Hand control |
Starting method | 24V DC motor |
Cooling method | Water cooling |
Overall dimension L×B×H(mm) | 6470×2110×2195 |
Net weight (kg) | 11800 |
Packaging & Shipping
Packaging Details: International Sea Transportation Packing ,Standard export packaging.
Our Services
1.We are in a good position not only to supply you high quality machinery, but also the excellent after sales service. And the products have a long warranty period.
2.Our sales team will response for your question within 24 hours (Holidays Excluded)
3.Free replacement will provide once the failure confirmed caused by our product quality.
Company Information
Shandong Yacheng Petroleum Technology Co.,Ltd.(YCPT) is located in the second largest oilfield in Dongying city. We are the subsidiary of Xincheng Petroleum of Xincheng Petroleum Group,which was founded since 2003. We are first class supplier in vendor list of CNPC,SINOPEC,and CNOOC,and member of CCOIC, CCPIT and so on.
We have 18 years of experience in research,development and manufacturing of oil drilling equipment and drilling string, We have professional sales and after-sales service teams.
We are committed to develop, manufacture and supply of oilfield equipment, like oil and gas Gate Valve, Mud Pump and Spare Parts, Handling Tools,Drilling String, Well Control Equipments.
We have established a complete quality control system, all products & equipment manufactured as per international standard ISO 9001 and API standard.
Company Exhibition
FAQ
1.How long is your delivery time?
It is according to the model and quantity. Generally it is 30 days if the machines are in stock.
2.What is terms of payment?
Normally we can accept T/T or L/C basis.
3. What is the Shipping way?
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. How about the Quality Control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
