Introduction:

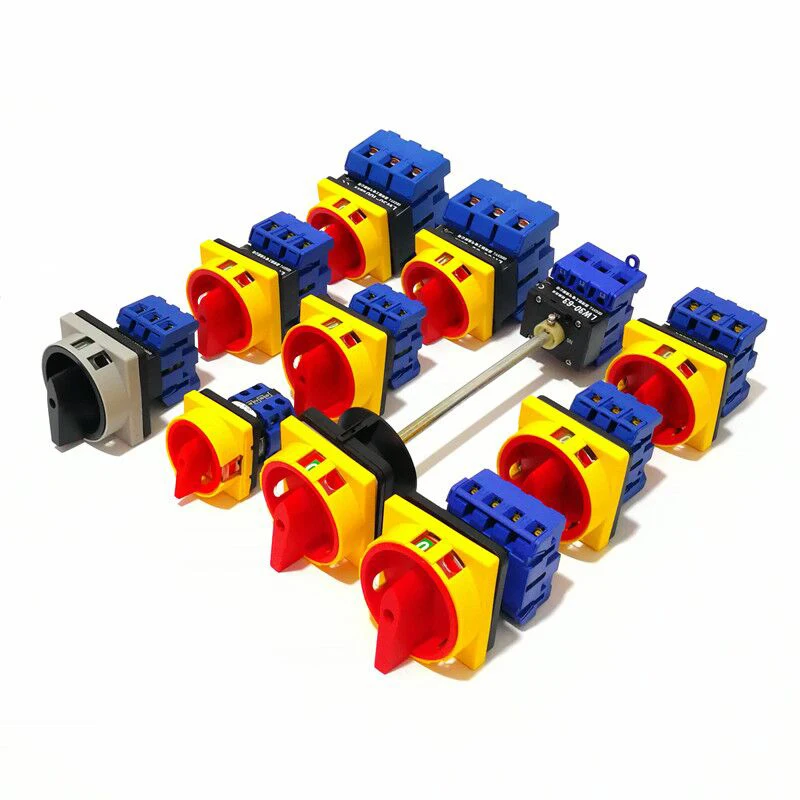

LW30 series rotary switches applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A.
LW30 is suitable to control:air-conditioner,water pump and ventilating equipments,and AC motors with small power.
LW30 series rotary switches have six current ratings:20A,25A,32A,40A,63A,80A and 100A.

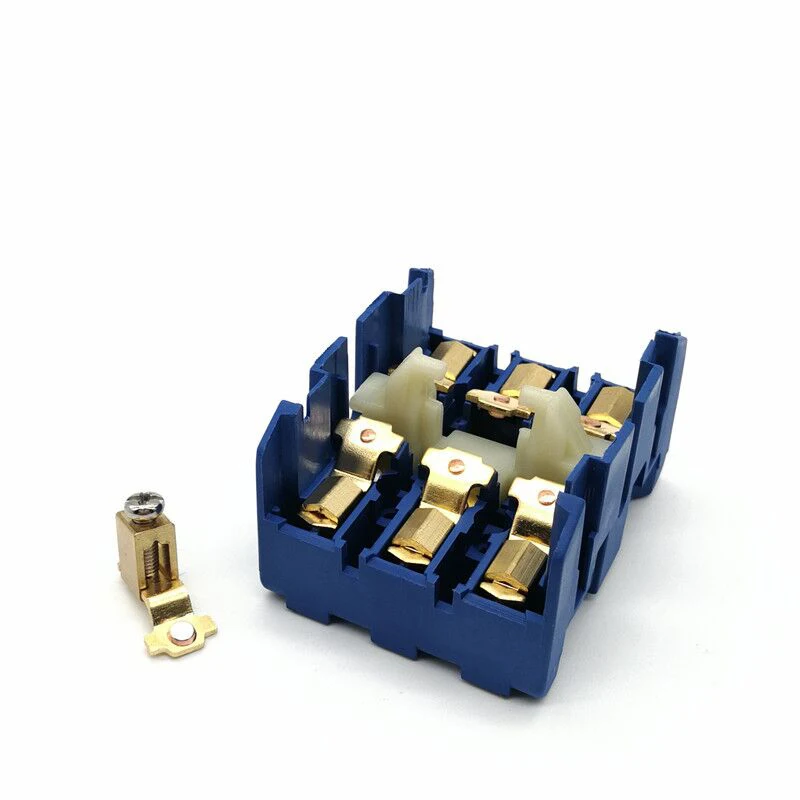

LW30 series has the finger protection terminals,which offers an extra advantage.
LW30 series switches has Larger insulation distance,quick disconnectinvg response.And is a good choice For DC circuits.LW 30 has additional contact which enable us to install the contact separetely.
LW30 series rotary switches switches comply with:GB/T 14048.3,and IEC 60947-3.

Specification

Description

LW30-25(20)

LW30-32

LW30-40

LW30-63

LW30-80

LW30-100

Rated thermal current

Ith

A

25(20)

32

40

63

80

100

Rated working voltage

Ue

V

240

440

240

440

240

440

240

440

240

440

240

440

Ie/Pe

Ie/Pe

AC-21A

A/KW

20/-

20/-

32/-

32/-

40/-

40/-

63/-

63/-

80/-

80/-

100/-

100/-

AC-22A

A/KW

20/-

20/-

32/-

32/-

40/-

40/-

63/-

63/-

80/-

80/-

100/-

100/-

AC-23A

A/KW

15/4

15/7.5

22/5.5

22/11

30/7.5

30/15

43/11

43/22

57/18.5

57/30

70/22

70/37

AC-3

A/KW

11.7/3

11.7/5.5

15/4

15/7.5

22/7.5

22/11

36/11

36/18.5

43/15

57/30

57/18.5

57/30
