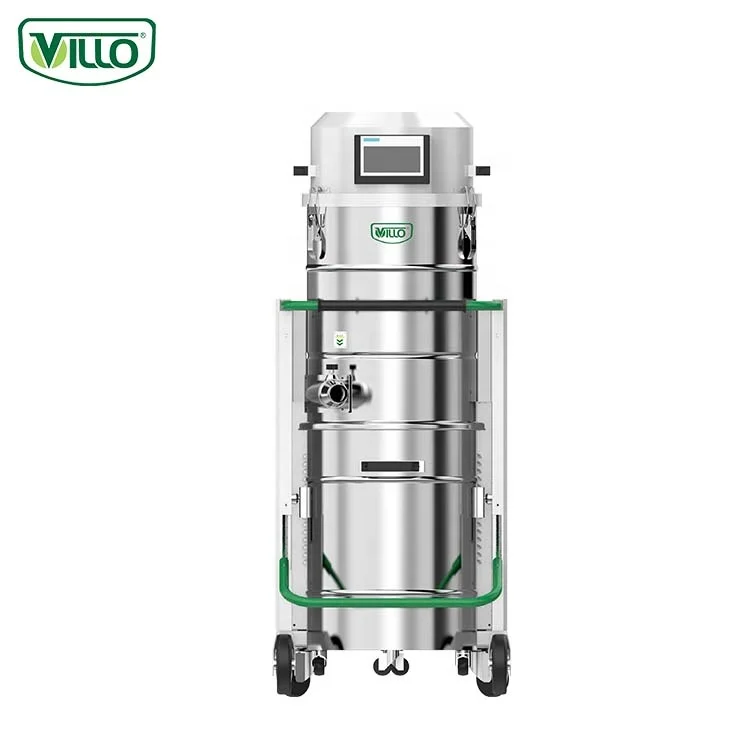

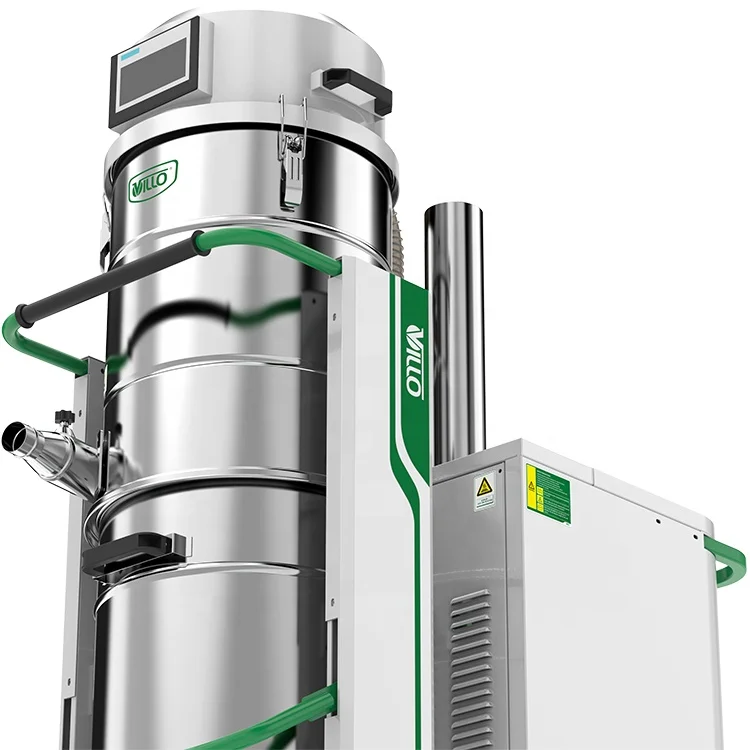

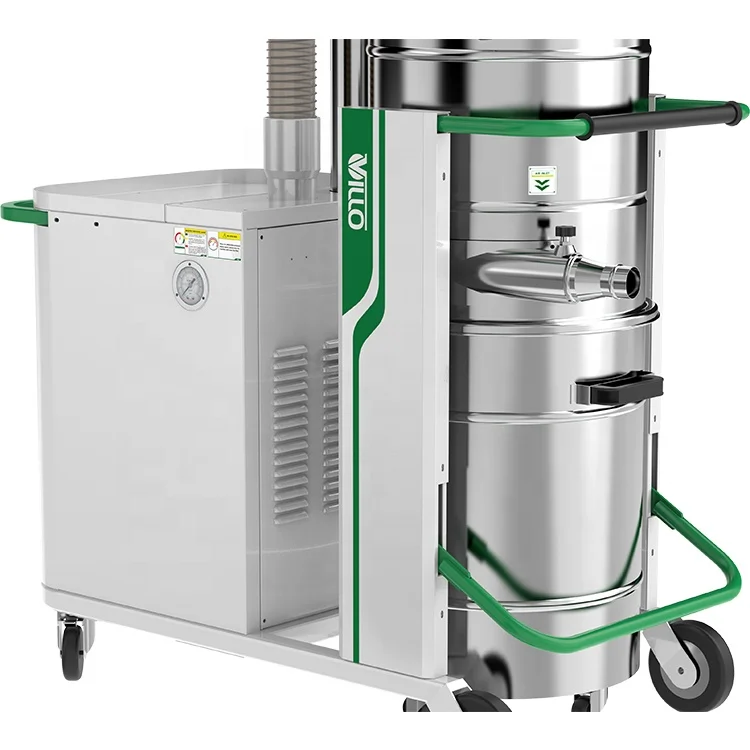

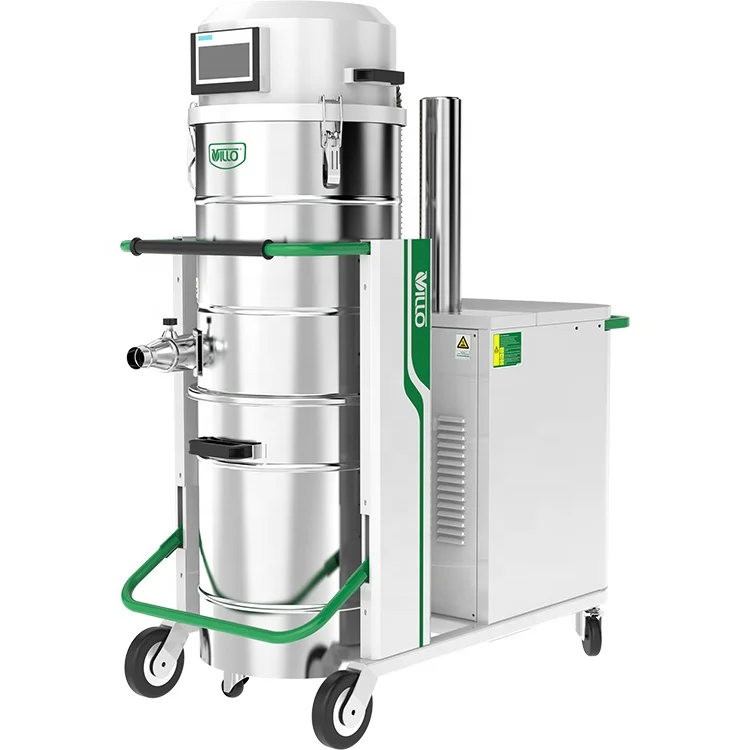

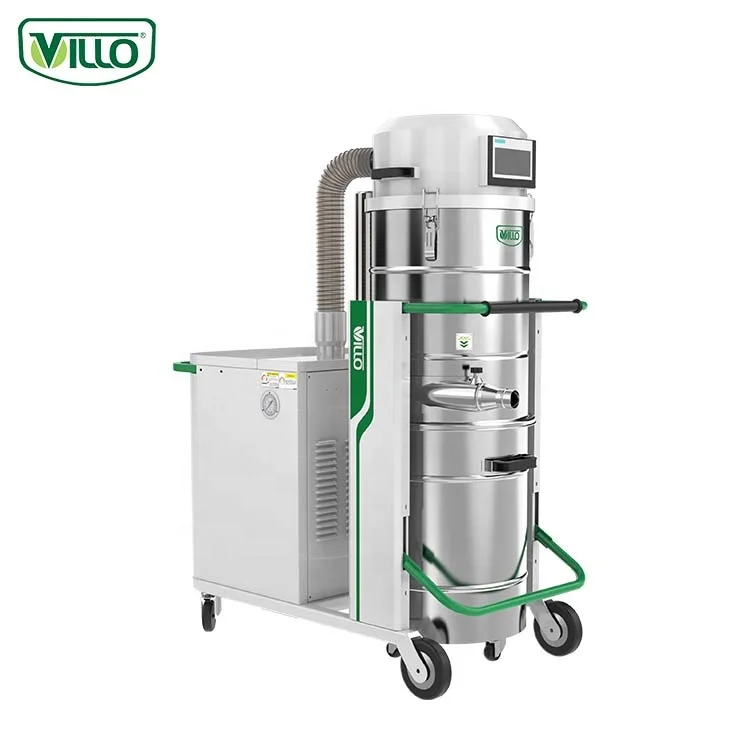

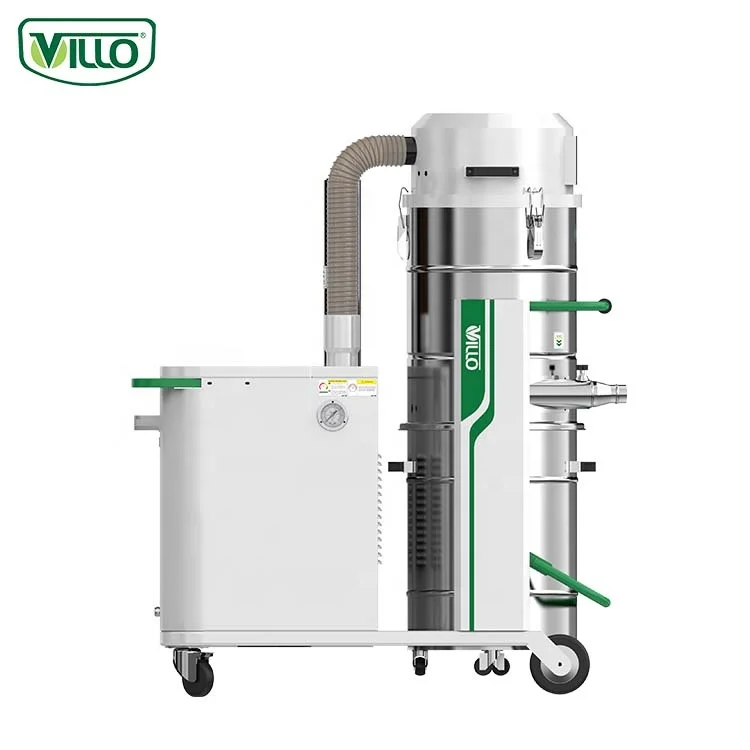

Промышленный пылесос DW773P
US $180.00
Мощный промышленный пылесос для очистки пыли из асбеста 4000
- Категория: Industrial Vacuum Cleaner >>>
- Поставщик: Dongguan,VILLO,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2356.87 $* | 2474.64 $* |
| Aug-16-2025 | 2336.91 $* | 2453.25 $* |
| Jul-16-2025 | 1960.59 $* | 2058.27 $* |
| Jun-16-2025 | 2297.31 $* | 2412.47 $* |
| May-16-2025 | 2000.31 $* | 2100.32 $* |
| Apr-16-2025 | 2257.24 $* | 2370.25 $* |
| Mar-16-2025 | 2237.28 $* | 2349.92 $* |
| Feb-16-2025 | 2218.57 $* | 2329.90 $* |
| Jan-16-2025 | 2198.8 $* | 2308.93 $* |
Характеристики
VZF Series Air Pulse Jet Heavy Duty Industrial Vacuum Cleaners
Product description
VZF Series Are Heavy Duty Industrial Vacuum Cleaners with high pressure, pulse jet cleaning device, very ideal for
sucking/absorbing large mixed particles or chips in continuous applications or installed to centralized extraction systems.
Applications
* Suitable for three phase working conditions.
* Suitable for continuous working and heavy dust with fine dust condition.
* Industries: Metal Processing (grinding, cutting, drilling, sandblasting, etc.)
* PCB (cutting, drilling, routing, etc.)
* Machine Cleaning
VZF Series Are Heavy Duty Industrial Vacuum Cleaners with high pressure, pulse jet cleaning device, very ideal for
sucking/absorbing large mixed particles or chips in continuous applications or installed to centralized extraction systems.
Applications
* Suitable for three phase working conditions.
* Suitable for continuous working and heavy dust with fine dust condition.
* Industries: Metal Processing (grinding, cutting, drilling, sandblasting, etc.)
* PCB (cutting, drilling, routing, etc.)
* Machine Cleaning
Features
* Customizable voltage
* Power less than or equal to 2.2 kilowatts can be made into single phase.* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Equipped with filter self-cleaning device for easy filter cleaning.
* Maintenance free powerful turbine motor can work continuously for 24 hours.
* Pressure gauge to detect filter clogging.
* Easy dust container cleaning
Right elevation
Left elevation
Front elevation
Technology Parameters
Model | VZF-22 | VZF-30 | VZF-40 | VZF-55 | VZF-75 | |||||
Voltage(V / Hz) | 380 / 50 | |||||||||
Power (kW) / (HP) | 2.2 / 3.0 | 3.0 / 4.0 | 4.0 / 5.5 | 5.5 / 7.5 | 7.5 / 10.0 | |||||
Starting current (A) | 30 | 40 | 60 | 85 | 100 | |||||
Current (A) | 5.6 | 7.2 | 9 | 12.9 | 16.7 | |||||
Max air flow (m³ /h) / (CFM) | 265/156 | 318 / 187 | 420 / 247 | 530 / 312 | 700 / 412 | |||||
Max vacuum (mmH₂O) / (kPa) | 2350 / 23 | 2600 / 25.5 | 2600 / 25.5 | 3000 / 29.5 | 2700 / 26.5 | |||||
Noise dB (A) | 72±2 | 74±2 | 75±2 | 76±2 | 78±2 | |||||
Dia. air inlet (mm) / (in) | Ø 50 / 2 | |||||||||
Filter area(m²)/ (sq.ft) | 5.1 / 54.9 | |||||||||
Filter efficiency | >99% | |||||||||
Capacity of collection barrel (L) / (gal) | 65 / 17.2 | 100 / 26.4 | ||||||||
Dimension [L*W*H] (mm) / (in) | 1180*670*1370 / 45.6*23.4*54 | 1300*670*1570 / 51.2*26.4*61.9 | ||||||||
Weight(kg)/ (lb) | 120 / 265 | 144 / 317 | 165 / 366 | 187 / 412 | 190 / 419 | |||||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||||||
Product Configuration
PTFE coated filter cartridge
Air pulse jet cleaning device
Pressure gauge
