Мобильный генератор кислорода CFS Plus-20 с цилиндрическим
- Категория: Оборудование для медицинских газов >>>
- Поставщик: Can,Gas,Systems,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 238.20 $* | 250.76 $* |
| Aug-16-2025 | 236.99 $* | 248.34 $* |
| Jul-16-2025 | 198.96 $* | 208.17 $* |
| Jun-16-2025 | 232.15 $* | 244.31 $* |
| May-16-2025 | 202.9 $* | 212.1 $* |
| Apr-16-2025 | 228.90 $* | 239.20 $* |
| Mar-16-2025 | 226.43 $* | 237.97 $* |
| Feb-16-2025 | 224.20 $* | 235.15 $* |
| Jan-16-2025 | 222.33 $* | 233.26 $* |
Характеристики
CanGas® CAPO PSA Oxygen Generator adopts Pressure Swing Adsorption technology to produce oxygen from compressed air. The CAPO series is a robust and stable on-site Oxygen generation system, and a very cost-effective, reliable source of oxygen supply applied in various industries such as hospitals, laboratory, bulb blower, steel industry, powder metallurgy, paper pulp, aquiculture, golden mine, water treatment industry, etc.
Key Features & Benefits
* Quick start up and instant oxygen production reaching target purity in minimum 20 minutes
* Specially selected ZMS, less sensitive to contamination and high stability to prevent breakdown, optimum PSA technology to ensure consistent oxygen purity and to reduce air consumption
* Multiple protective measures to the ZMS, extending the service life of the CAPO oxygen generators
* Air buffer and oxygen buffer tanks integrated in the oxygen generator in one skid, smaller footprint and easy to install, no need structural work, less cost
* CANBUS system, a comprehensive central control system, integral oxygen analyzer to monitor and control the running conditions of the oxygen generation system, Wi-Ctrl Configuration is available to realize remote control and system upgrades
* Powder coating surface treatment technique makes the hard finish tougher and last longer
* Unique wide oxygen purity range( from 90% to 99%) for customer flexibility
* 7*24 hours all around professional service
Air Input Requirements
Air Quality: IS0 8573-1 Class 1-4-1
Air Pressure Range: 6.5~7.5bar(g)
Air Temperature Range: 5~45℃
Design Working Conditions
Ambient Temperature: 5~45℃
Altitude: < 2,000 m (User at higher altitude area please contact CAN GAS for more details)
Air Quality: IS0 8573-1 Class 1-4-1
Air Pressure Range: 6.5~7.5bar(g)
Air Temperature Range: 5~45℃
Design Working Conditions
Ambient Temperature: 5~45℃
Altitude: < 2,000 m (User at higher altitude area please contact CAN GAS for more details)
.Three kinds of oxygen plant from CAN GAS systems company Limited

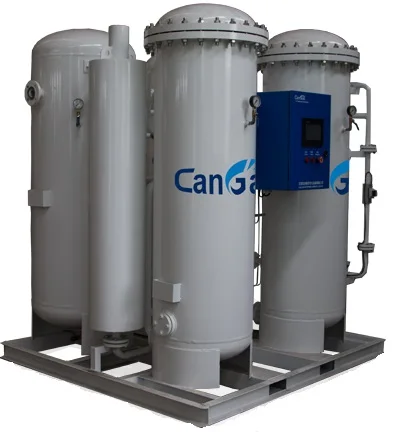

1. Skid mounted Oxygen generator
Oxygen generator purity : 93% &95%& 99.5%
Capacity : 3Nm3/h - 50Nm3/h.
Outlet pressure of oxygen: 5-10 bar (adjustable)
Application: connect to the existed oxygen pipeline

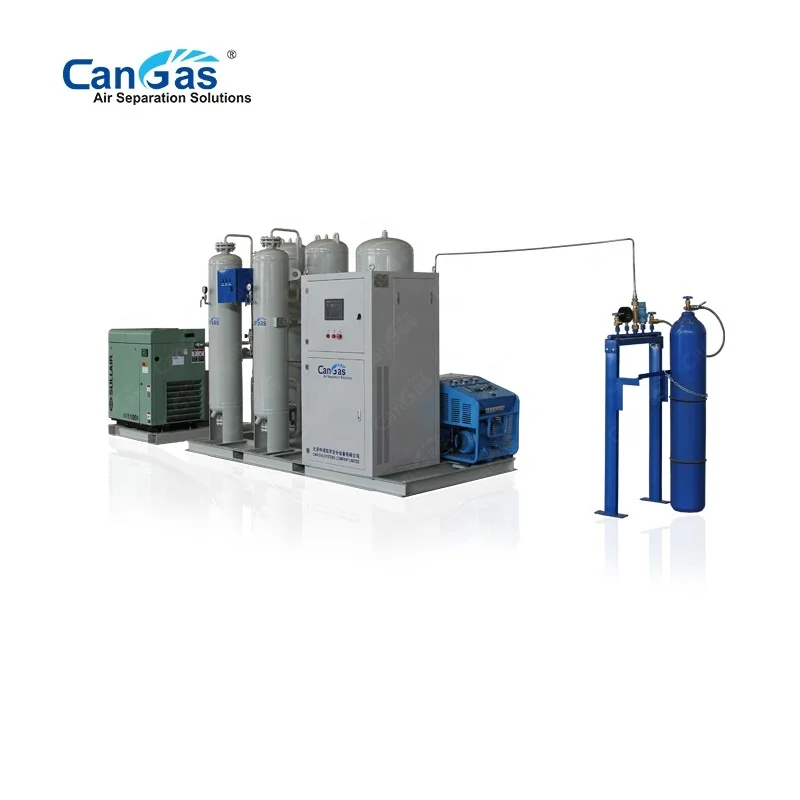

2. Skid mounted Oxygen generator with cylinder/bottles filling system
Oxygen generator purity: 93% &95%& 99.5%
Capacity: 3Nm3/h - 50Nm3/h.
Outlet pressure of oxygen: 150-200 bar (adjustable)
Outlet pressure of oxygen: 150-200 bar (adjustable)
Application: fill into cylinder/bottles and distribute to different places
3. Containerized Oxygen Plant
Oxygen generator purity: 93% &95%& 99.5%
Capacity: 3Nm3/h - 50Nm3/h.
One Outlet pressure of oxygen: 150-200 bar (adjustable)
One Outlet pressure of oxygen: 150-200 bar (adjustable)
One outlet pressure of oxygen: 5-10 bar (adjustable)
Application: fill into cylinder/bottles and distribute to different places.& connect to the existed oxygen pipeline

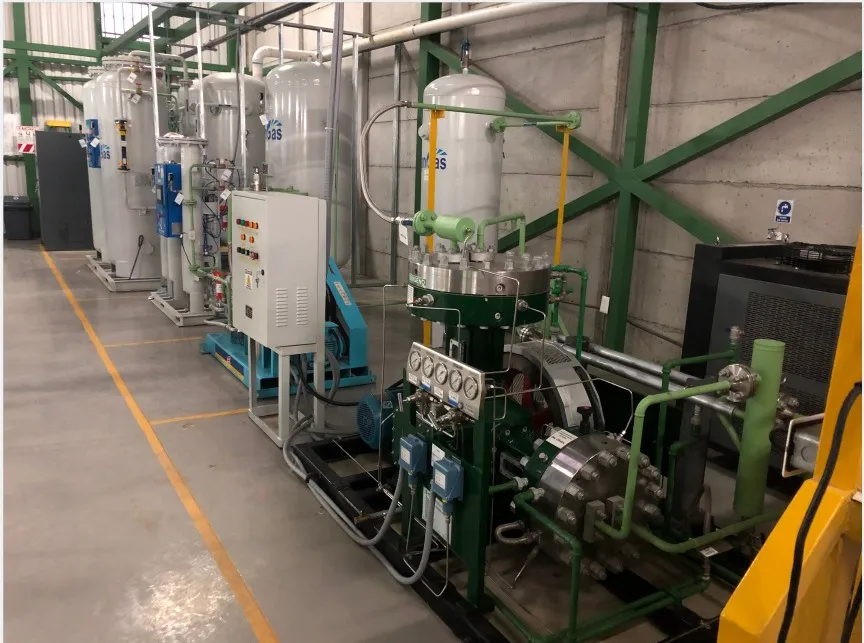

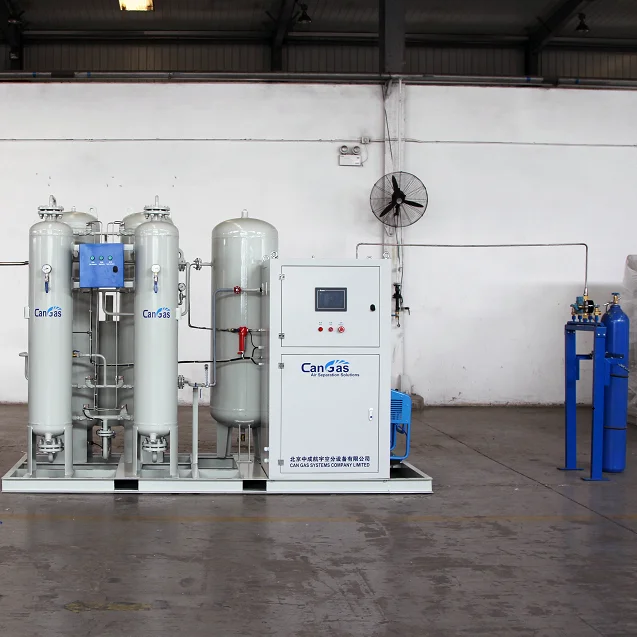

CAN GAS CFS PSA Oxygen Generation & Cylinder Refilling Units
CanGas® CFS is excellent oxygen generation & cylinder refilling solution at spot with high reliability and automation for 7*24 oxygen cylinder filling. Equipped with CanGas® CAPO, CAPO Plus and CAPO HP series PSA oxygen generator, a gas plant with CanGas® CFS can fulfill customers’ business from medical to industrial in many aspects, which do help you succeed in your gas business.
Time proven CanGas® PSA technology makes the plant more economical, more reliable and more convenient. All parts are of famous brands with reliable performance. Unique design makes the plant high production output at minimum power consumption.
CanGas® CFS at good output is equipped with the high stable oil free diaphragm booster of high pressure which could offer a better operation performance, a reliability consistent running and only a few maintenance compared with traditional piston booster.
Time proven CanGas® PSA technology makes the plant more economical, more reliable and more convenient. All parts are of famous brands with reliable performance. Unique design makes the plant high production output at minimum power consumption.
CanGas® CFS at good output is equipped with the high stable oil free diaphragm booster of high pressure which could offer a better operation performance, a reliability consistent running and only a few maintenance compared with traditional piston booster.
Key Features
*Proven PSA technology, reliable and convenient
*Product oxygen meets or is beyond U.S.P 93% medical oxygen standard
*Full automatic control and standalone run
*Plug and run design
*Low maintenance
*Oxygen Purity: 93%~99+%
*Proven PSA technology, reliable and convenient
*Product oxygen meets or is beyond U.S.P 93% medical oxygen standard
*Full automatic control and standalone run
*Plug and run design
*Low maintenance
*Oxygen Purity: 93%~99+%
Technical Parameter
Model | O2 flowrate (Nm3/h) | O2 outlet pressure | Filling pressure (barg) | Oxygen purity | Capacity cylinder (day) |
CFS-3 | 3 | 4 Barg | 150-300bar customizable | 93%~99.5% customizable | 12 |
CFS-5 | 5 | 20 | |||
CFS-10 | 10 | 40 | |||
CFS-15 | 15 | 60 | |||
CFS-20 | 20 | 80 | |||
CFS-25 | 25 | 100 | |||
CFS-30 | 30 | 120 | |||
CFS-50 | 50 | 200 | |||
CFS-80 | 80 | 320 |
- Most professional oxygen generator manufacturer in China
（1）Since establishment, R&D and production of ASU is our professional field
（2）The only company own High-tech enterprise and new tech product/service certificate for medical PSA oxygen generator
（3）The most patent certificate for medical oxygen generator and software copyright.
（4）Unique company covering business sectors, medical, commercial and artificial environment
（5）Trusted by customers and distributors
- With more than 21 years experienced, we has formed a complete system from R&D, design, manufacture, sales to service.
We have the largest professional production base of oxygen generators in China, covers an area of 28,000m2.
With more than 4,000 systems built worldwide since 1998, CAN GAS Systems win the respect with their reliability, cost-effectiveness, convenience and excellent services.
The principles of Pressure Swing Adsorption (PSA) oxygen generator are adsorption and desorption.
Each gas has a characteristic adsorption rate that when adsorbed by Zeolite Molecular Sieve (ZMS). ZMS has large surface area containing volumes of micro pores and passageways. Nitrogen has a higher adsorption rate than oxygen. When compressed air enters ZMS, oxygen molecules are able to pass through this large surface, and nitrogen molecules are adsorbed to the surface area.
Adsorption and diffusion are the general principles of the PSA system since each gas has a characteristic adsorption rate that is a function of its ability to be adsorbed by a molecular sieve. The adsorption process can produce a range of gas with purities 93%-99% oxygen.
Oxygen produced meets the United States Pharmacopeia (USP) XXI Oxygen 93% Monograph as well as European and other Pharmacopeia.
2003, CAN GAS cooperated with Chinese PLA Air Force, started to supply NL Altitude Simulator for training Chinese astronauts.
2008, CAN GAS supplied nitrogen generator for Beijing Olympics food testing center.
In 2013, we built a large-scale plateau oxygen-enriched system for Jiaduobao Group Qinghai Yuzhufeng Mineral Water Co., Ltd., which is currently the highest altitude and largest oxygen-rich system project in China.
In 2015, CAN GAS provided the PLA the plateau with on-site oxygen generator system. The operating temperature of the equipment is -40 ° C - 70 ° C, the use of altitude is more than 4,500 meters.
In 2016, Oxygen generator system provided to National Engineering Laboratory for Antitumor Protein Drugs
