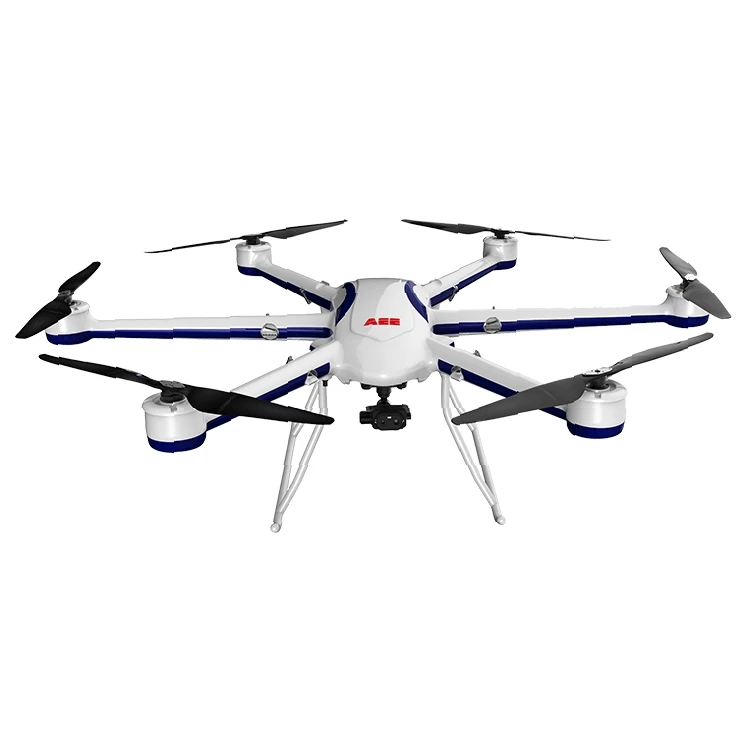

Китайская фабрика интеллектуальное планирование маршрута профессиональные

Flight mode

Manual flight mode, GPS mode + Beidou mode, airline flight mode

Sensing system

GPS, accelerometer, gyroscope, barometer, 3 axis magnetic compass

Route flight function

have

Ground station functional support

have

Black box function

support

Maximum range

20km(The aircraft mounted with standard HD camera JD21, altitude 100
M.)

Maximum battery life

50min(The aircraft is mounted with standard HD camera JD21, no extra
Load)

Maximum radius of flight

2Km(Handheld Terminal Control) 10Km(Ground Terminal Control)

Hover accuracy (safe flight status)

At least in the vertical direction:

± 0.1m (when visual positioning is working normally)

± 0.5m (when GPS is working normally)

± 0.1m (when RTK positioning is working normally)

At least in the horizontal direction:

± 0.3m (when visual positioning is working normally)

± 1.5m (when GPS is working normally)

± 0.1m (when RTK positioning is working normally)

Maximum speed of rise

6m/s

Maximum rate of descent

5m/s

Maximum horizontal flight speed

15m/s (non-headwind)

Maximum flying relative altitude

500M (limited height version) 3000M (unlimited height version)

Maximum flight altitude

5Km

Maximum cruising speed

15m/s (non-headwind)

Maximum wind speed

15 m/s (level 7)

Maximum load

10Kg

The fuselage materials

All carbon fiber composite materials

self-respect

19.3kg (battery included, but not airborne pan-head camera)

Maximum overall dimension

1612mm x 1612mm x 500mm(without blades)

2250mm x 2250mm x 500mm(with blades)
