Высококачественная промышленная шаровая мельница из кварцевого золота и мокрого
- Категория: Mine Mill >>>
- Поставщик: Jiangxi,Walker,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3570.96 $* | 3749.59 $* |
| Aug-15-2025 | 3540.82 $* | 3717.20 $* |
| Jul-15-2025 | 2970.70 $* | 3119.95 $* |
| Jun-15-2025 | 3480.83 $* | 3654.7 $* |
| May-15-2025 | 3030.51 $* | 3182.14 $* |
| Apr-15-2025 | 3420.71 $* | 3591.15 $* |
| Mar-15-2025 | 3390.0 $* | 3560.93 $* |
| Feb-15-2025 | 3360.59 $* | 3528.10 $* |
| Jan-15-2025 | 3330.76 $* | 3497.95 $* |
Характеристики
Product Description
Product Description
Ball Mill is a type of grinder used to grind materials into an extremely fine powder mainly for use in the mineral processing
industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements. Ball Mills consist of a large cylinder which slowly rotates around a horizontal axis. The cylinder is partially filled with the material to be ground plus the grinding medium (metal grinding balls). Inside the cylinder, the medium will be lifted to a certain height under the action of centrifugal force and then drop or fall, grinding the ore in between the balls as they interact. Feed material to be ground enters the cylinder via a hopper on one end and after being crushed by the grinding medium is discharged at the other end.
industry. Ball Mills can grind various ores and other materials either wet or dry, depending on requirements. Ball Mills consist of a large cylinder which slowly rotates around a horizontal axis. The cylinder is partially filled with the material to be ground plus the grinding medium (metal grinding balls). Inside the cylinder, the medium will be lifted to a certain height under the action of centrifugal force and then drop or fall, grinding the ore in between the balls as they interact. Feed material to be ground enters the cylinder via a hopper on one end and after being crushed by the grinding medium is discharged at the other end.
Structural Characteristics
The ball mill is composed of feeding device, discharge device, rotation device ,speed reducer, small transmission gears, motor, and electric control part. The Hollow Shaft is made of cast iron, the inner plates can be changed, the large rotating gears are manufactured by the casting process, and inside the cylinder is equipped the wear-resistant plates, it has good abrasion resistance. The machine is running smoothly, it works reliably.
The ball mill is composed of feeding device, discharge device, rotation device ,speed reducer, small transmission gears, motor, and electric control part. The Hollow Shaft is made of cast iron, the inner plates can be changed, the large rotating gears are manufactured by the casting process, and inside the cylinder is equipped the wear-resistant plates, it has good abrasion resistance. The machine is running smoothly, it works reliably.
Model | Shell rotation speed(r/min) | Ball load | Feeding size | Discharging size | Capacity | Motor power | Weight |
(t) | (mm) | (mm) | (t/h) | (kw) | (t) | ||
Ø 900*1800 | 36-38 | 1.5 | < =20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
Ø 900*3000 | 36 | 2.7 | < =20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
Ø 1200*2400 | 36 | 3 | < =25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
Ø 1200*3000 | 36 | 3.5 | < =25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
Ø 1200*4500 | 32.4 | 5 | < =25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
Ø 1500*3000 | 29.7 | 7.5 | < =25 | 0.074-0.4 | 2.0-5.0 | 75 | 15.6 |
Ø 1500*4500 | 27 | 11 | < =25 | 0.074-0.4 | 3.0-5.0 | 110 | 21 |
Ø 1500*5700 | 28 | 12 | < =25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
Ø 1830*3000 | 25.4 | 11 | < =25 | 0.074-0.4 | 4.0-10.0 | 130 | 28 |
Ø 1830*4500 | 25.4 | 15 | < =25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
Ø 1830*6400 | 24.1 | 21 | < =25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
Ø 1830*7000 | 24.1 | 23 | < =25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
Ø 2100*3000 | 23.7 | 15 | < =25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
Ø 2100*4500 | 23.7 | 24 | < =25 | 0.074-0.4 | 8-43 | 245 | 42 |
Ø 2100*7000 | 23.7 | 26 | < =25 | 0.074-0.4 | 8-48 | 280 | 50 |
Ø 2200*4500 | 21.5 | 27 | < =25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
Ø 2200*6500 | 21.7 | 35 | < =25 | 0.074-0.4 | 14-26 | 380 | 52.8 |

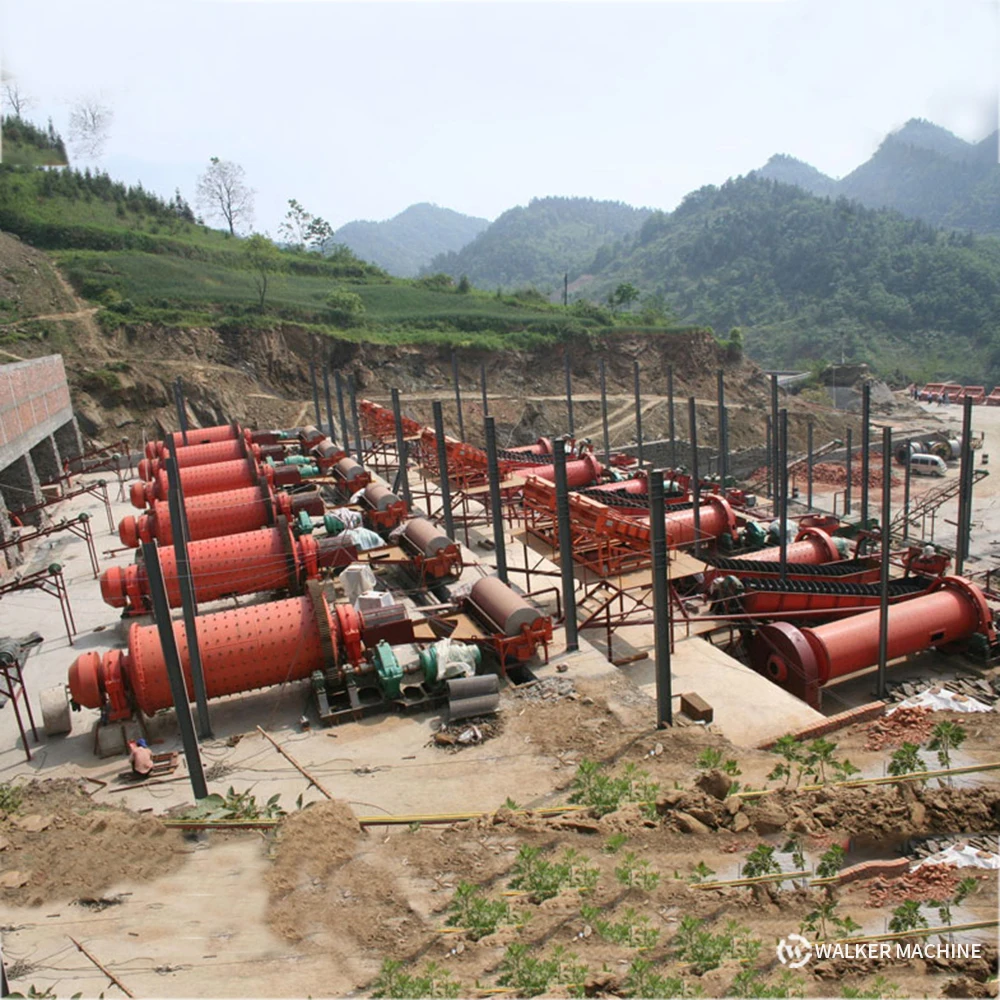

Successful cases
● 860THD Titanium mining project in Mozambique
This project is a big case,the client running a family business.they focus in gold,chrome and diamond recovery,we provide a whole processing plant for them,neary all the mining machines are involed,trommel screen washing machine,trommel screen,vibration screen,ball mills,magnetic separator,spiral chute,shaking table etc.
This project is a big case,the client running a family business.they focus in gold,chrome and diamond recovery,we provide a whole processing plant for them,neary all the mining machines are involed,trommel screen washing machine,trommel screen,vibration screen,ball mills,magnetic separator,spiral chute,shaking table etc.
● 20THP gold mining project in sudan
capacity:20tph
site;sudan
mineral:gold
feeding size;30mm
machine:hopper,ball mill ,belt conveyor,pumps,shaking tables,etc
site;sudan
mineral:gold
feeding size;30mm
machine:hopper,ball mill ,belt conveyor,pumps,shaking tables,etc
● 10TPH coltan mining project in Sudan
capacity;10tph
site;Sudan
mineral:coltan
feeding size;20mm
machine:hopper,ball mill,,belt conveyor,pumps,etc.
capacity;10tph
site;Sudan
mineral:coltan
feeding size;20mm
machine:hopper,ball mill,,belt conveyor,pumps,etc.
We have provided the ball mill for many customers in Mali, Mozambique, Nigeria, Suriname, Ghana, South
Africa,Uganda,Zambia,Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore
miningplant,diamond plant,Iron ore plant,ect.
Africa,Uganda,Zambia,Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore
miningplant,diamond plant,Iron ore plant,ect.

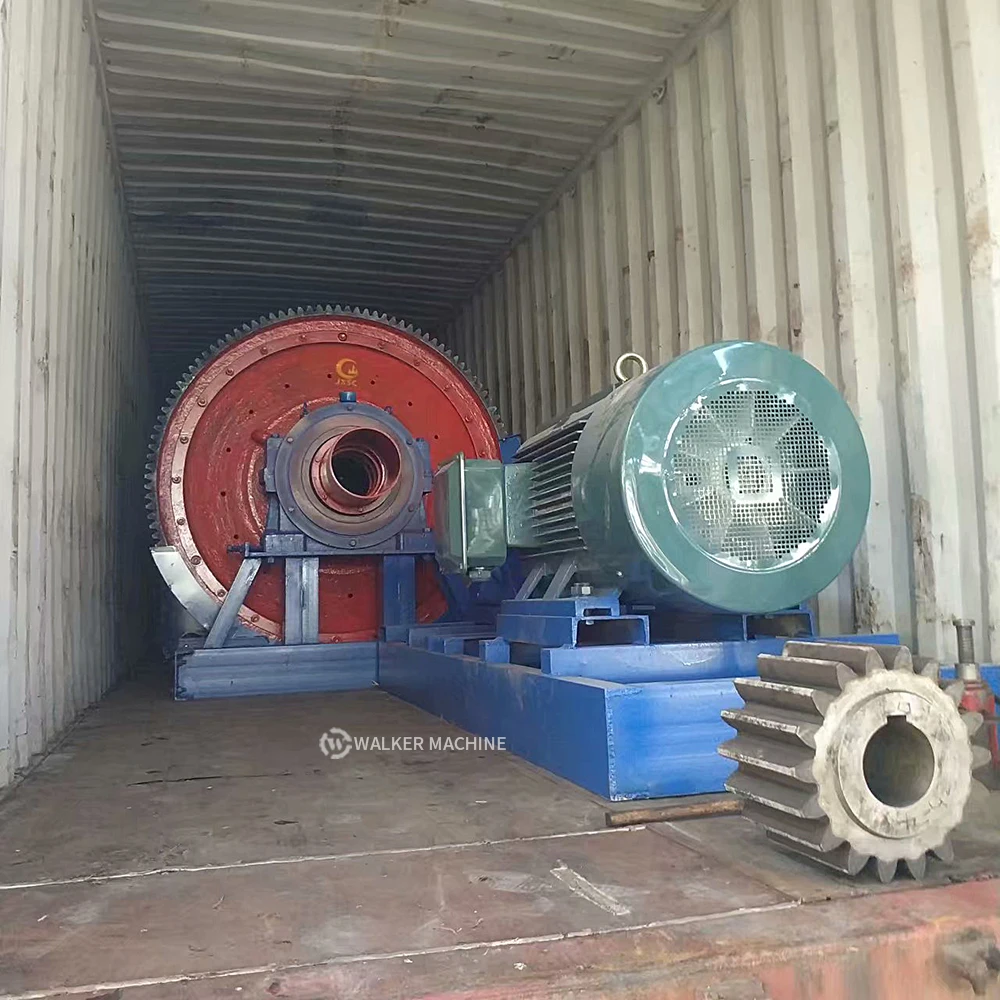

Packing & Delivery
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Company Introduction
Jiangxi walker Machinery Co.,Ltd, are a professional manufacturer of complete set mining equipments, a sub-company of JXSC mine machinery factory in Jiangxi province.professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our core advantages as below:
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
1.+30years history factory at mining machinery
2.Provide engineer team after sale service
3.Provide complete set mineral processing plant
4.Provide sample testing service in factory lab for free
5.Provide professional ming soolution consulting
1.Inquiry and consulting support.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
2.Ore sample testing support.
3.View our Factory.
4.Design Flowchart.
1.Training how to instal the machine, training how to use the machine.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
2. 1 year warranty .
3.Engineers available to service machinery overseas.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique,
building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
