Introduction of  Mini Concrete Mixing Plant 2.5cbm self loading concrete mixer truck for road engineering

Mobile concrete mixing station is an on-site construction vehicle that combine feature with concrete batch processing equipment, concrete transport and concrete mixing station. This cutting edge machine will lead the concrete industry in next decade.

Put cement, sand and gravel into the drum and let the mobile concrete mixing station do the rest.

A small concrete station can easily formed by 2 mobile concrete mixing stations, 1 cement tank and 1 water tank.

Low upfront cost.

Reduce transportation cost

Minimize labor cost

Maximize job efficiency

Features&Advantages of Mini Concrete Mixing Plant 2.5cbm self loading concrete mixer truck for road engineering

Mobile concrete mixing station feature combines self-loading, weighing, mixing and discharging. It can maximize and improve the job efficiency and reduce the production cost and time.

High Efficiency

Capacity:9 cubic meters(18.31 cubic yards)/hour;

       110 cubic meters (143.87 cubic yards)/day;

       33000 cubic meters(43,162.44 cubic yards)/year

Labor-saving

4 wheel drive, 4 wheels steering

Accurate Electric Weighing System

The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle

Loading, Weighing, Pumping, Mixing, Delivering, Discharging

Main Parameter of Mini Concrete Mixing Plant/Mobile Concrete Mixing Station/Small concrete Mixing Machine

Mixing Drum
Mixing volume	2.5 M3
Geometrical volume	3.8/ M3
Concrete output	2.4M3 / batch, 9 M3 / hour
Drum rotating speed	18 rpm
Drum slewing angle	270°
Adjust up and down	20°
Engine
Brand	YUNNEI(YUCHAI Engine optional)
Model	YN38GBZ
Type	4-Cylinder inline,direct injection
Rated power	76KW
Max torque	260-332/1800-2200



Chassis
Structure	Integrated rigid chassis
Transmission system	Adopt 280 split torque converter gearbox,with hing ang low speed
Wheelbase	2100mm
Axles	16Ton reduction driving axle
Tyre size	Off road steel cord type, 23.5/70-16
Cabin
Type	type closed front cab
Joystick control	Double-joystick control the hydraulic system
Weighing system	The loading cells are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.
Air conditioning system	Cooling & heating air conditioner
Water supply sysytem
Max. water suction capacity	Self-priming hydraulic water pump
Water tank capacity	2*250L
Electric system
Battery:	2x12V-100AH



Vehicle
Car weight	6000Kg
Loadable	16000Kg
Overall size (L×W×H)	6680 mm × 2540mm × 3120mm (3880mm full height)
Service refill capacities
Fuel tank	125L
Total hydraulic system capacity	125L

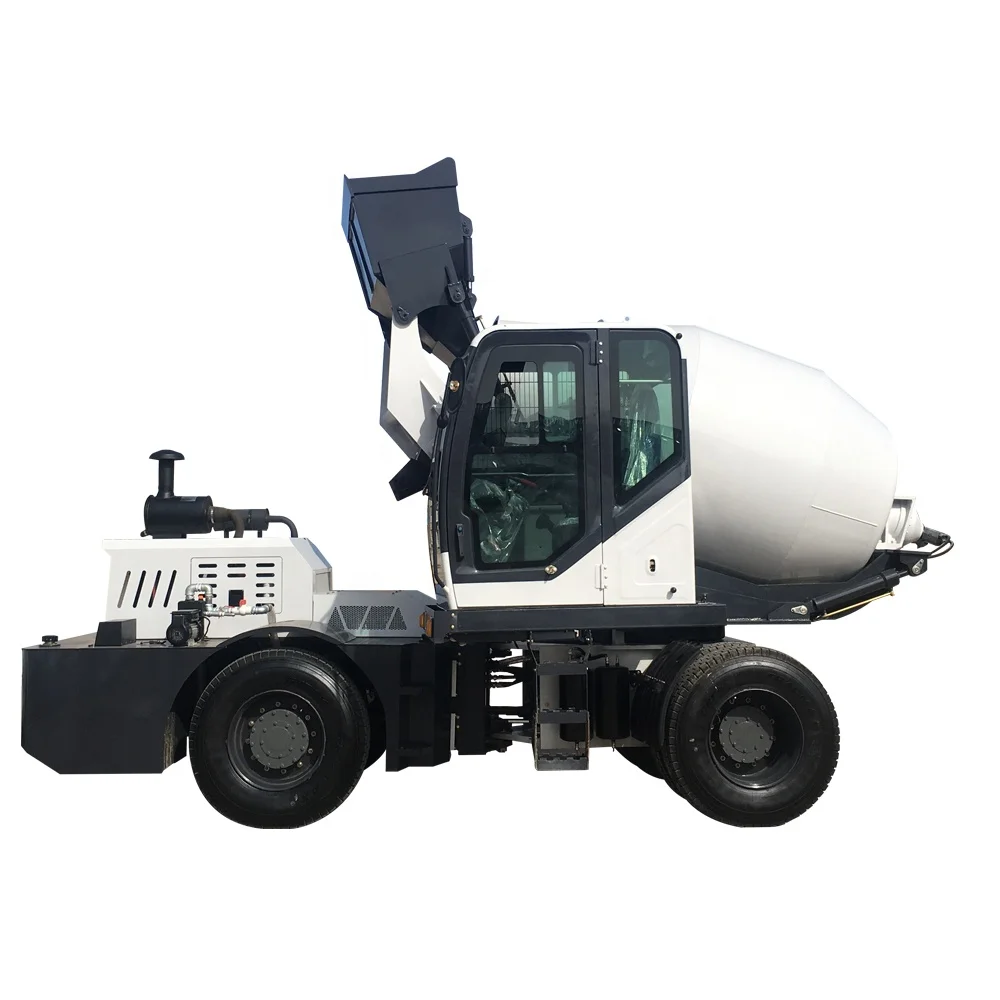

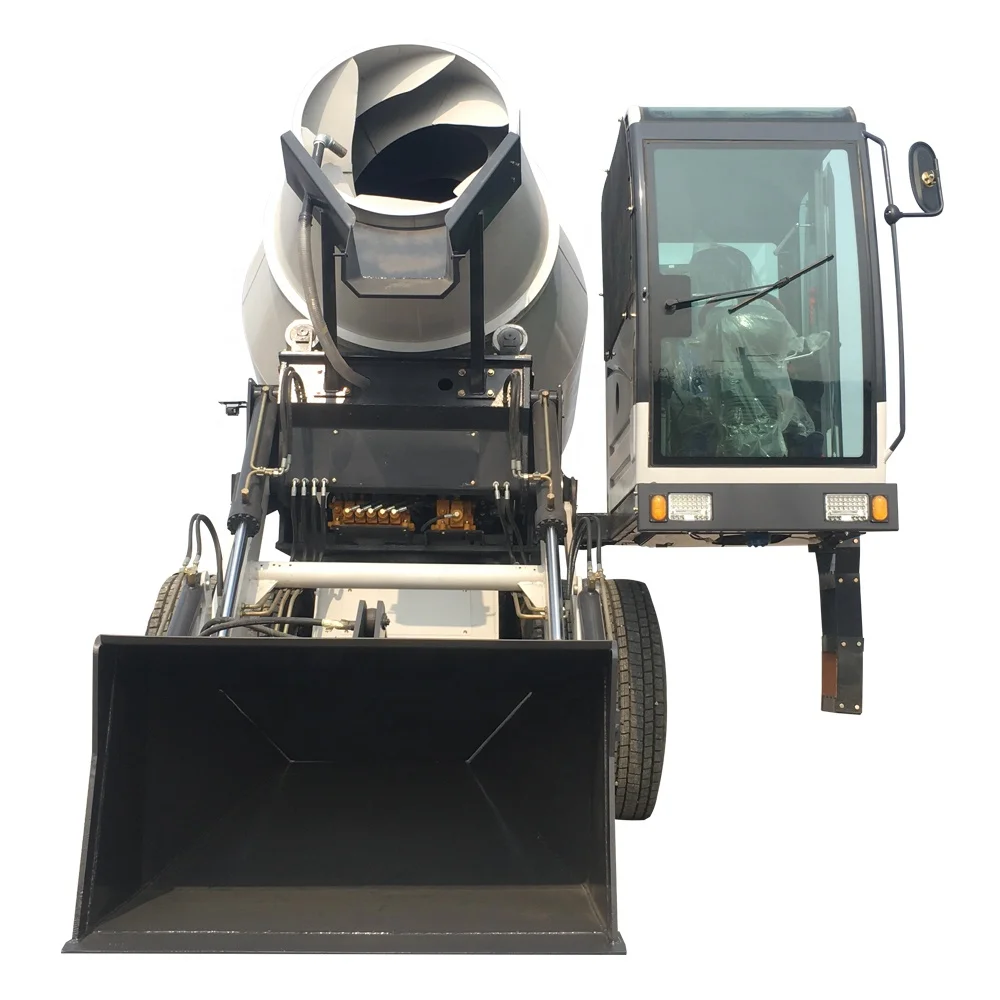

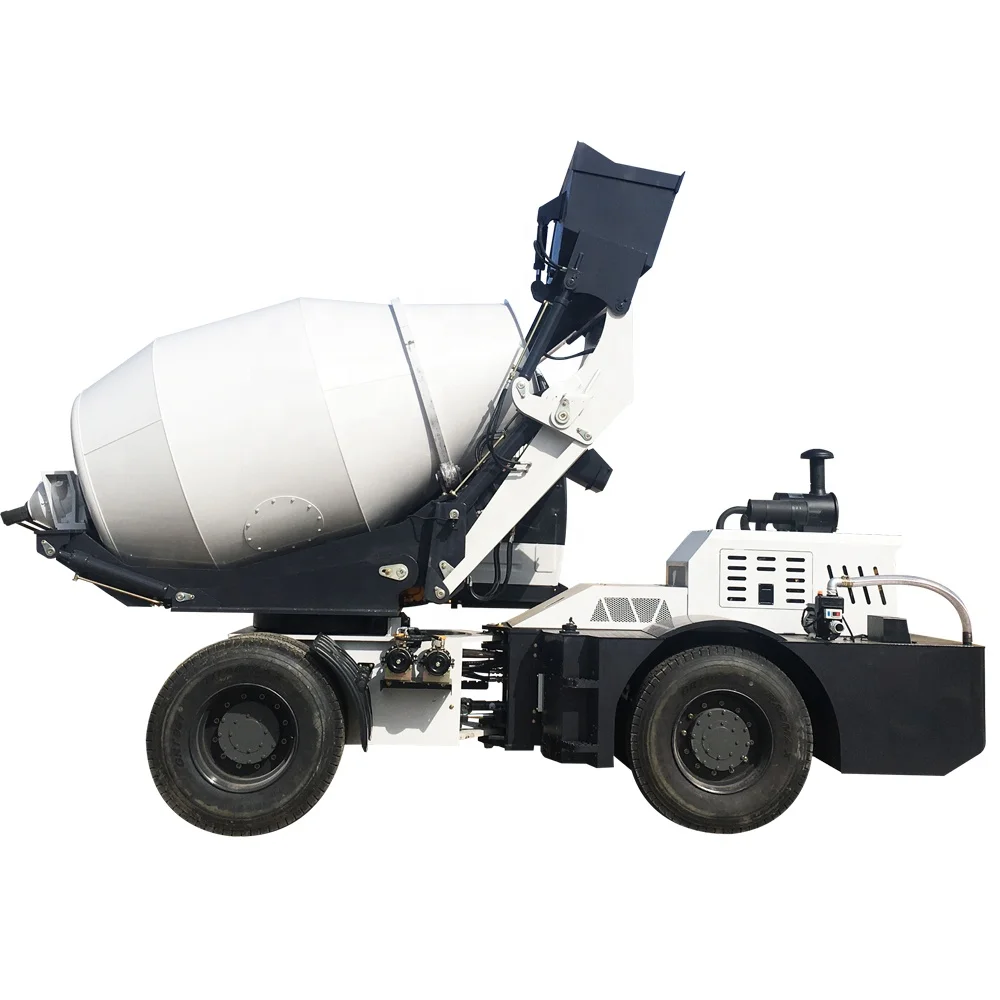

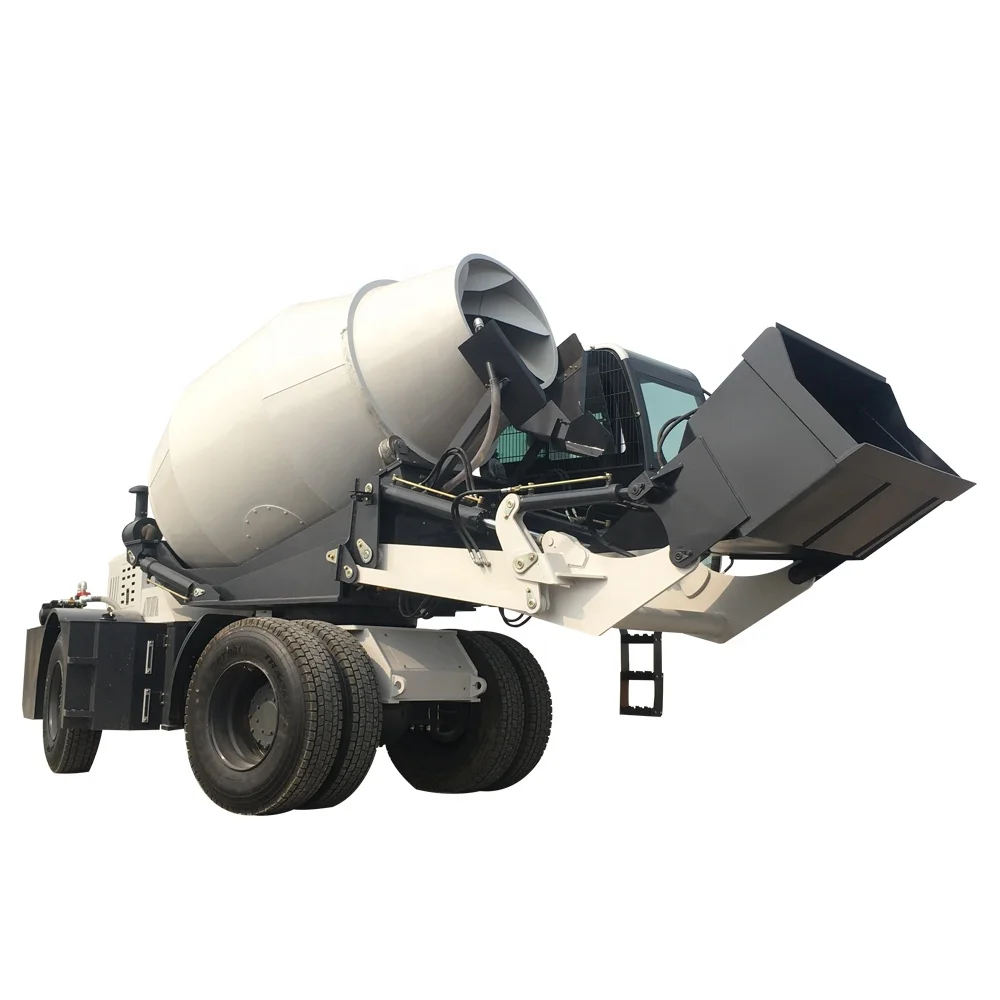

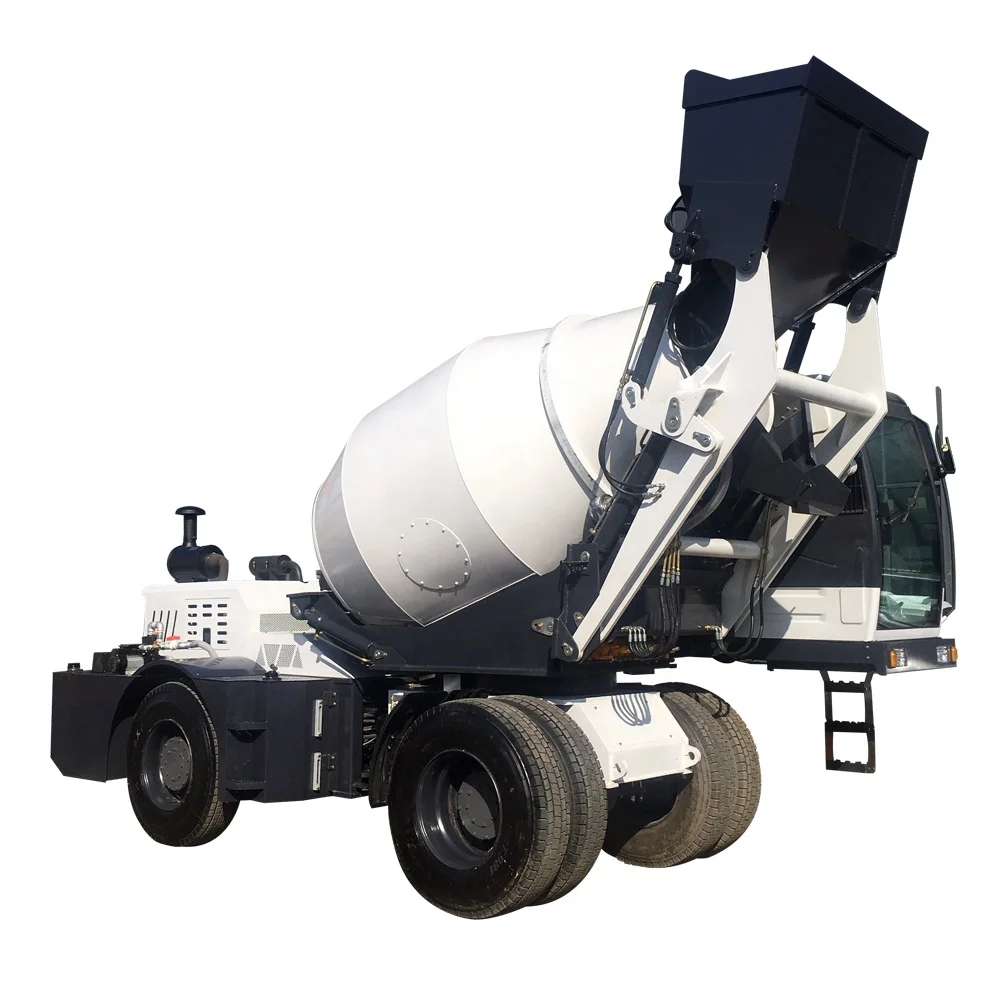

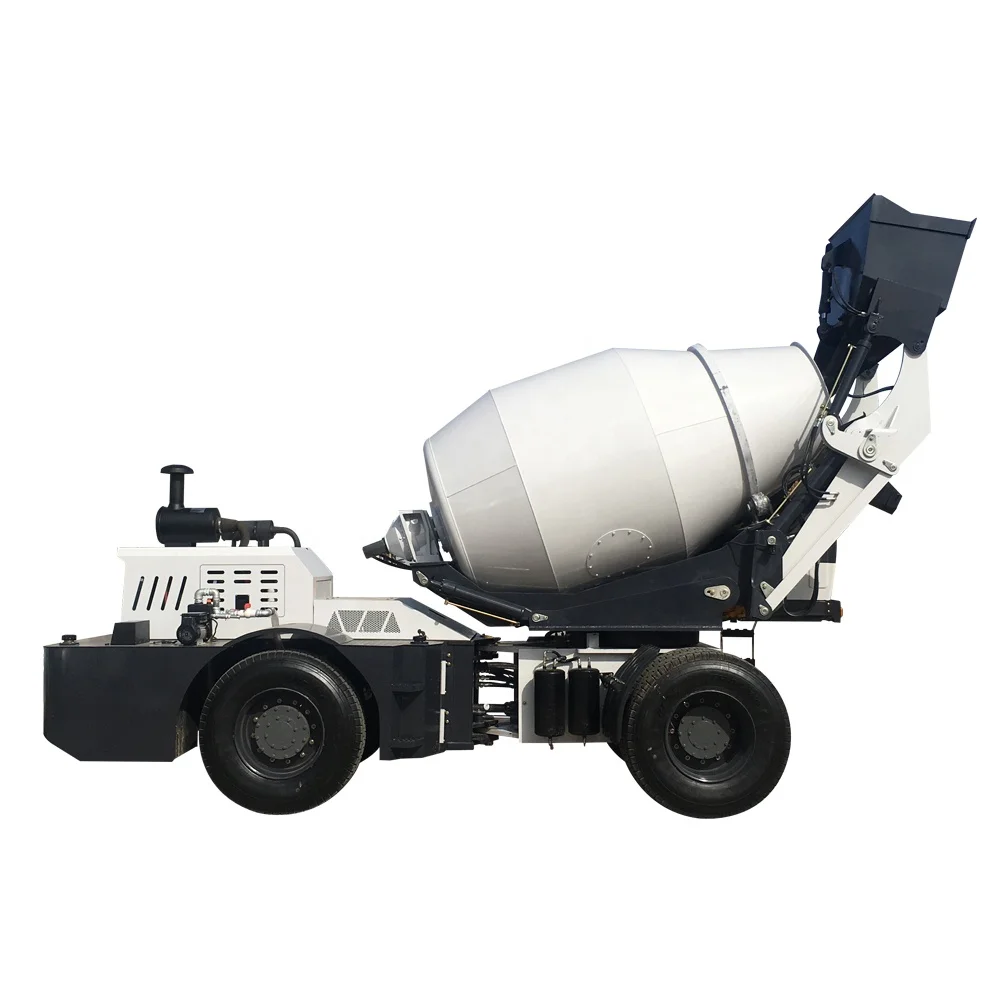

Figure Images of Mini Concrete Mixing Plant 2.5cbm self loading concrete mixer truck for road engineering
