80 м/мин. 8 резаков машина для производства пузырчатой бумаги питьевой соломинки устройство сращивания техническая поддержка

80 м/мин. 8 резаков машина для производства пузырчатой бумаги питьевой соломинки устройство сращивания техническая поддержка

Категория: оборудование для производства соломы >>>
Поставщик: Wenzhou,Chuangfeng,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.90 $*	0.92 $*
Aug-16-2025	0.24 $*	0.20 $*
Jul-16-2025	0.48 $*	0.97 $*
Jun-16-2025	0.27 $*	0.99 $*
May-16-2025	0.40 $*	0.70 $*
Apr-16-2025	0.29 $*	0.2 $*
Mar-16-2025	0.83 $*	0.48 $*
Feb-16-2025	0.64 $*	0.25 $*
Jan-16-2025	0.91 $*	0.23 $*

Характеристики

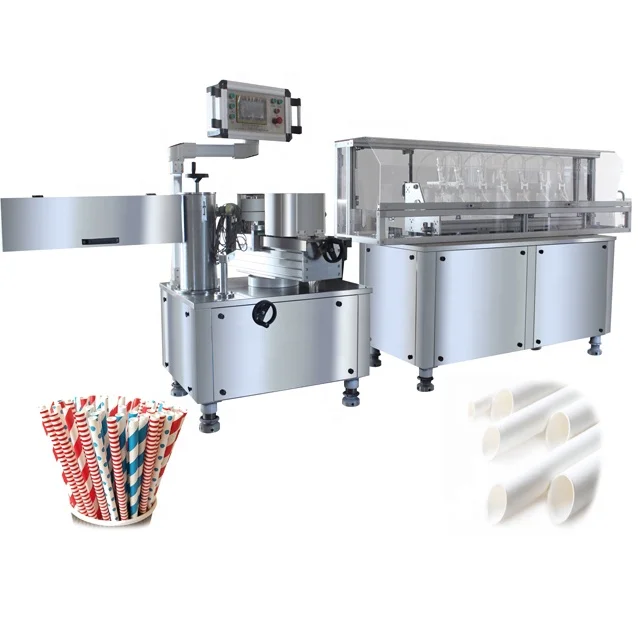

HOT SALE Eco Friendly Biodegradable Paper Straw Machine

325-350 pieces per minute

This Machine is suitable for producing different sizes of paper straws, such as OD 4.5mm; 5mm; 6mm; 8mm; 10mm;12mm etc.
1. Adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

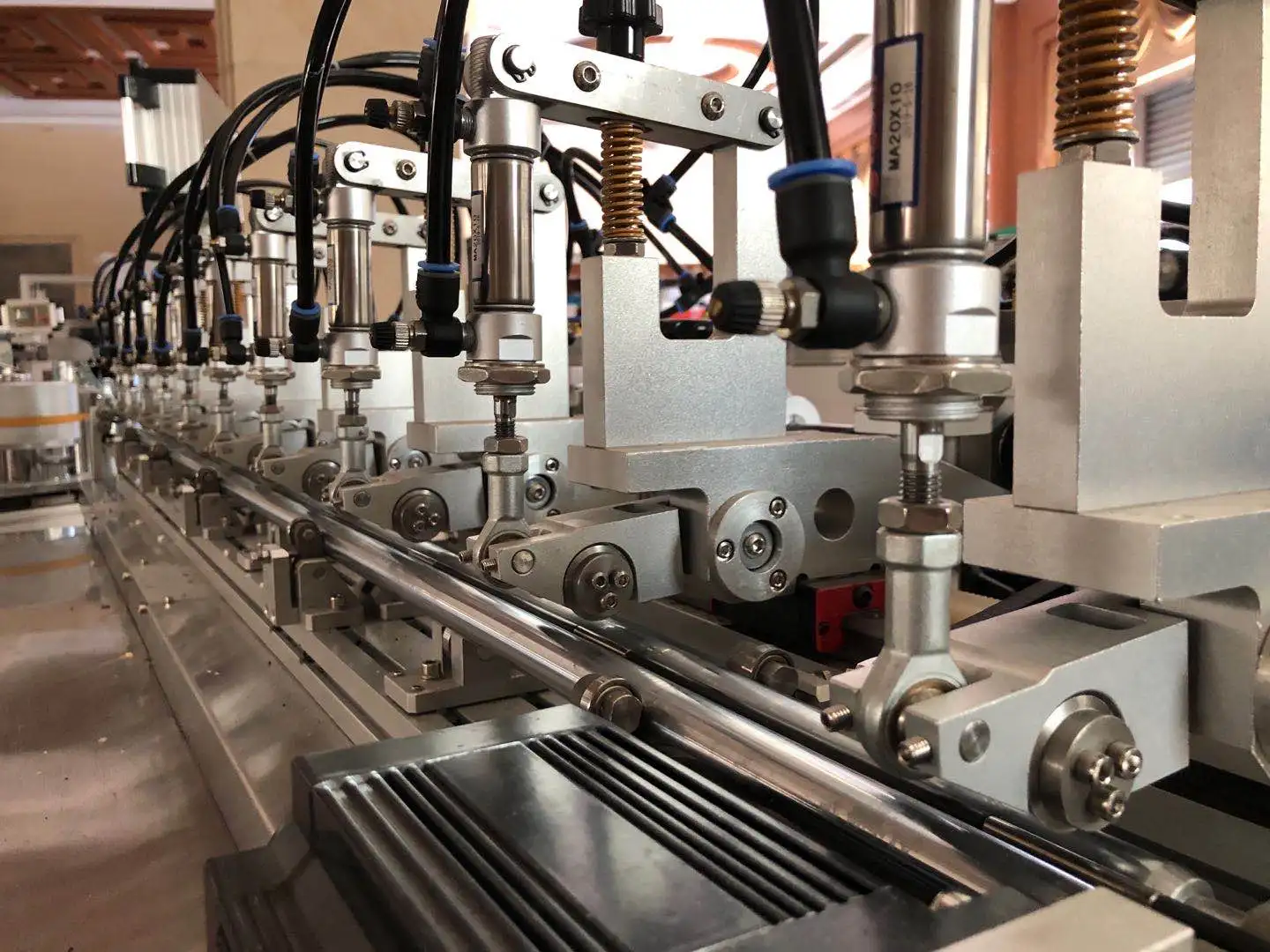

2. Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
3. Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.

Technical Parameter

Technical Parameter
Paper Layer	4 layers ( can make both 4 and 3 layers paper straws)
Inner Diameter	3.5-12.3mm
Winding Speed	Stable 65-70meters/min; maximum 80m/min.
Cutting System	Multi-blades (8 pcs) online cutting
cutting system	Servo motor synchronism tracking cut
Gluing Way	Single/Double sides
Machine & Parts	Stainless Steel
Automatic Paper Connection	2021 Latest Model; Paper Connecting without Stop
Operator	1-2 person
Speed Control	By Inverter
Power Supply	380V/3Phase/50Hz
Control System
Motor	7.0KW
Motion controller	Panel Master
Touch Screen	Panel Master
Inverter	1KW Schneider
Pneumatic Components	Air Tac or Jingwei
Electric Components	CHNT & Schneider
Bearing	Haerbin & NSK
Servo Motor/Driver	Schneider
Guide Rail /slider	THK or Shangyin
Configuration
Paper Reel Stand & Glue Unit	4 Layers
Belt	5 Pieces
Mandrel Shaft	2 Pieces
Useful Tool	1 Set
Measurement & Weight
Measurement	Main machine 400015001200mm Paper Connection200021002100mm
Working Space	8000*5000mm
Weight	2100kgs
