Products Description

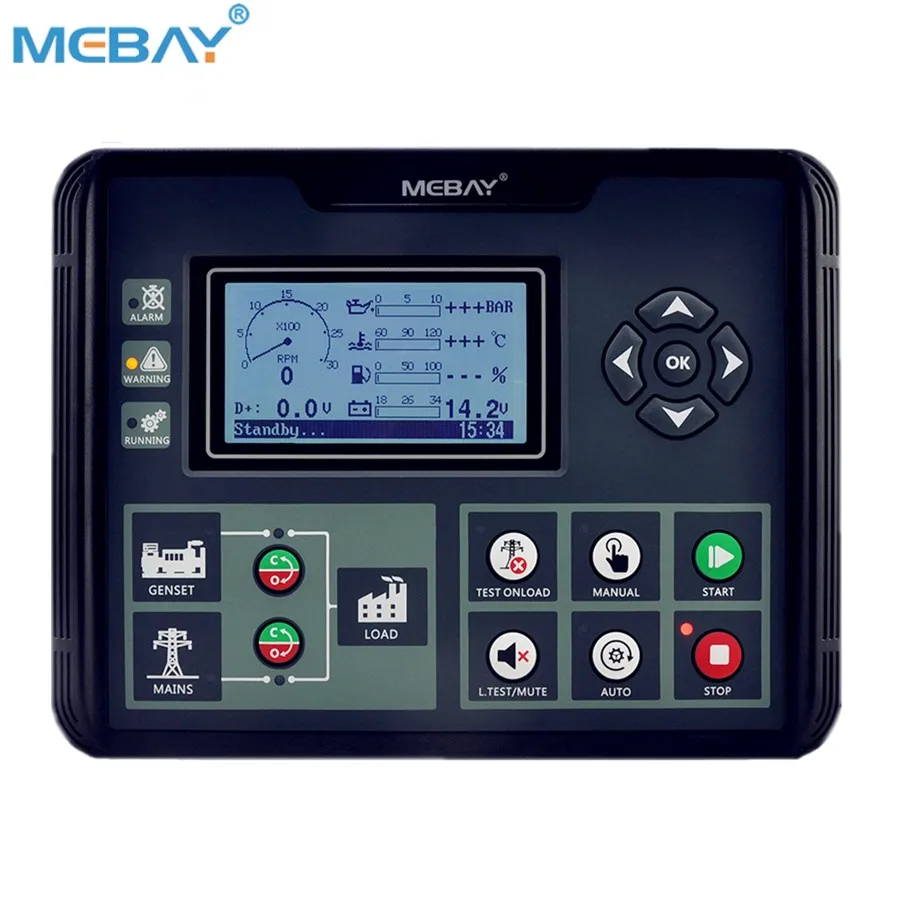

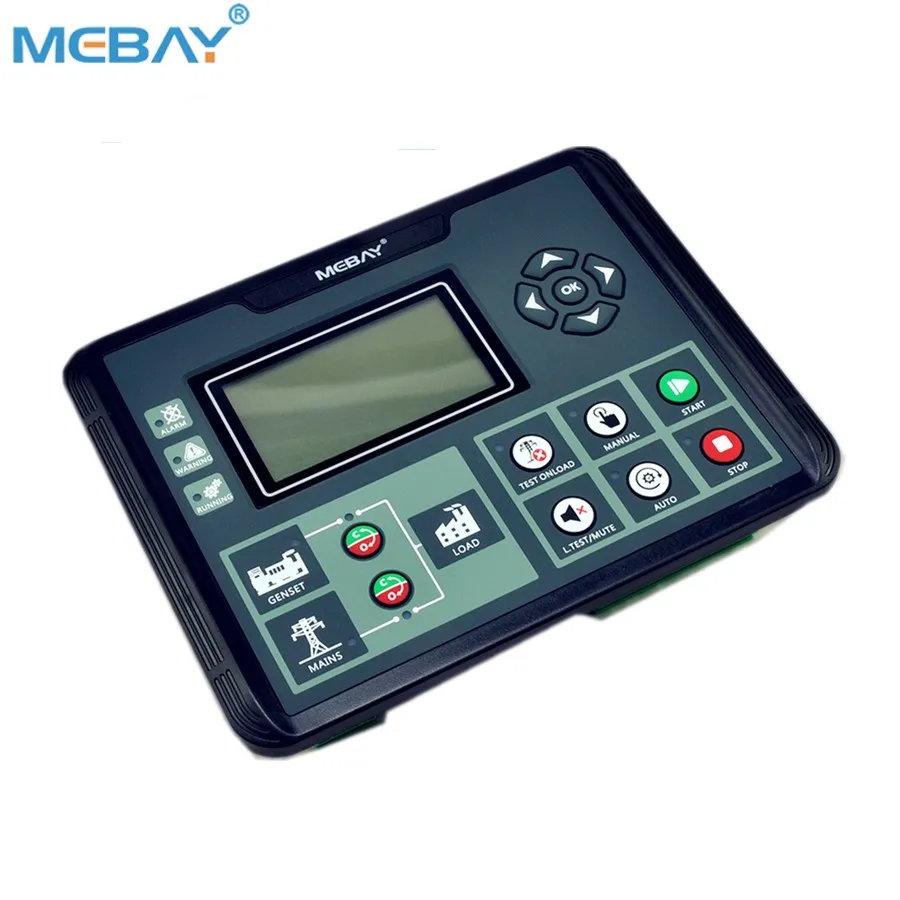

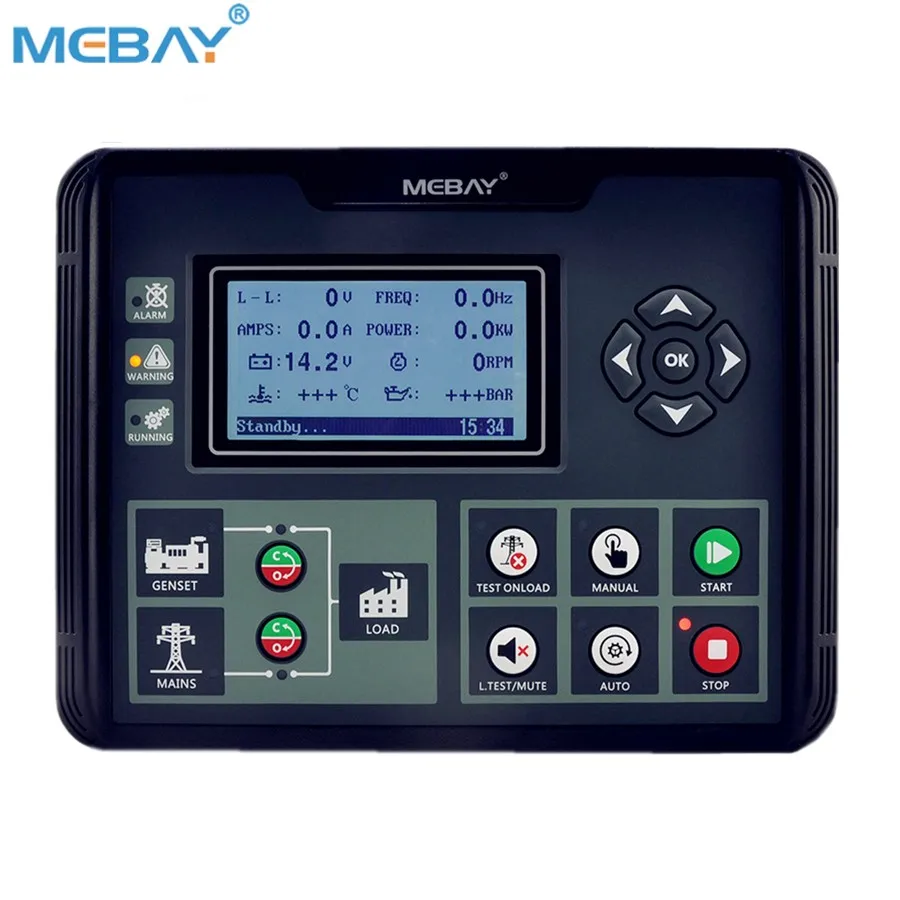

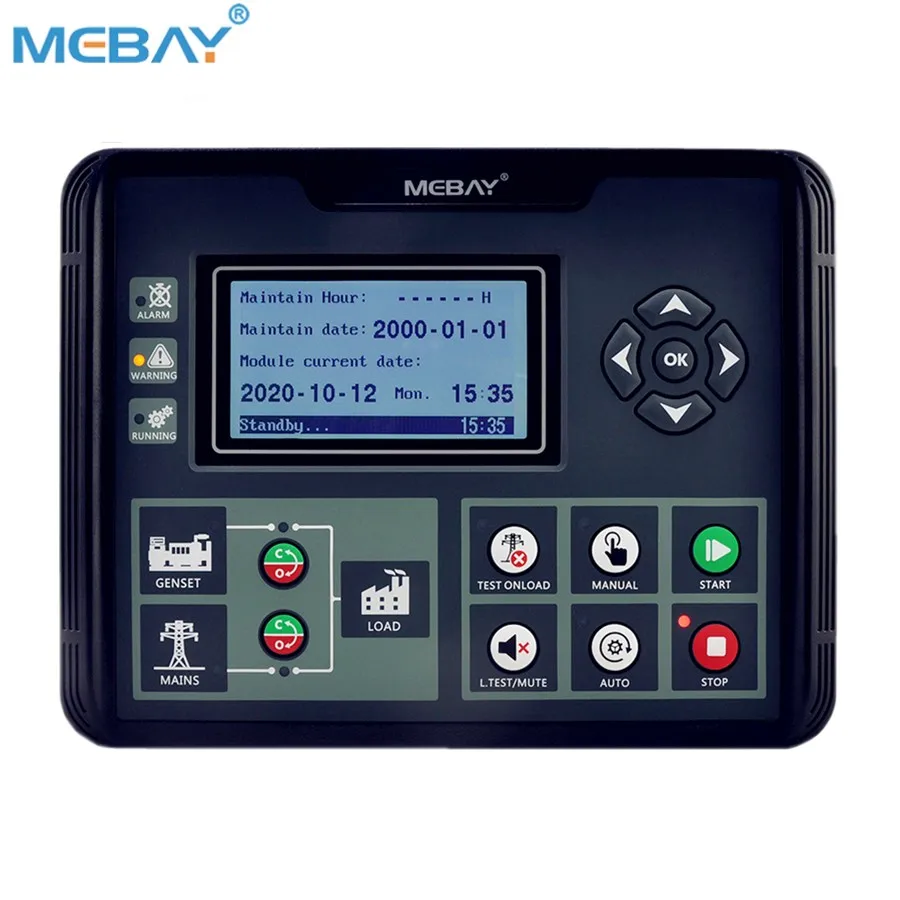

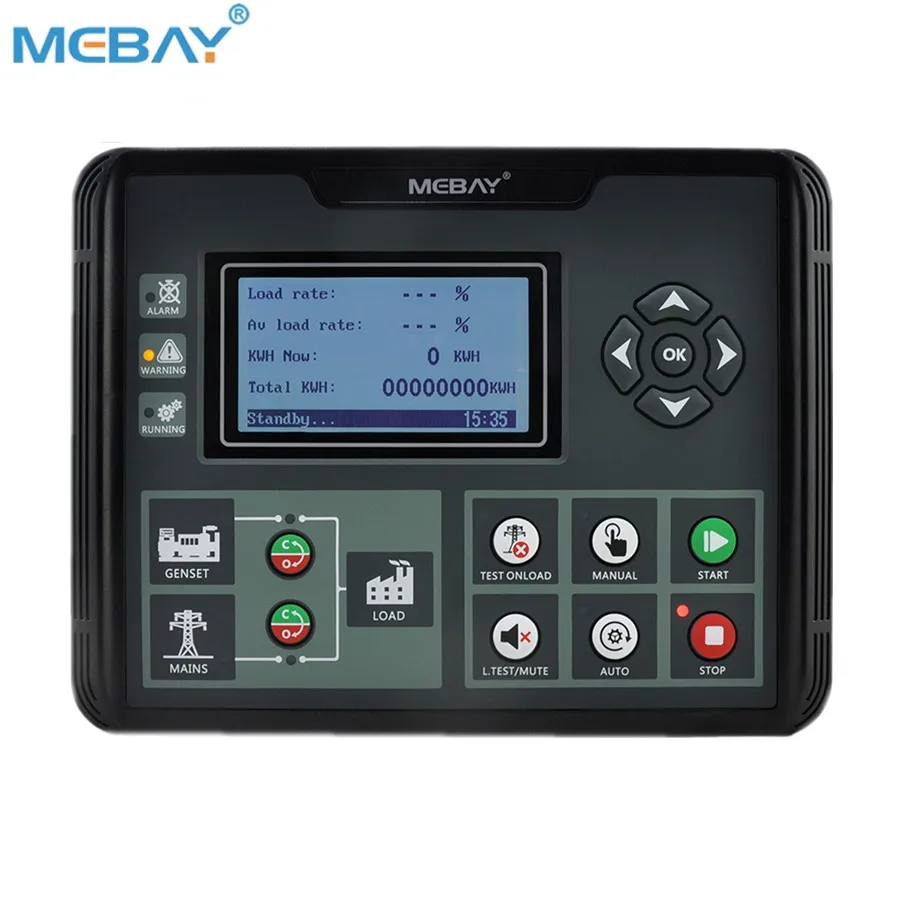

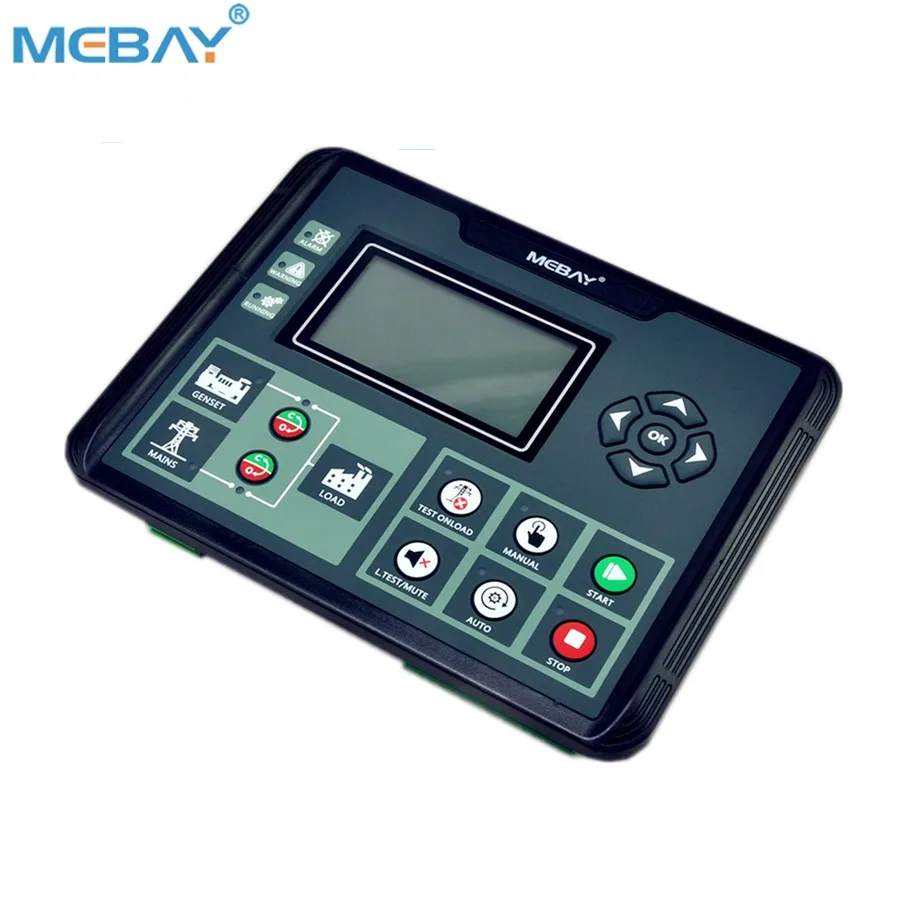

Mebay Generator Controller DC52D MK2 Monitor USB Port AMF Replace DSE6120
3.5 inch LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words.
Different Types For Your Options:
DC50D MKII: used for single machine automation. Start/Stop through remote start signal.
DC52D MKII:Based on DC50D, it adds Mains monitoring and AMF (Mains/Generator automatic switching control ) , especially suitable for the automation system composed by mains and genset.DC50DR MKII: Based on DC50D, it adds RS485 port.
DC52DR MKII : Based on DC52D, it adds RS485 port.
Personalized setting
☑Brand new UI design is adapted
☑Customers' Own logo can be set at the starting page
☑ Different language for your options (English, Spainsh, Turkish, Russian, Chinese)
☑Brand new UI design is adapted
☑Customers' Own logo can be set at the starting page
☑ Different language for your options (English, Spainsh, Turkish, Russian, Chinese)
4 MODELS IN THIS SERIES, PLEASE CLICK THE FOLLOWING PIC TO CHECK.
Specifications | ||||||
Working voltage | DC8V~36V Continuous | Excitation output | Max 1AMP DC+VE supply voltage | |||
Power consumption | Standby：24V MAX 1W | Overall dimension | 210mm*160mm*50mm | |||
Rotate speed sensor Frequency | 50-10000Hz | Panel cutout | 186mm*142mm | |||
MAX Accumulating Time | 99999.9Hours | Working condition | -20-65℃ | |||
Protection Level | IP54：when waterproof rubber gasket is added between controller and its panel | |||||
