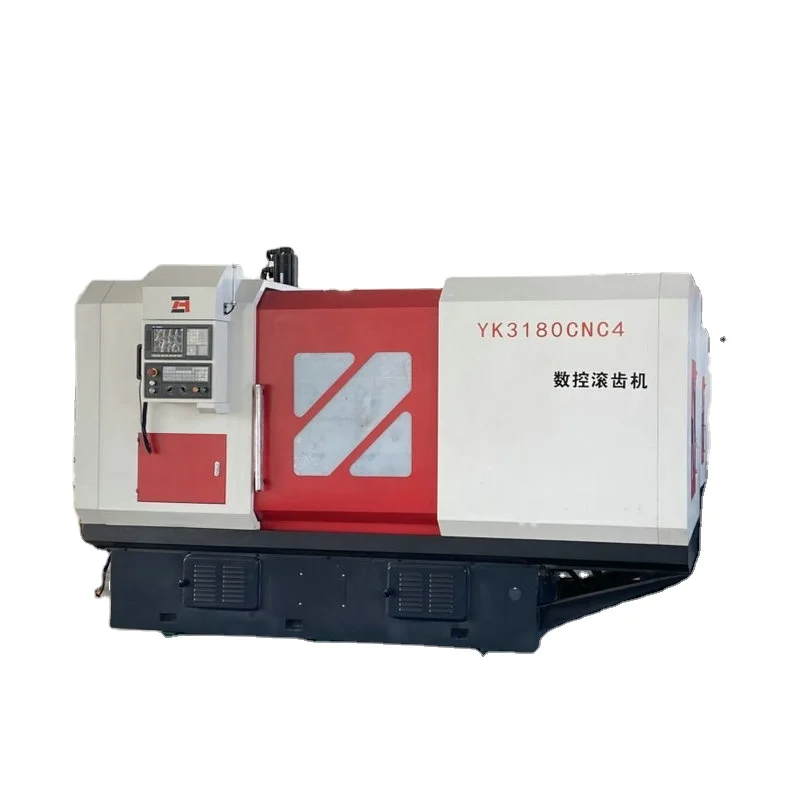

Высокопроизводительный высокоскоростной фабрик Зубофрезерный

Высокопроизводительный высокоскоростной фабрик Зубофрезерный

Категория: Gear Cutting Machines >>>
Поставщик: Hebei,Taizhe,Machinery,Equipment,Trading,Co.,Ltd.

Цена:35 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	41650.12 $*	43733.88 $*
Aug-16-2025	41300.6 $*	43365.30 $*
Jul-16-2025	34650.73 $*	36383.40 $*
Jun-16-2025	40600.1 $*	42630.0 $*
May-16-2025	35350.81 $*	37118.28 $*
Apr-16-2025	39900.61 $*	41895.94 $*
Mar-16-2025	39550.67 $*	41528.60 $*
Feb-16-2025	39200.48 $*	41160.19 $*
Jan-16-2025	38850.79 $*	40793.20 $*

Характеристики

Product Overview

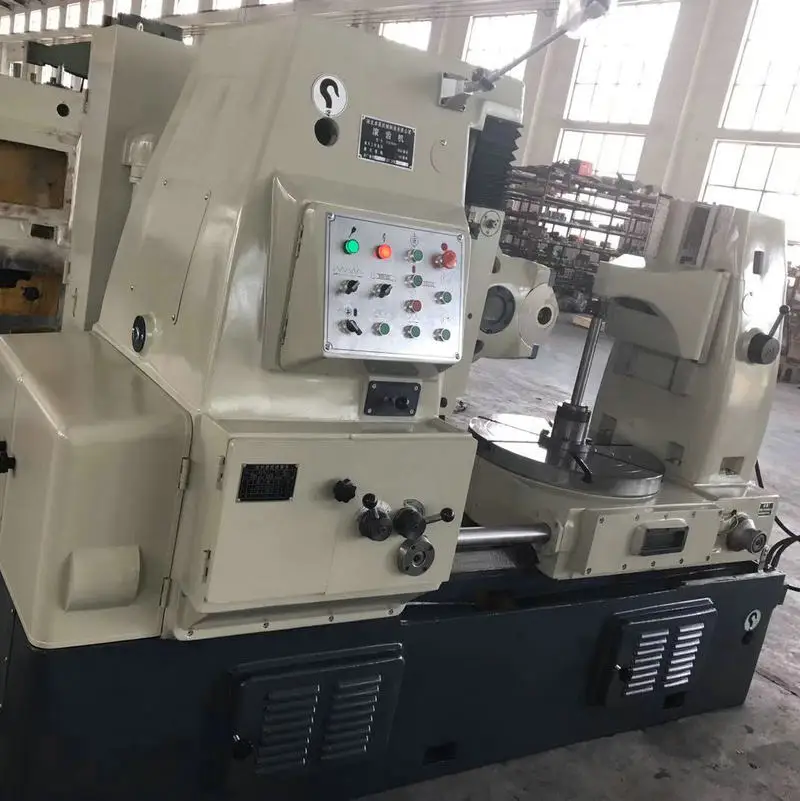

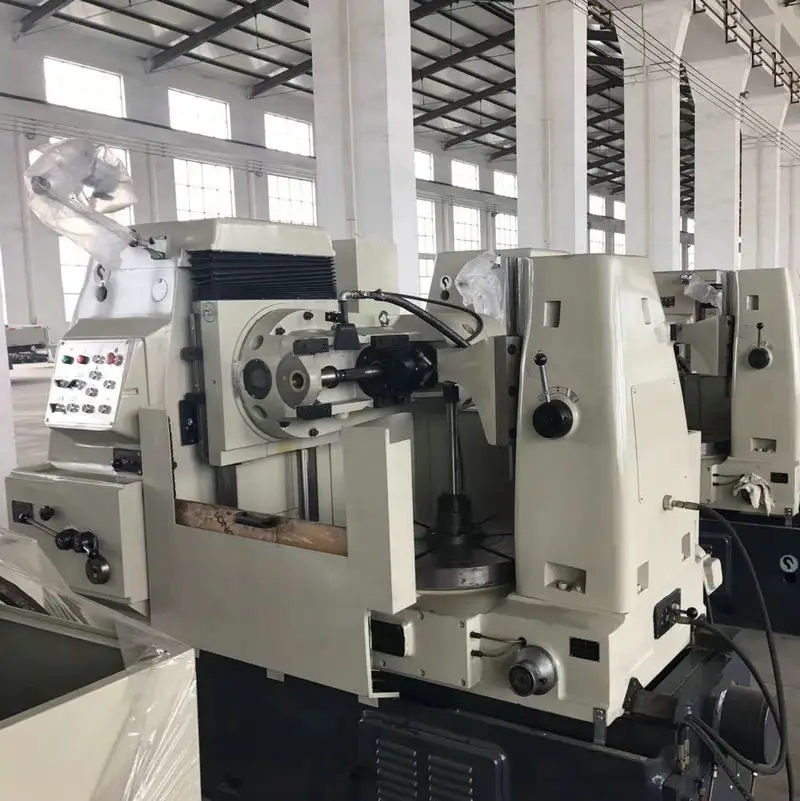

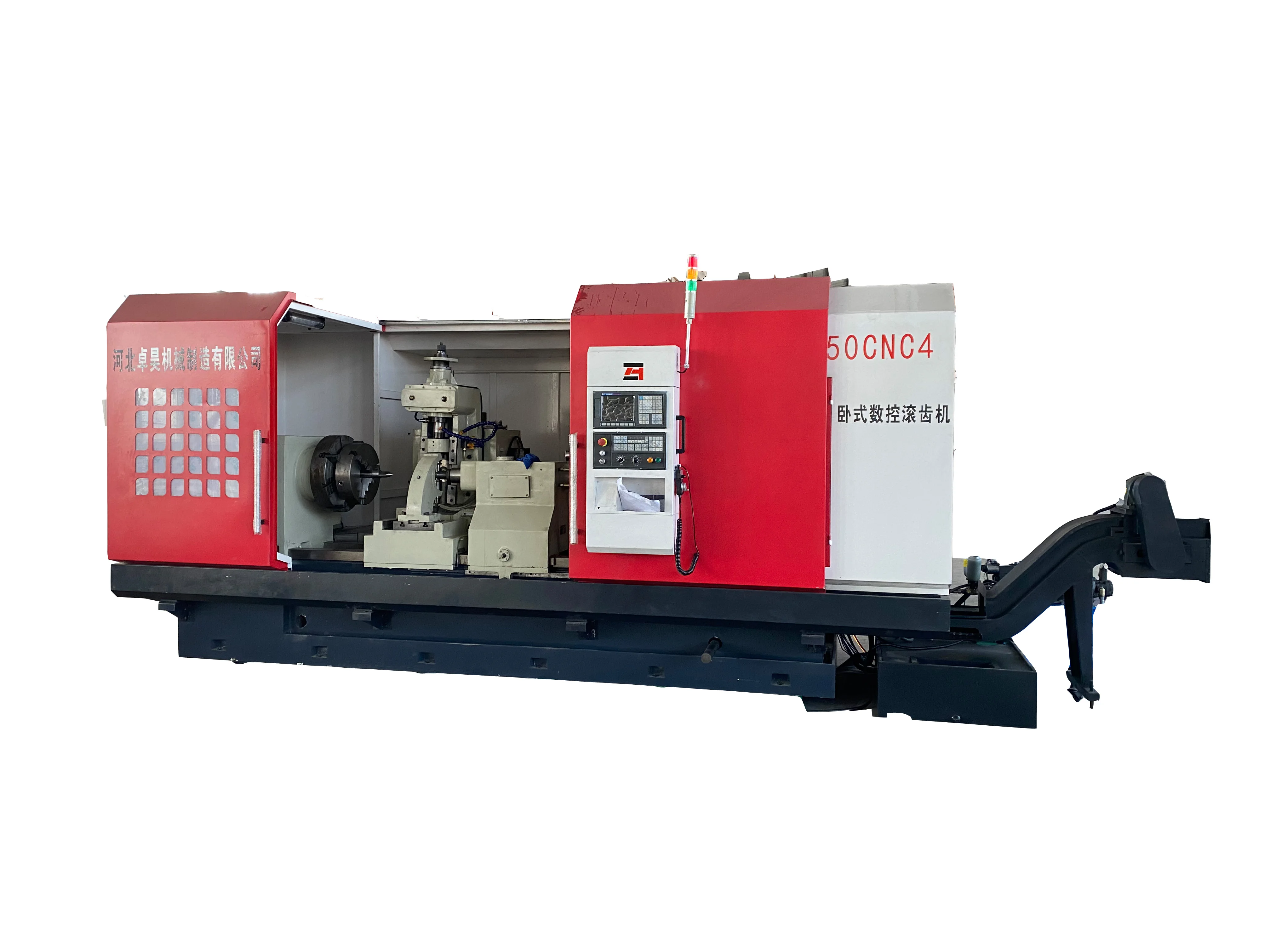

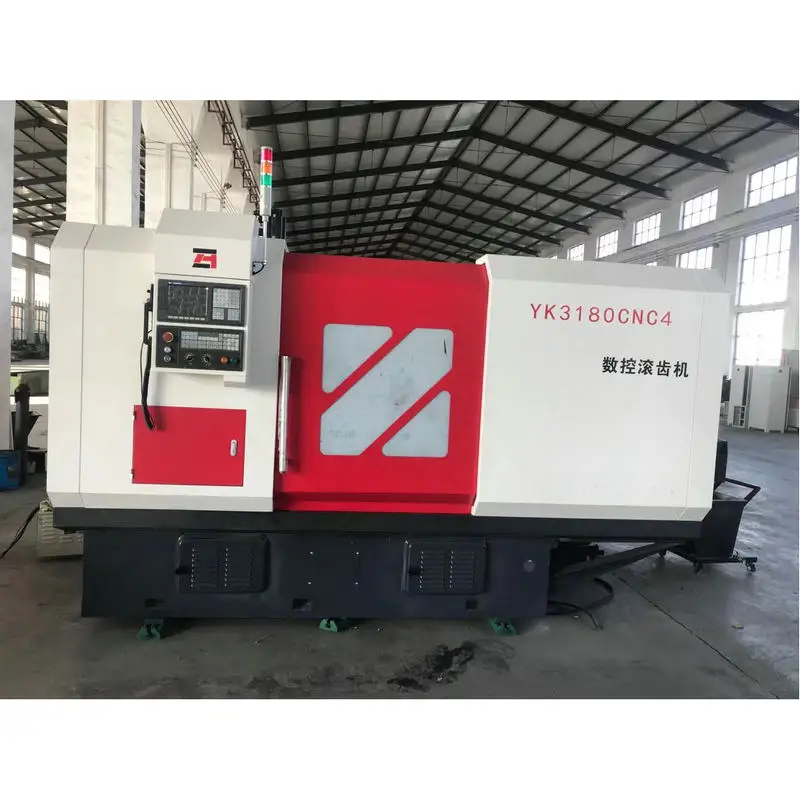

Automatic heavy duty Gear cnc Shaping Hobbing Machine

CNC gear shaping machine is widely used in processing all kinds of disc teeth, shaft teeth and helical teeth (need to add helical
tooth accessories) and other parts, especially suitable for engineering machinery, mining machinery, automobile, wind power,
aviation and other industries of mass production, but also suitable for single or small batch processing.
This machine tool is a vertical gear shaper with longitudinal layout, which is mainly composed of bed, middle bed, worktable,
column, tool rest, drive box and other main components. This machine tool is three-axis CNC machine tool, which can realize
three-axis linkage, ac servo drive, CNC control.

maximum machining diameter	1600 m (No small pillar) 1000mm (A small column )
Maximum speed of table	10r/min
Worktable diameter	950mm
Maximum number of processing mode	16mm
Worktable diameter	200mm
Maximum processing width	500mm
Taper of workpiece mandrel seat hole	Morse cone No. 6
Minimum number of machined teeth	12
Rack slide fast moving speed	520mm/min
Maximum bearing weight	3t
Rapid feed speed of table	470mm/min
Head vertical range	800 mm
Axial feed series and feed range	stepless 0.4~4 mn/r
Swing angle of tool post	土60
Distance from work surface to lower end of rear column bracket sleeve	min700mm
Distance from hob axis to table surfac	max1000mm/1200mm min200mm
Torque and speed of main motor	190N.m1500r/min
Cone of hob spindle bore	Morse cone No. 6
Axial and radial motor moment and speed	35N.m1500r/min
Maximum diameter of hob	245 mm
Motor torque and speed of worktable	35N.m1500r/min
Diameter	245mm
Motor power and speed of hydraulic pump	1.5kw、940r/min
Maximum axial series distance of hob (manual)	100mm
Cooling pump motor power and speed	1.5kw、1460r/min
Hob mandrel diameter	φ27、φ32、φ40、φ50
Tool speed range and series	16-150r/min stepless
Distance between cutter axis and rotary center of worktable	min100mm max900mm
Net weight of the machine	15000kg
Machine Tool Profile Size (Length × Width × Height)	399520402700mm

MACHINE MAIN MOVEMENT

The main movements of the machine are:

1. Main movement: the cutting tool moves up and down, and the main motor is controlled by ac inverter to realize stepless speed
regulation;

2. Peripheral tooth movement of cutter: C2 axis, driven by ac servo motor;

3. Peripheral tooth movement of the workbench: C1 axis, driven by ac servo motor worm gear pair of the workbench;

4. Vertical column radial feed motion: X axis, driven by ac servo motor ball screw driven vertical column to realize the radial
feed motion of the machine tool;

5, the empty stroke of the tool to let the movement of the knife: through the CAM, roller drive the swing of the knife, to achieve
the radial tooth inside and outside of the knife;

6. The cutter stops moving.
In addition, the stroke length of the cutter shaft is adjusted by adjusting the position of the stroke shaft on the crank disk;
Adjust the machining position (cutter position) of the cutter by rotating the ball pull rod; According to the actual processing
conditions to set the feed speed, cycle number and cutting depth (in the coarse, fine machining to achieve automatic
transmission);The machine tool is provided with an inclined cutting mechanism.
