Гигиенический датчик давления из нержавеющей стали с датчиком G1/2

Гигиенический датчик давления из нержавеющей стали с датчиком G1/2

Категория: Pressure Transmitters >>>
Поставщик: Anhui,Qidian,Automation,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.83 $*	0.94 $*
Aug-16-2025	0.53 $*	0.85 $*
Jul-16-2025	0.20 $*	0.69 $*
Jun-16-2025	0.39 $*	0.92 $*
May-16-2025	0.73 $*	0.11 $*
Apr-16-2025	0.88 $*	0.33 $*
Mar-16-2025	0.38 $*	0.37 $*
Feb-16-2025	0.3 $*	0.73 $*
Jan-16-2025	0.95 $*	0.7 $*

Характеристики

Product Description

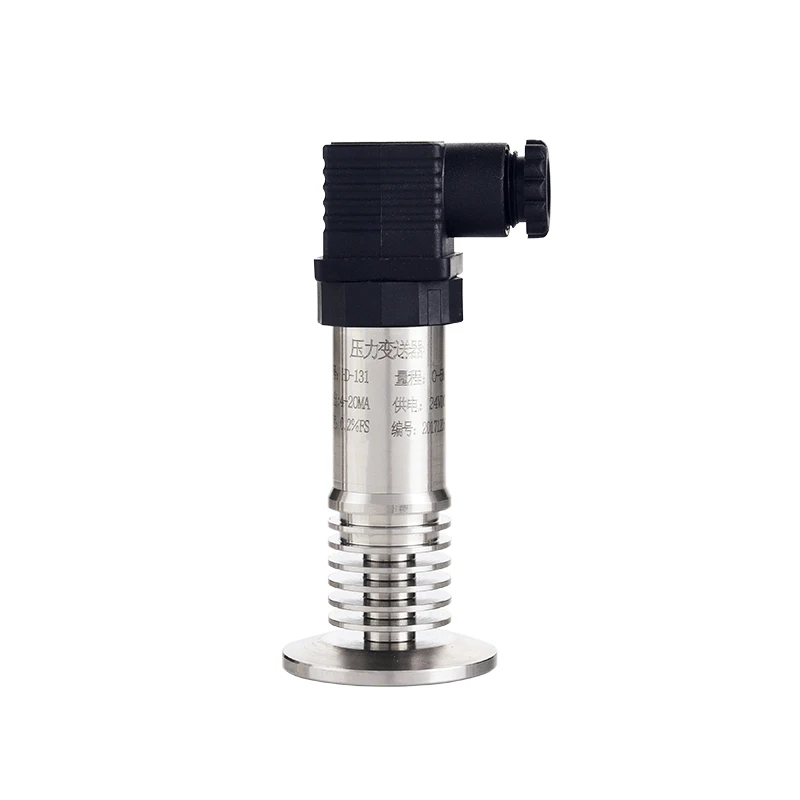

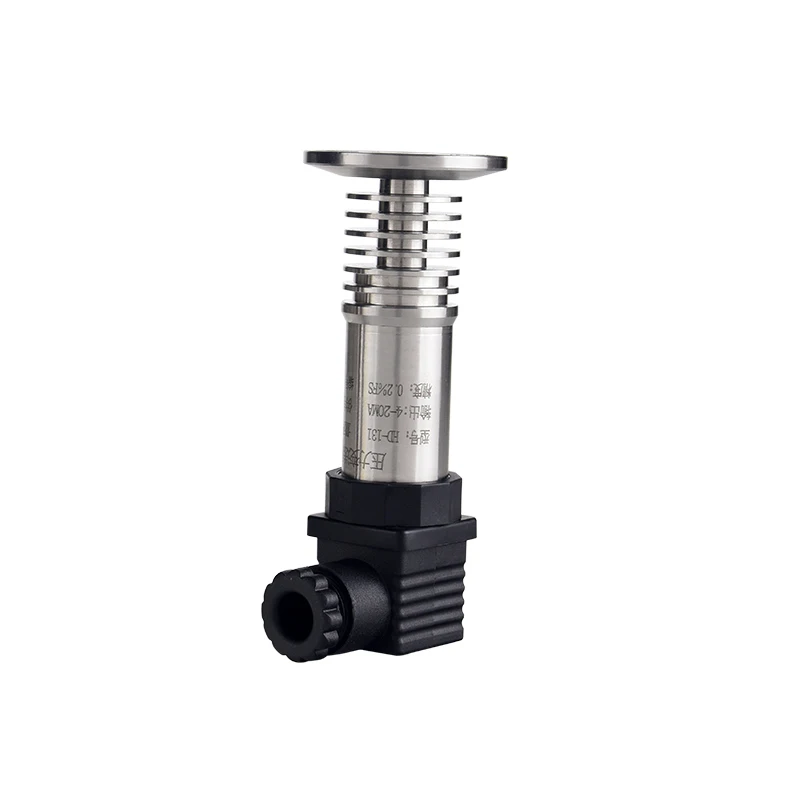

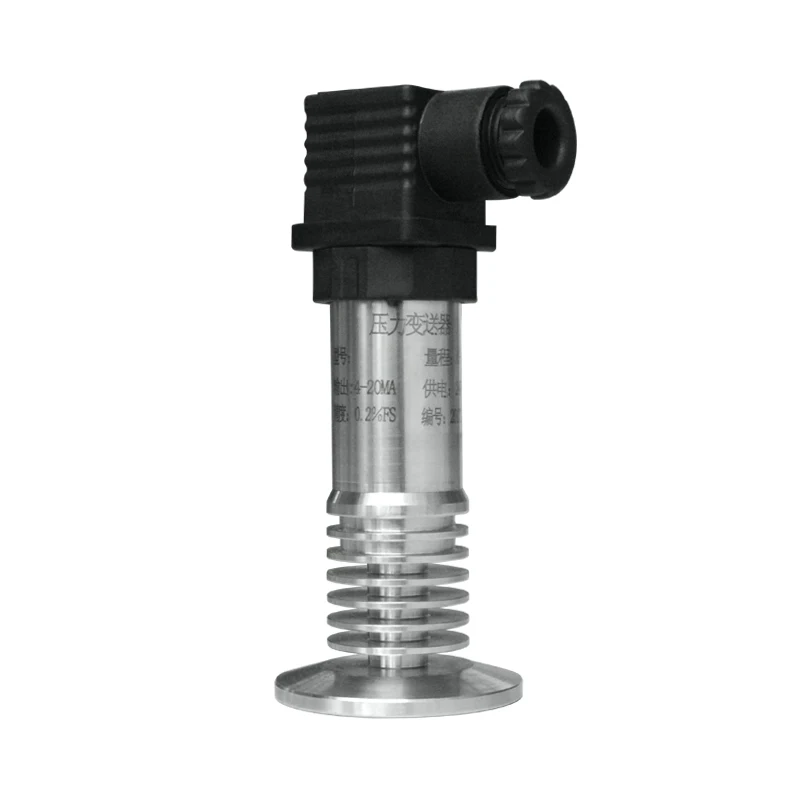

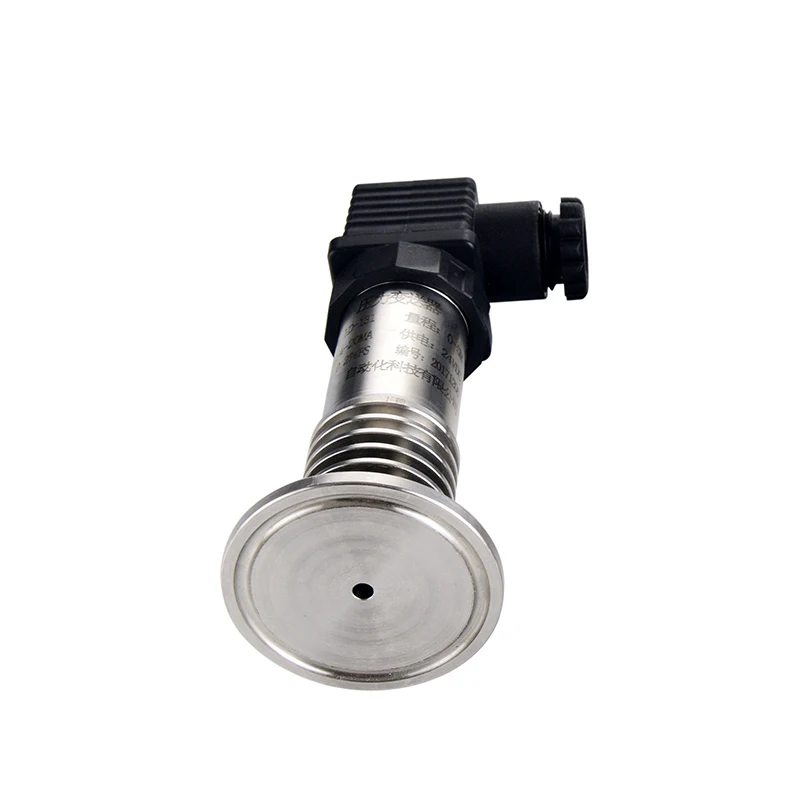

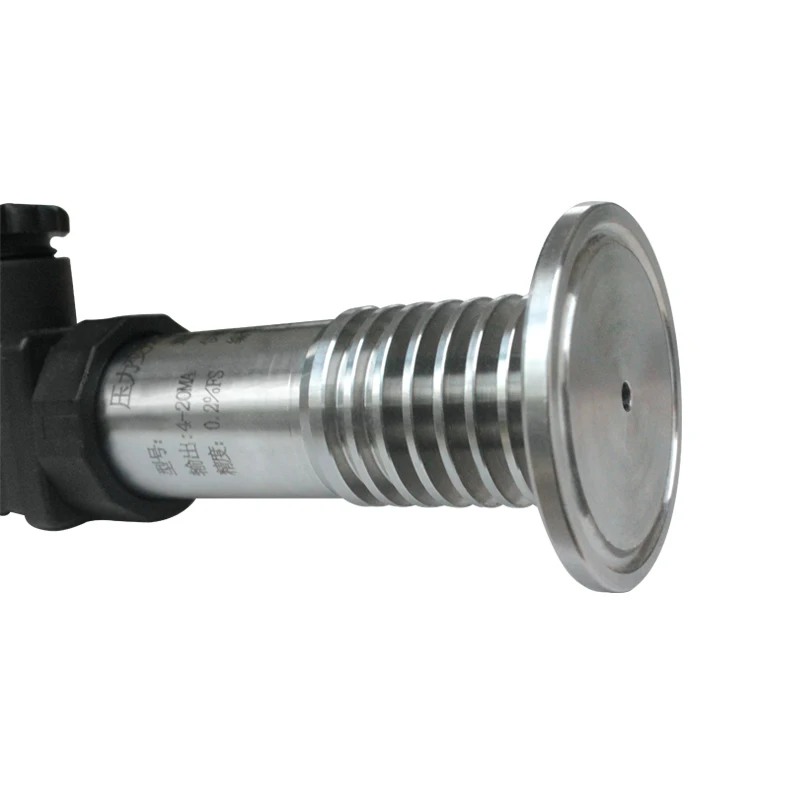

QDX50A

Sanitary Pressure Transmitter

Widely used in food, medicine, health and wine industry and other sectors

1.QDX50A is a high quality sanitary pressure transmitter with complete flush diaphragm. By means of welding method, the isolated diaphragm of the transmitter is welded on the front end of process interface.UPB2S has clamping type, M21×1.5 thread type, and flange type for options. Its output signal can be made standard voltage output signal, or, current output signal, or frequency output signal.This product is made with flush membrane structure, it has good ability on preventing fouling,crystallization and jamming of thick liquids.

2. Widely used in food, medicine, health and wine industry and other sectors

Product Paramenters

item	value
Model	QDX50A
Pressure Range	0~100KPa,1-0-1 Bar.....600 Bar Optional
Output Signal	4-20mA,0-5V,0-10V,RS485,etc
Accuracy	0.5%FS, 0.2%FS
supply voltage	12~36VDC
operating temperature range	-20°C~75°C
Pressure Type	Gauge (G), absolute (A), sealed gauge (S)-40~+125℃
Application	Food ,Juice, milk ,Sanitary liquid industry
Long Stability	Standard:0.2%F.S±0.05% per year
Material	stainless steel shell
Certificate	ce fcc Rohs
verload	150% F.S.
Zero Temp Drift	0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa)
FS Temp Drift	0.003%FS/°C(≤100kPa), 0.002%FS/°C(>100kPa)

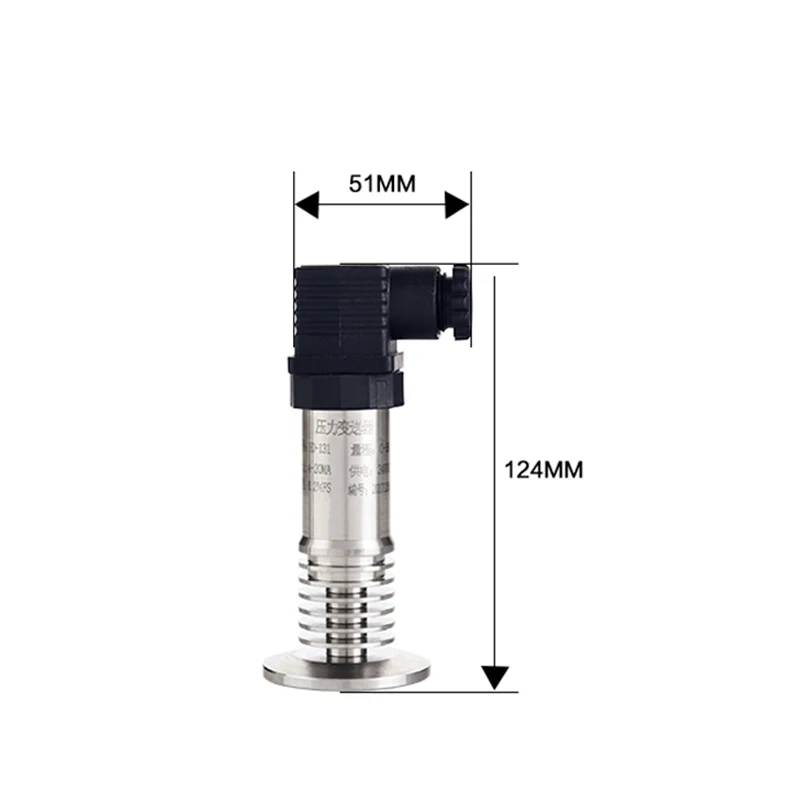

Product Dimensions

Product Details

Applications

Company Profile

Certifications

FAQ

1.:How long will you give me the reply?
we will contact you in 2 hours as soon as we can.

2. Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.

3.:How about the quality of the magnets?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.

4.How is the price?
As we believe the quality is the most important,we will provide the best quality signal isolator we can with reasonable price.

5. Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.

6:Could I visit yourfactory?
Of course,if you need we will help you to visit our factory.

7:If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
