Регулируемый промышленный электролиз источник питания постоянного тока 8000 А 30 В высокомощный высокочастотный анодирующий выпрямитель 10000 а 25

Описание и отзывы

Трекер стоимости

Характеристики

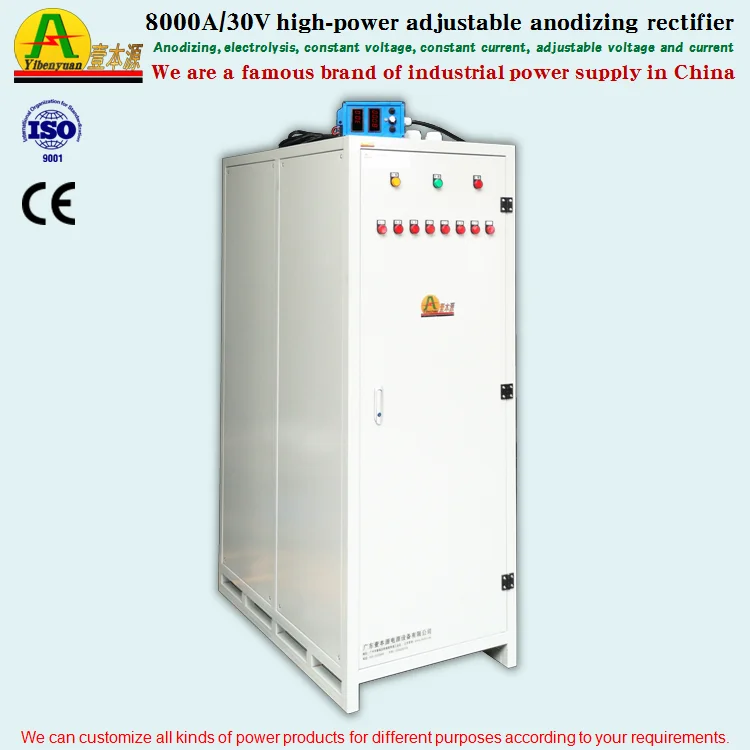

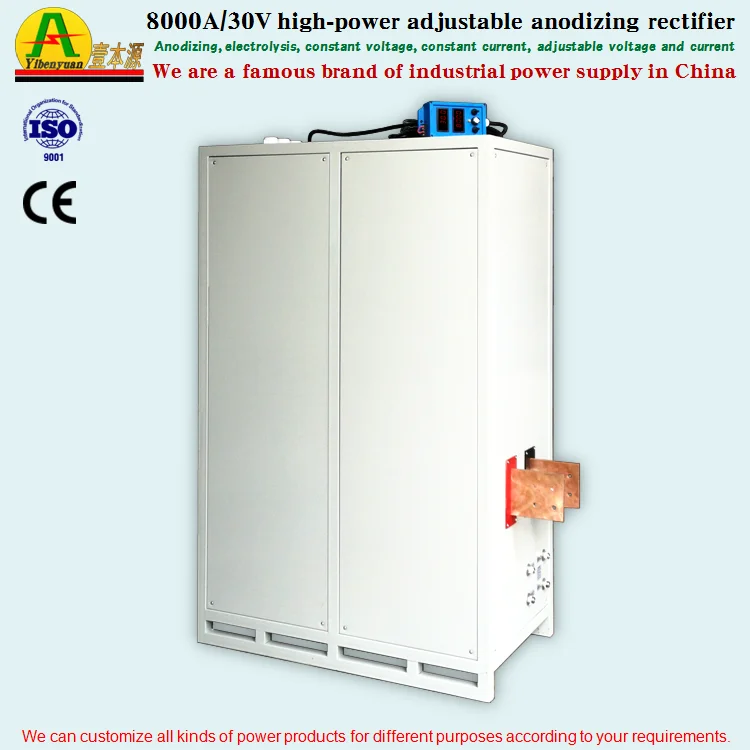

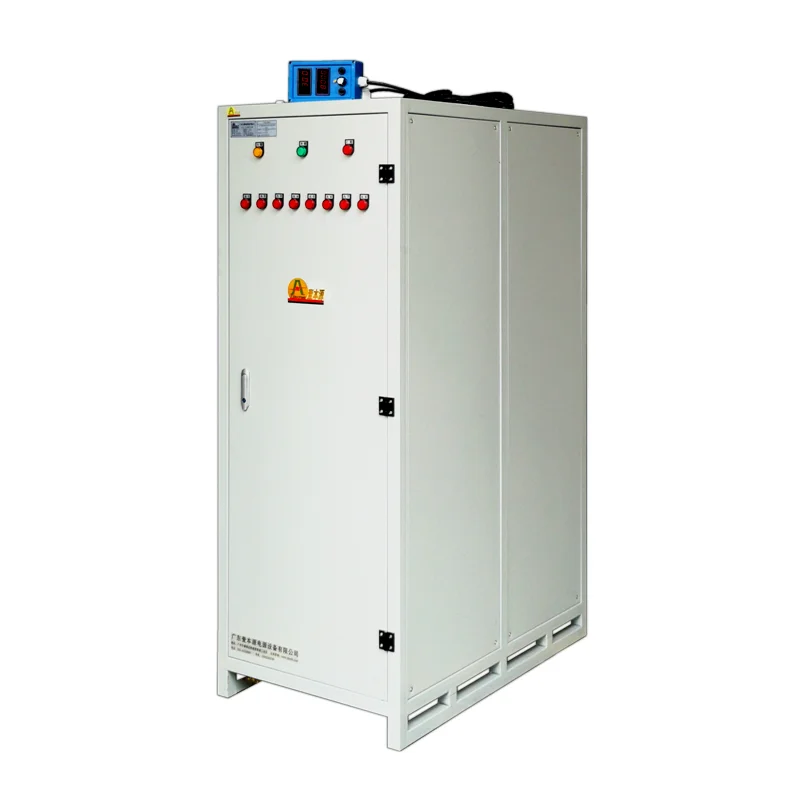

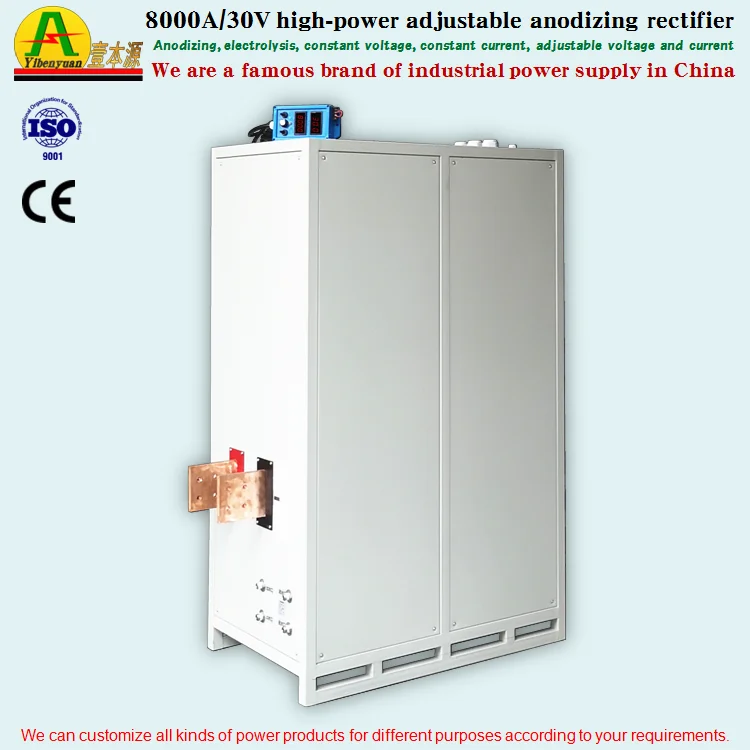

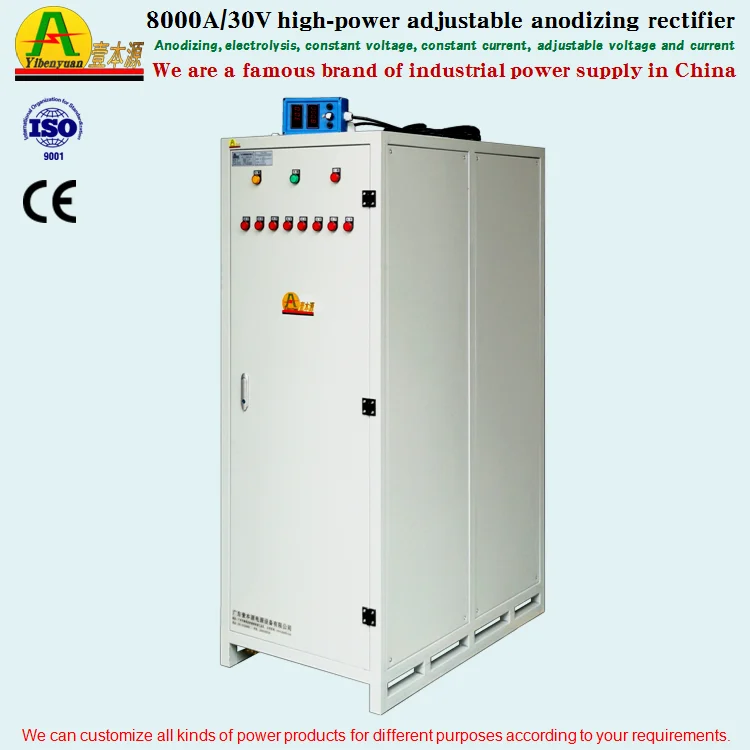

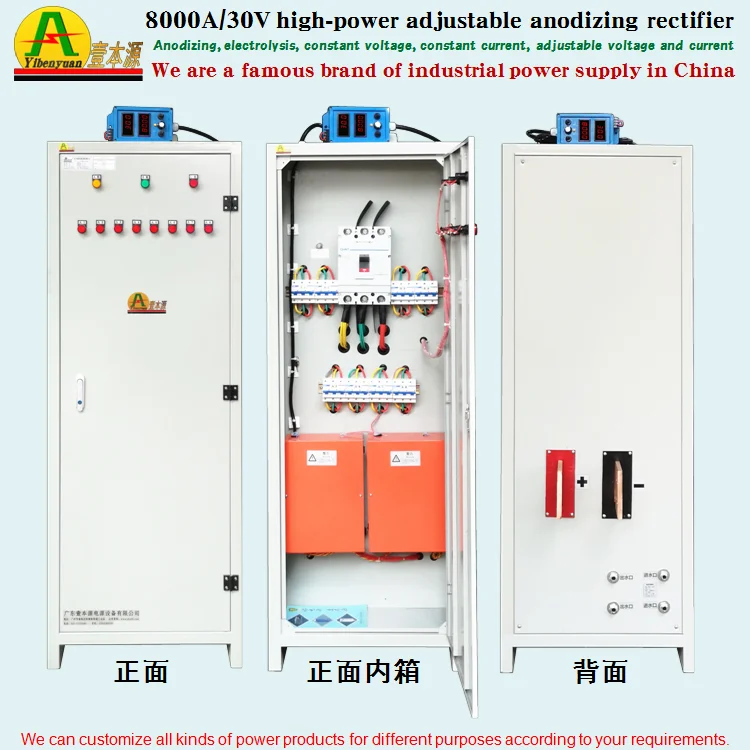

8000A/30V high-power high-frequency anodizing rectifier 10000A 25V regulated industrial electrolysis DC power supply

Scope of application:
Anodizing, electrolytic polishing, water treatment, electrochemistry, electric heating, industrial electrolysis, etc...
product manual:
1. The appearance of the product is generous and beautiful, the structure is firm and strong, and the surface of the shell is sprayed with powder, which is strong and corrosion-resistant.
2. This power supply adopts the current world's advanced control system PWM technology and stable and reliable circuit topology design control circuit, equipped with German Infineon brand module (IGBT) control. The main transformer is wound with nanocrystalline magnetic core and pure copper wire, which has good heat dissipation, sufficient power, low power consumption, long-lasting durability and stable performance. The main components such as the rectifier bridge and the rectifier tube are made of high-quality materials from all over the world. The power supply has good current distribution; wide output voltage and current range, high voltage and current stability and high precision.
3. The voltage and current can be switched, and the voltage and current can be adjusted from 0 to the maximum value. It has automatic protection functions for phase loss, overheating, overvoltage, overcurrent, short circuit and other faults.
4. The internal circuit board adopts anti-salt spray acidification three-proof glue and an independent sealed box, which effectively prevents dust, moisture, and prevents short-circuit caused by the entry of small insects, which effectively improves the safety, stability and use of the product life. The power cord, control line contacts, and trigger signal line contacts are all sealed with silica gel to prevent leakage, moisture, and corrosion; all circuit boards are assembled and debugged with a secondary dipping process, so that the product is suitable for moisture , Acid rot oxidation and electrolysis environment.
5. The product uses generous materials, sufficient power, and large design margins for electronic components and important parts, which can ensure that the product can maintain full load and long-term continuous work.
