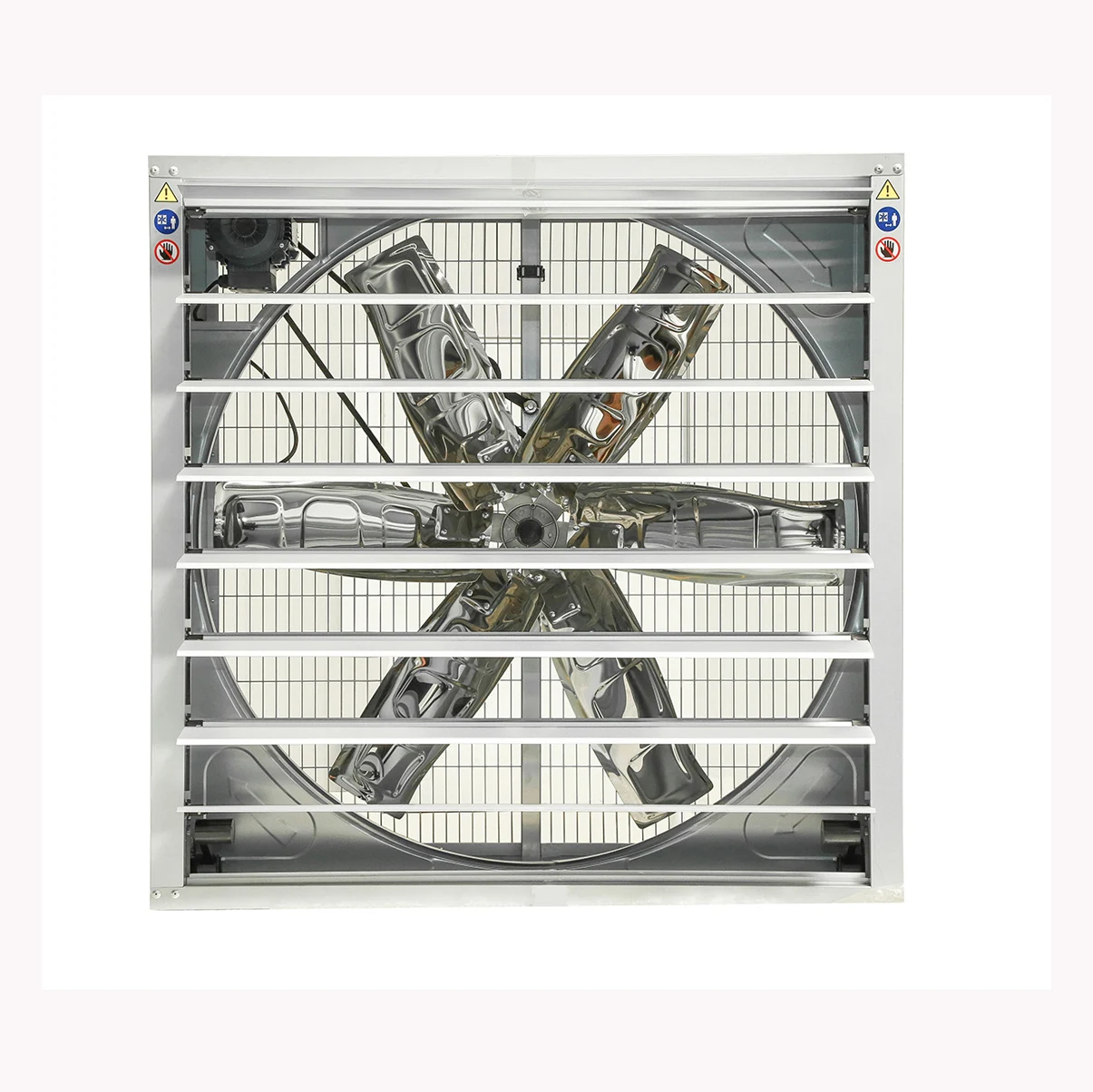

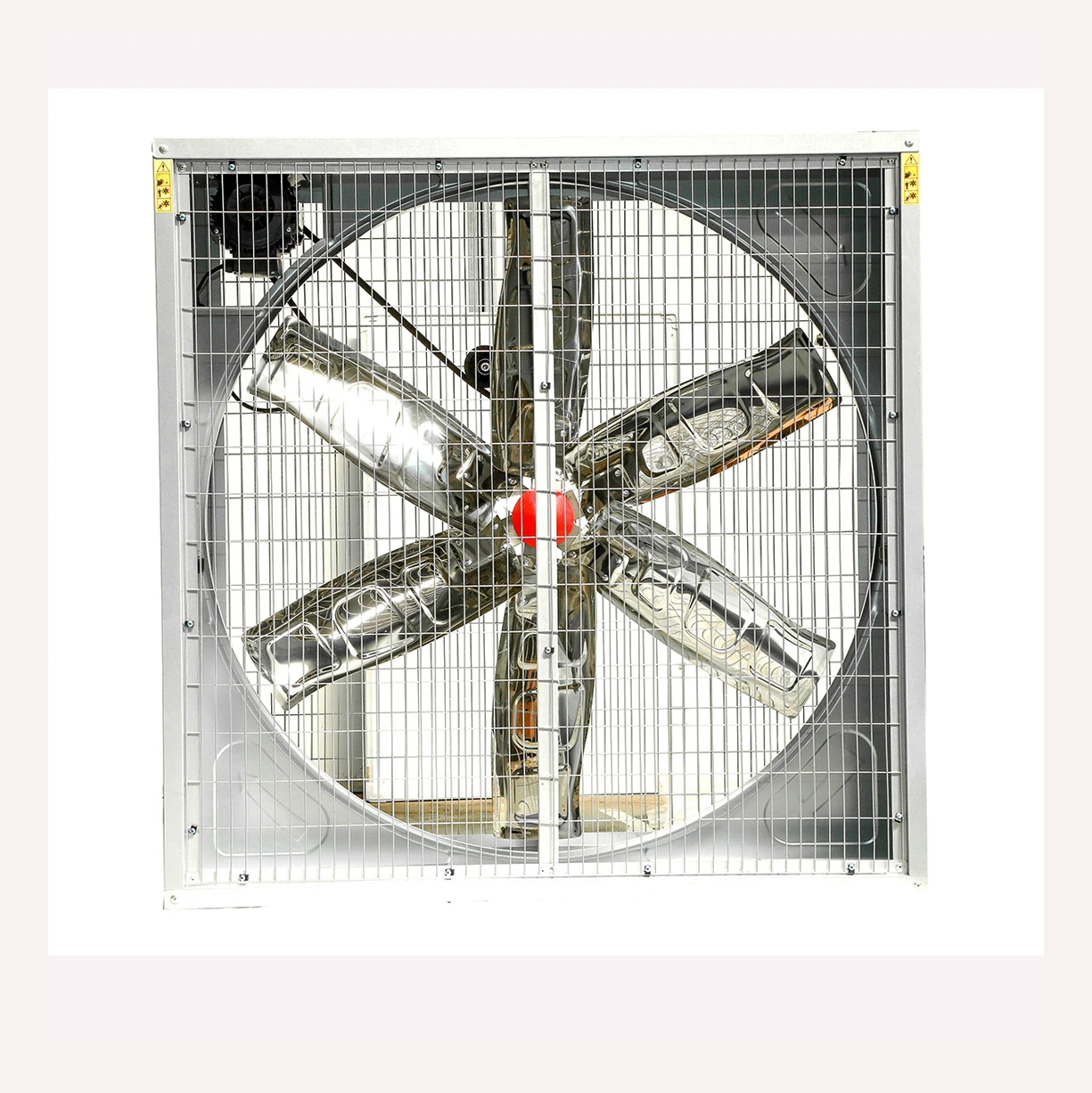

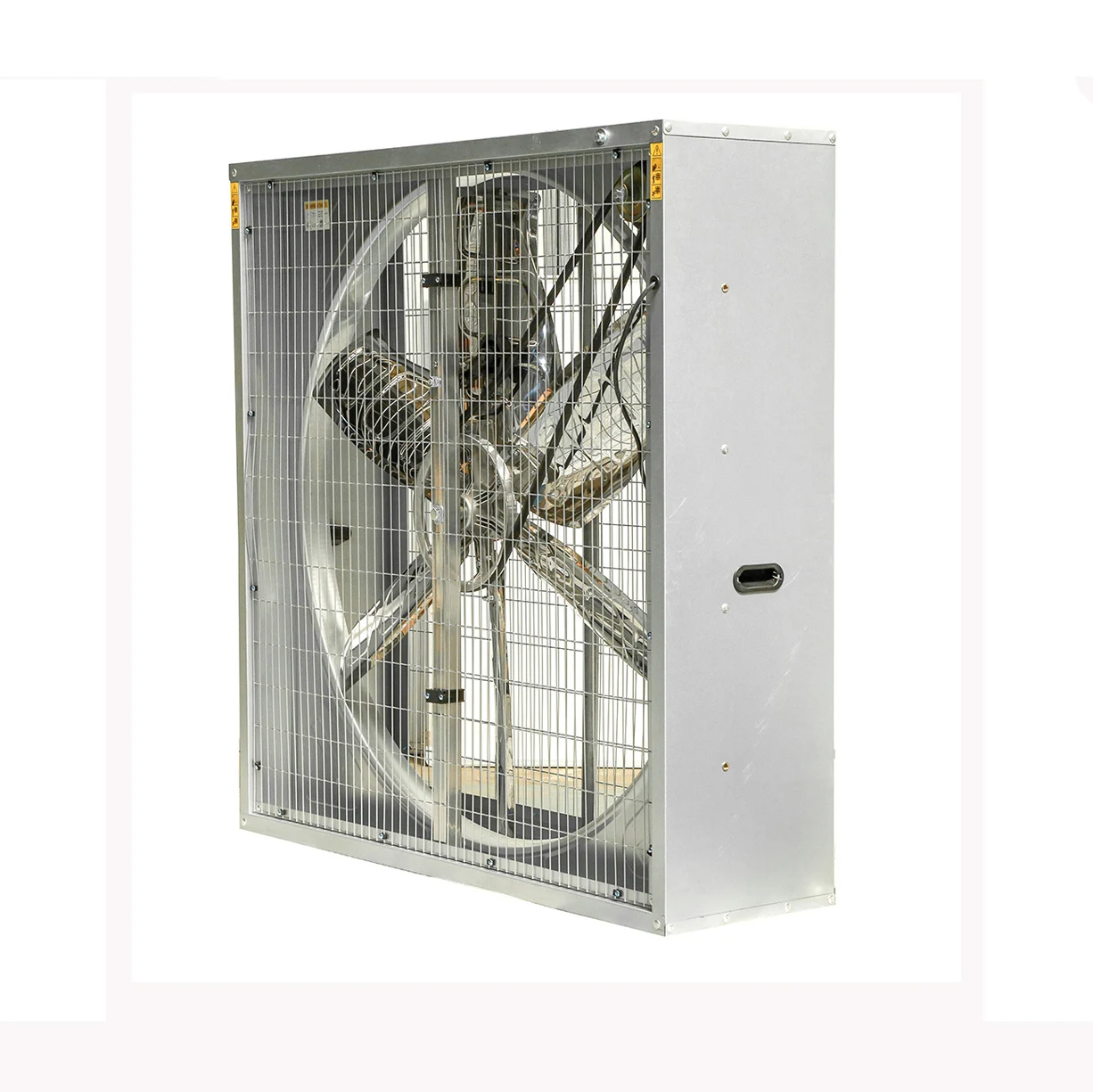

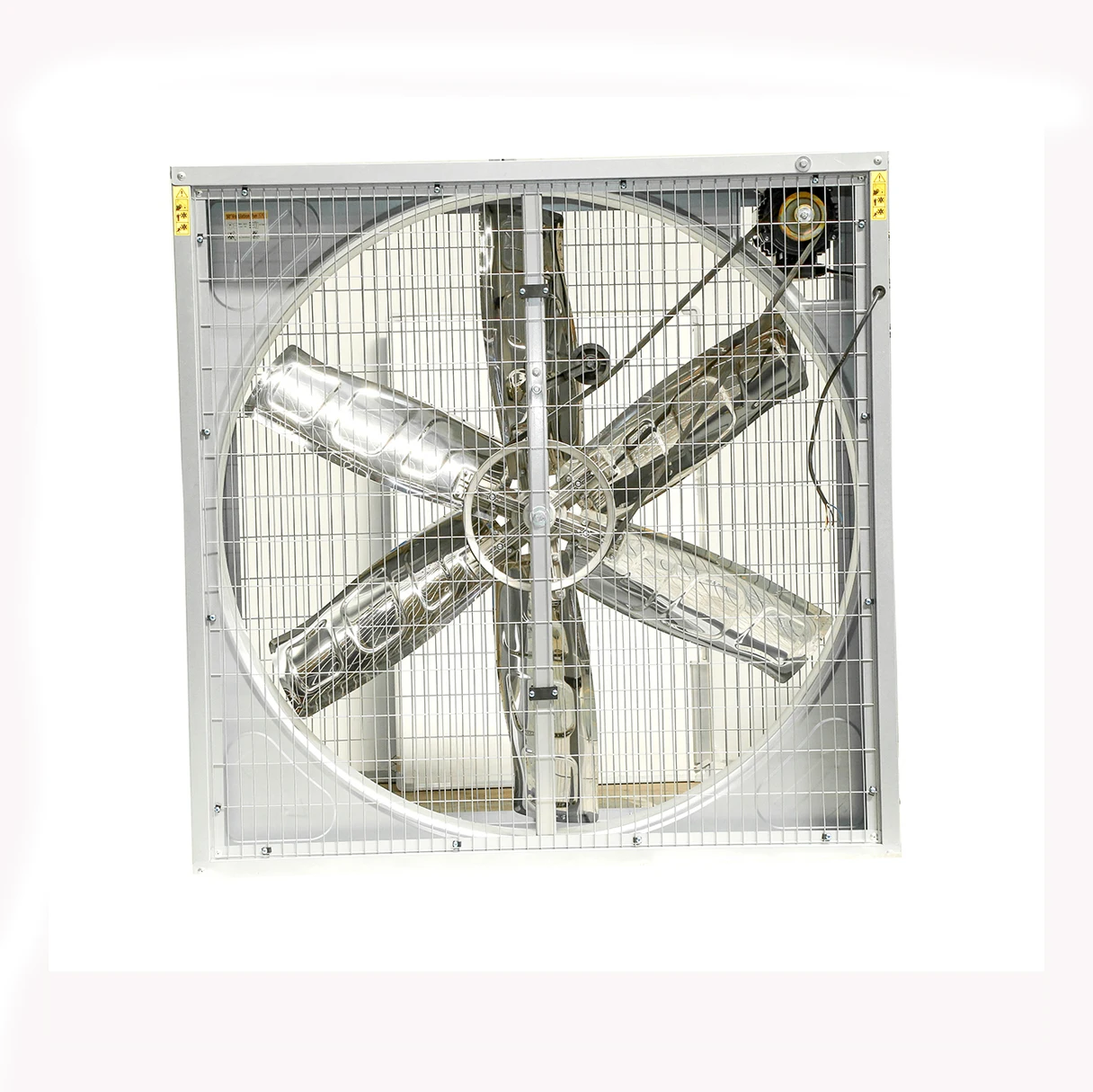

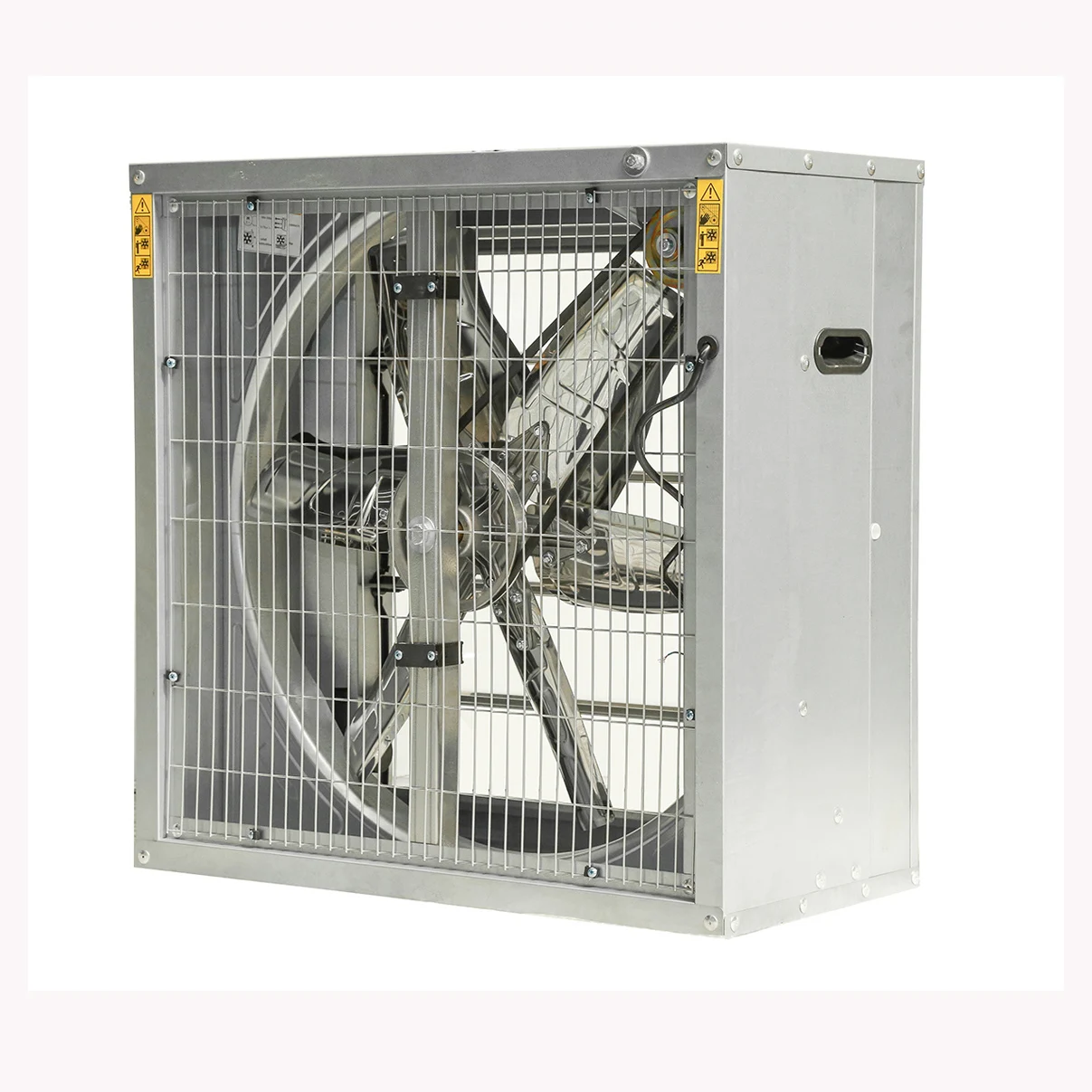

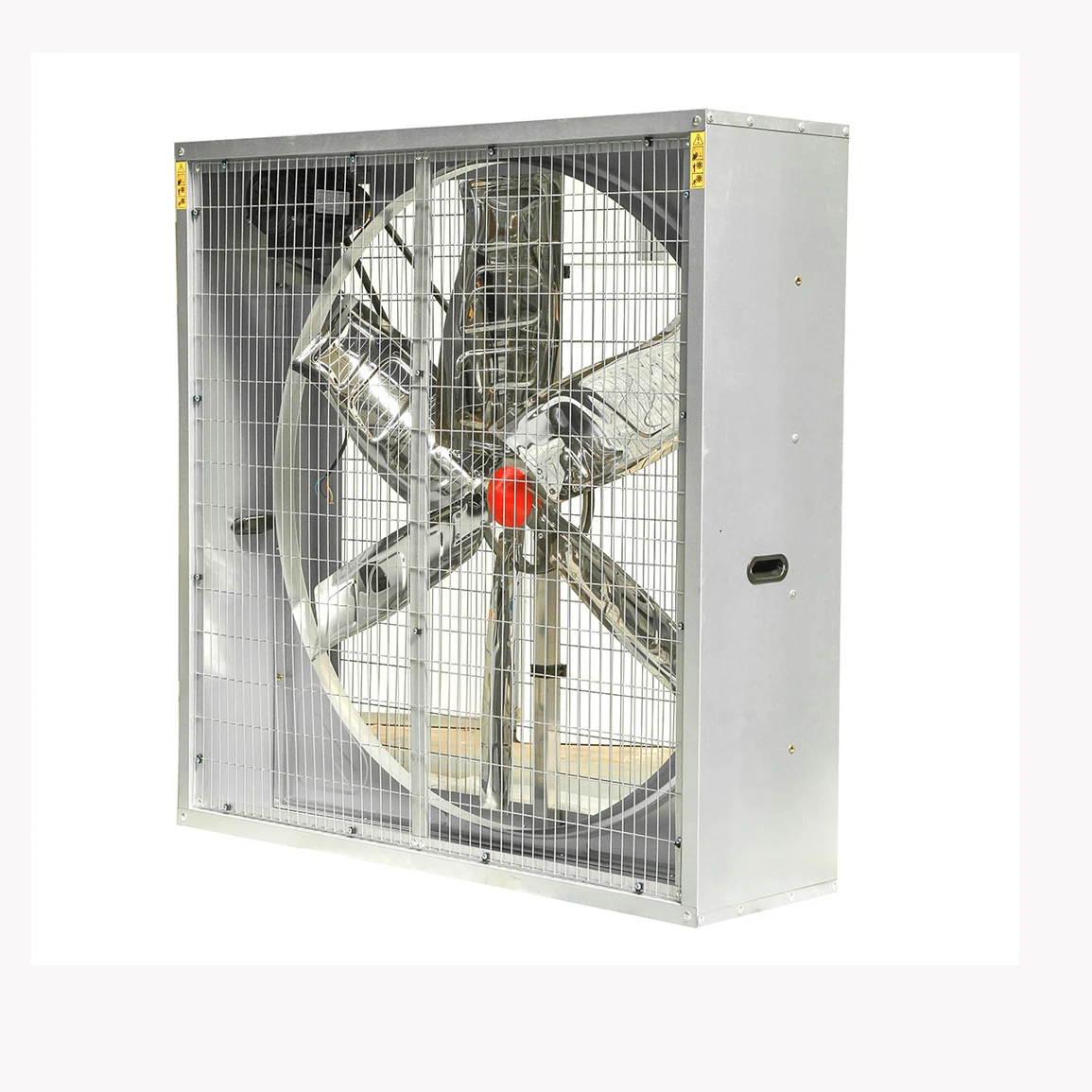

Оборудование для домашнего скота Мощный охлаждающий вентилятор курятника свиньи коровы промышленный
- Категория: Осевые вентиляторы >>>
- Поставщик: Qingzhou,Xiangli,Light,Industrial,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 155.92 $* | 163.62 $* |
| Aug-16-2025 | 153.62 $* | 161.63 $* |
| Jul-16-2025 | 129.97 $* | 135.54 $* |
| Jun-16-2025 | 151.93 $* | 159.85 $* |
| May-16-2025 | 131.71 $* | 138.97 $* |
| Apr-16-2025 | 148.64 $* | 155.68 $* |
| Mar-16-2025 | 147.37 $* | 154.98 $* |
| Feb-16-2025 | 146.72 $* | 153.48 $* |
| Jan-16-2025 | 144.79 $* | 151.11 $* |
Характеристики
Product Description
Type | Axial Flow Fan |
Applicable Industries | poultry house/poultry farm/Industry |
Electric Current Type | AC |
Mounting | Wall Fan |
Blade Material | Stainless Steel |
Voltage | 380V/220V/Customized |
Certification | CE CCC, TUV,ISO |
Warranty | 2 years |
Video technical support | |
Size | 1380*1380*400MM |
Drive type | Belt |
Blades Diameter | 1270MM |
Blades rotational speed | 439rpm |
Motor rotational speed | 1400rpm |
Airflow | 42000m3/h |
Total pressure | 70pa/70pa/80pa |
Noise Level | <64 |
Input Power | 1100W |
Frequency | 50HZ/60HZ |
Product Description:
Frame :Hot galvanized plate GB/T 2518-2008, Galvanized layer 275 g/m2
Shutter: made of pressed hot galvanized steel in order to highest strength
Link part: Aluminum Alloy material to make sure shutters open flexibly.
Motor
Brand: Chinese famous motor, Siemens motor, ABB motor and WEG Motor
1. Motor Protection Grade: IP55
2. Isulation Class: F grade
3.Strong resistance to overloading.
Belts: Original Japan for long service life, strong anti-pull ability, high transmission efficiency.
Technical Parameters | ||||||
Model | Diameter | Air Volume | Power | Outer size(mm) | Voltage | Frequency |
XLXS-800 | 710 | 23000m³/h | 0.4KW | 380V | 50HZ | |
XLXS-900 | 750 | 26000m³/h | 0.4KW | 900*900*400 | 380V | 50HZ |
XLXS-1000 | 900 | 30000m³/h | 0.55KW | 1000*1000*400 | 380V | 50HZ |
XLXS-1100 | 1000 | 34500m³/h | 0.75KW | 1100*1100*400 | 380V | 50HZ |
XLXS-1220 | 1100 | 38000m³/h | 1.1KW | 1220*1220*400 | 380V | 50HZ |
XLXS-1380 | 1250 | 42000m³/h | 1.1KW | 1380*1380*400 | 380V | 50HZ |
