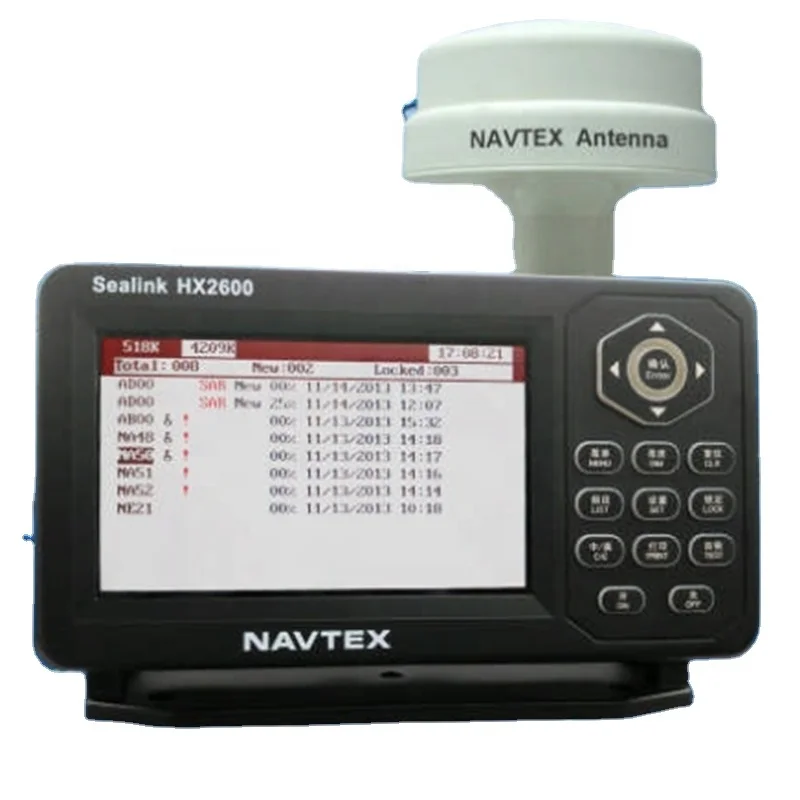

Приемник Navtex навигационная техника telex HX-2600 sealink GMDSS спасательная система корабль электроника

Описание и отзывы

Трекер стоимости

Характеристики

Please contact with me before purchasing for the shipment and price.

If you want to make bulk purchase or be our agent, please contact with us.



General requirements:

Receiving frequency
     518KHz,490KHz,4209.5KHz,486KHz
Receive Channels simultaneously
     Dual-channel(ie,a receiver operating in 518KHz channel, the other receiver can switch between the 490KHz/4209.50KHz,486KHz)
Sensitivity
     Useful in -107dBm signal level ,the bit error rate less than or equal to 4%
Selective anti-jamming performance
     Blocking rejection ratio: In accordance with IEC61097-6 standards for frequency of strong signal interference ,

the received useful signal bit error rate less than or equal to 4%;

Co-channel interference rejection ratio: interfering sources in  the same frequency interference (in accordance with IEC61097-6  standard) received useful information such as number of bit error rate of less than At 4%Intermodlation: At the same time two different sources of interference (in accordance with IEC61097-6 standards for frequency and level) received useful signal error Rate is less than or equal to 4%
Antenna protection
     In the antenna signal with no modulation amplitude emf  30V.
     Frequency range of 100KHz~28MHz,15 minutes after the device can still work
Display Specifications
     240×128 dot matrix 144mm×104mm
Information storage
     Can store 200 messages, with an average of 500 characters each message, the storage time is 60~72 hours.

Information can  be  stored  permanently  marked  with  users  can  not manually delete them.
External Interface
     A print output
Andible alarm
     Volume of not less than 75dBA~85dBA
Power
     12V~24VDC
      The method according to technical requirements of the regulations IMO Resolution MSC148(77).IEC 61097-6,IEC60945(2002)
