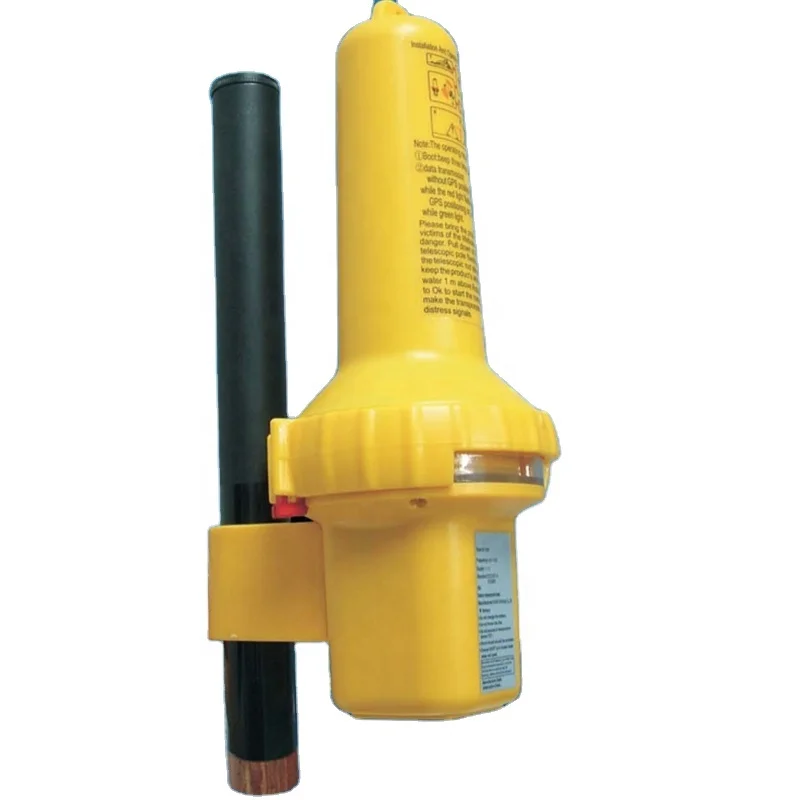

Радар-САР HX-4000 радар научно-исследовательских и аварийно-спасательных транспондер GMDSS СОЛАС ИМО Электроника корабля навигации связи

Описание и отзывы

Трекер стоимости

Характеристики

Please contact with me before purchasing for the shipment and price.

If you want to make bulk purchase or be our agent, please contact with us.



Specifications

1. operation frequency:  9200MHz ~ 9500MHz
2. polarization: horizontal
3.  antenna:  horizontal beamwidth    omnidirectional  <±2dB
                         vertical  beamwidth    ±12.5°
4.  transmitter:  scanning velocity foreward sweep time: 7.5±0.1μs;return sweep time: 0.4±0.1μs
                            Radiation power ≥400mw;Response delay <0.5μs
5.  receiver:   effective sensitivity≤-50dBm;Recovery time following excitation <10μs
6. operation temperature:  -20℃ ~ +55℃
7. storage temperature:  -30℃ ~ +65℃
8.  battery:  standby duration 96h,  continuous operation 8h
9. dimension:  Max diameter:  118mm (brackets and accessories are excluded)
                           Max height:  299.5mm  (special handspike excluded)
10. weight: < 1.5kg
