Сепаратор для переработки медного провода на продажу
US $5000-$35000
Машина для зачистки кабеля отходов простая в эксплуатации машина
- Категория: Other Scrap Metal Recycling Equipment >>>
- Поставщик: Henan,Mingchuang,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 904.1 $* | 949.50 $* |
| Aug-16-2025 | 897.72 $* | 942.52 $* |
| Jul-16-2025 | 752.76 $* | 790.13 $* |
| Jun-16-2025 | 882.56 $* | 926.50 $* |
| May-16-2025 | 768.78 $* | 806.36 $* |
| Apr-16-2025 | 866.31 $* | 909.86 $* |
| Mar-16-2025 | 859.87 $* | 902.29 $* |
| Feb-16-2025 | 851.89 $* | 894.11 $* |
| Jan-16-2025 | 844.23 $* | 886.27 $* |
Характеристики
Product Description

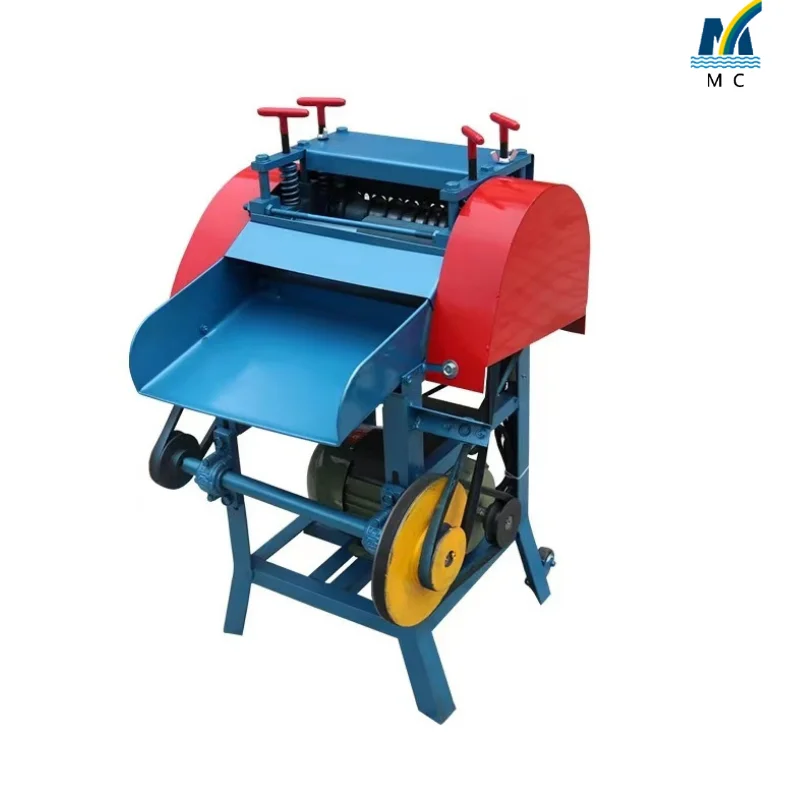

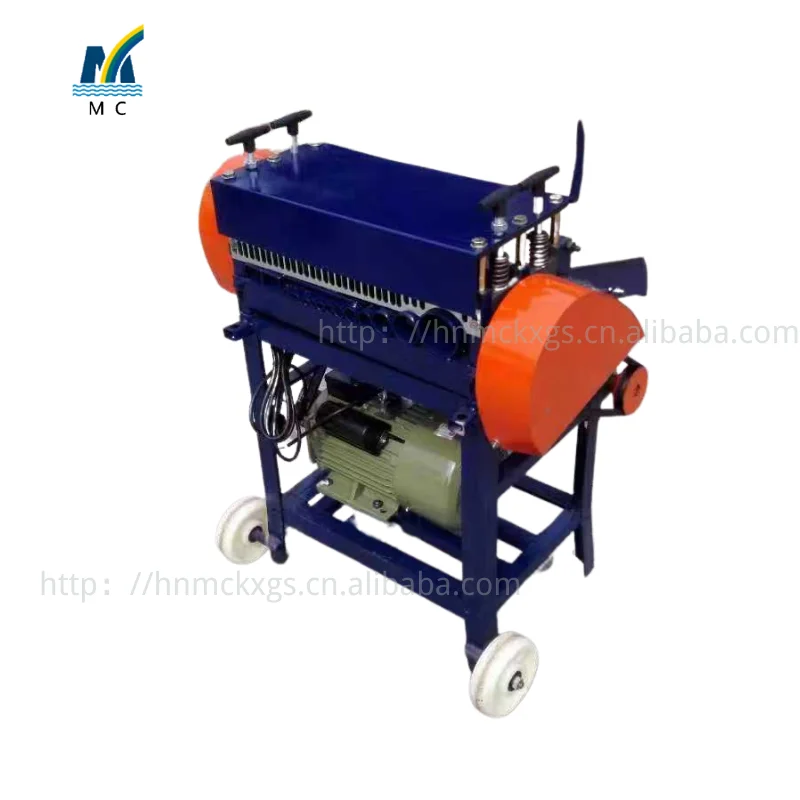

Wire Stripping Machine
This machine is developed by our company the most functions, the most comprehensive, the best performance,five frame knife.The function is more subdivided for all kinds of wires, so that all kinds of rubber cable is easier to be peeled off, in addition, it can also be a single core or double core flat wire.Its stripping diameter range is (1-35mm), which greatly enhances the stripping function, making each wire hole function more subdivided.
Instructions
1.When you opening, please check whether the operation is normal, according to the diameter of the cable when feeding, one by one into the corresponding feed hole.
2. For the long durability of the blade, the joint of the rubber and plastic cable should be cut off when feeding, so as not to break the blade gap.
3. If the material is too deep and the wire is broken after it is fed, pay attention to the following situations:
(1) the tightness of the spring pressure on both sides of the feed file, namely, the blade shaft, should be adjusted.
(2) Check whether the position of the feeding hole is wrong when feeding.
Note: Check the machine, please stop the operation, pay attention to safety.
2. For the long durability of the blade, the joint of the rubber and plastic cable should be cut off when feeding, so as not to break the blade gap.
3. If the material is too deep and the wire is broken after it is fed, pay attention to the following situations:
(1) the tightness of the spring pressure on both sides of the feed file, namely, the blade shaft, should be adjusted.
(2) Check whether the position of the feeding hole is wrong when feeding.
Note: Check the machine, please stop the operation, pay attention to safety.

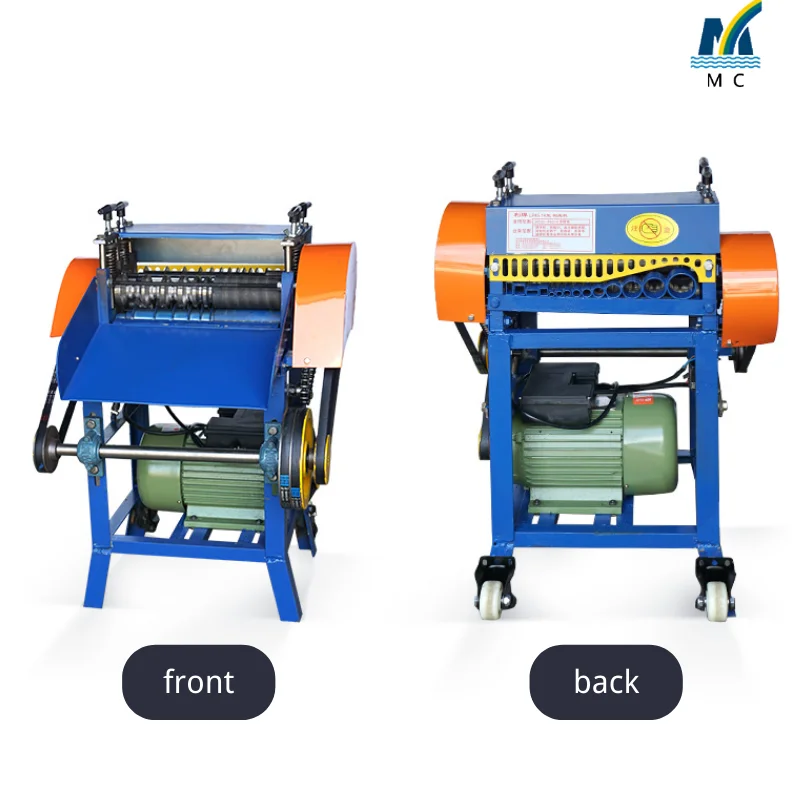

Detailed Images
* There are 12 holes in total, 9 round holes, 1 flat hole and 2 wire pressing holes
Raw Material
Flat wire
Feeder
Cable Wire
Copper Wire Line
Aluminum wire
With metal clad wire
Different Size of Wires Result Image
Specification
Alloy-Steel Cutter | |
Shield | |
Copper Wire Motor | |
Blade Adjusting Handle | |
Heart Treatment Roller | |
Belt Pulley |
item | value |
Place of Origin | China |
Hainan | |
Brand Name | MC |
Model Number | MC-500 |
Usage | Stripping |
Warranty | 1 Year |
Function | stripping |
Voltage | 110V/220V380v |
Dimension | 53*52*80 |
Power | 2200W |
Wire range | 1-42㎡ |
Wire type | cable |
Technical Parameters
Machine Madel | MC-400 | MC-500 | MC-600 | MC-700 |
Dimension | 54*34*48 | 53*53*85 | 55*24*90 | 53*43*85 |
Power | 3kw | 2.2kw | 2.2kw | 2.2kw |
Stripping Scope | 1-50mm² | 1-42mm² | 1-35mm² | 1-35mm² |
