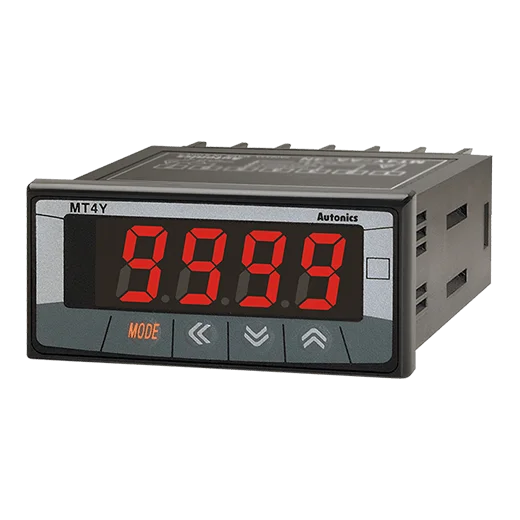

Оригинальный Autonics MT4Y-DV-4N мульти светодиодные универсальное цифровое устройство для щитовой измерительный
- Категория: Panel Meters >>>
- Поставщик: Shanghai,Bendun,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 43.66 $* | 45.36 $* |
| Aug-16-2025 | 42.41 $* | 44.82 $* |
| Jul-16-2025 | 36.77 $* | 38.76 $* |
| Jun-16-2025 | 42.84 $* | 44.88 $* |
| May-16-2025 | 36.4 $* | 38.55 $* |
| Apr-16-2025 | 41.4 $* | 43.56 $* |
| Mar-16-2025 | 41.40 $* | 43.78 $* |
| Feb-16-2025 | 40.88 $* | 42.36 $* |
| Jan-16-2025 | 40.25 $* | 42.47 $* |
Характеристики
Products Description
Display method | 4 digit 7 segment LED |
Character height | 14.2mm |
Max. display Range | -1999 to 9999 |
Measurement | DC voltage |
Input specification | 0-500V, 0-100V, 0-50V, 0-10V, 0-5V, 0-1V, 0-250mV, 0-50mV |
Power supply | 100-240VAC~ 50/60Hz |
Output_Main Output(Comparative Value) | Indicator |
Approval | CE,UR,EAC |
Display accuracy | • 23℃±5℃ - F.S. ±0.1% rdg ±2-digit F.S. +0.3% rdg ±3-digit max. only for 5A terminal. • -10℃ to 50℃ - F.S. ±0.5% rdg ±3-digit |
Max. allowable input | 110% F.S. for each measured input range |
A/D conversion method | ΣΔ (Sigma Delta) ADC |
Sampling cycle | 50ms |
Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Insulation type | Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV) |
Weight | Approx. 213.5g (approx. 134g) |
※To measure the current over DC5A, please select DV type because the shunt should be used.
※In case of selecting frequency display, no output will be provided even if it is output support models.
(main output, sub output and RS485 communication output)
※AC measuring function, and frequency measuring function are only for AC measuring input type.
※MT4Y-□-4N model has no hold function.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
※In case of selecting frequency display, no output will be provided even if it is output support models.
(main output, sub output and RS485 communication output)
※AC measuring function, and frequency measuring function are only for AC measuring input type.
※MT4Y-□-4N model has no hold function.
※The weight includes packaging. The weight in parenthesis is for unit only.
※Environment resistance is rated at no freezing or condensation.
Main Features
MT4Y Series
* Various input/output options (by model)
* - Input options : DC voltage, DC current, AC voltage, AC current
* - Output options : RS485 communication output, low speed serial output, BCD dynamic
output, transmission output (DC 4-20mA), NPN/PNP open collector output, relay contact output (default option : indicator/no output)
* Maximum allowed input : 500VDC, DC 5A, 500VAC, AC 5A
* Display range : -1999 to 9999
* High/low-limit display scale function
* AC frequency measurement (range : 0.1 to 9999Hz)
* Various functions : peak display value monitoring, display cycle delay, zero-point adjustment, peak display value correction,
PV transmission output (DC 4-20mA) scale, etc.
* Power supply : 12-24VDC, 100-240VAC
output, transmission output (DC 4-20mA), NPN/PNP open collector output, relay contact output (default option : indicator/no output)
* Maximum allowed input : 500VDC, DC 5A, 500VAC, AC 5A
* Display range : -1999 to 9999
* High/low-limit display scale function
* AC frequency measurement (range : 0.1 to 9999Hz)
* Various functions : peak display value monitoring, display cycle delay, zero-point adjustment, peak display value correction,
PV transmission output (DC 4-20mA) scale, etc.
* Power supply : 12-24VDC, 100-240VAC
Applications
Plastics/Rubber Industry
Rubber Extrusion / Plastic Injection Molding Process
The MT4Y series compact digital panel meters are available in various input and output options, allowing flexible application in diverse environments. The units can display measured values between -1999 and 9999, and features various user-friendly functions including high/low-limit display scale, AC frequency measurement, zero-point adjustment, and PV transmission output scale function. The MT4Y series meters are DIN W 96 x H 48 mm and the MT4W series meters are DIN W 72 x H 36 mm in size.
