It is the common equipment used in processing furniture and solid wood,flat planning for the wooden parts
1.The body is with heavy-duty steel and with special heat treatment process, better stability and lower noise. 2.All the parts are made with fine processing of high-precision CNC Center, greatly improve the precision. 3.The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
SPECIFICATIONS FOR SINGLE SIDE THICKNESS PLANER
Model
MB108
MB106
MB105
MB104
Spindle speed
6500rpm
6500rpm
6500rpm
6500rpm
Feeding speed
6~8m/mn
6~8m/mn
6~8m/mn
6~8m/mn
Planing width
830mm
630mm
500mm
400mm
Planing thickness
5~180mm
3~180mm
3~180mm
3~180mm
Planing length
≥250mm
≥250mm
≥250mm
≥250mm
Max cutting output
4mm
4mm
4mm
4mm
Motor power
7.5kw
5.5kw
5.5kw
4kw
Weight
630kg
550kg
500kg
430kg
Overall Dimensions
760×1030×1270mm
760×1060×1270mm
760×930×1240mm
760×830×1240mm
Product Details
Optional Part

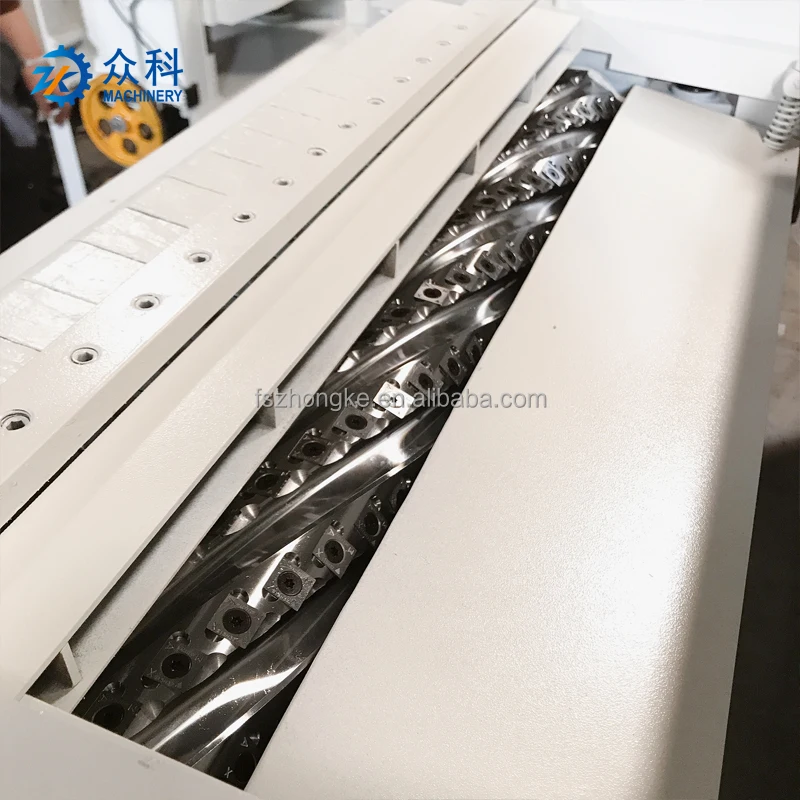

Thread Cutter For Optional
Optional Part
2.2kw/3kw/4kw/5.5kw/7.5kw dust collector for optional
ZK Machinery major product is precision panel saw & thicknesser& surface planer. Time has tested the quality of our products and the good credit of our company,that is why we have more than 100 agents both at home and abroad and more and more foreign customers are coming to us.
Other woodworking machines,like cnc wood lathe, wood press, drilling machine, and other various products are also popular with customers from southeast,the Middle East,etc.
As a fast growing enterprises, ZK MACHINERY have the whole world in view,and try to be better and better, We are working hard to provide our customers perfect machines along with our technical support and after sale service. Also we will keep to "quality is first, reputation is everything" as our tenet!
