220 В Вибрационный двигатель для машины
US $22.00-$45.00
SCW0625S-01D высокое качество мини BLDC DC Haptic монета вибромотор для электронной
- Категория: Вибрационный Мотор >>>
- Поставщик: Guangdong,Saibow,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 1.11 $* | 1.59 $* |
| Jul-18-2025 | 1.97 $* | 1.72 $* |
| Jun-18-2025 | 1.9 $* | 1.18 $* |
| May-18-2025 | 1.34 $* | 1.9 $* |
| Apr-18-2025 | 1.89 $* | 1.51 $* |
| Mar-18-2025 | 1.80 $* | 1.21 $* |
| Feb-18-2025 | 1.17 $* | 1.87 $* |
| Jan-18-2025 | 1.78 $* | 1.4 $* |
Характеристики
Product Description
Product name：
SCW0625S-01D High Quality Mini BLDC DC Haptic Coin Vibration Motor for Electronic Cigarette
BLDC Brushless coin vibration motors are an excellent choice for high reliability applications requiring an exceptionally long life time / MTBF. Applications where the vibration feature used very often or is used in a medical device should consider a BLDC vibrator motor. These BLDC motors typically exceed the life time of brushed type coin motor by over 10 times. They are more costly than brushed types since they incorporate a driver IC. Polarity must be observed when apply power. Other specs are comparable to that of standard brushed type motors.
Products Description
Show Me All Products (Shown below are only seven models of them(SCW0625S-01D; SCW0525L-01D; SCW0625L-01G; SCB0720L-01F; SCB0820L-06F; SCB0830L-01F; SC0832L-LR29D ). If you want to know about other models, please email us.)

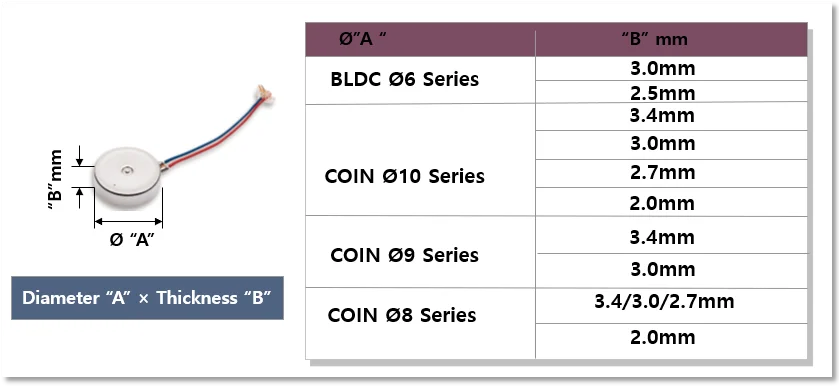

SAIBOW P/N | Tech. Type | Motor Size | Voltage | Current | Response Time | Rated speed (rpm) | Vibe Force (G) | ||||
Dia (mm) | Thickness (mm) | Operating | Rated (ma) MAX | Rise Time (ms) | Fall Time (ms) | ||||||
SCW0625S-01D | BLDC | 6 | 2.5 | 2.7~3.3 Vdc | 90 | 70 | 90 | 15000 | 0.55 | ||
SCW0525L-01D | BLDC | 5 | 2.5 | 2.7~3.3 Vdc | 80 | 70 | 90 | 14,000 | 0.25 | ||
SCW0625L-01G | BLDC | 6 | 2.5 | 2.7~3.3 Vdc | 90 | 70 | 90 | 15,000 | 0.55 | ||
SCB0720L-01F | BRUSH | 7 | 2 | 2.7~3.3 Vdc | 85 | 90 | 50 | 10,000 | 1.1 | ||
SCB0820L-06F | BRUSH | 8 | 2.1 | 2.7~3.3 Vdc | 85 | 90 | 50 | 10,000 | 0.45 | ||
SCB0830L-01F | BRUSH | 8 | 3 | 2.5~3.5 Vdc | 85 | 90 | 50 | 12,000 | 1 | ||
SC0832L-LR29D | LRA | 8 | 3.2 | 0.1~1.9 Vac | 80 | 50 | 80 | - | 1.4 | ||
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.
Mechanical Tear Down Of Coin Vibration Motor
Product Drawing:

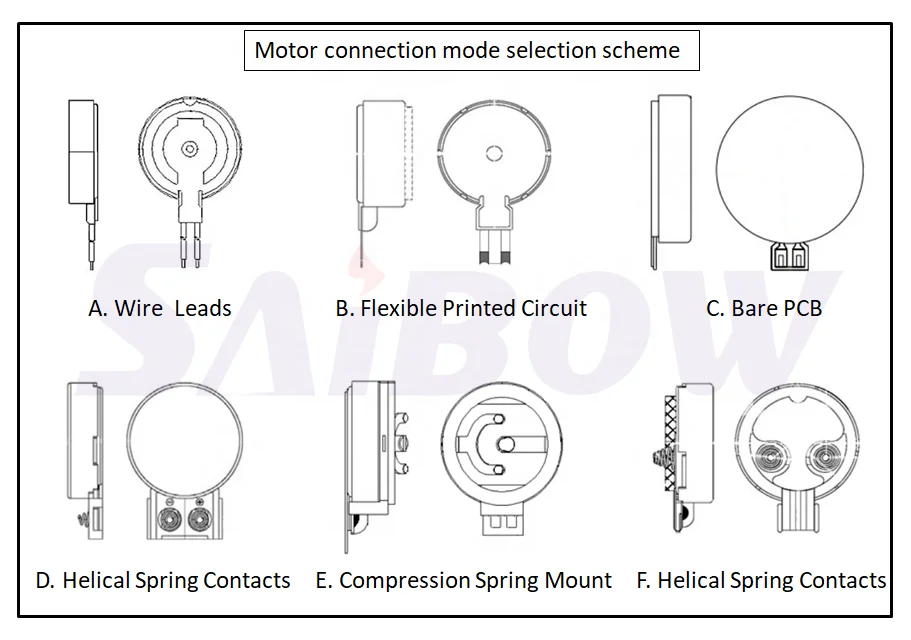

Our SCW0625S-01D brushless BLDC coin vibration motor uses helical spring contacts which are designed to mate with corresponding contact pads on the PCB. This motors brushless design makes it ideal for Hi-Rel applications or those with high duty cycles. A driver IC is built imbedded within the motor, so no external driver IC is required. Simply apply DC voltage as you would a normal brushed DC motor. Voltage polarity must be observed or you will damage the internal driver IC. Since reflow solderable SMD coin vibration motors are not yet available, a BLDC coin vibration motor like this, with spring contacts, can be used to streamline the assembly process by eliminating the need for soldering wires.
Application scenario
If you think our product is not suitable for you, you can click below to find the product you want:
DC Coreless with Brushes
Coin Vibration Motors
DC Coreless with Brushes
Coin Vibration Motors
Recommend Products
Company Profile
SAIBOW is based on Hong Kong and other emerging industrial markets in the Pearl River Delta, specializing in high-end automotive electronic products, communications mech-
anical and electrical parts of technical research and development, production and sales, international trade as one of the multinational enterprises, consumer comm-unications smart wearable electronic products, to provide domestic and foreign customers with high quality and cheap micro motors, Micro Camera modules, car speakers and smart audio, smart wearable watch (Smart Watches).
"pioneering and innovative, positive and enterprising, teamwork, professional and pragmatic", SAIBOW is willing to establish a friendly and honest partnership with all customers, and sincerely welcome new and old customers to work hand in hand to strive for win-win, and seek sustainable development of the cause.
Production Workshop
Payment & Shipping
● Trade Assurance: The first order, we suggest you to use Trade Assurance.
● T/T: If stocks, 100% payment before shipping; if customized order, 30% deposit deposit before production and balance 70% should be paid before delivery.
● Western Union, Money Gram, Paypal, all available.
● L/C: for large order.
● In general, we use international express, DHL, UPS, FEDEX, EMS, TNT, etc.
● Large order: by air or sea, you could choose it.
● If you have your own forwarder, please tell us the detailed information.
MOTOR TRANSPORT
OCEAN SHIPPING
AIR TRANSPORT
FAQ:
1. How long is the deliver and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
2.Do you provide the samples?
A: YES. Our company can provide the samples to you.
3. Do you have the item in stock?
A: I am sorry we donot have the item in stock, All products are made with orders.
4. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
5.How to ship to us?
A: We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
2.Do you provide the samples?
A: YES. Our company can provide the samples to you.
3. Do you have the item in stock?
A: I am sorry we donot have the item in stock, All products are made with orders.
4. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
5.How to ship to us?
A: We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.
