W11-16 * 3000 станок для прокатки листового металла
- Категория: Листосгибочные вальцы >>>
- Поставщик: Anhui,Harting,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3570.71 $* | 3749.81 $* |
| Aug-16-2025 | 3540.20 $* | 3717.70 $* |
| Jul-16-2025 | 2970.69 $* | 3119.43 $* |
| Jun-16-2025 | 3480.71 $* | 3654.63 $* |
| May-16-2025 | 3030.29 $* | 3182.80 $* |
| Apr-16-2025 | 3420.15 $* | 3591.5 $* |
| Mar-16-2025 | 3390.90 $* | 3560.84 $* |
| Feb-16-2025 | 3360.88 $* | 3528.46 $* |
| Jan-16-2025 | 3330.61 $* | 3497.74 $* |
Характеристики

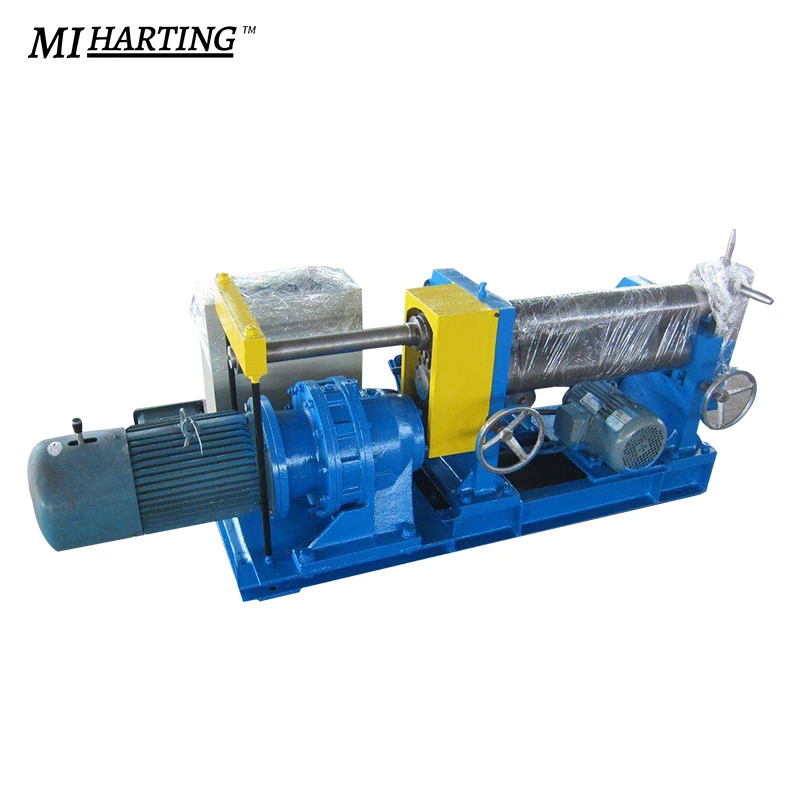

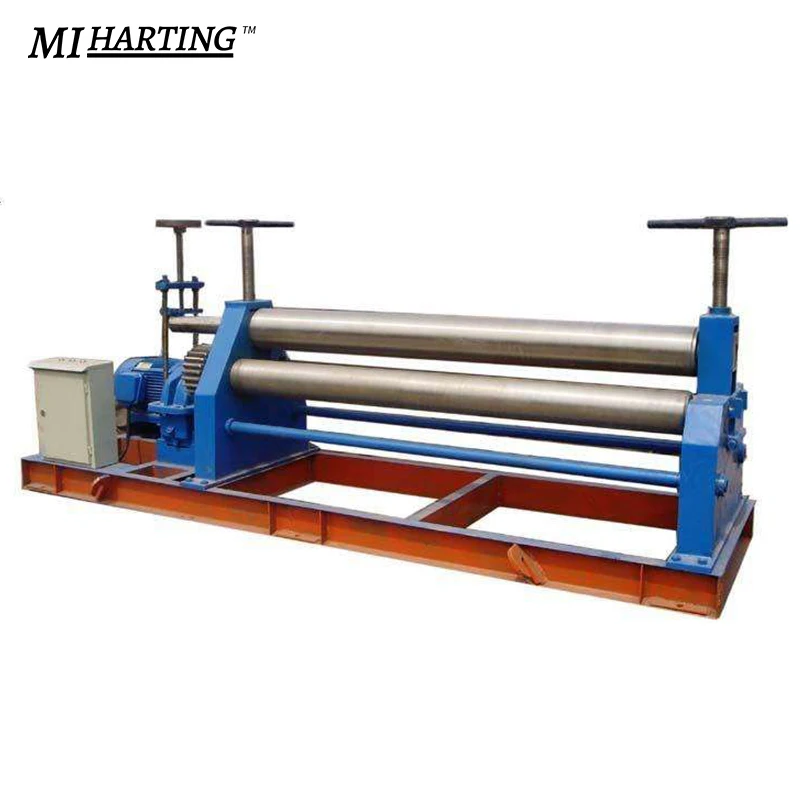

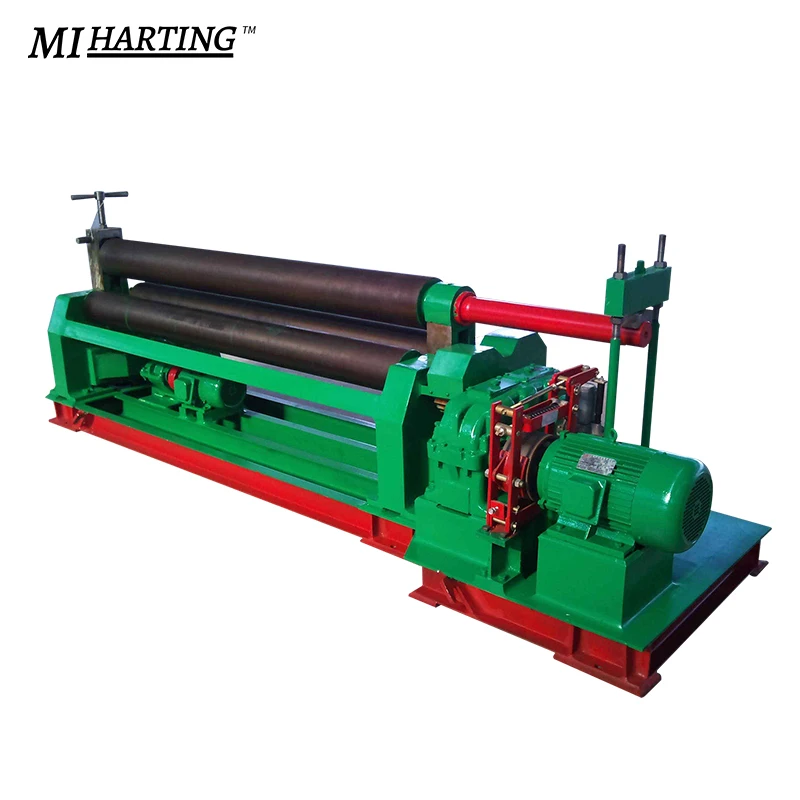

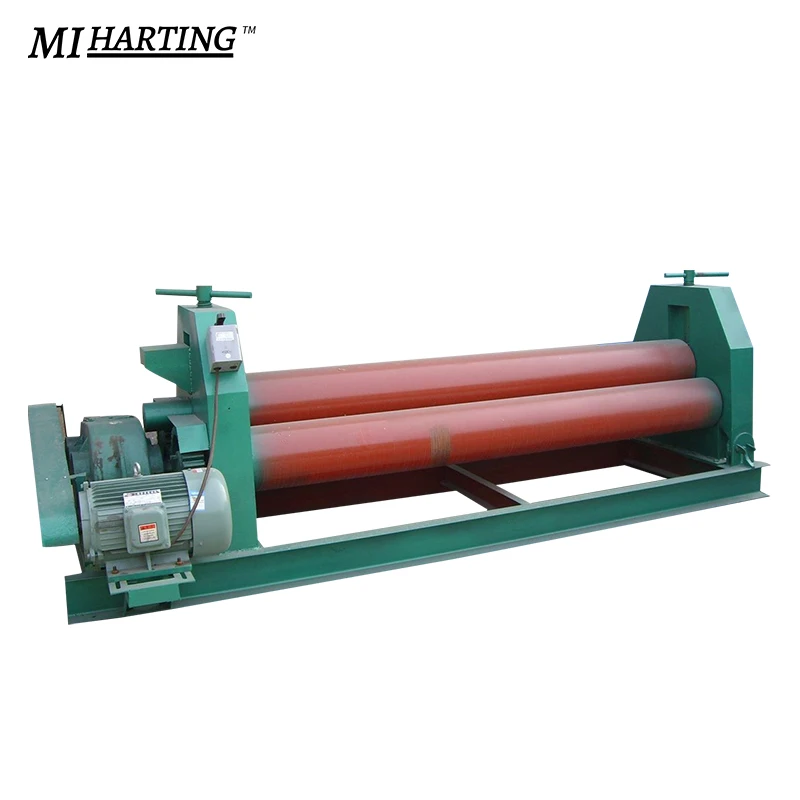

W11-16*3000 Iron sheet bender metal sheet rolling machine 3 roller steel plate bending machine
This machine is a mechanical three-roller symmetrical plate rolling machine. The upper roller moves up and down at a symmetrical position in the center of the two lower rollers, and is obtained by a worm gear, which is characterized by safety and stability.
The two lower rollers are respectively rotated through the output gear of the reducer and the lower roller gear to provide power for the board to travel and for mechanical transmission. Integral structure, simple foundation.
Main structure and working principle
1.This machine is upper roller adjust type, and upper roller in middle of two down rolls and drove by lead screw to move up/down and to bend the steel plate.
2. The equipment composed of working parts and driving system two parts. The working parts composed of right and left bearing plate, one upper roll, two down rolls (these three rolls material is 45# steel with heat treatment), lifting screw and worm wheel and other accessory parts. Down rolls drive upper rolls to move.Upper rolls can adjust up/down. Drive system composed of main motor, main speed reducer gear and other accessory parts.
3. Down rolls were drove by main motor and main speed reducer gear, the spindle of main speed reducer drive two down rolls by one group gears, the direction adjusted by the main motor.
4. Upper rolls lifted by accessory motor and vice speed reducer drive worm pole and worm where of right/left rolls bearing plate.
5. Unloading device is used for bending circle type to remove the work piece. While unloading the upper rolls move to up limit position, the balance device on upper rolls end hit upper rolls to remove the work piece.
2. The equipment composed of working parts and driving system two parts. The working parts composed of right and left bearing plate, one upper roll, two down rolls (these three rolls material is 45# steel with heat treatment), lifting screw and worm wheel and other accessory parts. Down rolls drive upper rolls to move.Upper rolls can adjust up/down. Drive system composed of main motor, main speed reducer gear and other accessory parts.
3. Down rolls were drove by main motor and main speed reducer gear, the spindle of main speed reducer drive two down rolls by one group gears, the direction adjusted by the main motor.
4. Upper rolls lifted by accessory motor and vice speed reducer drive worm pole and worm where of right/left rolls bearing plate.
5. Unloading device is used for bending circle type to remove the work piece. While unloading the upper rolls move to up limit position, the balance device on upper rolls end hit upper rolls to remove the work piece.
Product Description
Electrical system and the safety interlock
· Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable
safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
· Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to
operate.
· The machine by the European Union CE certification and ISO quality system certification
· Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,reliable
safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.
· Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to
operate.
· The machine by the European Union CE certification and ISO quality system certification
PLC Controller
· PLC press control is flexible and safe. djustable proximity switches allows stroke adjustments in seconds
· PLC press control is flexible and safe. djustable proximity switches allows stroke adjustments in seconds
