Коллектор из нержавеющей стали PEX для водяного отопления с
- Категория: Floor Heating Systems & Parts >>>
- Поставщик: Zhejiang,Huibo,Valve,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.64 $* | 0.12 $* |
| Aug-16-2025 | 0.52 $* | 0.71 $* |
| Jul-16-2025 | 0.85 $* | 0.93 $* |
| Jun-16-2025 | 0.95 $* | 0.27 $* |
| May-16-2025 | 0.69 $* | 0.42 $* |
| Apr-16-2025 | 0.60 $* | 0.86 $* |
| Mar-16-2025 | 0.91 $* | 0.61 $* |
| Feb-16-2025 | 0.89 $* | 0.88 $* |
| Jan-16-2025 | 0.72 $* | 0.14 $* |
Характеристики

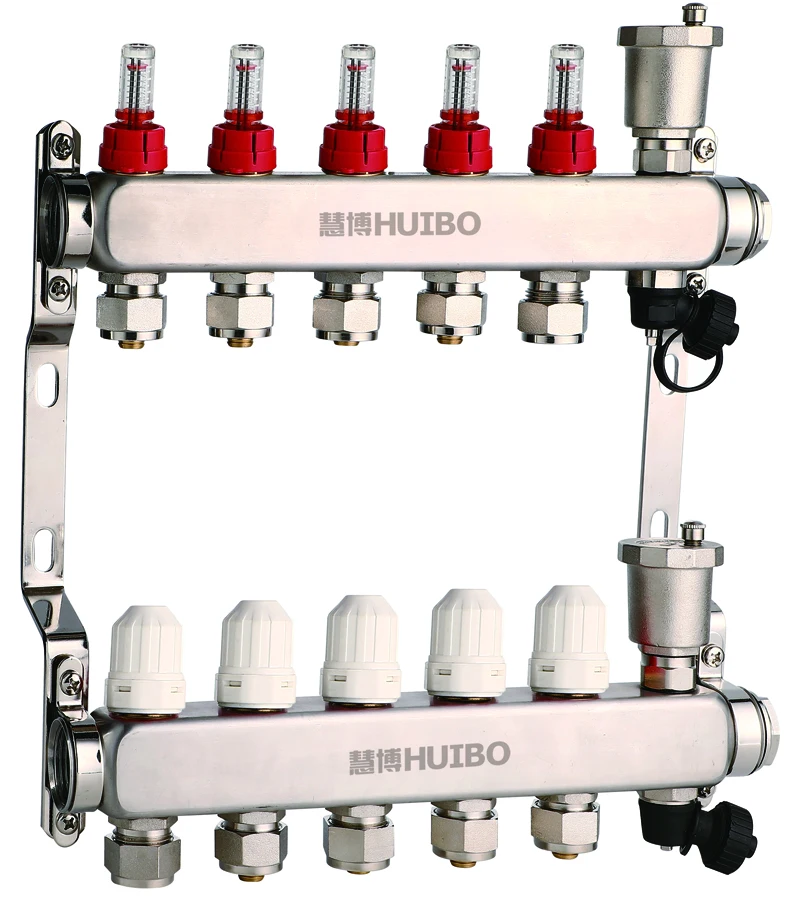

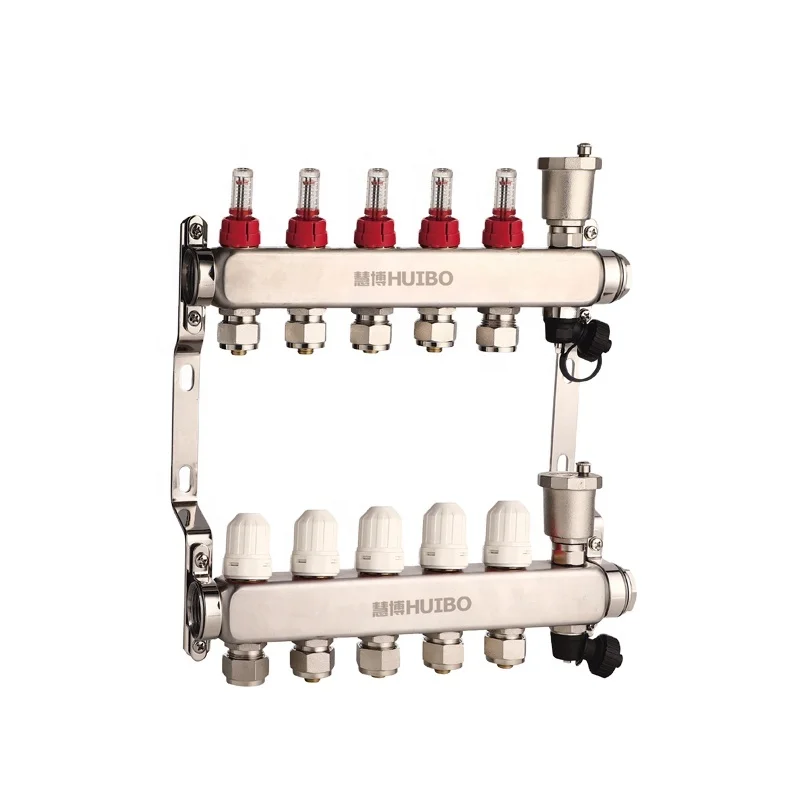

Hydronic radiant heating PEX manifold Stainless Steel 304 2-12 Loops floor heating Manifold with flow meter
Features
Material : Stainless steel 304
Polishing surface
Main pipe diameter : DN25mm
Branch pipe diameter : 1216/1620mm
Threaded connection comply with ISO228
Working temperature : -10~98 degree
Manifold with 2-13 loops
Branch pipe space : 50mm
Working pressure : PN≤1.2Mpa
Testing pressure :Mpa 0.8~1.0
Fields of Applications: Water
Structure : Water inlet is Spiral softness EPDM sealing ,water return is thermostatic valve core
With bracket ,hexagonal nuts, water outlet mouth ( diameter 1216-1620)

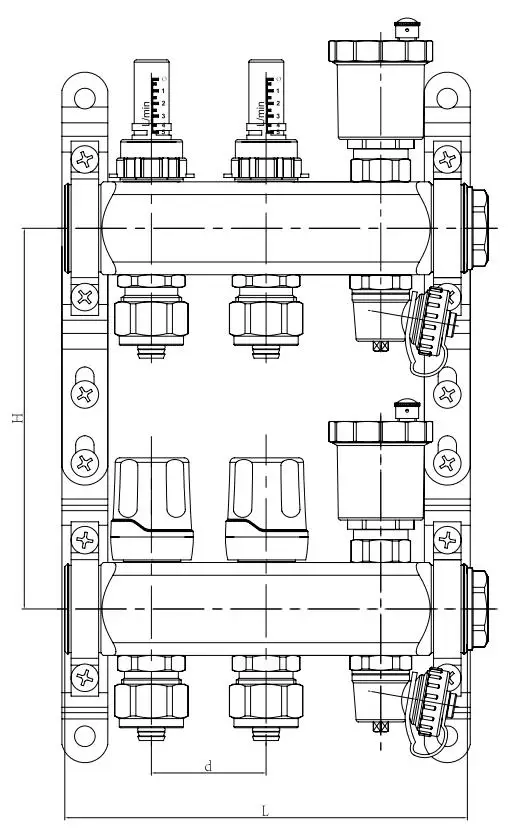

Manifold sketch
Manifold diamension
| Specification | d(mm) | L(mm) | H(mm) | PEX adapter |
| 1''-2loops | 50 | 176 | 220 | 1216 /1620 |
| 1''-3loops | 50 | 226 | 220 | 1216 /1620 |
| 1''-4loops | 50 | 276 | 220 | 1216 /1620 |
| 1''-5loops | 50 | 326 | 220 | 1216 /1620 |
| 1''-6loops | 50 | 376 | 220 | 1216 /1620 |
| 1''-7loops | 50 | 426 | 220 | 1216 /1620 |
| 1''-8loops | 50 | 476 | 220 | 1216 /1620 |
Product Material
| NO. | Part Name | Material |
| 1 | Body | Stainless steel 304 |
| 2 | Stem | Forged Brass |
| 3 | Connection pipe | Aluminium pipe, PB pipe, PERT pipe |
| 4 | Bracket | Nickel plated brass with rubber gasket |
| 5 | Seal Material | PTFE |
| 6 | O ring | EPDM |
| 7 | Inflow Cartridge | Brass |
Production Introduction
This stainless steel manifold with flow meter is widely used in house heating system. It could supply the hot water to different rooms in one house. Suitable for department, hotel, house, office buidling, hospital, school and many places. Whatever floor heating system or radiator heating sysem, you will need it for both heating way. The advantage to use stainless steel manifold with flow meter is that you could see the flow data of each loop to each room. Besides, you could adjust it easily.
Our technological process
Our factory
Certificate
FAQ:
Q1: Can I have a sample before placing the order?
A: Yes, we would like to provide you samples for testing and checking before quantity purchasing
Q2: What is your MOQ order?
A: Usually 3000 for ordinary products, and 5000pcs for product needs new mold.
Q3.How to proceed an order for your products?
A: Firstly, pls let us know your requirments and application
Seconly, we provide quotation accordingly or suggestion
Thirdly, samples confirmation
Forth, place order and deposit and production arrangement.
