The DDCS V3.1 is updated from DDCS V2.1, which fix the bugs on software and hardare. DDCS V3.1 is a 4 axis motion controller for stepper and servo systems, the numerical control system adopts the ARM+FPGA design framework. ARM controls the human-computer interface and code analysis and the FPGA provides the underlying algorithms and creates the control pulse. This guarantees reliable control and easy operation. The internal

3/4 Axis 500Khz CNC Motion Controller Offline Operate 1GB Internal G code Support USB Flash Disk



DDCS V3.1 is a small box that can fit in a window of a small control box or control cabinet. Four locking hooks fix this controller from the frame. The dimension you find in picture 1-1 and picture 1-2.

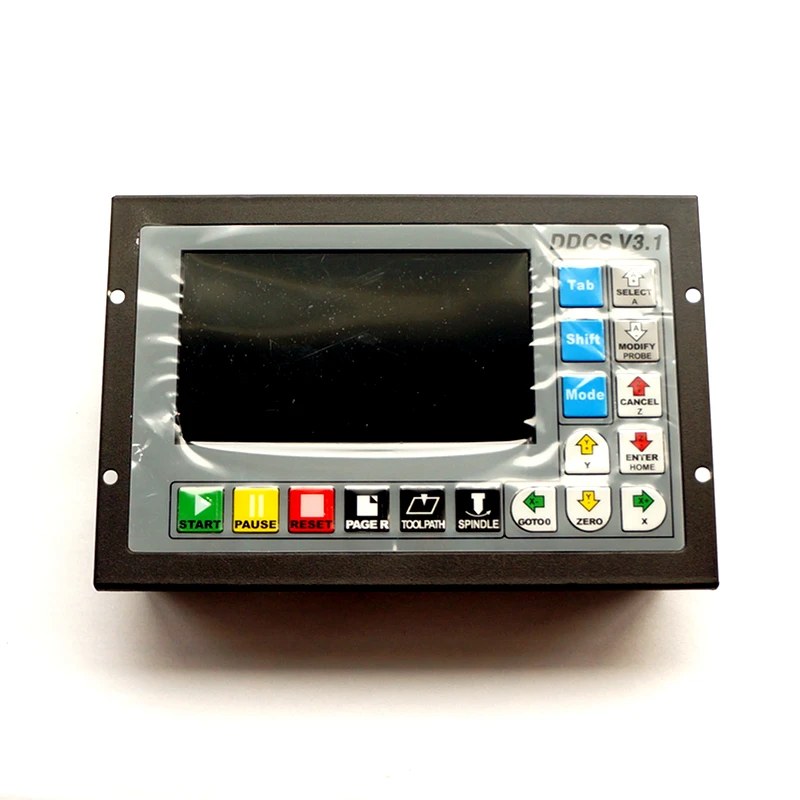

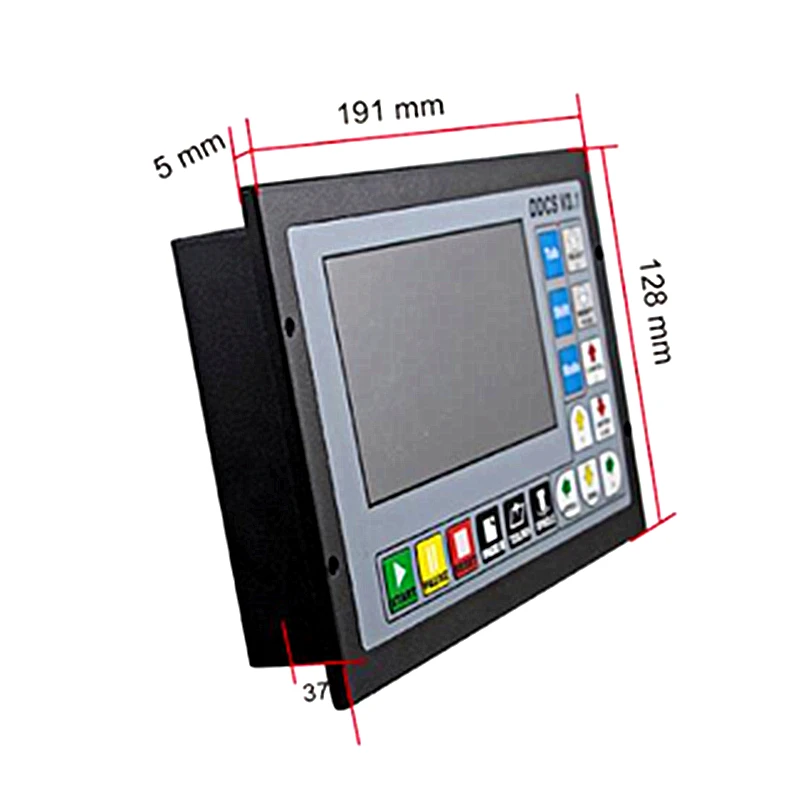

The front panel is 191mm*128mm*5mm；

The main body is 191mm*128mm*37mm；

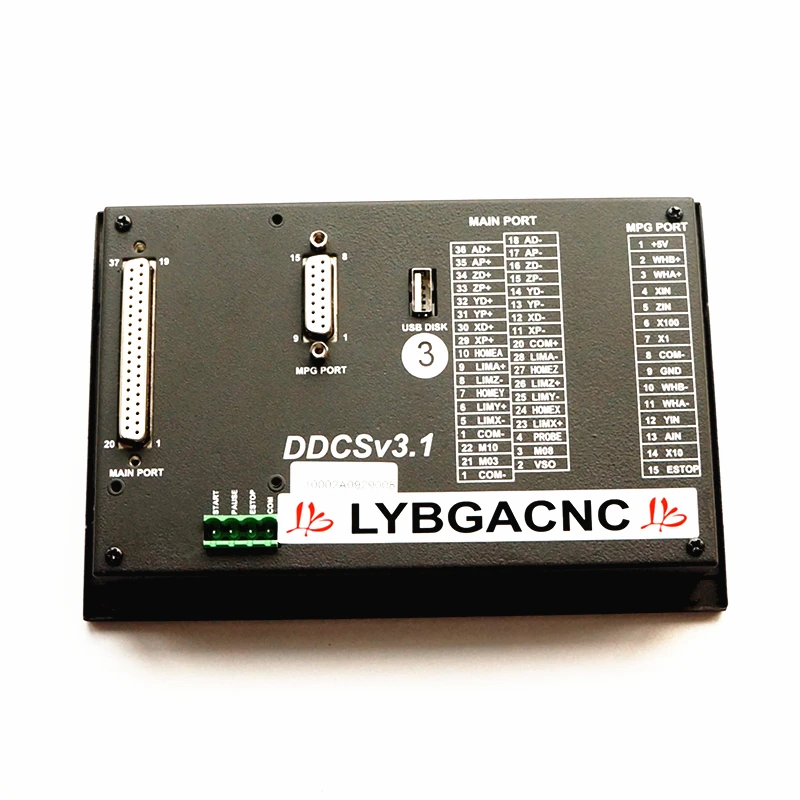

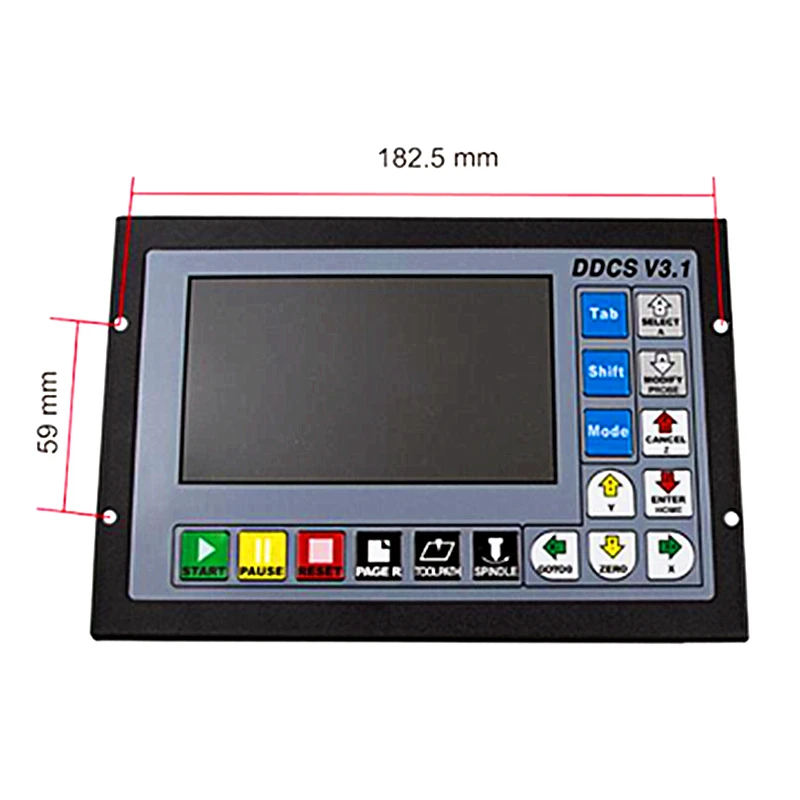

To mount the unit in an equipment cabinet, cut the hole182.5mm*59mm

Features:

Standalone Motion Controller;

16 opto isolated digital inputs, 3 opto isolated digital outputs

Analog spindle control 0-10V spindle control (can be modified as PWM output);

3 axis motor control, max 500 KHz per axis;

ARM9 main control chip;

FPGA core algorithm chip;

4.3 inches TFT screen, resolution ratio: 480x272;

17 operation keys;

18V-32V power input, minimum 0.5A;

USB flash disk supports for G code file input;

Support standard MPG;

Jog function for each axis (continuous, step, defined distance;

Support the operation of quickly specify the running position;

Support for “Power Cut” recovery. Data is automatically saved；

Support the origin and Limit share the same Input ports;

The controller only support NPN type limited switch.

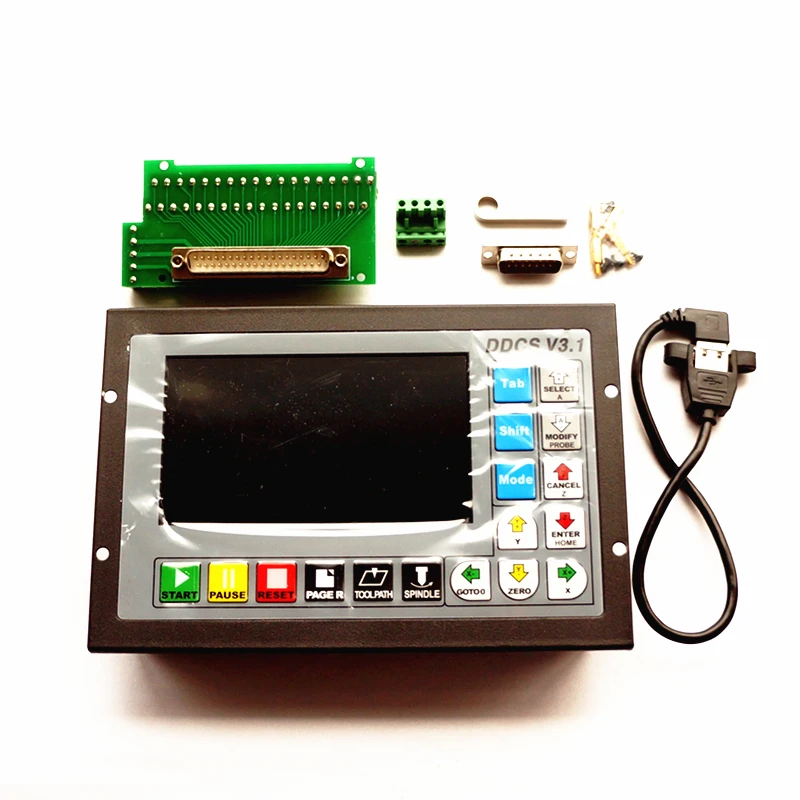

1 x CNC Motion Controller

1 x USB Extension Cable

1 x USB flash disk
