Senad система DWS посылку сортировочная машина для электронной коммерции Курьер Экспресс-Доставка
- Категория: Cargo & Storage Equipment >>>
- Поставщик: Senad,Robot(Shanghai)Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 47600.65 $* | 49980.77 $* |
| Aug-19-2025 | 47200.64 $* | 49560.5 $* |
| Jul-19-2025 | 39600.20 $* | 41580.68 $* |
| Jun-19-2025 | 46400.16 $* | 48720.54 $* |
| May-19-2025 | 40400.43 $* | 42420.74 $* |
| Apr-19-2025 | 45600.95 $* | 47880.42 $* |
| Mar-19-2025 | 45200.43 $* | 47460.50 $* |
| Feb-19-2025 | 44800.35 $* | 47040.74 $* |
| Jan-19-2025 | 44400.57 $* | 46620.63 $* |
Характеристики
Product Description
Senad DWS system parcel sorting machine for Ecommerce Courier Express Postal warehousing
This parcel sort machine is standard design.
Parcel feeding conveyor
Parcel accelerating conveyor
Inline DWS system integrated conveyor
Belt conveyor and wheel sorting conveyor
The parcels are automatically unloading from truck.
The connection belt conveyers pass on them to the DWS conveyor for
Barcode reading & image capturing, dynamic weighing and cubic dimension mearsuring
More functions can be integrated:
Once the throughput is massly large, there is a parcel separating and queuing system to make the parcels conveyed one after one in order.
After the DWS information captured, the system will send the parcels to the designated destinations of each parcel.

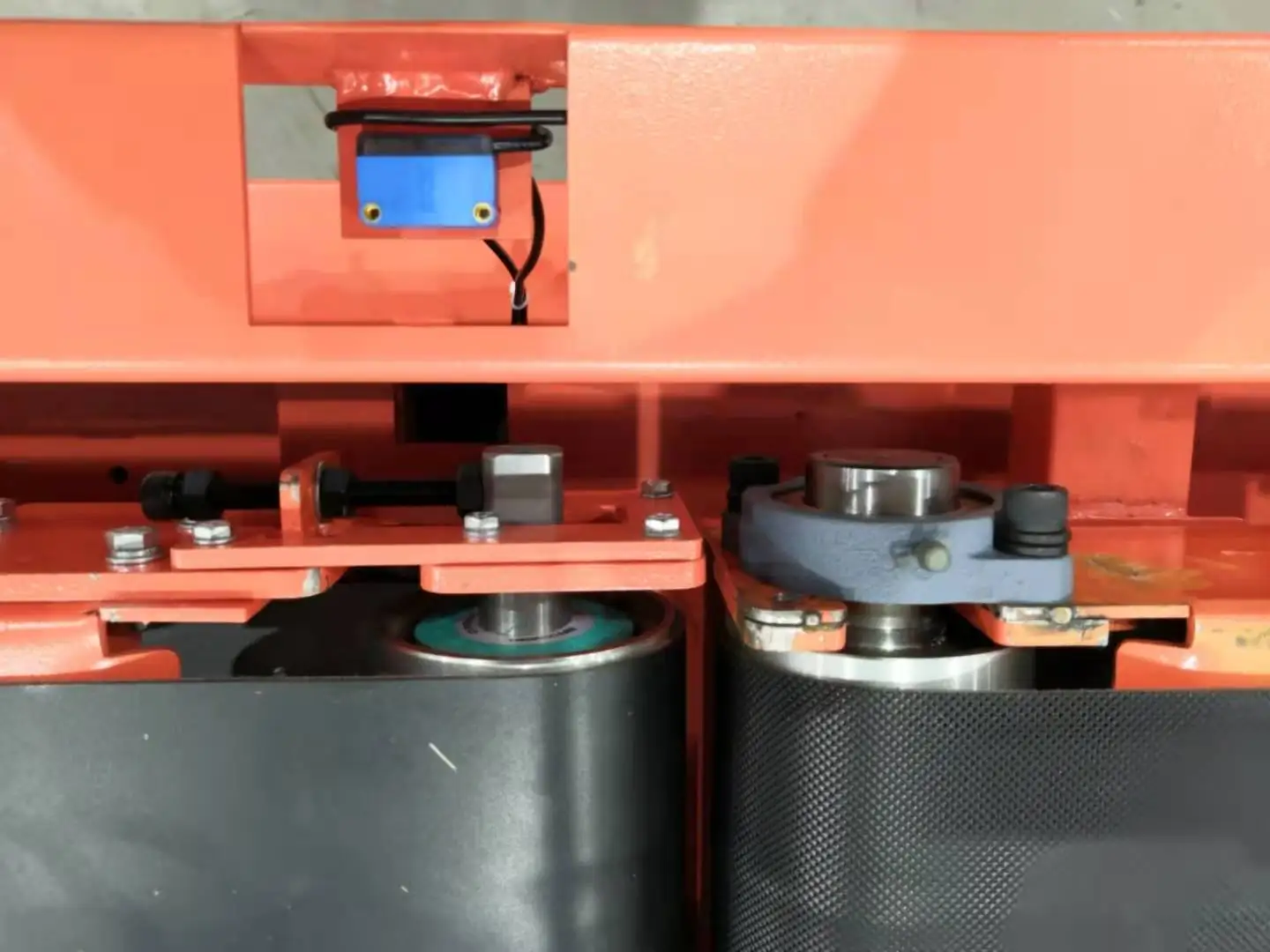

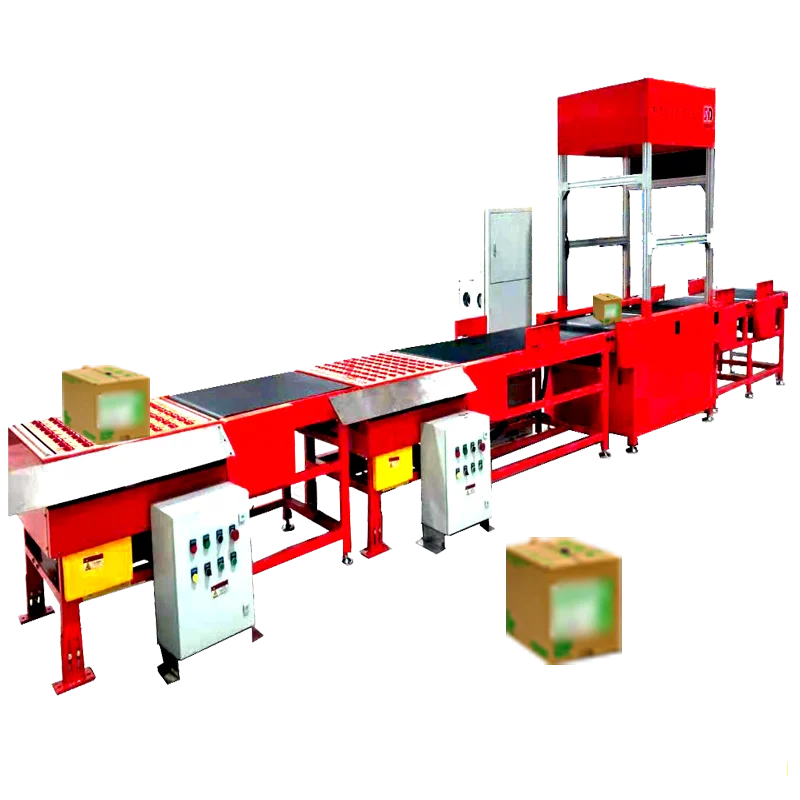

Product Shows
Product Paramenters
Description | Specification | Remarks | ||
Industrial computer | Intel I5 | SENAD customized | ||
Display | 19.5inches | LCD | ||
Camera | 20 million pixels smart camera | / | ||
Dedicated light source | For smart camera | / | ||
Keyboard mouse | Wireless mouse and keyboard set | Logitech | ||

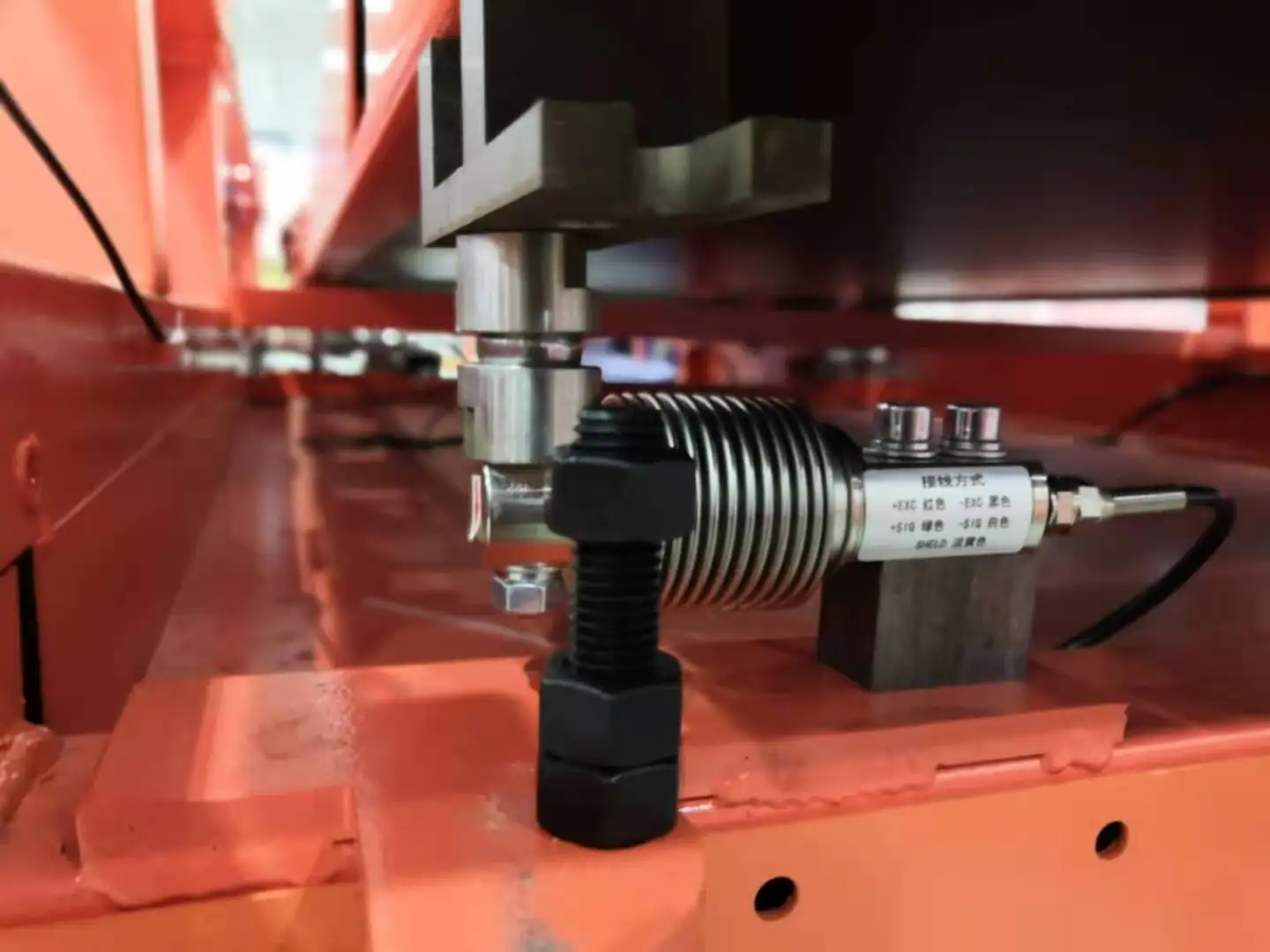

Load cell | 100kg | Express delivery | ||
Lens | 20mm Lens | / | ||

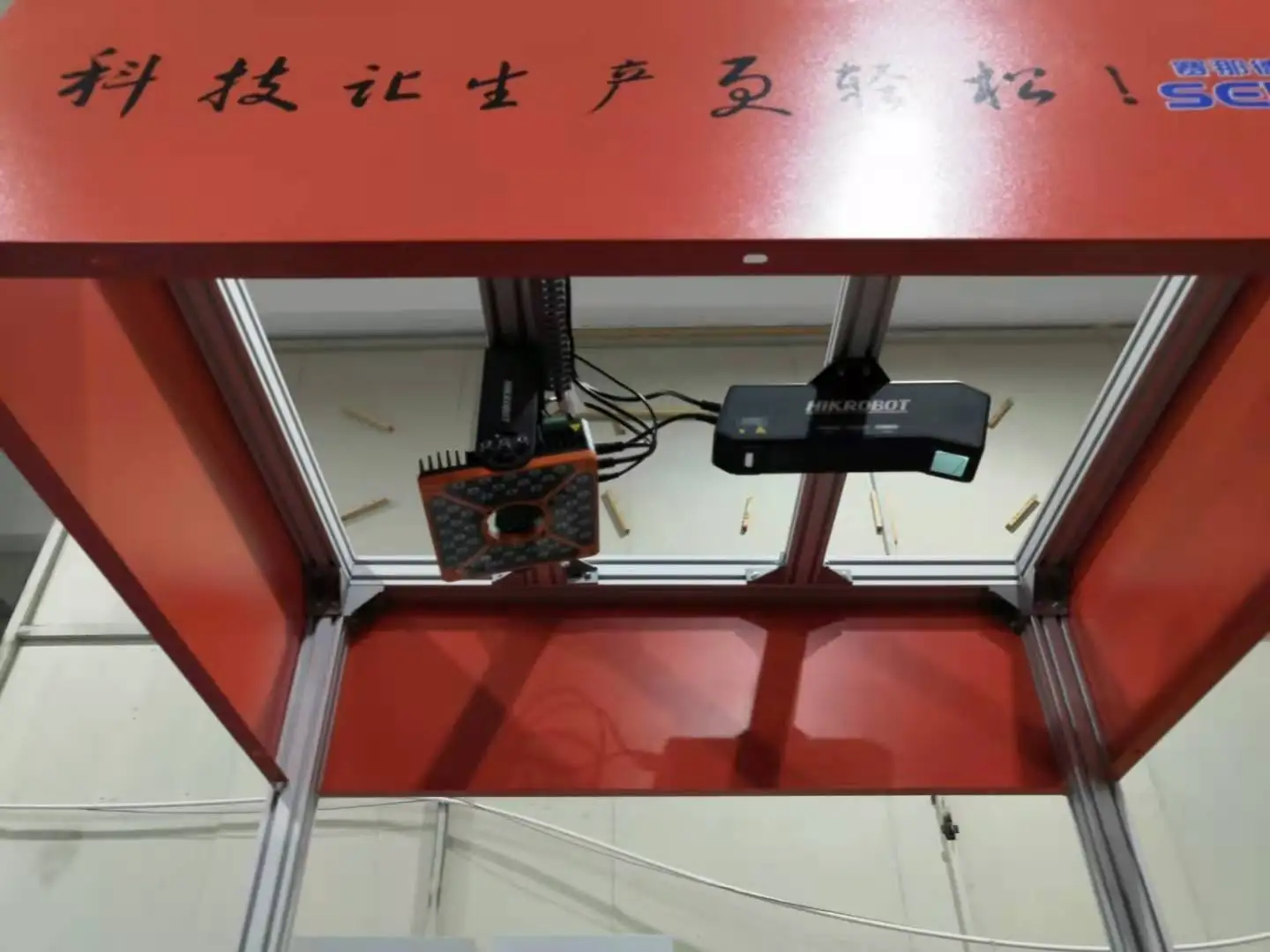

Volume Line Structure Light | 3D Camera | / | ||
Accelerating section | L0.8*W0.8*H0.8（customizable） | SENAD customized | ||
Weighing section | L1*W0.8*H0.8（customizable） | SENAD customized | ||
Exception section | L1*W0.8*H0.8（customizable） | SENAD customized | ||
Servo motor | 750W | / | ||
Parameters | ||||
Weighing error range | ±20~40g | |||
Weighing range | 0.03-60kg | |||
Efficiency | Average 3500pieces / hour | |||
Recognition rate | 99.99% (Normal packages) | |||
Error range | Normal: average ±5mm | |||
Abnormal: average ±15mm | ||||
Measuring range | 150*150*50~1200*1000*800（mm） | |||
Software interface | http、TCP、485 | |||
Application Software | SENAD DWS System | |||
Weighing mode | Dynamic weighing | |||
Temperature | -20℃-40℃ | |||
Power supply | 220V/50Hz | |||
Diagnostic method | Remote inspection / on-site inspection | |||
Speed of conveying belt | 90m/min（adjustable） | |||

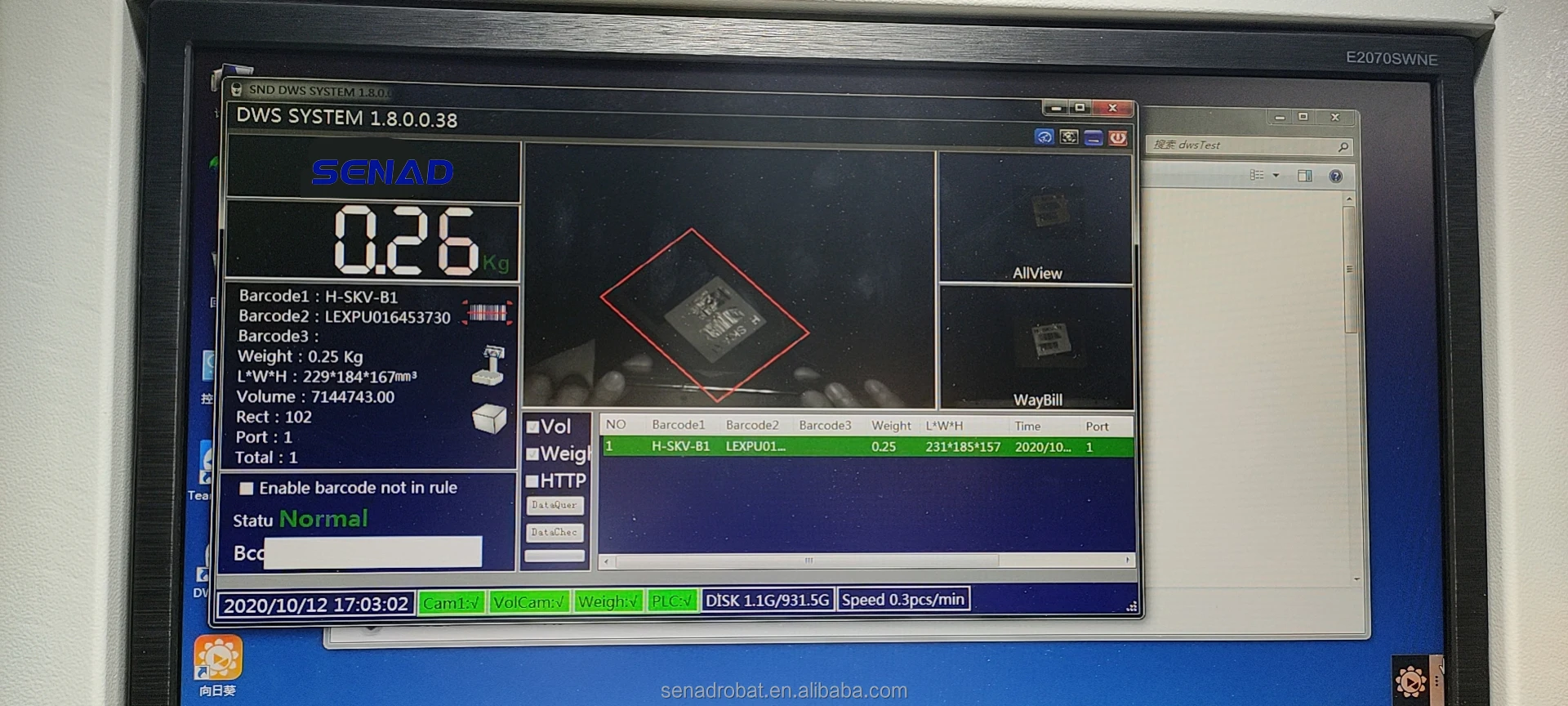

Gathering images | yes | |||
Application
Application Industries
2. E-commerce distribution center
3. The end of packing line
4. Other occasions that are with large amount of packages warehouse-in and warehouse-out

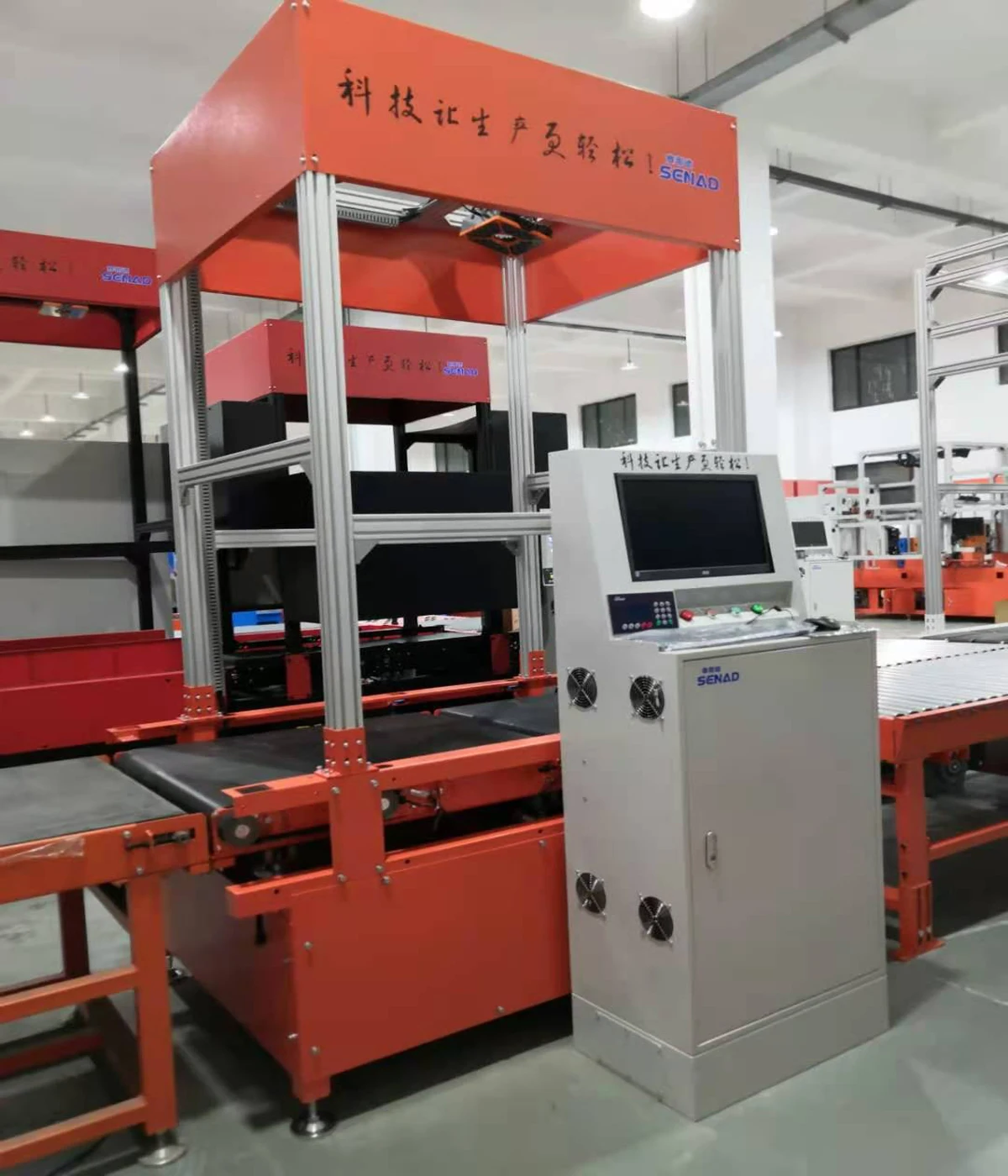

Installation on-site
OUR Service
After sale services
One year quality guarantee
Remote diagnosis support
On-site installation
On-site commissioning
