Проводная аварийная пожарная сигнализация 9-28 В постоянного тока обычная ручная точка вызова двойного
- Категория: Пожарная сигнализация >>>
- Поставщик: Shenzhen,Hobk,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.51 $* | 0.24 $* |
| Aug-20-2025 | 0.2 $* | 0.61 $* |
| Jul-20-2025 | 0.85 $* | 0.35 $* |
| Jun-20-2025 | 0.44 $* | 0.35 $* |
| May-20-2025 | 0.13 $* | 0.76 $* |
| Apr-20-2025 | 0.96 $* | 0.7 $* |
| Mar-20-2025 | 0.36 $* | 0.78 $* |
| Feb-20-2025 | 0.16 $* | 0.92 $* |
| Jan-20-2025 | 0.13 $* | 0.86 $* |
Характеристики
Product Description
Features:
● Key lock available; Dual Action

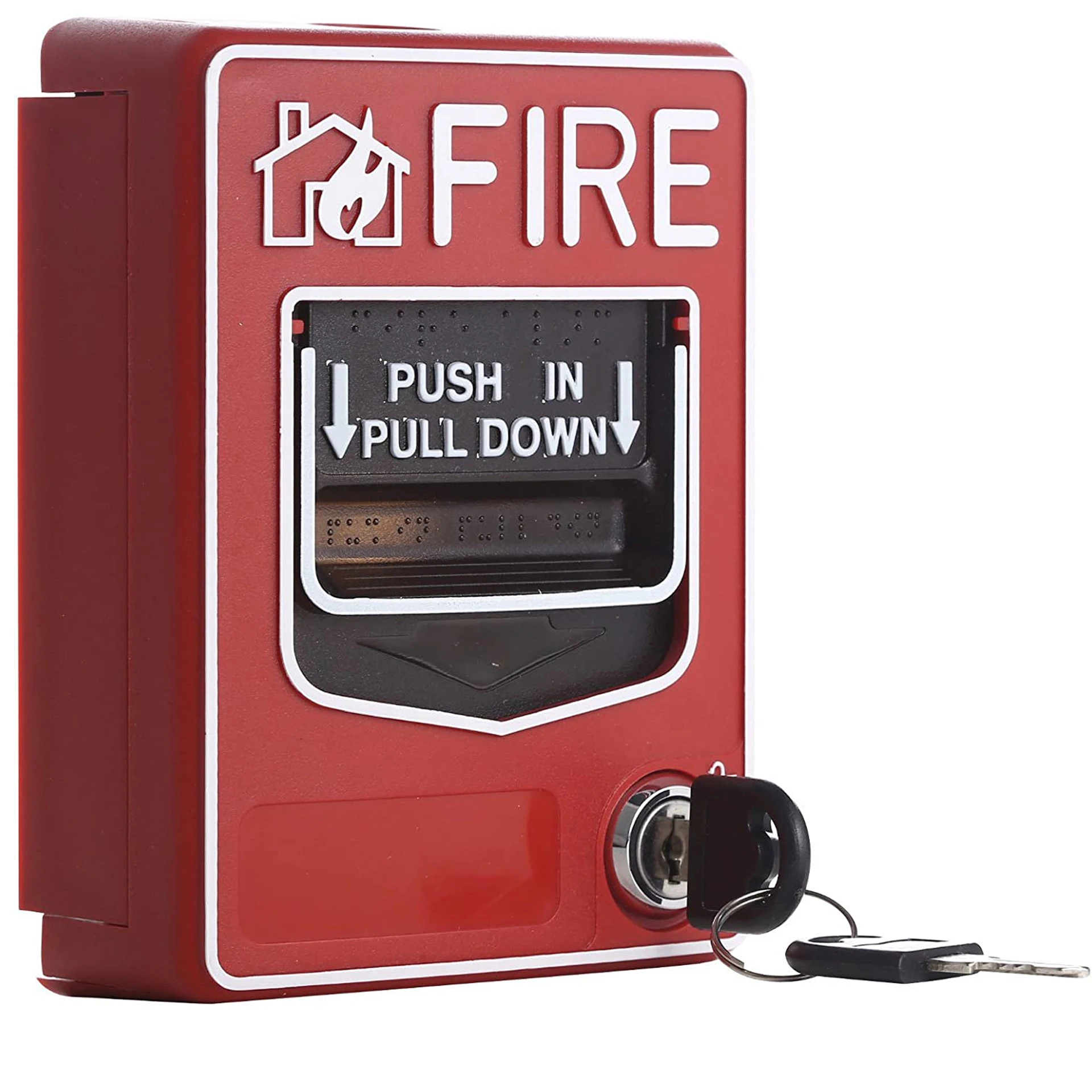

● The HC102 conventional manual call point designed for conventional fire alarm system for reporting fire or emergency
● The HC102 conventional manual call point designed for conventional fire alarm system for reporting fire or emergency
condition by its PUSH IN/PULL DOWN handle latches
● Pushing in and then pulling down on the handle activates the normally-open alarm switch. Once latched in the down position , the word" ACTIVATED" appears at the top in bright yellow, with a portion of the handle protruding at the bottom as a visible flag.
● Note: Call point can't work alone, need work with alarm control panel
● Pushing in and then pulling down on the handle activates the normally-open alarm switch. Once latched in the down position , the word" ACTIVATED" appears at the top in bright yellow, with a portion of the handle protruding at the bottom as a visible flag.
● Note: Call point can't work alone, need work with alarm control panel
● Non UL Listed
Specification
Operating voltage range | 9-28VDC Volts | ||||||
Alarm resistance | 470ohm/1W | ||||||
Operating humidity range | 10% to 93% relative humidity, non-condensing | ||||||
Operating temperature range | -10℃~50℃ (14℉~122℉) | ||||||
Dimensions (LxWxH) | 140x104x45mm / 5.51"x4.09"x1.77" | ||||||
Net Weight | 220g / 0.44lb | ||||||
Package | ● 1 x Fire alarm call point ● 2 x Keys ● 1 x English manual | ||||||

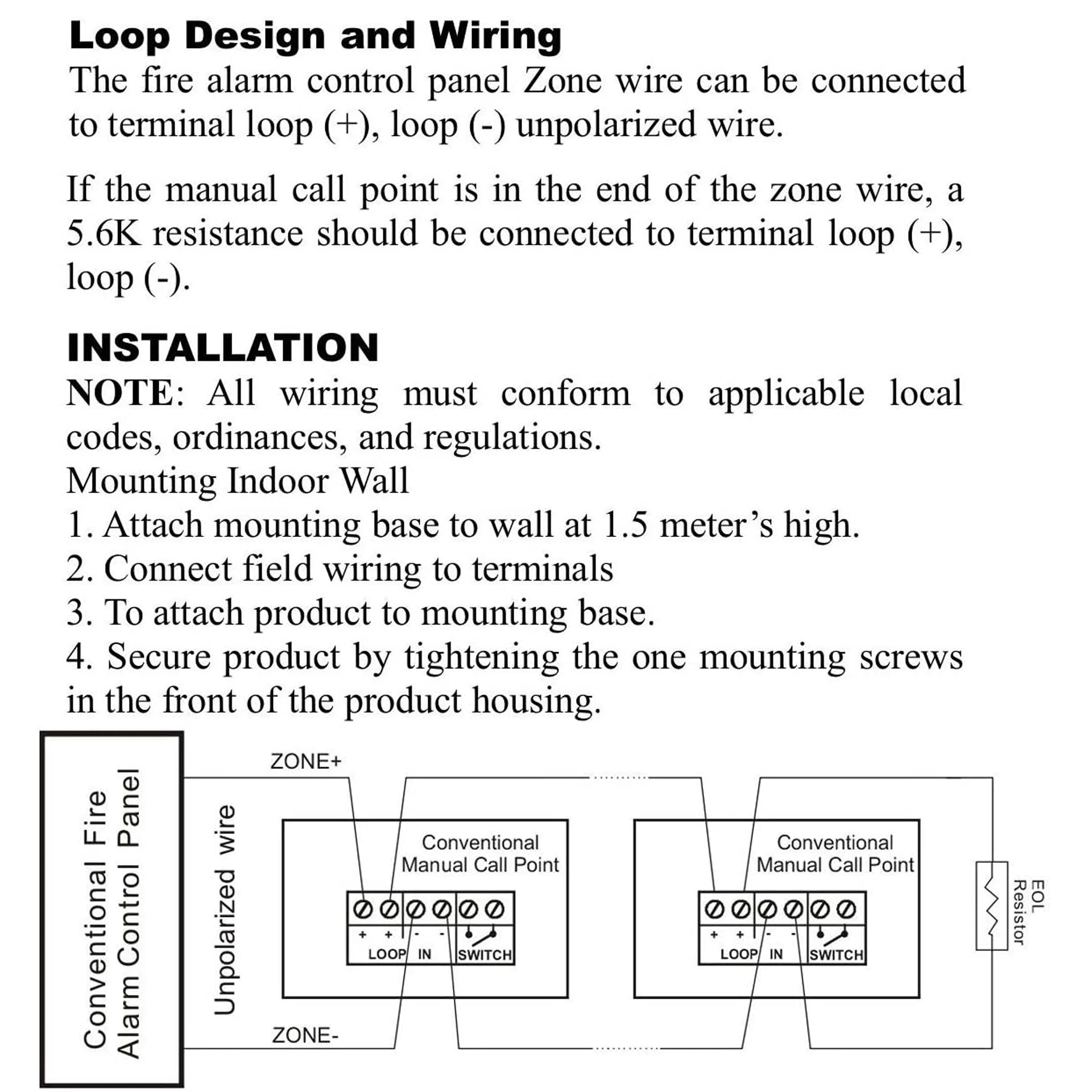

Wiring Diagram
Loop design and wiring:

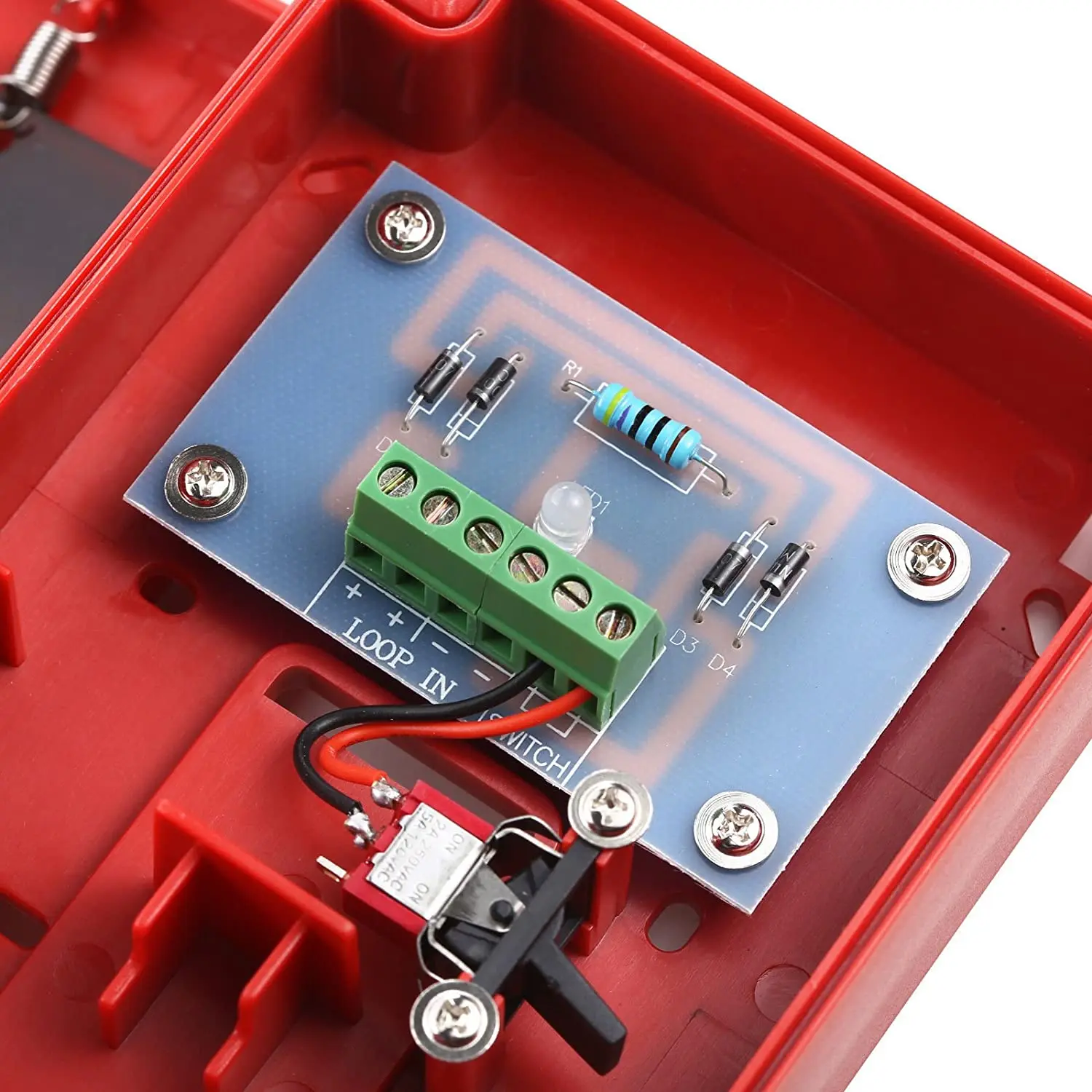

● The fire alarm control panel Zone wire can be connected to terminal loop(+), loop(-) unpolarized wire
● If the manual call point is in the end of the zone wire, a 5.6K resistance should be connected to terminal loop(+), loop(-)
● If the manual call point is in the end of the zone wire, a 5.6K resistance should be connected to terminal loop(+), loop(-)
● Attention: Alarm host not included, need buy seperately.
Installation Instructions
Operation:

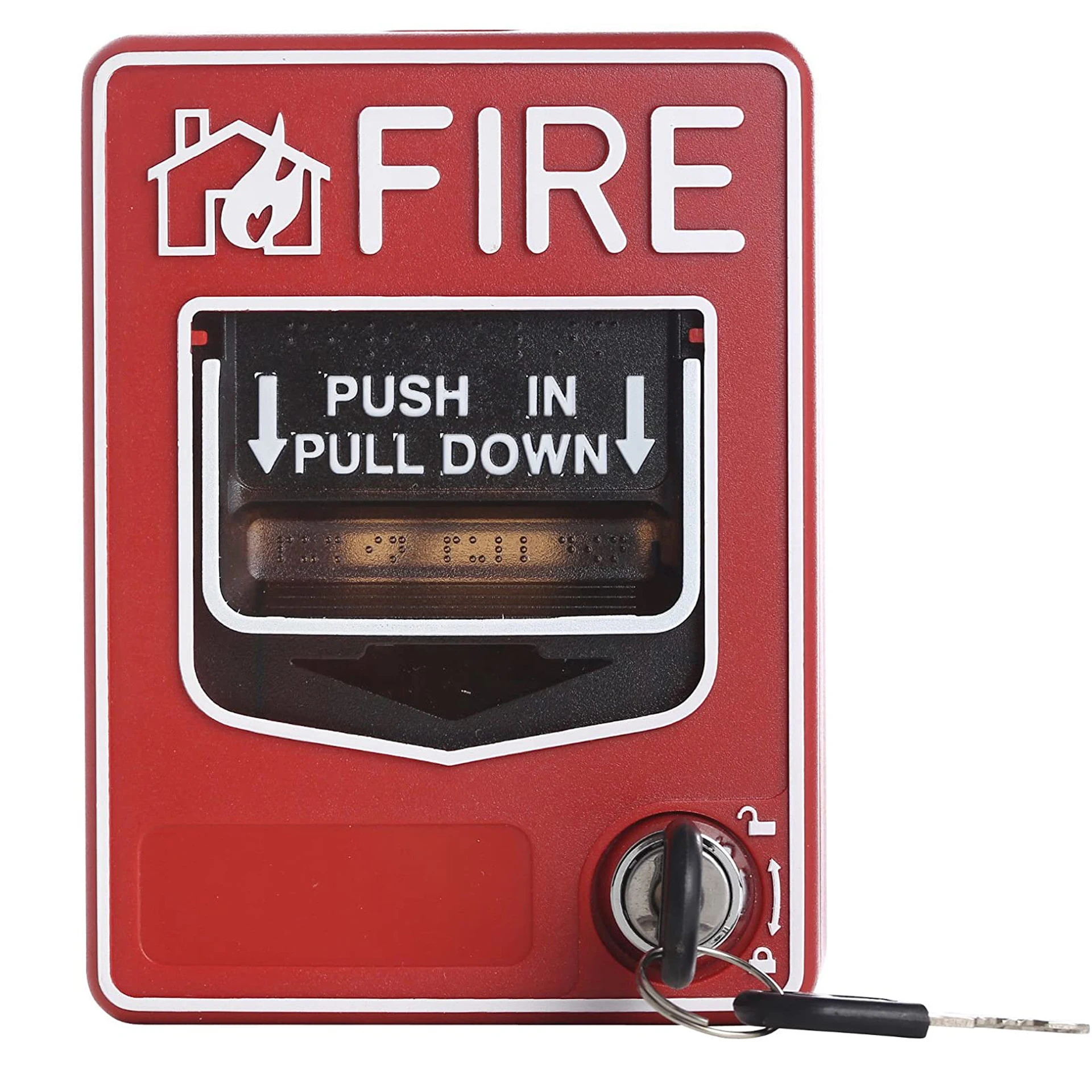

● The manual call points provide a textured finger-hold area that includes Braille text. In addition to PUSH IN and PULL DOWN text, there are arrows indicating how to operate the station, provided for non-English-speaking people.
● Pushing in and then pulling down on the handle activates the normally-open alarm switch. Once latched in the down position , the word" ACTIVATED" appears at the top in bright yellow, with a portion of the handle protruding at the bottom as a visible flag.

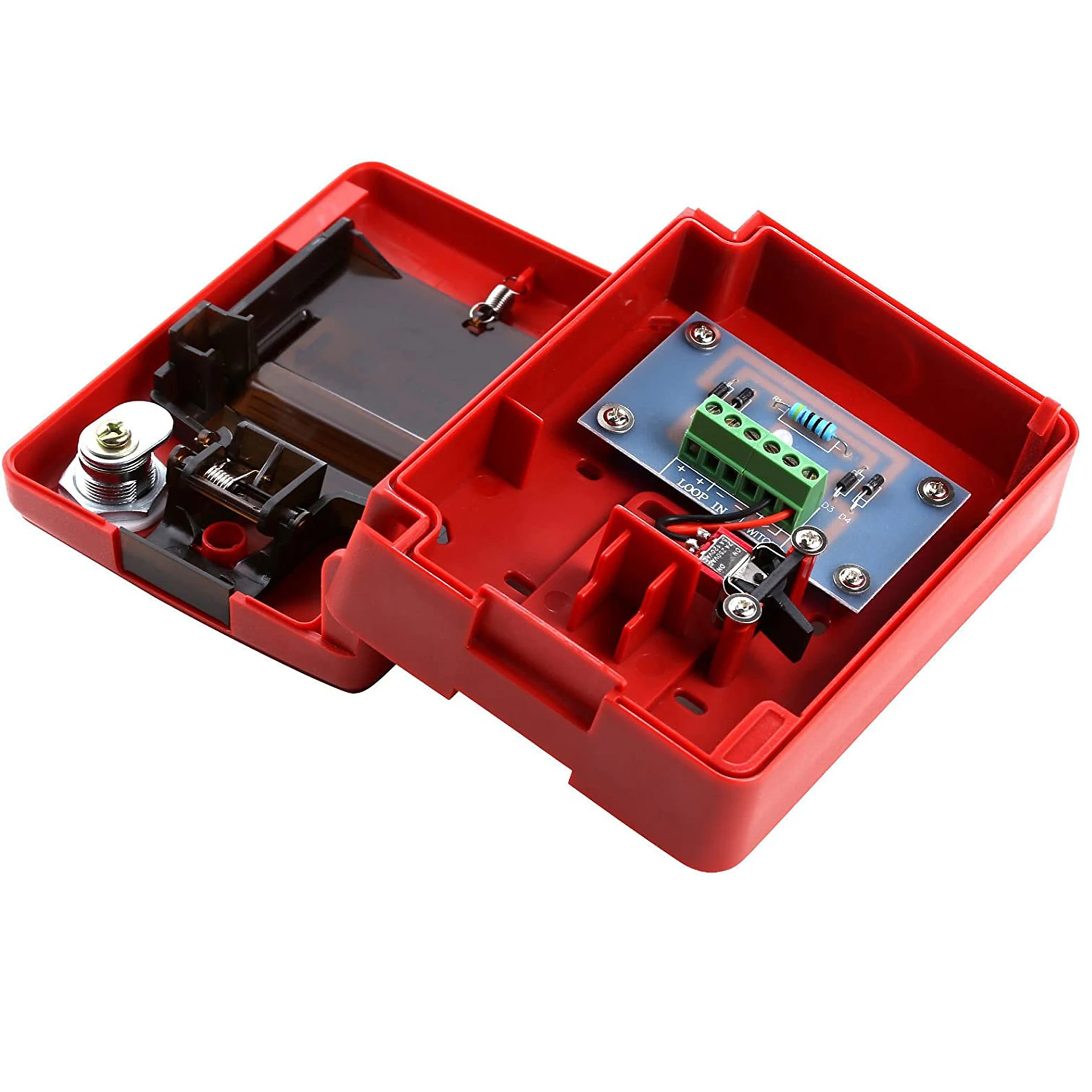

● Resetting the station is simple: insert the key, twist one quarter-turn, then open the station's front cover, causing the spring-loaded operation handle to return to its original position. The alarm switch can then be reset to its normal(non-alarm) position manually(by hand) or by closing the station's front cover, which automatically resets the switch.
● Pushing in and then pulling down on the handle activates the normally-open alarm switch. Once latched in the down position , the word" ACTIVATED" appears at the top in bright yellow, with a portion of the handle protruding at the bottom as a visible flag.
● Resetting the station is simple: insert the key, twist one quarter-turn, then open the station's front cover, causing the spring-loaded operation handle to return to its original position. The alarm switch can then be reset to its normal(non-alarm) position manually(by hand) or by closing the station's front cover, which automatically resets the switch.
