Станок для обмотки Bldc motor stack с 3 рабочими

Категория: Намоточный станок >>>
Поставщик: Dongguan,Delong,Automation,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.79 $*	0.0 $*
Aug-19-2025	0.75 $*	0.69 $*
Jul-19-2025	0.96 $*	0.23 $*
Jun-19-2025	0.95 $*	0.25 $*
May-19-2025	0.59 $*	0.12 $*
Apr-19-2025	0.42 $*	0.89 $*
Mar-19-2025	0.59 $*	0.95 $*
Feb-19-2025	0.45 $*	0.17 $*
Jan-19-2025	0.6 $*	0.0 $*

Характеристики

East

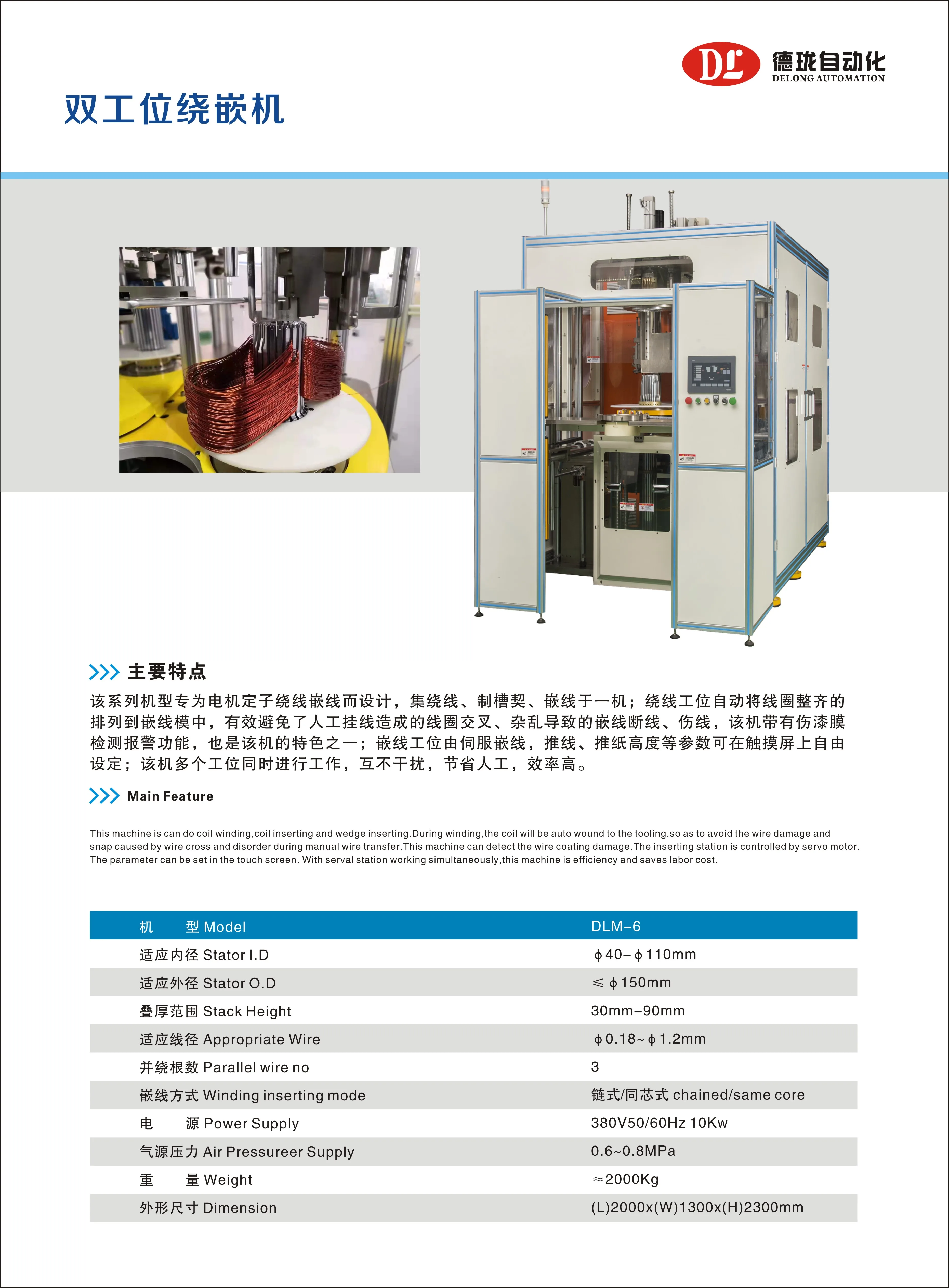

Product Description

Model	DLM-6
Stator I.D	Φ40mm~Φ110mm
Stator O.D	≤Φ150 mm
Stator Height	30~90mm
Appropriate Wire	Φ0.18~Φ1.2 MM
Parallel wire No.	3
Winding inserting mode	chained/same core
Power supply	380V 50/60Hz 10 kW
Air pressureer supply	0.6~0.8 MPa
Weight	≈4000Kg
Dimensions	(L) 2000 x (W) 1300 x (H) 2300MM

Main Feature

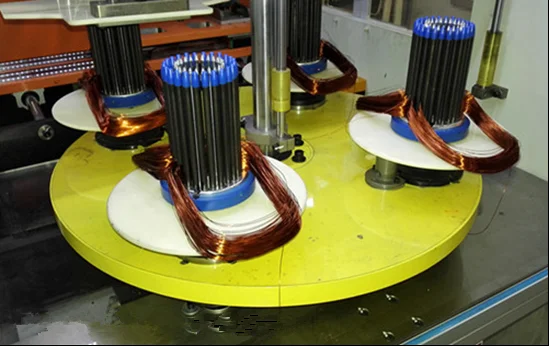

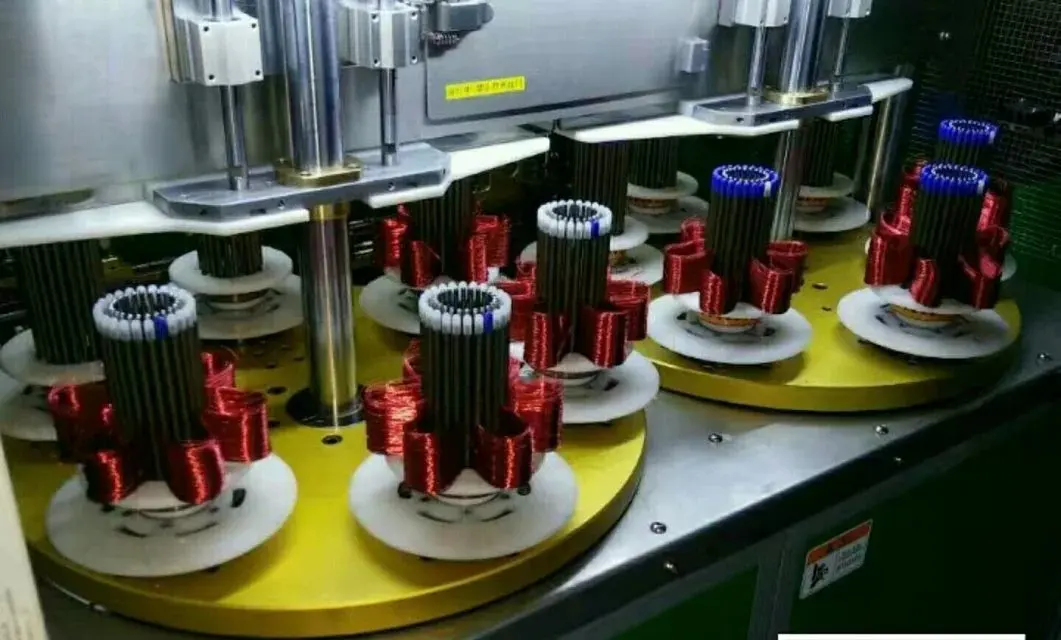

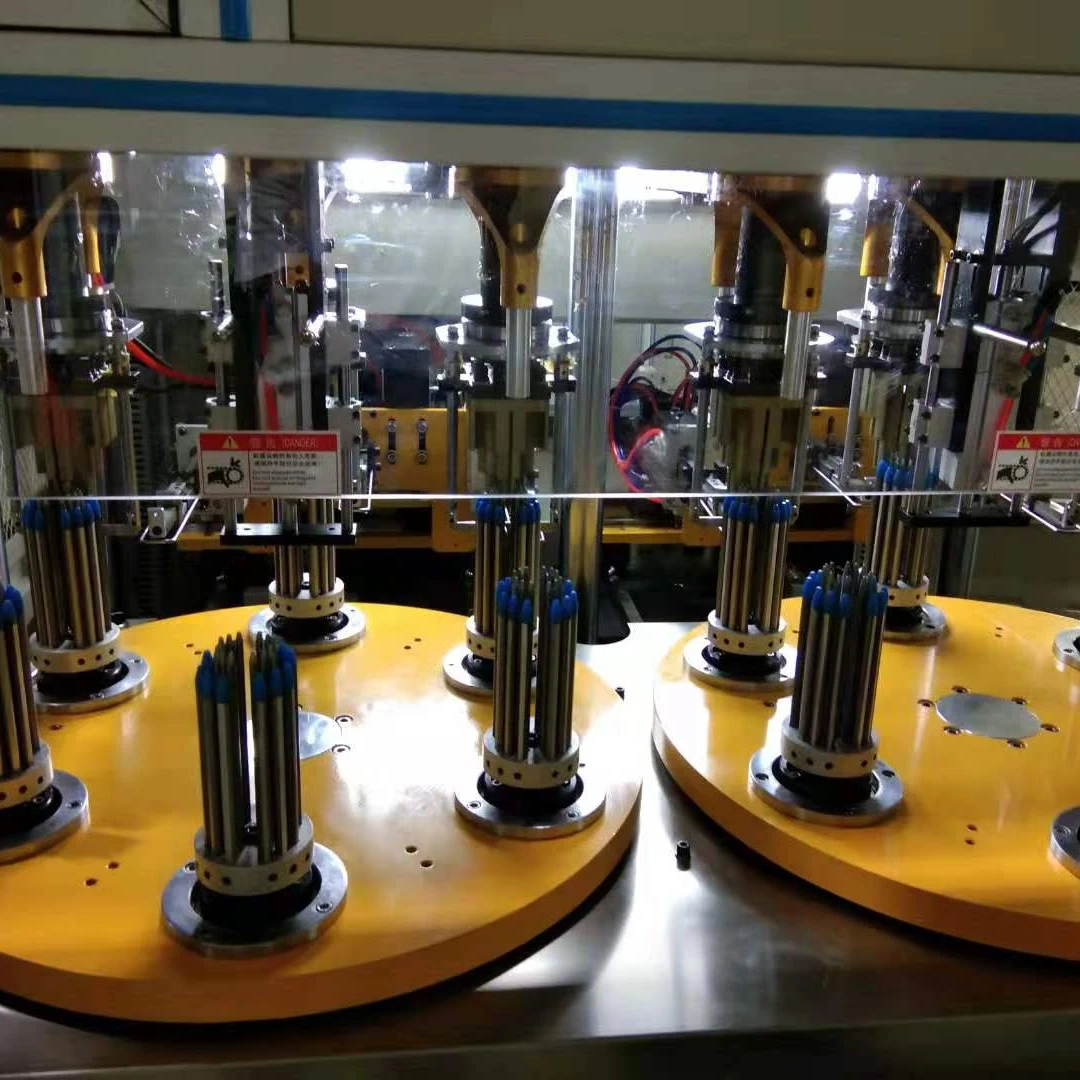

This machine is can do coil winding,coil inserting and wedge inserting.
During winding,the coil will be auto wound to the tooling,so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.

This machine can detect the wire coating damage.The inserting station is controlled by servo motor.

The parameter can be set in the touch screen.

With serval station working simultaneously,this machine is efficiency and saves labor cost.

Our Services

Customerized service

1. Customized product design and manufacturing

2. Customized tranning

3.Technical suggestions

After-sales service

Engineers available to service overseas

Company Information

Dongguan Delong Machinery Equipment Factory is located in Dongguan of Guangdong province,China. The company occupies an area of over 1,000 square meters. It was found in 1987, specializing in motor manufacturing industry characterized by friendly, stable, reliable, energy-saving and environmental operation with computerized control Know-how.With over 20 year’s experience, Dongguan Delong Machinery Equipment Factory has devoted itself in this field with professional techniques and experienced production staffs.

We have super-power capability in design, develop, and manufacture various specific machines as per customer’s requirement. Welcome to contact us if you have any interest of our machines. We are looking forward to forming successful business relationships with you in the near future.
